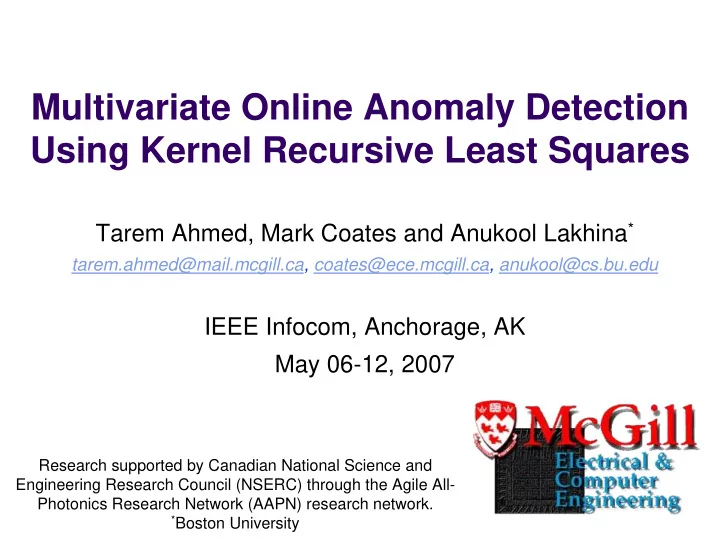

Multivariate Online Anomaly Detection Using Kernel Recursive Least Squares

Tarem Ahmed, Mark Coates and Anukool Lakhina*

tarem.ahmed@mail.mcgill.ca, coates@ece.mcgill.ca, anukool@cs.bu.edu

IEEE Infocom, Anchorage, AK May 06-12, 2007

Research supported by Canadian National Science and Engineering Research Council (NSERC) through the Agile All- Photonics Research Network (AAPN) research network.

*Boston University

Introduction

What is a network anomaly?

• Deviation from normal trend
• f some traffic characteristic
• Short-lived event
• Rare event

May be deliberate or accidental,

harmful or innocuous

• Examples: DoS, viruses,

large data transfers, equipment failures

Objective: Autonomously detect

anomalies in real-time in multivariate, network-wide data

690 710 730 2 4 6x 10

5

Timestep

• No. of packets

NYCM-CHIN link

Network Traffic Characteristics

[Lakhina 05]

Intrinsic low-dimensionality High spatial correlation Enables use of Principal

Component Analysis (PCA)

Abilene weathermap. Source: Indiana University

Existing Approach: PCA

Determine PCs of traffic flow timeseries Assign

• few highest PCs to normal subspace
• remaining PCs to residual subspace

Anomaly flagged when magnitude of projection onto

residual subspace > threshold

Online PCA:

• project new arrival onto past PCs

Problems:

• covariance structure not stationary
• too sensitive to threshold

Background: The ‘Kernel Trick’

Mapping from input space onto feature space: Kernel computes inner product of feature vectors,

without explicit knowledge of the feature vectors:

H typically much higher dimensional than Rd Many algorithms only rely on inner products in H;

hence employ kernel trick

( )

: Rd

i i

H ϕ ϕ ∈ → ∈ x x

( )

( )

( )

, ,

i j i j

k ϕ ϕ = x x x x

• Should be possible to describe region of normality

in feature space using sparse dictionary,

• Feature vector

is said to be approximately linearly independent on if [Engel 04]: (1)

• Using (1), recursively construct

such that approximately spans feature space

Background: Kernel Recursive Least Squares (KRLS)

1

2 1

min ( ) ( )

t

m t j j t a j

a δ φ φ ν

−

=

= − >

∑

x x

• Dictionary approximation

Threshold

( )

{ }

1 M j j

ϕ

=

x

• (

)

t

ϕ x

{ }

1 M j j

D

=

= x

• {

}

1 2 m

D = x x x , , . . . ,

• (

)

D φ

Kernel-based Online Anomaly Detection (KOAD): Key Idea

1 2

ν δ ν < <

2

δ ν >

Simplified 2-D depiction : distance between new sample and span of Dictionary [Engel 04],

{ }

( )

1 D φ

{ }

( )

2 D φ

t

δ

1 2

ν ν <

KOAD: The Algorithm

1. Set thresholds , 2. Evaluate current measurement 3. Process previous Orange Alarm 4. Remove any obsolete dictionary element 1

ν

2

ν

• 1. Set thresholds

,

• : upper threshold
• controls immediate flagging (Red1 Alarms) of anomalies
• : lower threshold
• determines dictionary that is built

Thresholds intertwined

• together determine dictionary, space of normality
• should be made adaptive!

1

ν

2

ν

1

ν

2

ν

At timestep t with arriving input vector xt :

• Evaluate according to (1),

compare with and where

• If

, infer xt far from normality: Red1

• If

, raise Orange, resolve l timesteps later, after “usefulness” test

• If

, infer xt close to normality: Green

• 2. Evaluate current measurement

t

δ

1

ν

2

ν

1 2

ν ν <

1 t

δ ν <

2 t

δ ν >

1 t

δ ν >

• 3. Resolving orange alarm

An Orange Alarm may represent

• a migration or expansion of

region of normality: Green

• an isolated incident: Red2

Track contribution of xt in explaining l subsequent arrivals

• kernel of

with

• perform secondary “Usefulness Test”

{ }

1 t l i i t + = +

x

t

x

• 3. The “Usefulness Test”

Define closeness threshold d Kernel of

with high close to

Most (fraction

) of l subsequent kernels high useful as a D member

{ }

1 t l i i t + = +

x

t

x

t

x

i

⇒ x

ε

t

⇒ x

• 4. Remove any obsolete D element

Test if kernel of arriving xt with any D member

remains consistently low

If so, D element obsolete, must be deleted Dropping involves dimensionality reduction Different from downdating Difficult problem KOAD also incorporates exponential forgetting

impact of past observations gradually reduced

Relationship with MVS

Region of normality should

correspond to a Minimum Volume Set (MVS)

One-Class Neighbor Machine

(OCNM) for estimating MVS proposed in [Muñoz 06]

Requires choice of sparsity

measure, g. Example: k-th nearest-neighbour distance

Identifies fraction µ inside MVS

2-D isomap of number of packets in NYCN-CHIN backbone flow Anomalous Normal

Experimental Data

Stats collected at 11

backbone routers

IP-space mapped to 121

backbone flows

Obtain timeseries of

backbone flow metrics:

• number of packets
• number of bytes
• number of individual IP flows

Abilene backbone network

Experimental Setup

KOAD

• xt = flow vector (number of packets,

bytes or individual IP flows, in each backbone flow during interval t

• Linear kernel

PCA

• 4 PCs to normal subspace

OCNM

• 2% outliers

Code, instructions on replicating our experiments [WebPage]

Abilene backbone network

Results: Comparing Algorithms

10

• 2

10

• 1

δt

KOAD 10

9

10

11

Magnitude

• f residual

PCA 10

• 1

10 Euclidean distance OCNM 500 750 1000 1250 1500 1750 2000 KOAD PCA OCNM Timestep

Results: Comparing D Elements

0.8 0.9 1 Kernel value

Normal

0.8 0.9 1 Kernel value

Obsolete

1000 1250 1500 1750 2000 0.8 0.9 1 Timestep Kernel value

Anomaly

Results: Long-lived “Anomalies”

1 2 x 10

4

Number of IP flows 850 900 950 1000 1050 1100 1150 1200 0.1 0.3 0.5

KOAD δt

Timestep

Results: PCA Missed Detections

10

4

10

5

10

6

Number of IP flows 800 1000 1200 1400 1600 1800 10 10

10

Magnitude of projection Timestep

Conclusions

Anomaly detection important problem Proposed KOAD equally effective as PCA Faster time-to-detection (min vs hrs) KOAD Complexity O(m2) generally O(m3) when dropping occurs PCA O(tR2) with R PCs

Work-In-Progress

Combinations of PCA, OCNM, KOAD Supervised learning, adaptively set parameters:

,

Distributed versions, incremental OCNM Other applications

• Traffic Incident Detection [Ahmed 07]

1

ν

2

ν
