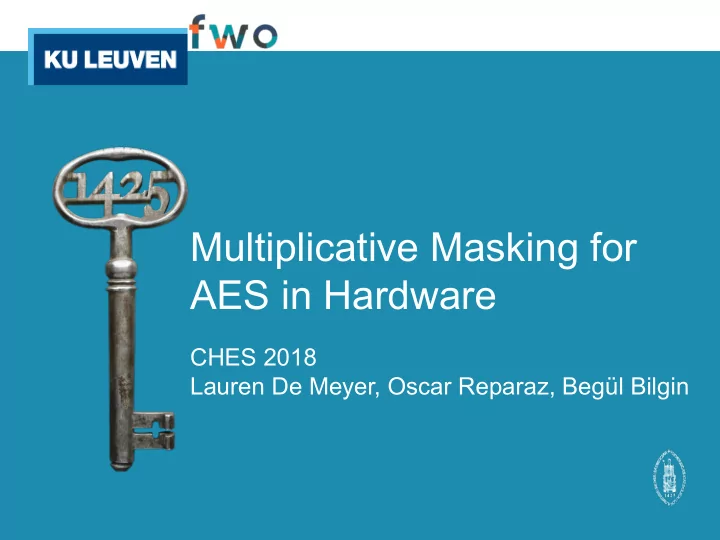

Multiplicative Masking for AES in Hardware

CHES 2018 Lauren De Meyer, Oscar Reparaz, Begül Bilgin

slide-2
SLIDE 2

PROBLEM: SIDE-CHANNEL ANALYSIS

2

slide-3
SLIDE 3

SOLUTION: MASKING

3

slide-4
SLIDE 4

EXTRA PROBLEM: GLITCHES!

4

slide-5
SLIDE 5

BOOLEAN MASKING

5

! = #$, #&, … , #( ⇔ # = *

+

#+

Tricky: Nonlinear functions

slide-6
SLIDE 6

MUSEUM OF CRYPTO ART

6

Bilgin et al. De Cnudde et al. Gross et al. Moradi et al.

slide-7
SLIDE 7

OUR RESULT:

7

  • 1st order S-box:
  • 2nd order S-box:

2348 GE 2432 GE 1685 GE De Cnudde et al. 2016 Gross et al. 2017 This Work 2018 4744 GE 4759 GE 3891 GE

0.71x 0.82x

slide-8
SLIDE 8

HOW?

slide-9
SLIDE 9

BACK TO THE BEGINNING

9

SubBytes ShiftRows MixColumns AddRoundKey

slide-10
SLIDE 10

BACK TO THE BEGINNING

10

SubBytes ShiftRows MixColumns AddRoundKey Boolean → Multiplicative Multiplicative → Boolean Akkar-Giraud 2001 Genelle et al. 2010

slide-11
SLIDE 11

PROBLEM

11

Akkar-Giraud 2001 Golić-Tymen 2002

The Zero Problem

! = #$, #&, … , #( ⇔ 0 = +

,

#, #, = 0

slide-12
SLIDE 12

SOLUTION

12

Damgård-Keller 2010 Genelle et al. 2010

! " = $1 if " = 0 if " ≠ 0 1 1

GF Inversion !(") Akkar-Giraud 2001 Golić-Tymen 2002

slide-13
SLIDE 13

MASKED GF INVERSION

13

! "

Boolean to Multiplicative Multiplicative to Boolean

Local Inversion

slide-14
SLIDE 14

MASKED GF INVERSION

14

! "

Boolean to Multiplicative Multiplicative to Boolean

Local Inversion

slide-15
SLIDE 15

FIRST-ORDER MASKED CONVERSIONS

15

!" #" #$ %$ %" !

$

#$

&

#"

&

%$

'$ '$

( ( ( (

! = # ⊕ %

% #

slide-16
SLIDE 16

FIRST-ORDER MASKED CONVERSIONS

16

!" #" #$ %$ %" !

$

#$

&

#"

&

%$

'$ '$

( ( ( (

! = #$% ⋅ (( ⊕ *)

* ( #

  • 1. Expansion
slide-17
SLIDE 17

FIRST-ORDER MASKED CONVERSIONS

17

! " #

$ = #&' ⋅ (" ⊕ !)

  • 2. Synchronization
slide-18
SLIDE 18

FIRST-ORDER MASKED CONVERSIONS

18

! "

# = "%& ⋅ !

  • 3. Compression
slide-19
SLIDE 19

FIRST-ORDER MASKED CONVERSIONS

19

! "

# = "%& ⋅ ! #%& = " ⋅ !%&

⇔

  • 3. Compression
slide-20
SLIDE 20

FIRST-ORDER MASKED CONVERSIONS

20

!"# $

% = $"# ⋅ ! %"# = $ ⋅ !"#

⇔

slide-21
SLIDE 21

FIRST-ORDER MASKED CONVERSIONS

21

! "

#$% = " ⋅ (! ⊕ *)

*

  • 1. Expansion
slide-22
SLIDE 22

FIRST-ORDER MASKED CONVERSIONS

22

! "

#$% = " ⋅ (! ⊕ *)

*

  • 2. Synchronization
slide-23
SLIDE 23

FIRST-ORDER MASKED CONVERSIONS

23

!

"#$ = ! ⊕ '

'

  • 3. Compression
slide-24
SLIDE 24

SECOND-ORDER MASKED CONVERSIONS

24

1 2 3 1 2 3 1 2 3 1 2 3

slide-25
SLIDE 25

SECOND-ORDER MASKED CONVERSIONS

25

Extra Remasking Required 1 2 3 1 2 3 1 2 3 1 2 3

slide-26
SLIDE 26

SECOND-ORDER MASKED CONVERSIONS

26

Extra Remasking Required Still only 1 inversion! 1 2 3 1 2 3 1 2 3 1 2 3

slide-27
SLIDE 27

MASKED GF INVERSION

27

! "

Boolean to Multiplicative Multiplicative to Boolean

Local Inversion

slide-28
SLIDE 28

MASKED KRONECKER DELTA

28

! "# ! "$ ! "% ! "& ! "' ! "( ! ") ! "* +(") .

/

.0 .1 .

2

.3 .4 .5

6 7 = 79 7/ 70 71 72 73 74 75

slide-29
SLIDE 29

AN INTERESTING OBSERVATION

29

Gross et al. 2016

!" = $"%" ⊕ $"%' ⊕ ( = $"% ⊕ ( !' = $'% ⊕ ( $" %" ( %' $'

× × × ×

!" !'

slide-30
SLIDE 30

MASKED KRONECKER DELTA

30

! "# ! "$ ! "% ! "& ! "' ! "( ! ") ! "* +(") .

/

.0 .1 .

2

.3 .4 .5

Independent of . Independent of .

2

slide-31
SLIDE 31

MASKED KRONECKER DELTA

31

! "# ! "$ ! "% ! "& ! "' ! "( ! ") ! "* +(") .

/

.0 .

/

.0 .1 .1 ⊕ .0 .

/

slide-32
SLIDE 32

MASKED KRONECKER DELTA

32

! "# ! "$ ! "% ! "& ! "' ! "( ! ") ! "* +(") .

/, .1, .2

.

3, .4, .5

.6, .7, .8 .

/9, . //, . /1

.6, .

//, .8 ⊕ . /1

.

/, .4, .2 ⊕ .5

.1 ⊕ .7, .

3 ⊕ . /9, . /2

slide-33
SLIDE 33

MASKED GF INVERSION

33

! "

Boolean to Multiplicative Multiplicative to Boolean

Local Inversion No registers Precompute

slide-34
SLIDE 34

RESULTS

slide-35
SLIDE 35

S-BOX AREA

35

  • 1st order:
  • 2nd order:

2348 GE 2432 GE 1685 GE De Cnudde et al. 2016 Gross et al. 2017 This Work 2018 4744 GE 4759 GE 3891 GE

0.71x 0.82x

slide-36
SLIDE 36

AES AREA

36

  • 1st order:
  • 2nd order:

7682 GE 7337 GE 6557 GE De Cnudde et al. 2016 Gross et al. 2017 This Work 2018 12640 GE 12024 GE 10931 GE

0.89x 0.91x

slide-37
SLIDE 37

RANDOMNESS PER S-BOX

37

  • 1st order:
  • 2nd order:

De Cnudde et al. 2016 Gross et al. 2017 This Work 2018 ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅ 54 ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 18 ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 19 ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 54 ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 53 ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 162

slide-38
SLIDE 38

LATENCY PER ENCRYPTION

38

De Cnudde et al. 2016 Gross et al. 2017 This Work 2018 # clock cycles 276 246 256

slide-39
SLIDE 39

TVLA: 1ST ORDER AES

39 First Order Second Order

slide-40
SLIDE 40

TVLA: 2ND ORDER AES

40 First Order Third Order

slide-41
SLIDE 41

TVLA: BIVARIATE

41

200 400 600 800 1000 200 400 600 800 1000 5 10 15 20 25 30 35 40 45 200 400 600 800 1000 200 400 600 800 1000 5 10 15 20 25 30 35 40 45

slide-42
SLIDE 42

ü Keep it Simple J ü Find inspiration in early works ü Push the limits:

ü Reuse Randomness ü Customize!

42

TAKE-AWAY

slide-43
