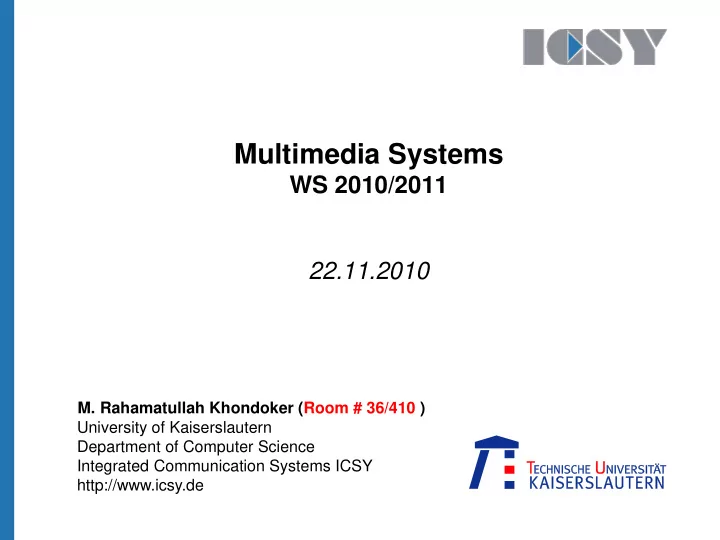

Multimedia Systems

WS 2010/2011 22.11.2010

• M. Rahamatullah Khondoker (Room # 36/410 )

2

• M. Rahamatullah Khondoker, University of Kaiserslautern

Outline

 Flow Characteristics  Techniques to improve QoS

 Scheduling

• FIFO Queuing
• Priority Queuing
• Weighted Fair Queuing

 Traffic Shaping

• Leaky Bucket
• Token Bucket

 Resource Reservation  Admission Control

Flow characteristics

4

• M. Rahamatullah Khondoker, University of Kaiserslautern

Flow Characteristics

 A data flow can be characterized by

 Reliability  Delay  Jitter  And Bandwidth

5

• M. Rahamatullah Khondoker, University of Kaiserslautern

Flow Characteristics: Reliability

 Reliability means to deliver packets without loss, duplication and error  Lack of reliability means losing a packet or acknowledgement  Different applications have different reliability needs

 Electronic mail, file transfer and internet access requires more reliability  Telephony and audio conferencing requires less reliability

6

• M. Rahamatullah Khondoker, University of Kaiserslautern

Flow Characteristics: Delay

 End-to-end delay: the time requires for a packet to travel from source to destination  Different applications have different delay needs

 Telephony, audio conferencing, video conferencing and remote login requires minimum delay  The delay of file transfer or email is not so important

7

• M. Rahamatullah Khondoker, University of Kaiserslautern

Delay

8

• M. Rahamatullah Khondoker, University of Kaiserslautern

Flow Characteristics: Jitter

 Jitter: The variations in delay for packets belonging to the same flow  Different applications have different jitter needs

 For audio and video the above scenario is not acceptable  For emails and file transfer the above scenario is acceptable

Packets Departing time Arrival time Delay (s) Packet 1 10:00 10:05 5 Packet 2 10:01 10:08 7 Packet 3 10:02 10:08 6 Packet 4 10:03 10:11 8

9

• M. Rahamatullah Khondoker, University of Kaiserslautern

Flow Characteristics: Bandwidth

 Bandwidth is the band (range) of data transfer rate  Example: 32Mbps bandwidth modem  Different application needs different bandwidths

 Video conferencing requires more bandwidth  Email requires less bandwidth

Techniques to improve QoS

11

• M. Rahamatullah Khondoker, University of Kaiserslautern

Techniques to improve QoS

 Scheduling  Traffic Shaping  Admission Control  Resource Reservation

12

• M. Rahamatullah Khondoker, University of Kaiserslautern

Techniques to improve QoS: Scheduling

 Treating different flows in a fair and appropriate manner  Scheduling techniques are

 FIFO queuing  Priority queuing  Weighted fair queuing

 FIFO Queuing

 In First-in, first out (FIFO) queue, packets wait in the buffer until the node (router or switch) is ready to process them  Packets discarded when the arrival rate is higher than the processing rate

13

• M. Rahamatullah Khondoker, University of Kaiserslautern

Techniques to improve QoS: Scheduling

 Priority queuing

 Packets are assigned to a priority class  Each priority class has its own queue  Packets in the highest priority class is processed first  Packets in the lowest priority class is processed last

14

• M. Rahamatullah Khondoker, University of Kaiserslautern

Techniques to improve QoS: Scheduling

 Weighted Fair Queuing

 Packets are assigned to a priority class  Each priority class has its own queue  Queues are weighted based on the priority of the queues  Higher priority means higher weight  System processes the queue in a round robin fashion  Number of packets selected from each queue based on corresponding weight

Techniques to improve QoS: Traffic Shaping

16

• M. Rahamatullah Khondoker, University of Kaiserslautern

Techniques to improve QoS: Traffic Shaping

 Leaky Bucket (Shaping):  Drop the packet if the bucket is full  Token Bucket (Policing):  Allows bursty traffic at a regulated maximum rate

17

• M. Rahamatullah Khondoker, University of Kaiserslautern

Techniques to improve QoS: Others

 Resource Reservation

 A flow of data needs resources (buffer, bandwidth, CPU time, etc)  These resources are reserved in beforehand

 Admission Control

 Accepts or rejects packets of a flow based on flow specifications  Used by routers or switches  Flow specification specifies the necessary bandwidth, buffer size, CPU speed etc.

Thanks for your attention Any questions, comments or concerns?
