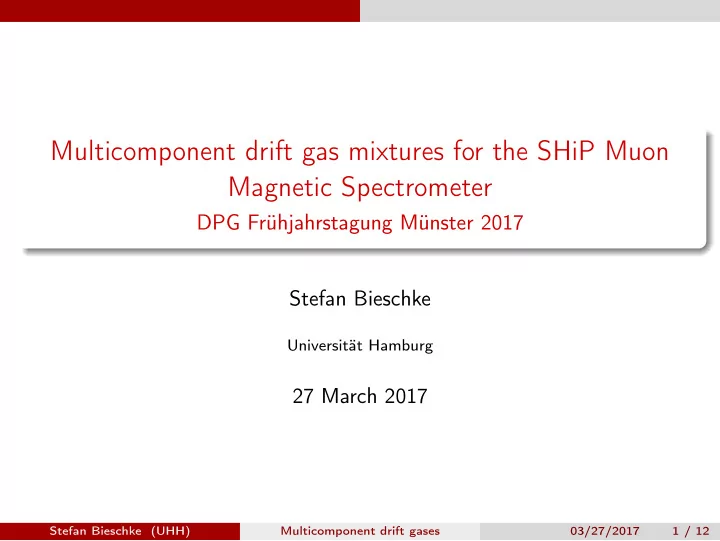

Multicomponent drift gas mixtures for the SHiP Muon Magnetic Spectrometer

DPG Frühjahrstagung Münster 2017 Stefan Bieschke

Universität Hamburg

27 March 2017

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 1 / 12

Content

1

The SHiP experiment

2

Experimental setup

3

FADC data

4

Drift time spectra

5

rt-relations

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 2 / 12

The SHiP experiment Detector overview

SHiP experiment

Figure: SHiP detector layout [1]

Proposed beam dump experiment (SPS beam) Search for Hidden Particles

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 3 / 12

Experimental setup Lab setup

Test setup

Figure: Photo of the experimental setup

shortened tube from OPERA mass production

L = 30 cm r ≈ 1.8 cm

gas at atmospheric pressure FADC readout goal Find a drift gas mixture that is fast and has a more linear rt-relation

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 4 / 12

FADC data Overview

Raw FADC data

Event #5 Entries 423 Mean 2824 − Std Dev 4365 time [ns] 500 1000 1500 2000 2500 3000 voltage [V] 0.8 − 0.6 − 0.4 − 0.2 − Event #5 Entries 423 Mean 2824 − Std Dev 4365

FADC data

Figure: Voltage pulse for Ar:CO2 80:20

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 5 / 12

FADC data Overview

Raw FADC data

pulse end time threshold voltage trigger position drift time voltage offset due to amplifier

Figure: Voltage pulse for Ar:CO2 80:20

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 5 / 12

Drift time spectra Ar:CO2 80:20

OPERA gas mixture

Drifttime spectrum Entries 17069 Underflow 1064 drift time [ns] 200 400 600 800 1000 1200 1400 1600 1800 2000 # counts 100 200 300 400 500 Drifttime spectrum Entries 17069 Underflow 1064

Drift time spectrum Ar:CO2 80:20 (2300V)

Figure: Drift time spectrum for Ar:CO2 80:20

Reproduction of known results from OPERA with FADC readout Maximum drift time around 1.5 µs Edge effects present for all gases, remain comparable

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 6 / 12

Drift time spectra Comparison

Drift time spectra overlay

drift time [ns] 200 400 600 800 1000 1200 1400 1600 # counts (normalized to 1) 0.005 0.01 0.015 0.02 0.025 0.03

Mixtures Ar:CO2 80:20 Ar:CO2:N2 96:3:1

Drift time spectra

Figure: Normalized drift time spectra

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 7 / 12

rt-relations Differences

rt-relations for Ar:CO2 80:20 and Ar:CO2:N2 96:3:1

drift time [ns] 200 400 600 800 1000 1200 1400 1600 drift radius [mm] 2 4 6 8 10 12 14 16 18

Mixtures Ar:CO2 80:20 Ar:CO2:N2 96:3:1 rt relations

Figure: overlay of the rt-relations

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 8 / 12

rt-relations Differences

Ar:CO2:N2 96:3:1 pulse shape

Event #6 Entries 800 Mean

• 7259

RMS 8453 time [ns] 500 1000 1500 2000 2500 3000 voltage [V]

• 1.4
• 1.2
• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 Event #6 Entries 800 Mean

• 7259

RMS 8453

FADC data

Figure: Voltage pulse for Ar:CO2:N2 96:3:1

signals of individual pulses overlap ⇒ possible to determine time of pulse end

correlated with time of particle transition

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 9 / 12

rt-relations Differences

Summary and outlook

Summary reduction of maximum drift time of about 40% significantly more linear rt-relation Outlook spatial resolution dependence on high voltage

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 10 / 12

rt-relations Differences

Thanks

Thank you for attending

Stefan Bieschke (UHH) Multicomponent drift gases 03/27/2017 11 / 12

rt-relations Differences

Bibliography

SHiP Collaboration. A facility to Search for Hidden Particles (SHiP) at the CERN SPS. Technical proposal, CERN, April 2015. arXiv:1504.04956v1.
