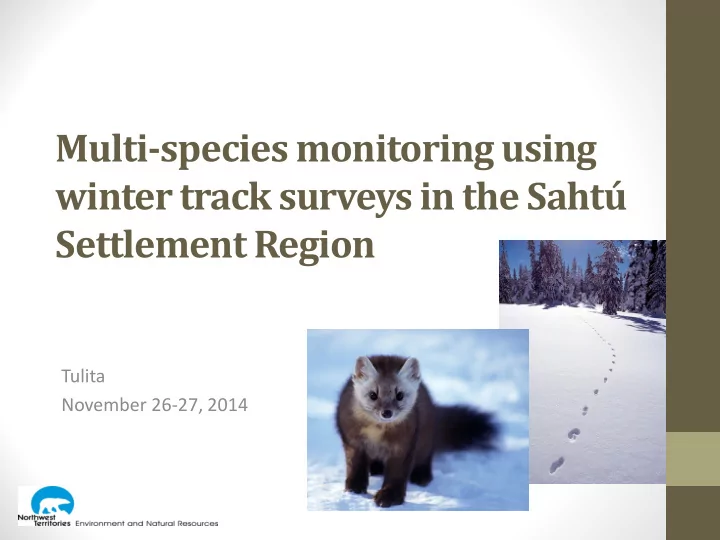

Multi-species monitoring using winter track surveys in the Sahtú Settlement Region

Tulita November 26-27, 2014

Day 1 - Agenda

• Introductions
• Overview of CIMP funding proposal
• Discussion of objectives, questions and hypotheses
• Overview of existing snow track monitoring programs
• What types of information should we record?
• Who should conduct the surveys? Who should

coordinate?

• Identification of survey routes for a pilot program

2

CIMP funding proposal

• CIMP = Cumulative Impact Monitoring Program
• Used to be managed by the federal government, now part of GNWT

Environment and Natural Resources (ENR)

• Coordinates, conducts and funds the collection, analysis and

reporting of information related to environmental conditions in the NWT

• NWT CIMP supports research and monitoring activities that address

the cumulative impacts of human activities on the environment.

• 2014-15 Priority Valued Components of CIMP are:
• Water quality and quantity;
• Fish and fish habitat; and
• Caribou

3

CIMP funding proposal

Why did we apply?

• Concerns about cumulative effects
• Monitoring programs lacking for many wildlife species
• Need broad scale monitoring
• Collaborative – Communities / Industry / Government
• Standardization so data can be pooled

4

(Image: ConocoPhillips)

(Image: Husky Ltd.)

Why survey winter tracks?

• Many different species can be recorded in a single

survey

• Can be surveyed on foot or by snow mobile
• Non-invasive (no capture or handling of wildlife)
• Can collect pellet / scat / hair samples when they are

encountered – contribute to genetic studies

• Relatively large areas can be surveyed at low cost
• Harvesters have expertise in identification of tracks

and other signs left by wildlife

• Existing programs from other provinces that can be

used to develop standard methodology

5

Multi-species monitoring using winter track surveys in the Sahtú Settlement Region

• Objectives:
• Establish a long-term collaborative standardized

monitoring program that involves communities, industry and government

• Contribute to monitoring boreal caribou population

trend

• Collect data on distribution and relative abundance of

multiple species

• Assess cumulative effects of natural and human

disturbance on boreal caribou and other wildlife species

6

CIMP Caribou Blueprint

• CIMP monitoring and research gap priorities for boreal caribou:
• Establish a comprehensive regionally-based cumulative effects

monitoring for boreal caribou population trends and those human and natural factors that affect them

• Calculate and track landscape metrics in the boreal caribou range
• Determine when disturbed habitat (human or natural) becomes

functional again for boreal caribou

• Determine the impact of the following human and natural factors on

boreal caribou demographics and/or habitat:

• Fire
• Predation
• Alternative Prey
• Range condition – habitat quality and/or quantity
• Developmental footprint – physical and functional habitat loss

7

CIMP funding proposal – winter track surveys

• Applied for multi-year (3 yr) funding in January 2014
• Secured $59,235 in CIMP funding for the 1st year
• Additional $20,000 in ENR funding
• Funding for years 2-3 not guaranteed
• Partners: GNWT-ENR, SRRB, RRCs, ConocoPhillips, Husky,

Explor, MGM

8

Program design

9

• Conduct surveys by snow

mobile along seismic lines and trails

• Take geo-referenced pictures
• f wildlife tracks and sign

encountered

ABMI/Fiera

Banff Snow Track Monitoring Program

10

• Landscape divided up into cells
• Track surveys conducted by ski

along existing trails

• Presence or absence of wildlife
• n trail segments
• Predict number of cells where

present

Whittington et al. 2014 Whittington and Heuer 2012

11

12

13

14

15

What can we measure using track surveys?

• Relative abundance – number of tracks per km surveyed

16

10 3 2 6 8 5 1 10 4 3 7

What can we measure using track surveys?

• Distribution
• Presence or absence of a species in a given area
• Can be used to estimate occupancy or probability of use of an

area

17

Northern Rockies Conservation Cooperative

Relationship between occurrence or relative abundance of wildlife species and landscape characteristics

18

Program structure

19

Community Monitors Community monitoring coordinator Program coordination

GNWT-ENR + SRRB Tulita

1 2

Norman Wells

1 2

Deline

1 2

Fort Good Hope

1 2

Colville Lake

1 2

Why is standardization of methods important?

• Many factors can contribute to variation in monitoring results
• We want to control as many sources of variation due to

sampling methods as possible

• If everyone uses the same methods and follows the same

protocols:

• Data from different observers, locations or years can be pooled

together

• We combine data to scale up from local areas to a regional level
• There are many methods that have been tested and refined

that we can use in the Sahtu

• Pilot studies are required to determine sources of variation

and sampling effort required to detect changes of interest

20

Why is replication important?

• Long-term - Repeating surveys of the same areas/routes year after

year allows us to assess whether there are changes in presence and abundance over time

• Temporal replication within years - Repeating surveys of the same

route more than once per winter allows us to assess whether a species was present in the area but we just missed it:

• 2 surveys = 3 possibilities
• Present and detected – 1 1
• Present but not detected the first/second time – 1 0 or 0 1
• Not present – 0 0
• Spatial replication –
• surveying a wider area (more grid cells) provides more data and

more confidence in detected trends

• sub-dividing survey routes into smaller segments, and looking at

detection on each segment improves precision for estimates of detection probability and occupancy

21

Program development

Year 1

• Determine objectives and survey protocols (this workshop)
• Conduct pilot tests
• Refine survey protocols and develop study design and methods

manual Year 2-3 and beyond

• Expand program to all 5 Sahtu communities
• Encourage industry participation
• Secure longer-term funding
• Repeat annual surveys
• Produce annual and multi-year reports
• Use results to inform decisions about wildlife and habitat

management, land use planning, environmental assessment, cumulative effects management and assessment

22

Deliverables for Year 1

• Community workshop to define monitoring objectives, survey

design, survey methods, and survey route identification

• Pilot tests of field protocols
• Technical report detailing survey design, power analysis,

methodology, logistics, costs, annual budget, and deliverables

• Plain-language summary of study design, field protocol

manual and track identification guide for monitors

23

Program budget

• Year 1 – Use of CIMP Funds:

24 Activity Budget Community workshop for program design $17,000 Pilot tests (field trials) $22,000 Technical report - survey design, power analysis, methodology, logistics, costs, annual budget, and deliverables $10,000 Plain-language summary of draft study design, field protocol manual and track identification guide $10,000 Total $59,000

• Additional $20K in funding from ENR

Program budget

• Year 2/3 – Use of CIMP funds:
• Up to $180,000 in additional funding might be required for a full

program:

• 5 communities: 2 monitors + 1 monitoring coordinator per

community; 10 survey days conducted by each monitor

• 2 oil and gas companies: 2 monitors per company, 10 survey days per

monitor

• ENR to do surveys in areas of the landscape where there are gaps

25 Activity Budget Pre-field season community meeting and training sessions – 5 communities $20,000 Field season – surveys + coordination $30,000 Fall results workshop – held in one community, rotating basis $10,000 Total $60,000

Objectives

What do we want to achieve through this program?

• Monitor changes in abundance and distribution of

multiple wildlife species

• Evaluate relationship between wildlife abundance and

distribution and landscape disturbance (fire + human)

• Assess relation between predator and prey distribution
• Others??

26

Questions

What questions do we want to answer with the data?

• Is the abundance of certain wildlife species changing
• ver time?
• Is the distribution of wildlife species changing over time?
• Are these changes related to changes in the landscape or

habitat?

• Are there wildlife species that are commonly found

together or more commonly found in one habitat type versus another?

• Others??

27

Hypotheses

What kind of changes or patterns do we think are already

• ccurring? What do we think explains these patterns?

Examples

• Caribou will avoid areas with lots of seismic lines
• The abundance of wolves is increasing
• Wildlife are moving away from areas with development

activity

• Others??

28

Examples of other snow track monitoring programs

• Alberta Biodiversity Monitoring Institute
• Explor
• Husky
• Conoco
• Enbridge

29

Alberta Biodiversity Monitoring Institute (ABMI)

• Province divided into 1656

evenly spaced monitoring sites

• Visit 330 sites each year
• Entire province surveyed once

every five years

• Monitors
• 2000 species
• 200 habitat elements
• 40 human footprint variables

Cumulative effects monitoring program targeted at “detecting the ecological effects of a diverse set of environmental stresses on broad suites of indicators”

http://www.abmi.ca/abmi/home/home.jsp 30

ABMI – Winter track surveys

• Program running for 10 years
• 10 km transects surveyed by

snowmobile or foot

• 3 to 6 days since last snow fall > 1 cm
• r wind >30 km/hr
• Transect divided into segments 250 m

long

• Photos of tracks for specific species or

when ID is uncertain

• Print
• Series of prints
• Track

31

ABMI – Winter track surveys

• Travel the transect first to make sure it

is passable, then work backwards

• At start – Air temp, snow depth, cloud

cover, snow conditions (powder, wet, crust)

• Travel at ~10 km/hr
• Species recorded if tracks come within

1 m of the transect

• Animals seen or

heard

• Record habitat type

32

33

Explor

• Surveyed ~1600 km of seismic lines in winter 2012 by snow

mobile

• Used GPS equipped with cameras to take photos of all tracks

encountered

• Record a track log of the survey route
• >2,500 photographs representing 531 individual track

encounters

34

Husky and ConocoPhillips

• Husky
• 40 – 1 km long winter track transects
• Surveys conducted over two winters
• 40 trail cameras
• ConocoPhillips
• 41 – 1 km long winter track transects
• 41 surveyed in winter 2013
• 10 re-surveyed in winter 2014
• Minimum 24 hours after last snow fall
• Snow depth and hardness measured every 250 m

35

What types of information should we record?

• Snowshoe hare
• Red squirrel
• Mouse/vole
• Muskrat
• Beaver
• Porcupine
• Weasel / Ermine
• Marten
• River Otter
• Mink
• Wolverine
• Lynx
• Red Fox
• Coyote
• Wolf
• Caribou
• Moose
• Muskox
• Dall’s Sheep
• Ptarmigan
• Grouse

36

What species are we likely to see?

What types of information should we record?

• Should we record tracks of all species?
• There will be a trade-off between recording all species

and being able to cover a large area each day

• What should we do about snowshoe hare?

Track encounter rates recorded by Husky in EL 462/463:

37 Species Mean # tracks/km/day Max # tracks/km Snowshoe hare 10.32 56.73 Lynx 0.32 3.53 Marten 0.52 2.03 Wolverine 0.02 1 Moose 0.23 1.53 Caribou 0.04

What types of information should we record?

• Information to record about tracks:
• Species
• Number of individuals:
• Single track from 1 individual
• >1 individual
• Trail – multiple individuals travelling the same path,

exact number of animals hard to determine

• Cratering
• Bedding
• Crosses survey route, runs along route (take start and

end point?)

• Behaviour – walking, running, hunting, others?

38

What types of information should we record?

• What if we are uncertain about the type of

animal that left the track?

• Rate your level of certainty (low/med/high)
• Photos of each track provides a back-up
• Take track measurements - ABMI has some

excellent resources about this! (http://fieraconsulting.ca/?p=307)

39

What types of information should we record?

• Other types of animal signs that we could

record:

• Direct sightings (the animal is actually seen)
• Scats / pellets / hair / feathers
• Browsing / feeding
• Antler rub
• Den
• Nest
• Beaver lodge / muskrat push-up
• Kill site

40

What types of information should we record?

• What information should we record about the

weather and snow?

• Temperature
• Wind speed (don’t want to survey when it’s

too windy, covers the tracks)

• Snow depth
• Snow texture (powder, wet or hard crust)
• Can we automatically get data about the

weather from nearby weather stations?

41

What types of information should we record?

• Do we want to know something about the habitat where

we see different tracks?

• Vegetation type – Conifer, deciduous, mixedwood,
• pen/barren, wetland
• Topographic feature – stream, lake, river valley, other?
• Natural disturbances – forest fire
• Human settlements – cabins
• Human development – roads, well site, other?

42

What types of information should we record?

• Do we need to take a picture of every track?
• Pros – we can double check species identification later,

provides a visual library for training new monitors, quality control

• Cons – might be more time consuming, especially for

easily identifiable species

• Incidental collection of pellets / scat / hair to contribute

to DNA studies – would need to carry kits

• Audio or video recordings – an easier way to take

additional notes about observations?

• Are there other types of information we might want to

record?

43

What a survey might look like

44 End Start

• Record date, time,

route #, waypoint

• Weather + Snow
• Start GPS track log
• Record species
• Track Type
• Confidence in ID
• Track

measurements

• Habitat
• Photo
• Audio/Video (if

necessary)

• Time,

waypoint

• Weather
• End GPS track

log

Who should participate?

• Monitors
• On-call – must be available to go out and do surveys when conditions

are right

• Record the data and make sure it is transferred to monitoring

coordinator at the end of each survey

• Access to a snow mobile
• Monitoring coordinator
• Ensures monitors are notified when snow conditions are good
• Knows where monitors are going and when they should be back

(safety)

• Responsible for ensuring data is transferred at the end of the day
• Liaison between monitors and program coordinators (SRRB/ENR)
• Provides assistance to monitors and other interested in displaying

the data on maps (e.g. Google Earth)

• Oversees monitoring equipment

45

Selection of survey routes

• Things to consider when selecting survey routes:
• At least 10 km long in each 100 km2 cell
• A loop that starts and ends at town would be most efficient
• Not too much human traffic (don’t want people running over

tracks)

• Not too much vegetation re-growth
• Avoid steep/hazardous areas if possible
• Maximize diversity of habitat types surveyed
• Sample a range of areas with more or less disturbance
• Sample a range of fire ages

46

Day 2 - Agenda

• Thoughts / comments about Day 1?
• Data collection tools
• Presentation from Trailmark Systems
• Presentation from Bindu Panikar
• Discussion of pros/cons of different tools
• Logistical and safety conisderations
• Program budget and compensation for community

monitors

• Data management, storage, sharing and reporting
• Next steps, decisions, timing/logistics for pilot tests
• Closing thoughts

47

Data collection tools

• Notebooks, pencil, GPS, digital camera - ~$500-800
• Take a picture
• Take a GPS point
• Write down the picture file number and GPS point label in the

notebook

• Write down additional notes on species, habitat, etc.
• GPS records survey route track, start time, end time, date; can

include base maps for navigation

48

Data collection tools

• GPS w/ integrated digital camera - ~$600/unit
• Takes geo-referenced photos
• Label each photo with species/number code
• Can record survey route track and waypoints, can include base maps
• Would probably need notebook and pencil to record other info

49

Data collection tools

• Digital camera with integrated GPS - ~$250-500
• Takes geo-referenced photos, and record track log (?)
• Would need notebook and pencil to record photo number and

associated it with species and other info

• Might still want a GPS for navigation
• Would allow for better quality photos

50

Data collection tools

• Smartphones ~ $500-800
• Most models equipped with GPS now
• Can take geo-referenced photos
• May be able to use for navigation (might still want a GPS)
• Can develop a custom App for data entry
• Issues with operation when it’s very cold??
• May provide all functions needed in one unit

51

Data collection tools

• Rugged Handheld Computers - ~$2500/unit
• GPS, camera, touchscreen, runs Windows
• Can develop a custom App for data collection
• Built for field work (more durable)
• May provide all functions needed in one unit

52

Trailmark Systems Inc.

1

Arctic Biomap Project

Bindu Panikkar

54

Pros / cons of different tools

Tool Cost Portability Ease of Use Reliability Durability Notebook, camera + GPS GPS w/ integrated camera Camera w/ integrated GPS Smartphone Rugged Handheld Computer 55

Logistical and safety considerations

• How much distance can be covered in a day?
• Access to reliable snow mobiles?
• Is it easy to buy gas when needed?
• Need back up survey routes
• Work in pairs with 2 snow mobiles?
• SPOT units and Satellite phones?
• First aid kits and survival supplies?
• Tool kits?
• First aid and safety training?

56

Revised Budget – Year 1

57 Activity CIMP ENR Total Community workshop for program design $6,000 $4,000 $10,000 Pilot tests (field trials) $15,000 $10,000 $25,000 Equipment + data management $15,000 $15,000 Technical report - survey design, power analysis, methodology, logistics, costs, annual budget, and deliverables $10,000 $10,000 Plain-language summary of draft study design, field protocol manual and track identification guide $10,000 $10,000 Sahtu Results Workshop $5,000 $5,000 Other (e.g. Admin fees) $3,000 $1,000 $4,000 Total $59,000 $20,000 $79,000

Compensation for community monitors

• Pilot Study:
• $200/day per monitor + $150/day for gas + snow

mobile maintenance

• Aim for a total of 10 survey days this winter
• Work with 2 teams of 2 people – 10 survey days per

team

58

Data management, storage, sharing and reporting

• Where should data be stored?
• Who should have access to the data?
• Are there types of information that should remain

confidential?

• How, when, where, how often should it be reported?

59

Decisions, next steps, field trials

Decisions

• What data collection tools do we want to try?
• Do we want to try out Trailmark Systems? (~$10,000)
• Lease 2 rugged field notebooks (6 month minimum)
• Set up data base and data collection App
• Training
• Who would like to participate in the field trials?
• What dates should they occur (Feb/March)?

Next Steps

• Write up a draft data collection protocol
• Work on data collection App
• Plan field trials

60

Thank You!

61
