Mu Multi tiplexing

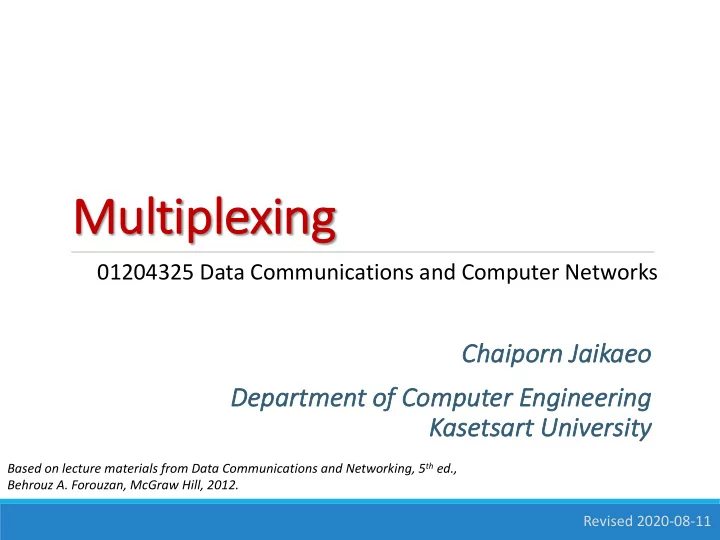

Chaipo Chaiporn J n Jaik aikae aeo De Department of f Computer Engineering Kasetsart Unive versity

01204325 Data Communications and Computer Networks

Based on lecture materials from Data Communications and Networking, 5th ed., Behrouz A. Forouzan, McGraw Hill, 2012.

Revised 2020-08-11

2

Out Outline line

• Multiplexing over frequency
• Multiplexing over time
• Orthogonal frequency division multiplexing (OFDM)

3

Sha Sharing M ng Medi dium um

M U X D E M U X

• A link is divided into channels

n signals (input) n signals (output) 1 link, n channels Multiplexer Demultiplexer

4

Fr Frequenc equency Divis ivisio ion n Multiple ultiplexing ing (FD FDM)

• Medium BW > Channel BW
• Each signal is modulated to a different carrier frequency
• E.g., broadcast radio
• Channel allocated even if no data

An An analog multiplexing technique to combine signals

5

Con Conceptu tual View w of

• f FDM

DM

Channel 3 Channel 2 Channel 1

f1 f2 f3

Frequency

T i m e

6

FD FDM: M : Mul ultipl plexi xing P ng Proce cess

7

FD FDM: D : Demul multipl plexi xing P ng Proce cess

8

Gu Guard Bands

• Strips of unused bandwidth to prevent signals from
• verlapping

FDM

3 kHz

f f

3 kHz 3 kHz 3 kHz

FDM (no guard band) FDM (with guard band) f

3 kHz 3 kHz 3 kHz

f

3 kHz

f

3 kHz 3 kHz 3 kHz

9

Ex Example – FD FDM Gu Guard B Bands

Five voice channels, each with 3-kHz bandwidth, are to be multiplexed together. If there is a need for a guard band of 1.5 kHz, what is the minimum bandwidth of the link?

f

3 kHz 3 kHz 3 kHz 3 kHz 3 kHz 1.5 kHz 1.5 kHz 1.5 kHz 1.5 kHz

21 kHz

10

Ex Example – FD FDM w with QA QAM

Four digital-data channels, 1 Mbps each, use a satellite channel of 1 MHz. Design an appropriate configuration using FDM. (assume 1 Hz/baud)

11

An Analog Hierarchy

F D M F D M F D M F D M

5 groups

…

10 supergropus 6 master groups group supergroup master group Jumbo group 4 kHz 4 kHz 4 kHz

…

12 voice channels

• Used by AT&T (from 1910s to early 1980s)

48 kHz 12 voice channels 240 kHz 60 voice channels 2.52 MHz 600 voice channels 16.984 MHz 3600 voice channels

12

Multiplexer Demultiplexer

Wa Wavelength Division Multiplexing (WDM)

• WDM is a special case of FDM

l1 l2 l3 l1 l2 l3

l1+l2+l3

Fiber-optic cable

WDM WDM

l1 l2 l3 l1 l2 l3 l1+l2+l3

An An analog

• g multi

tiplexing technique to

• com
• mbine op
• pti

tical signals

13

• Medium Data Rate > Signal Data Rate
• Multiple digital signals interleaved in time
• Time slots
• are preassigned to sources and fixed
• are allocated even if no data
• do not have to be evenly distributed among sources

Ti Time Division Multiplexing (TD (TDM)

T D M A B C A

B C

A

B C

A

B C

Frame Time slot

A A digital multiplexing technique to combine data

• ne unit

14

14

Con Conceptu tual View w of

• f TDM

DM

Time F r e q u e n c y

Channel 3 Channel 2 Channel 1 Channel 3 Channel 2 Channel 1 Channel 3 Channel 2 Channel 1

2

3 1

M U X 1 2 3 2

3 1

2

3 1

1 2 3 D E M U X Data flow

15

TD TDM Fr Frame mes

• A frame consists of one complete cycle of time slots

16

Ex Example – TD TDM F Frame me

Four 1-Kbps connections are multiplexed together. A unit is 1 bit. Find: (1) the duration of 1 bit before multiplexing, (2) the duration of a frame, (3) the number of bits in a frame, (4) the duration of a time slot, and (5) the transmission rate of the link.

17

Sy Synchronization

18

Sy Synchronization

B C A 1

… 1 0 1 0 …

Synchronization pattern

• Multiplexer and demultiplexer must be synchronized
• Framing bits are used to provide synchronization

framing bit

B C A 0 B C A 1 B C A 0

19

Ex Example – Sy Synchronization

• Identify all the framing bits from this bit sequence
• utput by a multiplexer
• 2 channels
• 1 unit = 2 bits

0 0 0 1 1 0 1 1 1 0 0 0 0 1 0 0 1 0 1 1

20

Mu Multi ti-Le Level Mu Multi tiplexing

21

TD TDM o

• f D

Different D Data Ra Rates

• Data rate from one source may be faster than the others
• More than one time slot can be assigned to certain sources

4 kbps 4 kbps 8 kbps 16 kbps A B C 1 frame B C A B

Assume 1 unit = 1 bit

MUX

22

Di Digital Signal (DS (DS) ) Hierarchy

T D M T D M T D M

DS-1 DS-2 DS-3 DS-4 DS-0

T D M

DS-0

…

24 channels

1.544 Mbps 24 DS-0 6.312 Mbps 4 DS-1 44.376 Mbps 7 DS-2 274.176 Mbps 6 DS-3 64 kbps

1 kbps = 1,000 bps 1 Mbps = 1,000 kbps

23

T L T Line nes a and A nd Ana nalog Si g Signa gnals

24

T-1 1 Frame Stru tructu ture

25

DS DS Servi vices s and T Lines

• DS-0, DS-1, etc, are services
• T lines are used to implement these services

Service Line Rate (Mbps) #Voice Channels DS-1 T-1 1.544 24 DS-2 T-2 6.312 96 DS-3 T-3 44.736 672 DS-4 T-4 274.176 4032

26

E E Lines

• European variation of T lines
• Also used in Thailand

E Line Rate (Mbps) Voice Channels E-1 2.048 30 E-2 8.448 120 E-3 34.368 480 E-4 139.264 1920

27

In Inver erse e Mult ltip iple lexin xing

high-speed line high-speed line low-speed lines

Inverse MUX Inverse DEMUX

28

OFD OFDM

• Orthogonal Frequency-Division Multiplexing
• Widely used in broadband/wideband digital

communications

• Digital TV
• ADSL
• Powerline communications
• Wireless networks: Wi-Fi, WiMAX
• 4G/5G mobile communications

29

OFD OFDM C Concep ncept

• Sub-carriers are orthogonal to each other
• No cross-talk; guard bands not necessary

Source: http://connectedplanetonline.com

30

200 300 400 500 600 700 800

Or Ortho hogonalit nality in OFD y in OFDM

Frequency (Hz)

t 20 ms

Modulated @500 Hz

t

Modulated @550 Hz

t

Modulated @600 Hz

31

OFD OFDM Implemen Implementatio ion

Source: Wikipedia

32

Summa Summary

• Multiplexing is a method of combining multiple narrow-

band signals into a wider-band signal

• FDM multiplexes signals into different frequencies
• TDM multiplexes signals into different time slots
• OFDM is a FDM method that employs a large number of

closely spaced orthogonal sub-carrier signals
