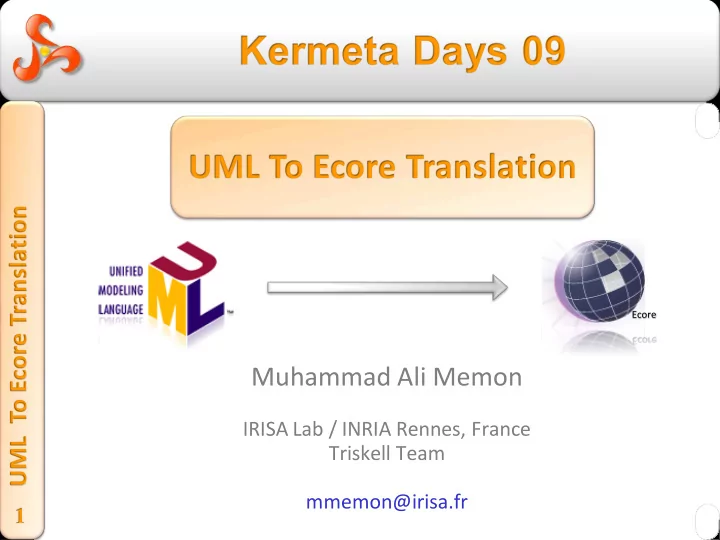

Muhammad Ali Memon

IRISA Lab / INRIA Rennes, France Triskell Team mmemon@irisa.fr

Ecore

2

3

4

 The Unified Modeling Language (UML)  Model-Driven Engineering (MDE)  Eclipse-Modeling Framework (EMF)

• Ecore

 Kermeta

• Specification of abstract syntax, static

semantics(OCL) and dynamic semantics

• Model and meta-model prototyping and simulation
• Model transformation
• Aspect weaving

5

 Bridging the gap between UML and MDE

• Simulation
• Model Prototyping
• Model Transformation from PIMs to PSMs
• Aspect weaving
• Generating concrete implementations

 Migrating Legacy systems UML models.

• Automated translation of legacy UML models
• Save time to transform Complex and large UML models

 New compiler to Kermeta

• OCL for applying constraints
• Java for generating Java code

6 Translation

UML model EMF Ecore model

7

8

UML

EPackage EClass EOperation EParameter EReference or EAttribute EEnum EEnumLiteral Package Class Operation Parameter Property Enumeration EnumerationLiteral

Ecore

9



Data types

−

Problem

 UML Primitive data types are different Ecore data types

−

Solution

 We create own data types with the reference to the java data type



Type

−

Problem

 UML Primitive types does not match with the Ecore data types

−

Solution

 We identify the UML Primitive data types for the UML element  We search the Ecore data types correspond to UML Primitive data types that was alreadycreated  Assign Ecore data types to the Ecore elements



Generalization

−

Problem

 Not direct mapping between both UML and Ecore metametamodels and may be multiple

relationship

−

Solution

 Find all the generalization classes in relationship Collection  Match supertypes in Ecore and general relationship within the UML.

10



Association

−

Solution

 Create EReference element with the name of association End



Composition

−

Solution

 Create EReference element with the name of association End  Set Contaiement property of the EReference to true



Multiplicities

−

Problem

 Difference between data types of lower and upper bounds

− UML lower and upper bounds have different data types and then Ecore lower and upper bound

−

Solution

 We create the local variable of types UML primitive types and type casted them to Ecore data

types



Opposite Navigability

−

Solution

 To find opposite property in other class with the same type as current class.

11

This Algorithm works by traversing UML model in four passes.

• First Pass: The main Package and Sub Packages are created.
• Second Pass : Data types, classes, enumerations and its

enumeration literals are created.

• Third pass : Operations in the classes, parameters in the
• perations, attributes of the classes, generalization and

association relationships are created.

• Fourth pass: Opposition relationships are created between

properties for both side navigability.

12

aspect class Class { method thirdPass() :Void is do All OwnedElements.secondPass() end } aspect class Operation { method thirdPass() :Void is do Create Eoperation in Ecore end }

We combined two approaches for implmentation of the translation.(Kiczales)



Aspect Oriented Approach



Visitor Pattern

Aspect Classes Visitor Methods

13

14

15

The main Package and Sub Packages are created

UML Model Ecore Model

16 Data types, classes, enumerations and its enumeration literals are created

UML Model Ecore Model

17 Operations in the classes, parameters in the operations, attributes of the classes, generalization and association relationships are created.

UML Model Ecore Model

18 Opposition relationships are assigned between properties for both side navigability.

UML Model Property window of Ecore Model

19

20

 Limitations − Translation does not support automated synchronization. − There is no reverse translation from Ecore to UML. − Translation targets only one part (Class Diagram) of UML

 Interfaces, Constraints, Aggregation

 Future Work − Work on limitations − Check Stability with more test cases − Case study that utilize all features of Kermeta − Adding this translation to Kermeta work bench for Kermeta

community

21
