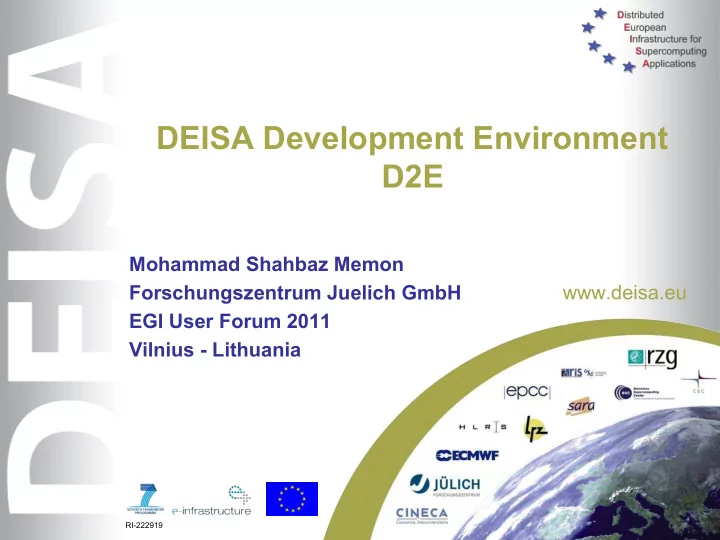

DEISA Development Environment D2E

Mohammad Shahbaz Memon Forschungszentrum Juelich GmbH EGI User Forum 2011 Vilnius - Lithuania

LRZ - Eclipse PTP Training 2

RI-222919 .

Deisa Development Environment (D2E) is a Eclipse-PTP based tool for scientific applications developers and researchers, offering a standardized and uniform interface to effectively and efficiently develop applications across the heterogeneous DEISA infrastructure.

LRZ - Eclipse PTP Training 3

RI-222919

Key Ideas

• Tool for developing message-passing and

OpenMP programs

• Support for running, controlling, and

monitoring programs on HPC sites

• Support for profiling parallel programs

LRZ - Eclipse PTP Training 4

RI-222919

DEISA Development Environment – 1/2

D2E platform offers:  an effective environment to facilitate the development of scientific applications;  a common user interface to allow scientists

• perate

across different computing platforms, while remaining agnostic to the actual tools deployed on the back-ends;  an integrated interface for developing, launching, debugging and profiling applications on DEISA infrastructure;

LRZ - Eclipse PTP Training 5

RI-222919

 a dynamic platform that can be easily extended to include new tools with the benefit to provide new functionalities;  a customizable interface that permits end users personalize views and perspectives according to their needs;  a simplified approach for porting applications across heterogeneous environments.

DEISA Development Environment – 2/2

LRZ - Eclipse PTP Training 6

RI-222919

D2E components

The D2E platform is based on Eclipse technology and integrates:

a) exiting tools: – PTP (Parallel tools Platform) – CDT (C/C++ Development Tools) – RDT (Remote Development Tools) a) DEISA developments: – support for GSI-SSH authentication and security improvement for remote connections – support for Module configuration to automatically modify remote user session environment – integration with UNICORE Grid Middleware for job submission – integration with PARAVER for application profiling

LRZ - Eclipse PTP Training 7

RI-222919

DEISA Development Environment

LRZ - Eclipse PTP Training 8

RI-222919

Demonstration

LRZ - Eclipse PTP Training 9

RI-222919

Backup Slides

LRZ - Eclipse PTP Training 10

RI-222919

Eclipse-PTP in a nutshell

LRZ - Eclipse PTP Training 11

RI-222919

GSI-SSH Integration

LRZ - Eclipse PTP Training 12

RI-222919

UNICORE-PTP Integration

LRZ - Eclipse PTP Training 13

RI-222919

HPC Application Development - 1/2

Developing scalable applications is becoming ever more complex: Inconsistent interfaces Difficult to learn Expensive to make Slow to keep pace with mainstream application development environment technologies Low productivity

LRZ - Eclipse PTP Training 14

RI-222919

HPC Application Development - 2/2

How Can We... ?  Enable ultra scalability  Minimize time to develop and port applications  Lower entry bar for new HPC developers  Maximize productivity

LRZ - Eclipse PTP Training 15

RI-222919

Eclipse-PTP in a nutshell

 Eclipse is a Java-based integrated development

environment (IDE): all the tools necessary to develop software (editors, compilers, debuggers, profilers, etc.) are accessible from a single GUI

 Parallel Tools Platform (PTP), extends Eclipse to

support parallel computing platforms

 C/C++ Development Tooling, extends Eclipse to

support C/C++ application development

LRZ - Eclipse PTP Training 16

RI-222919

Coding & Static Analysis

Eclipse provides a wide variety of coding assistance tools:

• Project management
• Editing and formatting
• Navigation
• Advanced searching
• Refactoring
• Version control

LRZ - Eclipse PTP Training 17

RI-222919

Coding & Static Analysis

Static analysis tools

• Provides “advanced” error checking
• MPI analysis
• Barrier deadlock detection
• OpenMP analysis
• Concurrency analysis
• Common OpenMP problems

LRZ - Eclipse PTP Training 18

RI-222919

Coding & Static Analysis – C/C++ (CDT)

• Standard (Makefile) and managed builders
• Support for arbitrary toolchains
• Visual debugging using GDB
• High level views (outline view, call hierarchy,

type hierarchy, include browser)

• Advanced searching (types, functions,

variables, declaration, reference, etc.)

• Content assist (automatic completion in the

editor)

• Context sensitive help
• Simple refactorings (rename, extract constant,

more coming...)

LRZ - Eclipse PTP Training 19

RI-222919

Application Execution

Extensible framework for launching & monitoring

• System and node status information
• Job status (e.g. position in queue) & application

status

• Job submission & control
• Debugger launch
• Plug-in adapters to support different resource

managers

• Job schedulers (e.g LoadLeveler)
• Interactive runtime systems (e.g. PE or OpenMPI)
• Local or remote system support
• Command-line tools executed locally or via ssh

connection

• Remote proxy agent (can tunnel over ssh)

LRZ - Eclipse PTP Training 20

RI-222919

Eclipse Parallel Environment Plug-In

• Support for running interactive Parallel

Environment applications within the Eclipse PTP framework

– with/without LoadLeveler

• Support for submitting batch LoadLeveler jobs
• Monitor status of running applications
• Integrates with existing PTP resource scheduler

views

LRZ - Eclipse PTP Training 21

RI-222919

Eclipse PTP Perspective Running PE Application

LRZ - Eclipse PTP Training 22

RI-222919

Remote Development Tools

• Adds transparent remote development capability to CDT
• Builds on changes introduced into CDT 5.0 that allow

projects to reside remotely

• Uses PTP service model to allow development services

(e.g. build, index, launch, debug, etc.) to be independently selected as local or remote

• Other parts of PTP also use the service model to ensure

uniformity and ensure usability

• Includes a new remote project creation wizard

LRZ - Eclipse PTP Training 23

RI-222919

• DEISA - http:/www.deisa.eu
• D2E - https://work.deisa.eu/svn/WP8/bundle
• ECLIPSE - http://www.eclipse.eu
• UNICORE - http://www.unicore.eu
• PARAVER - http://www.bsc.es/paraver
• ECLIPSE PTP - http://www.eclipse.org/ptp/

References
