SLIDE 1

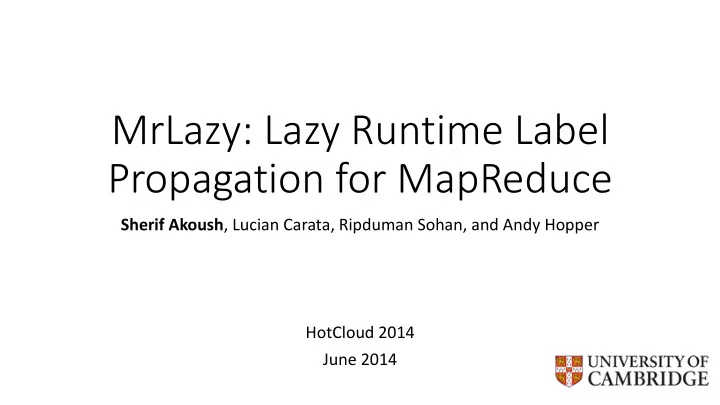

MrLazy: Lazy Runtime Label Propagation for MapReduce
Sherif Akoush, Lucian Carata, Ripduman Sohan, and Andy Hopper HotCloud 2014 June 2014
MrLazy: Lazy Runtime Label Propagation for MapReduce Sherif Akoush , - - PowerPoint PPT Presentation
MrLazy: Lazy Runtime Label Propagation for MapReduce Sherif Akoush , - - PowerPoint PPT Presentation
MrLazy: Lazy Runtime Label Propagation for MapReduce Sherif Akoush , Lucian Carata, Ripduman Sohan, and Andy Hopper HotCloud 2014 June 2014 Motivation ITV News Information Flow Control (IFC) IFC* Propagate Record + Sensitivity Metadata
SLIDE 2
SLIDE 3
ITV News
SLIDE 4
Information Flow Control (IFC)
- IFC*
- Propagate Record + Sensitivity Metadata
- Control Information Flow by Checking Metadata against Policies
- But…
- Many In-House Computations
- No Need for Active Checking
- Only When Publishing Some Results
- Lazy IFC
- Track and Use Lineage
- Evaluate Output Labels When Needed
*J. Bacon, D. Eyers, T. Pasquier, J. Singh, I. Papagiannis, and P. Pietzuch, “Information Flow Control for Secure Cloud Computing,” Network and Service Management, IEEE Transactions on, 2014.
SLIDE 5
Labels (Metadata)
- More than one Label per Record
- Different Country Regulations, Data Quality…
- Field-Level
- Dynamic Properties
- Users Opting In/Out
- Sensitivity of Data Expires in 2 Years
- New Policies
SLIDE 6
MapReduce Paradigm
Split 1 Split 2 Split N
(KIN,VIN)
Map
(KMED,VMED)
Reduce Map Map Reduce
File1 File2
Shuffle
(KMED,List (VMED)) (KOUT,VOUT) DFS DFS
64 MB 64 MB 64 MB
SLIDE 7
IFC and MapReduce
Split 1 Split 2 Split N
(KIN,VIN)
Map
(KMED,VMED)
Reduce Map Map Reduce
File1 File2
Shuffle
(KMED,List (VMED)) (KOUT,VOUT) DFS DFS a 2 b 3 b b b a a l1 l2 l3 l4 l5 l6 l7
SLIDE 8
Record-Level Lineage for MapReduce
Split 1 Split 2 Split N
(KIN,VIN)
Map
(KMED,VMED)
Reduce Map Map Reduce
File1 File2
Shuffle
(KMED,List (VMED)) (KOUT,VOUT) DFS DFS a 2 b 3 b b b a a
SLIDE 9
Lazy IFC for MapReduce
Split 1 Split 2 Split N
(KIN,VIN)
Map
(KMED,VMED)
Reduce Map Map Reduce
File1 File2
Shuffle
(KMED,List (VMED)) (KOUT,VOUT) DFS DFS a 2 b 3 b b b a a l1 l2 l3 l4 l5 ƒ(x) ƒ(x) q1 q2 q3 q4 q5 qn qn qn qn qn
SLIDE 10
Lineage Capture in Hadoop MapReduce
- Record-Level Lineage
- No Changes to User Code
- Always-On Feature
- Treat Lineage for Map and Reduce Tasks Separately
- Lineage Reconstruction
SLIDE 11
Field-Level Enforcement
- One Record Can Have Fields With Different Sensitivity
- Player Name vs. Passport Number
- Field-Level (Conservative) Visibility By Static Analysis
map(Text key, Text value) { String str[] = value.toString().split(“,”) Text name = new Text (str[0]) write(name, 1) }
SLIDE 12
Prototype Evaluation
- Implementation in Hadoop MapReduce
- 7-node Cluster
- Dataset from BigDataBench: 120 GB
- Join and Filter Job
SLIDE 13
Overheads (Lineage Capture)
- Storage
- 50% of Output
- Delete When Not Needed
- Trading Space for Time
0% 20% 40% 60% 80% 100% 120% 140% Base With Lineage Runtime Lineage Reconstruction
SLIDE 14
Policy 1: Users Opt-out of Data Sharing
- 5% of Users
0% 20% 40% 60% 80% 100% 120% Naive (Recomputation) MrLazy
SLIDE 15
Policy 2: Sensitivity of Data Lasts 2 Years
- Dynamic Behaviour
0% 20% 40% 60% 80% 100% 120% Naive (Recomputation) MrLazy
SLIDE 16
Other Challenges
- Dealing with State
- In-lining Instructions to Expose State
- TopK
- Subtle Data Leakage
- Differential Privacy
SLIDE 17
Conclusion
- Delay Output Label (Metadata) Computation
- Fine-Grained Lineage as Audit Mechanism
- Non-Prohibitive Overheads
- Future Work:
- Reducing Overheads
- Large-Scale Evaluation
- Recomputation-Based Recovery from Failures
SLIDE 18
Thanks
Sherif.Akoush@cl.cam.ac.uk http://www.cl.cam.ac.uk/~sa497/
