SLIDE 1

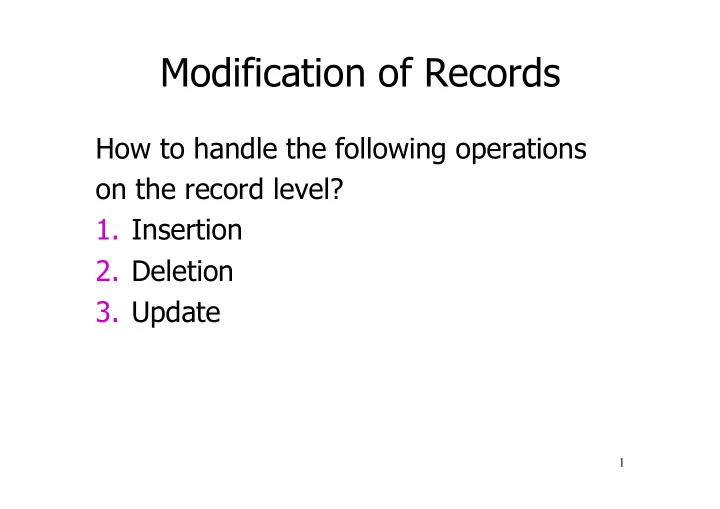

Modification of Records

How to handle the following operations

n the record level?
1. Insertion
2. Deletion
3. Update

1

SLIDE 2

1. Insertion
Easy case: records not in sequence
Insert new record at end of file
If records are fixed-length, insert new

record in deleted slot

Difficult case: records are sorted
Find position and slide following records
If records are sequenced by linking, insert
verflow blocks

2

SLIDE 3

2. Deletion
a. Immediately reclaim space by shifting
ther records or removing overflows
b. Mark deleted and list as free for re-use
Tradeoffs:
How expensive is immediate reclaim?
How much space is wasted?

3

SLIDE 4

Problem with Deletion

Dangling pointers:
When using physical addresses:
When using logical addresses:

4

R1 ? Never reused May be reused ID LOC 7788 Never reuse ID 7788 nor space in the map

SLIDE 5

3. Update
If records are fixed-length and the
rder is not affected:
Fetch the record, modify it, write it back
Otherwise:
Delete the old record
Insert the new record overwriting the

tombstones from the deletion

5

SLIDE 6

Pointer Swizzling

Swizzling = replacement of physical

addresses by memory addresses when loading blocks into memory

Automatic Swizzling: swizzle all

addresses when loading a block (need to swizzle all pointer from and to the block)

Swizzling on Demand: use addresses

which are invalid as memory addresses

6

SLIDE 7

Data Organizaton

There are millions of ways to organize

the data on disk

Flexibility Space Utilization

Complexity Performance

7

SLIDE 8

Summary 9

More things you should know:

Memory Hierarchy
Storage on harddisks
Values, Records, Blocks, Files
Storing and modifying records

8

SLIDE 9

Index Structures

9

SLIDE 10

Finding Records

How do we find the records for a query?
Example: SELECT * FROM Sells
Need to examine every block in every file
Group blocks into files by relation!
Example: SELECT * FROM Sells

WHERE price = 20;

Need to examine every block in the file

10

SLIDE 11

Finding Records

Use of indexes allows to narrow search

to (almost) only the relevant blocks

11

Index Blocks Holding records Value Matching records

Indexes can be dense or sparse

SLIDE 12

Dense Index

12

Sequential File 20 10 40 30 60 50 80 70 100 90 Dense Index

10 20 30 40 50 60 70 80 90 100 110 120

SLIDE 13

Sparse Index

13

Sequential File 20 10 40 30 60 50 80 70 100 90 Sparse Index

10 30 50 70 90 110 130 150 170 190 210 230

2nd level

10 90 170 250 330 410 490 570

SLIDE 14

40 30

Delete 40

Deletion from Sparse Index

14

20 10 60 50 80 70

10 30 50 70 90 110 130 150

40 30 30

SLIDE 15

Delete 30

Deletion from Sparse Index

15

20 10 60 50 80 70

10 30 50 70 90 110 130 150

40 30 40 30 40 40

10 40 50 70 90 110 130 150

SLIDE 16

Delete 30 & 40

Deletion from Sparse Index

16

20 10 60 50 80 70

10 30 50 70 90 110 130 150

40 30 40 30

10 50 70 90 110 130 150

SLIDE 17

Insert 35

Insertion into Sparse Index

17

20 10 60 50 80 70

10 30 50 70 90 110 130 150

30 35 30

SLIDE 18

Insert 25

Insertion into Sparse Index

18

20 10 60 50 80 70

10 30 50 70 90 110 130 150

35 30 25

SLIDE 19

Sparse vs Dense

Sparse uses less index space per record

(can keep more of index in memory)

Sparse allows multi-level indexes
Dense can tell if record exists without

accessing it

Dense needed for secondary indexes
Primary index = order of records in storage
Secondary index = impose different order

19

SLIDE 20

Secondary Index

20

Sequential File 40 20 20 10 30 50 50 10 20 60 Secondary Index

10 10 20 20 20 30 40 50 50 60

2nd level

10 20 50

Careful when Looking for 20

SLIDE 21

Secondary Index

21

Sequential File 40 20 20 10 30 50 50 10 20 60 Secondary Index

10 20 30 40 50 60

2nd level

10 50

SLIDE 22

Combining Indexes

Just intersect buckets in memory!

22

Beer index Sells Price index OC 20

SELECT * FROM Sells WHERE beer =

“Od.Cl.“ AND price = “20“

C.Ch.

SLIDE 23

Conventional Indexes

Sparse, Dense, Multi-level, ...
Advantages:
Simple
Sequential index is good for scans
Disadvantage:
Inserts expensive
Lose sequentiality and balance

23

SLIDE 24

Example: Unbalanced Index

24

10 20 30 40 50 60 70 80 90 33 39 31 35 36 32 38 34

verflow area

(not sequential)

SLIDE 25

B+Trees

25

SLIDE 26

Idea

Conventional indexes are fixed-level
Give up sequentiality of the index in

favour of balance

B+Tree = variant of B-Tree
Allows index tree to grow as needed
Ensures that all blocks are between half

used and completely full

26

SLIDE 27

Characteristics

Parameter n determines number of keys

and pointers per node

Key size 4 and pointer size 8 allows for

maximal n = 340 (4n + 8(n+1) < 4096)

Leafs contain at least n/2 key-pointer pairs

to records and a pointer to the next leaf

Interior nodes contain at least (n-1)/2 keys

and at least n/2 pointers to other nodes

No restrictions for the root node

27

SLIDE 28

Example: B+Tree (n=3)

28

3 6 9 23 31 37 11 15 17 64 85 42 57 64 11 23 42

SLIDE 29

Example: Leaf node

29

42 57

To record With key 42 To record With key 57 To next leaf

SLIDE 30

Example: Interior node

30

To keys K < 11 To keys 11 ≤ K < 23

11 23

To keys 23 ≤ K

SLIDE 31

Restrictions

31

Full node

min. node

Non-leaf Leaf

11 23 42 64 11 15 17 64 85

Counts even when null

SLIDE 32

Insertion

If there is place in the appropriate leaf,

just insert it there

Otherwise:
Split the leaf in two and divide the keys
Insert the smallest value reachable through

the right node into the parent node

Recurse until there is enough room
Special case: Splitting the root results in

a new root

32

SLIDE 33

Example: Insertion

Insert 85

33

3 6 9 11 17 23 31 37 42 57 11 23 42 42 57 85

SLIDE 34

Example: Insertion

Insert 15

34

3 6 9 11 17 23 31 37 11 23 42 42 57 85 11 15 17

SLIDE 35

Example: Insertion

Insert 64

35

3 6 9 23 31 37 11 23 42 42 57 85 11 15 17 64 85 42 57 64 11 23 42 42

SLIDE 36

Deletion

If there are enought keys left in the

appropriate leaf, just delete the key

Otherwise:
If there is a direct sibling with more than

minimum key, steal one!

If not, join the node with a direct sibling and

delete the smallest value reachable through the former right sibling from its parent

Special case: If the root contains only
ne pointer after deletion, delete it

36

SLIDE 37

Example: Deletion

Delete 9

37

3 6 9 23 31 37 11 15 17 64 85 42 57 64 11 23 42 3 6 9 3 6

SLIDE 38

Example: Deletion

Delete 3

38

3 6 23 31 37 11 15 17 64 85 42 57 64 11 23 42 3 6 6 6 11 15 17 15 23

SLIDE 39

Example: Deletion

Delete 11

39

6 11 23 31 37 15 17 64 85 42 57 64 15 23 42 6 11 6 6 15 17 23

SLIDE 40

Example: Deletion

Delete 17, 37

40

23 31 37 64 85 42 57 64 42 6 15 17 23 6 15 23 31

SLIDE 41

Example: Deletion

Delete 31

41

64 85 42 57 64 42 23 6 15 23 31 23 6 15 23 6 15 23 42 64

SLIDE 42

Efficiency

Need to load one block for each level!
With n = 340 and an average fill of 255

pointers, we can index 255^3 = 16.6 million records in only 3 levels

There are at most 342 blocks in the first

two levels

First two levels can be kept in memory

using less than 1.4 Mbyte

Only need to access one block!

42

SLIDE 43

Range Queries

Queries often restrict an attribute to a

range of values

Example:

SELECT * FROM Sells WHERE beer > 20;

Records are found efficiently by searching

for value 20 and then traversing the leafs

Can also be used if there is both an upper

and a lower limit

43

SLIDE 44

Summary 10

More things you should know:

Dense Index, Sparse Index
Multi-Level Indexes
Primary vs Secondary Index
Structure of B+Trees
Insertion and Deletion in B+Trees

44
