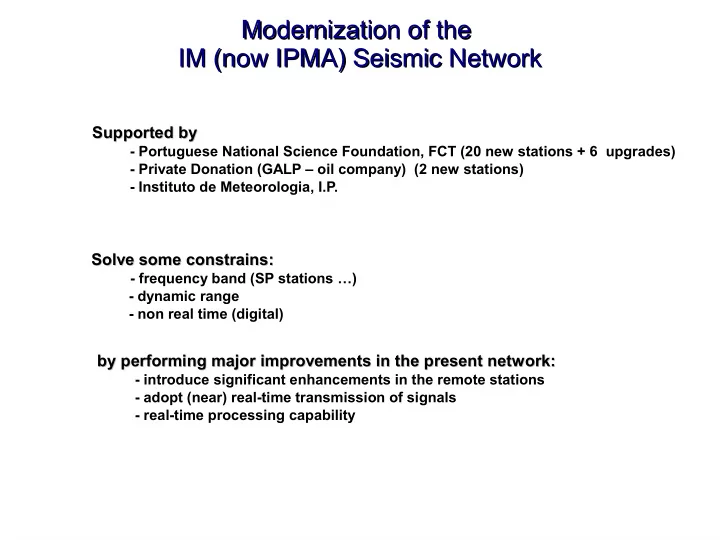

by performing major improvements in the present network: by performing major improvements in the present network:

• - introduce significant enhancements in the remote stations
• - adopt (near) real-time transmission of signals
• - real-time processing capability

Supported by Supported by

• - Portuguese National Science Foundation, FCT (20 new stations + 6 upgrades)
• - Private Donation (GALP – oil company) (2 new stations)
• - Instituto de Meteorologia, I.P.

Solve some constrains: Solve some constrains:

• - frequency band (SP stations …)
• - dynamic range
• - non real time (digital)

Modernization of the Modernization of the IM (now IPMA) Seismic Network IM (now IPMA) Seismic Network

These improvements allowed: These improvements allowed:

• - quality data acquisition in highly sensitive stations which are also

equipped with strong-motion sensors

• - higher quality digital transmission
• - real time monitoring at the Operational Center
• - automatic signal detection
• - automatic association of detections, event location and

magnitude evaluation

• - development of a rapid earthquake information system for Civilian

Protection authorities

• - automatic archive of recorded data
• - development of high-level products (bulletins, shakemaps, etc.)
• - contribute to international monitoring efforts (FDSN, ORFEUS,

tsunami projects [NEAREST, IOC])

• - data for scientific research purposes

Modernization of the Modernization of the IM (now IPMA) Seismic Network IM (now IPMA) Seismic Network

New and Upgraded Seismic Network New and Upgraded Seismic Network

Seismometer CMG-3T & 3ESP compact Accelerometer CMG-5T Digitiser DM24 (6 components) Seiscomp unit (seiscomp software)

21 stations

Data Center (Lisbon) (SEISCOMP) Seismometer STS-2 Accelerometer Episensor Digitiser Q330 (6 components) Seiscomp unit (seiscomp software)

1 station

Quality Control (Seiscomp+Cont Qual+Soh) Near RT processing (Seiscomp) Manual revision (Seisan) Archieve

(Storage Area Network)

Check&Register (Data_Extract) Seismometer LE3D Accelerometer CMG-5T Digitiser+logger EAM (6 components) or DM24 + seiscomp (seedlink server)

7 stations

VSAT / Internet (seedlink)

new new upgraded

New Seismic Stations New Seismic Stations

PVAQ PVAQ (Vaqueiros) (Vaqueiros)

Broadband sensor accelerometer

IPMA Accelerometer Station List IPMA Accelerometer Station List

IPMA Strong-Motion Network IPMA Strong-Motion Network

Satellite [VSAT] Internet (public & VPN) Local

Real-Time (latency <10s)

2012-09-24 21:52 UTC 3.6ML SW Ourique, Portugal mainland

Example Example

56 km 62 km 65 km 163 km 170 km 220 km 224 km Macroseismic observations (DYFI)

2012-09-24 21:52 UTC 3.6ML SW Ourique, Portugal mainland

Example Example

ShakeMap Macroseismic observations (DYFI)
