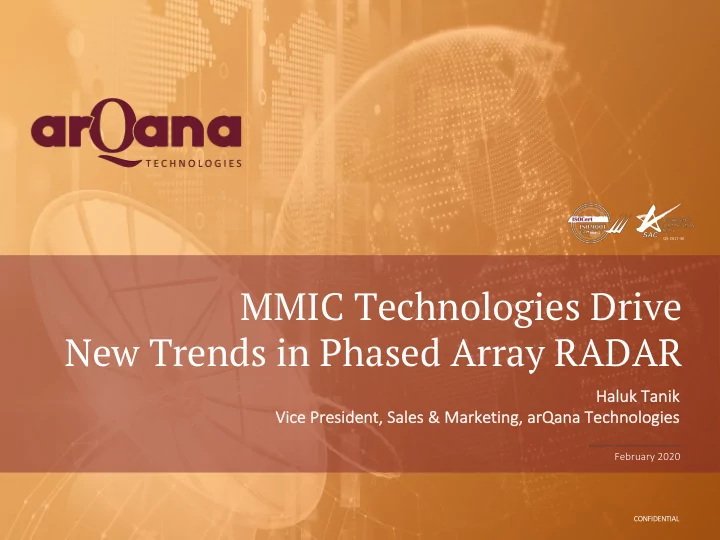

MMIC Technologies Drive New Trends in Phased Array RADAR

February 2020

CONFIDENTIAL

QS-2017-30

Ha Haluk Tanik Vic Vice Presid sident, Sale ales s & Mar arketin ing, ar arQan ana a Technolo logie ies

◉ In Introduct ctio ion ◉ Phased Array RADAR Trends ◉ AESA RF Front End Architecture ◉ Choosing the Right Amplifiers

arQana Technologies

We are a fabless design house that develops Monolithic Microwave Integrated Circuit (MMIC) solutions for wireless communications, with a focus on phased array systems

◉ Introduction ◉ Ph Phas ased ed A Array ay R RADAR T Tren ends ◉ AESA RF Front End Architecture ◉ Choosing the Right Amplifiers

History of Phased Array Systems

1905, Transmission

• f radio

waves in one direction World War II, Steerable Radar for Ground controlled Approach 1995, First Military Ground-Based AESA 2004, First integrated Si- based phased array 2005, CMOS 24 GHz Phased Array Transmitter 2007, 16 Element Phased Array Antenna on a single Silicon Chip 2016, GaN based AESA

Passive Active Digital

Active Electronically Scanned Array (AESA)

Size Weight Power Cost

SWaP-C

Market Segmentation by RF Technologies

◉ GaN technology to be the fastest growing at a CAGR of 19% ◉ GaAs will keep strong and stable technology of choice among years ◉ Vacuum tube parts (TWT) will have a CAGR of -4.8% as they will be replaced by solid state components with years.

Materials Advantages GaAs Gallium Arsenide High thermal stability, low noise, resistance to radiation GaN Gallium Nitride High power output at high frequency, high thermal stability SiC Silicon Carbide High power and high voltage switching power applications

InP

Fr Frequency (GHz (GHz)

Po Power (W (W)

1 10 10

100 100

10 10 1000 1000 Silicon SiC Klystron/Vacuum Tube GaAs GaN

Source: Based on Strategy Analytics

Semiconductor Technologies

100 100 SiGe

◉ Introduction ◉ Phased Array RADAR Trends ◉ AES AESA A RF Fron ront En End Arc Architec ecture re ◉ Choosing the Right Amplifiers

Transceiver Architecture (RADAR)

Transmitter Array High power – 100’s W to 1’s MW Receiver Low Power – nW to uW

Transceiver Architecture (SATCOM)

Up/Down Converter Front End

arQana MMICs for Phased Array Systems

◉ Introduction ◉ Phased Array RADAR Trends ◉ AESA RF Front End Architecture ◉ Ch Choosi

• osing the Right Am

Amplifi fiers rs

Choosing the Right components

Frequency Range Gain Output Power – Psat, P1dB Power Added Efficiency (PAE) Type of Signal: Pulsed VS CW Linearity – P1dB, OIP3

Power Amplifier (PA) and Driver Amplifier (DA)

arQana

AAG4201-QA with Evaluation Board

◉ Bandwidth: 2.7-3.5 GHz ◉ Output power: >60 W at 10% duty cycle ◉ Large signal gain: >28 dB ◉ Large pulse width of operation: 300 us ◉ Power gain: >22 dB ◉ High PAE: ≈ 50% with frequency >3 GHz ◉ Low IDQ: 400 mA ◉ Small package: 40-Pin QFN 6 x 6 mm Package

S-band 60 Watts PA, AAG4201-QA

arQana

ADA4200-QA with Evaluation Board

S-band 2 Watts DA, ADA4200-QA

◉ Bandwidth: 2.7 – 4 GHz ◉ Small signal gain: 24 dB ◉ Output saturated power: 33 dBm, 2 W ◉ Gain Control & Power Detector ◉ Output P1dB: 31 dBm ◉ Output IP3: 43 dBm ◉ PAE: >25%

arQana

AAA4401-QA with Evaluation Board

X-band 4 Watts PA, AAA4401-QA

◉ Bandwidth: 9 – 11 GHz ◉ Small signal gain: 26 dB ◉ Output saturated power: >36 dBm ◉ Output P1dB: >34 dBm ◉ Output IP3: 45 dBm ◉ PAE: >25% ◉ Pulsed and CW

Choosing the Right components

Frequency Range Noise Figure Gain Output Power – Psat, P1dB Power Added Efficiency (PAE) Type of signal: Pulsed VS CW Linearity – P1dB, OIP3

Low Noise Amplifier (LNA)

Collaboration with A*STAR

Hi Highl hly Int Integ egrated ed MMIC ICs to Opt ptimi mize e Swap-C

Dr Dron

• ne De

Detection

• n Radar

5G 5G B Base S Stations SA SATCOM on the Move
