Minimal Representations of Order Types by Geometric Graphs Aichholzer 1 , Balko 2 , Hoffmann 3 , Kyn cl 2 , Mulzer 4 , Parada 1 , Pilz 1,3 , Scheucher 5 , Valtr 2 , Vogtenhuber 1 , and Welzl 3 1 Graz University of Technology 2 Charles

slide-1
SLIDE 1

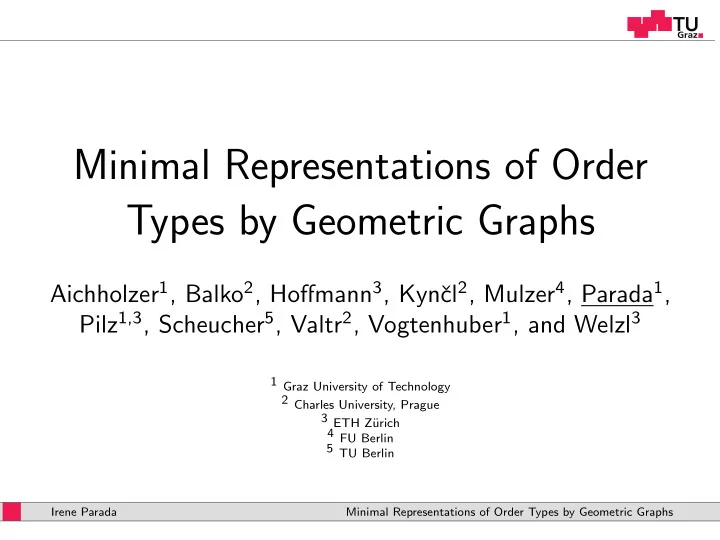

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Minimal Representations of Order Types by Geometric Graphs

Aichholzer1, Balko2, Hoffmann3, Kynˇ cl2, Mulzer4, Parada1, Pilz1,3, Scheucher5, Valtr2, Vogtenhuber1, and Welzl3

1 Graz University of Technology 2 Charles University, Prague 3 ETH Z¨ urich 4 FU Berlin 5 TU Berlin

slide-2
SLIDE 2

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Combinatorics of Point Sets

Infinite number of point sets ⇒ Finite number classes

slide-3
SLIDE 3

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Combinatorics of Point Sets

Infinite number of point sets ⇒ Finite number classes

slide-4
SLIDE 4

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Combinatorics of Point Sets

Infinite number of point sets ⇒ Finite number classes

slide-5
SLIDE 5

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Combinatorics of Point Sets

Infinite number of point sets ⇒ Finite number classes

slide-6
SLIDE 6

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Combinatorics of Point Sets

Infinite number of point sets ⇒ Finite number classes

slide-7
SLIDE 7

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Order Types

Order types are the equivalence classes of point sets in the plane with respect to their triple-orientations. Triple orientations: clockwise, counter clockwise, collinear CCW CW Collinear 1 2

slide-8
SLIDE 8

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Order Types

Order types are the equivalence classes of point sets in the plane with respect to their triple-orientations. We can determine whether two edges cross from the triple

  • rientations

No crossing:

slide-9
SLIDE 9

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Order Types

Order types are the equivalence classes of point sets in the plane with respect to their triple-orientations.

n = 3: n = 4: n = 5:

slide-10
SLIDE 10

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Order Types

Order types are the equivalence classes of point sets in the plane with respect to their triple-orientations.

n = 3: n = 4: n = 5:

n 3 4 5 6 7 8 9 10 11 OT 1 2 3 16 135 3 315 158 817 14 309 547 2 334 512 907

slide-11
SLIDE 11

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Order Types

Order types are the equivalence classes of point sets in the plane with respect to their triple-orientations.

n = 3: n = 4: n = 5:

n 3 4 5 6 7 8 9 10 11 OT 1 2 3 16 135 3 315 158 817 14 309 547 2 334 512 907

  • Nr. of order types: n4n+O(n/ log n) [Goodman & Pollack ’86]
slide-12
SLIDE 12

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Triple orientations
slide-13
SLIDE 13

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Triple orientations
slide-14
SLIDE 14

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates

0160 7359 1768 6530 2338 4960 2592 6679 2880 4320 2960 2520 2960 5759 3955 5593 4239 6383 5759 7359

  • Triple orientations
slide-15
SLIDE 15

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates

0160 7359 1768 6530 2338 4960 2592 6679 2880 4320 2960 2520 2960 5759 3955 5593 4239 6383 5759 7359

  • Triple orientations
slide-16
SLIDE 16

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates
  • Figure of the point set
  • Triple orientations
slide-17
SLIDE 17

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates
  • Figure of the point set
  • Triple orientations
slide-18
SLIDE 18

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates
  • Figure of the point set
  • Triple orientations
slide-19
SLIDE 19

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates
  • Figure of the point set
  • + spanned lines/segments

Complete geometric graph: vertices mapped points, edges drawn as straight-line segments.

  • Triple orientations
slide-20
SLIDE 20

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates
  • Figure of the point set
  • + spanned lines/segments

Complete geometric graph: vertices mapped points, edges drawn as straight-line segments.

  • Triple orientations
slide-21
SLIDE 21

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates
  • Figure of the point set
  • + spanned lines/segments
  • Points + non-redundant edges
  • Triple orientations
slide-22
SLIDE 22

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates
  • Figure of the point set
  • + spanned lines/segments
  • Points + non-redundant edges

15 edges drawn (total: 45 = 10

2

  • )
  • Triple orientations
slide-23
SLIDE 23

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Representing Point Sets / Order Types

  • Explicit coordinates
  • Figure of the point set
  • + spanned lines/segments
  • Points + non-redundant edges

15 edges drawn (total: 45 = 10

2

  • )
  • Triple orientations
slide-24
SLIDE 24

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Geometric Graphs Supporting Point Sets

We consider “topology-preserving deformations”. A geometric graph G supports a set S of points if every “continuous deformation” that

  • keeps edges straight and
  • allows at most 3 points to be collinear at the same time

also preserves the order type of the vertex set.

crossing fixed, i.e., convex position

slide-25
SLIDE 25

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Geometric Graphs Supporting Point Sets

We consider “topology-preserving deformations”. A geometric graph G supports a set S of points if every “continuous deformation” that

  • keeps edges straight and
  • allows at most 3 points to be collinear at the same time

also preserves the order type of the vertex set.

no such continuous deformation

slide-26
SLIDE 26

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Geometric Graphs Supporting Point Sets

We consider “topology-preserving deformations”. An ambient isotopy of the real plane is a continuous map f : R2 × [0, 1] → R2 such that f(·, t) is homeomorphism for all t ∈ [0, 1] and f(·, 0) = Id. A geometric graph G supports a set S of points if every ambient isotopy that

  • keeps edges straight and
  • allows at most 3 points to be collinear at the same time

also preserves the order type of the vertex set.

slide-27
SLIDE 27

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Geometric Graphs Supporting Point Sets

We consider “topology-preserving deformations”. An ambient isotopy of the real plane is a continuous map f : R2 × [0, 1] → R2 such that f(·, t) is homeomorphism for all t ∈ [0, 1] and f(·, 0) = Id. A geometric graph G supports a set S of points if every ambient isotopy that

  • keeps edges straight and
  • allows at most 3 points to be collinear at the same time

also preserves the order type of the vertex set. Every complete geometric graph is supporting.

slide-28
SLIDE 28

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Definition

The edge ab is an exit edge with witness c if there is no point p ∈ S such that the line ap separates b from c or the line bp separates a from c. S set of n ≥ 4 points in general position (no 3 collinear). a b c p

slide-29
SLIDE 29

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Definition

The edge ab is an exit edge with witness c if there is no point p ∈ S such that the line ap separates b from c or the line bp separates a from c. S set of n ≥ 4 points in general position (no 3 collinear). a b c p

slide-30
SLIDE 30

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Definition

The edge ab is an exit edge with witness c if there is no point p ∈ S such that the line ap separates b from c or the line bp separates a from c. S set of n ≥ 4 points in general position (no 3 collinear). a b c

slide-31
SLIDE 31

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Alternative Characterization

The edge ab is not an exit edge if and only if:

  • ab external & incident to convex 4-hole or
  • ab internal & incident to general 4-hole on each side,

with the reflex angle (if any) incient to ab. a b x y a b y x

slide-32
SLIDE 32

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Small Point Sets

n = 4: classification via 4-holes

slide-33
SLIDE 33

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Small Point Sets

n = 4: n = 5:

slide-34
SLIDE 34

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Small Point Sets

n = 6:

slide-35
SLIDE 35

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Graph Is Supporting

Let S(t) be a continuous deformation of S at time t. Let (a, b, c) be the first triple to become collinear, at t0 > 0. If c lies on the segment ab in S(t0), then ab is an exit edge in S(0) with witness c. b c a

slide-36
SLIDE 36

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Graph Is Supporting

Let S(t) be a continuous deformation of S at time t. Let (a, b, c) be the first triple to become collinear, at t0 > 0. If c lies on the segment ab in S(t0), then ab is an exit edge in S(0) with witness c. The graph of exit graph (whose edges are the exit edges)

  • f every point set is supporting.
slide-37
SLIDE 37

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Observations

c c a a b b It is not always possible to make the witness c reach the corresponding exit edge ab.

slide-38
SLIDE 38

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Observations

Exit edges are not necessary in a supporting graph. a b c

stretchability!

slide-39
SLIDE 39

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Duality

(E.g.) p = (a, b) p∗ := y = ax − b

slide-40
SLIDE 40

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Duality

(E.g.) p = (a, b) p∗ := y = ax − b The edge ab is an exit edge with witness point c in S if and

  • nly if the lines a∗, b∗, and c∗ bound an unmarked

triangular cell in S∗ with c∗ being the witness line and ab

∗

(= a∗ ∩ b∗) being the exit vertex. c∗ a∗ b∗ w(b∗, c∗) w(a∗, c∗) △

slide-41
SLIDE 41

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Bounds

Lower Bound: There are at least 3n−7

5

exit edges.

slide-42
SLIDE 42

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Bounds

Lower Bound: There are at least 3n−7

5

exit edges. Construction with n − 3 exit edges.

slide-43
SLIDE 43

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Bounds

Lower Bound: There are at least 3n−7

5

exit edges. Upper Bound: There are at most n(n−1)

3

exit edges. Construction with n − 3 exit edges. From the upper bound on the number of triangular cells in line arrangements [Roudneff ’72].

slide-44
SLIDE 44

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Bounds

Lower Bound: There are at least 3n−7

5

exit edges. Upper Bound: There are at most n(n−1)

3

exit edges. Construction with n − 3 exit edges. From the upper bound on the number of triangular cells in line arrangements [Roudneff ’72]. This bound on triangular cells was shown tight for infinitely many values of n [Harborth ’85] and [Roudneff ’86].

slide-45
SLIDE 45

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Exit Edges: Bounds

Lower Bound: There are at least 3n−7

5

exit edges. Upper Bound: There are at most n(n−1)

3

exit edges. Construction with n − 3 exit edges. From the upper bound on the number of triangular cells in line arrangements [Roudneff ’72]. This bound on triangular cells was shown tight for infinitely many values of n [Harborth ’85] and [Roudneff ’86]. ⇒ Construction with Θ(n2) exit edges.

slide-46
SLIDE 46

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Different Order Type, Same Exit Triples

Even if we are given all the exit edges and their witnesses (in the dual, having all triangles and their orientations), we cannot always infer the order type. Construction based on an example in [Felsner & Weil ’00].

slide-47
SLIDE 47

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Different Order Type, Same Exit Triples

Even if we are given all the exit edges and their witnesses (in the dual, having all triangles and their orientations), we cannot always infer the order type. Construction based on an example in [Felsner & Weil ’00].

slide-48
SLIDE 48

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Different Order Type, Same Exit Triples

slide-49
SLIDE 49

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Different Order Type, Same Exit Triples

slide-50
SLIDE 50

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Conclusions

  • Exit edges are useful for representing order types: they

are supporting, have a natural dual representation, and can be computed efficiently.

  • However, not all of them might be necessary.
  • Open: we conjecture that graphs based on exit edges

are not only supporting but determine the order type.

slide-51
SLIDE 51

Irene Parada Minimal Representations of Order Types by Geometric Graphs

Conclusions

Thank you!

  • Exit edges are useful for representing order types: they

are supporting, have a natural dual representation, and can be computed efficiently.

  • However, not all of them might be necessary.
  • Open: we conjecture that graphs based on exit edges

are not only supporting but determine the order type.
