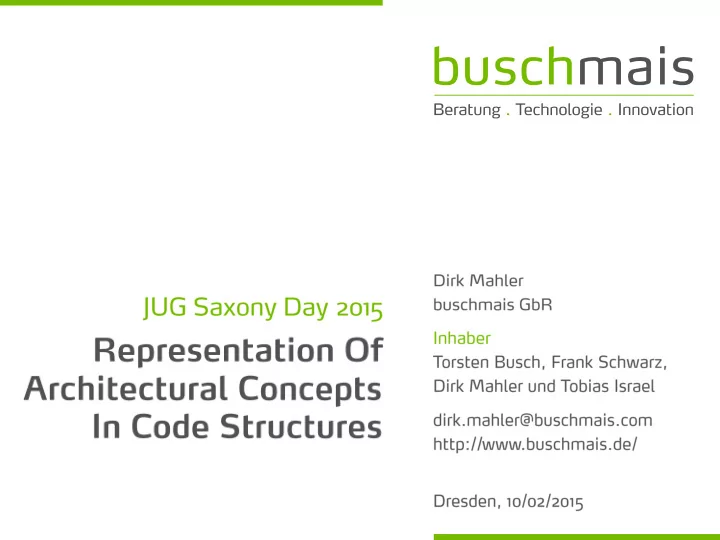

Mind The Gap! Setting Up A Code Structure Building Bridges

Representation Of Architectural Concepts In Code Structures

Why do we need architecture?

Complex business problems

too many details to keep overview

Making „big“ problems „smaller“

Separation of higher level aspects and their relations Create abstract views with less details

Adds new complexity

Why do we need architecture?

Functional view

Components Layers Cross-cutting concerns Dependencies

Non-Functional view

Scalability Robustness Security

Architect‘s view

… … … …

Developer‘s view

Different roles same objects, different views The Gap

Diagram vs. Code Architect vs. Developer Architect Developer Representation Diagram Code (Text) Scope Broad Narrow Detail level Low (abstract) High (concrete) Reality Blue pill Red pill

Representation of architecture in code structures

Language elements with additional roles

Package Layer Class Service …

But: abstractions are not visible in code How does the developer know about it? Does even the architect know about it?

Representation Of Architectural Concepts In Code Structures

Example – Yet Another Web Shop

High level functional requirements

User management Product catalog Shopping cart Order-/payment Shipping

High level non-functional requirements

Maintainable Scalable Robust

Technology

Java EE Shop shop.war Container Deployable (Artifact)

Deployment vs. Non-Functional Requirements

Scalability Availability Maintainability Artifacts Maven

Deployable artifact per component

shop/

pom.xml user/ pom.xml catalog/ pom.xml cart/ pom.xml

• rder/

pom.xml shipping/ pom.xml

<parent> <groupId>com.acme.shop</groupId> <artifactId>parent</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <artifactId>user</artifactId> <packaging>war</packaging> <groupId>com.acme.shop</groupId> <artifactId>parent</artifactId> <packaging>pom</packaging> <version>1.0.0-SNAPSHOT</version>

Layering a component

Root package = com.acme.shop.user groupId + artifactId

com.acme.shop.user.rest com.acme.shop.user.web com.acme.shop.user.services.api com.acme.shop.user.services.impl com.acme.shop.persistence.dao com.acme.shop.persistence.model

Dependencies cannot be validated?! REST API Web UI Services Persistence DAO Model

Class roles in layers

com.acme.shop.user.rest

JAX-RS resources

com.acme.shop.user.web

Models, views, controllers Validators, converters

com.acme.shop.user.services

EJB

com.acme.shop.persistence.dao

DAOs

com.acme.shop.persistence.model

JPA entities

Rules developers should know about Concepts architects should be aware about

External dependencies of a component

REST API Web UI Services Persistence JAX-RS EJB JSF JPA CDI DAO Model JMS

External dependencies

<parent> <groupId>com.acme.shop</groupId> <artifactId>user</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <packaging>war</packaging> <dependencies> <dependency> <groupId>javax.faces</groupId> <artifactId>faces-api</artifact> <version>2.2</version> <scope>provided</scope> </dependency> </dependencies>

Provided by container Valid for all components

Dependency Management

<groupId>com.acme.shop</groupId> <artifactId>parent</artifactId> <version>1.0.0-SNAPSHOT</version> <packaging>pom</packaging> <dependencyManagement> <dependencies> <dependency> <groupId>javax.faces</groupId> <artifactId>faces-api</artifact> <version>2.2</version> <scope>provided</scope> </dependency> </dependencies> </dependencyManagement>

Using managed dependencies

<parent> <groupId>com.acme.shop</groupId> <artifactId>user</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <packaging>war</packaging> <dependencies> <dependency> <groupId>javax.faces</groupId> <artifactId>faces-api</artifact> </dependency> </dependencies>

Dependencies between components

user catalog

• rder

cart shipping Synchronuous - REST Asynchronuous - JMS

Dependencies between components

Communication via remote protocols

REST over HTTP JMS

Compile time dependencies

not explicitly required… …but convenient!

Re-use code

Shared artifacts, i.e. libraries APIs, domain models

Splitting up a component

shop/

pom.xml user/ pom.xml api/

pom.xml

app/

pom.xml

Visibilities

api public app private <parent> <groupId>com.acme.shop</groupId> <artifactId>shop</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <artifactId>user</artifactId> <packaging>pom</packaging> <parent> <groupId>com.acme.shop</groupId> <artifactId>user</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <artifactId>user.api</artifactId> <parent> <groupId>com.acme.shop</groupId> <artifactId>user</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <artifactId>user.app</artifactId> <packaging>war</packaging>

Splitting up a component

<parent> <groupId>com.acme.shop</groupId> <artifactId>user</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <artifactId>user.app</artifactId> <packaging>war</packaging> <dependency> <groupId>com.acme.shop</groupId> </artifactId>user.api</artifactId> </dependency>

compile scope

Use API of another component

<parent> <groupId>com.acme.shop</groupId> <artifactId>cart</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <artifactId>cart.app</artifactId> <packaging>war</packaging> <dependency> <groupId>com.acme.shop</groupId> </artifactId>user.api</artifactId> </dependency>

compile scope

Deployment of libraries

Option: API versioning

Cart 2.1.0 Application User 1.0 API Requires further component separation

user.app.war cart.app.war user.api.jar cart.api.jar user.api.jar

Common functionality

common-core-shared-util-helper Big balls of mud Cover mostly technical aspects layers shop/

common/ pom.xml rest/

pom.xml

web/

pom.xml

services/

pom.xml

persistence/

pom.xml

user/ <parent> <groupId>com.acme.shop</groupId> <artifactId>common</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <artifactId>common.web</artifactId> <dependencies> <dependency> <groupId>javax.faces</groupId> <artifactId>faces-api</artifactId> </dependency> </dependencies>

Component configuration

Artifacts that need to be delivered with deployables

Property-, XML, YAML-files, etc... Migration scripts

user/

pom.xml api/ pom.xml app/ pom.xml config/ pom.xml

Deliverable artifacts (JAR, ZIP)

Test code

Part of architecture shop/

test *ST.java Components user/test *CT.java Mockito Component stubs user/app *Test.java Mockito

Unit Component System

Component stubs

Component tests require …

API and implementation of own component APIs of other components Stubs for other components

Stubs can be provided per owning component

user/test src/main/java

com.acme.shop.user.test.UserManagementStub.java

Test module may depend on other test modules

Structural overview

shop/

common rest web services persistence test user api app config test … Libraries Components with similar structures public vs. private artifacts

Structural overview (continued)

… cart api

com.acme.shop.api

app

com.acme.shop.rest com.acme.shop.ui com.acme.shop.services com.acme.shop.persistence

config test … test Layering in component with defined content & dependencies Component test System test

Some Observations

It‘s an evolution

Neither architecture nor code structures are static

Deployment is the starting point

Separate following requirements

Architecture is not only about packages

Build system defines core dependencies

Different roles – different views

Architect vs. Developer vs. Build-/Integrationmanager

Representation Of Architectural Concepts In Code Structures

The Gap

Code Architecture Development Test Build-/Integration

• management

Different Roles Different Views Different Interests

Spread The Knowledge

• Mr. Project Lead: Tear down these walls!

Cross-functional teams Architect != Architect Project vs. Enterprise Work together Pair Programming Reviews Establish rules Who is allowed to change POM files?

Spread The Knowledge

Documentation

Word Documents UML Diagrams Wiki ... Keep documentation as close as possible to code! Store in version control system Generate from code

Challenges

Structures and rules are dynamic Documentation is always out-of-date Teams change

Difficult to avoid gaps in the long term

Spread The Knowledge!

Static code analysis

Define structural rules Break build on violations Provide reasonable feedback to developers

Which Tool?

SonarGraph Degraph jQAssistant

jQAssistant

Open Source

http://jqassistant.org Based on Neo4j

Scan software structures during the build

Packages, Classes, Fields, Methods Maven artifacts and dependencies

Analyze

Apply concepts Package „com.acme.shop.cart“ = Component „Cart“ Verify constraints Component „Cart“ can only depend on components „User“,

„Catalog“ and „Order“ Report
