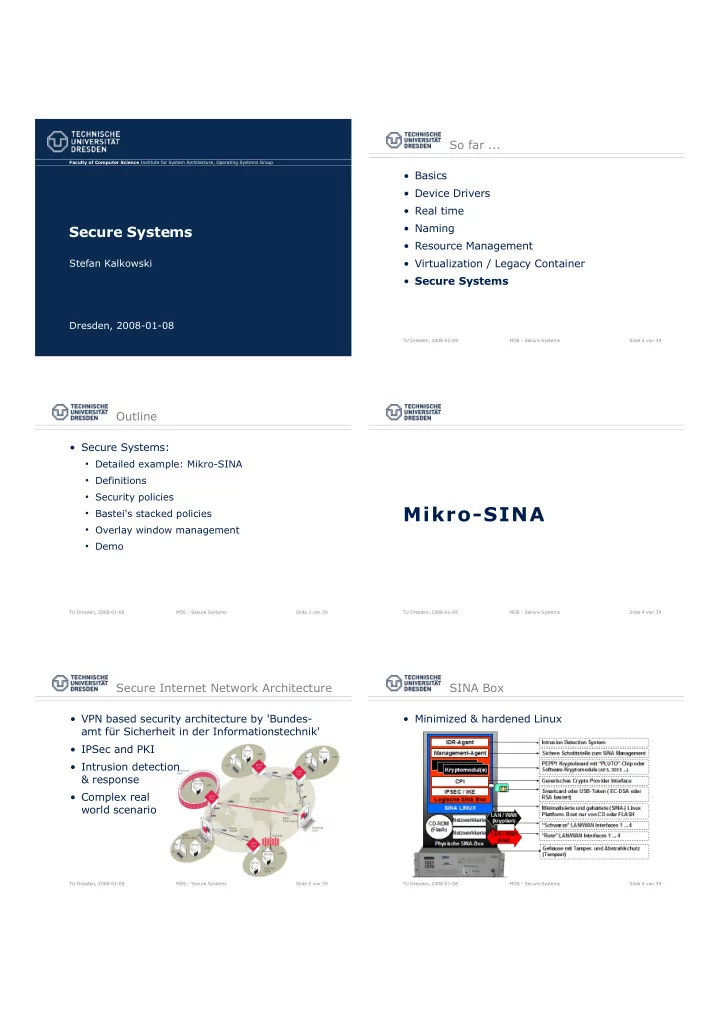

So far ... Faculty of Computer Science Institute for System Architecture, Operating Systems Group Basics Device Drivers Real time Naming Secure Systems Resource Management Stefan Kalkowski Virtualization / Legacy

slide-1
SLIDE 1

Faculty of Computer Science Institute for System Architecture, Operating Systems Group

Secure Systems

Dresden, 2008-01-08 Stefan Kalkowski

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 2 von 39

So far ...

  • Basics
  • Device Drivers
  • Real time
  • Naming
  • Resource Management
  • Virtualization / Legacy Container
  • Secure Systems

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 3 von 39

Outline

  • Secure Systems:
  • Detailed example: Mikro-SINA
  • Definitions
  • Security policies
  • Bastei's stacked policies
  • Overlay window management
  • Demo

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 4 von 39

Mikro-SINA

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 5 von 39

Secure Internet Network Architecture

  • VPN based security architecture by 'Bundes-

amt für Sicherheit in der Informationstechnik'

  • IPSec and PKI
  • Intrusion detection

& response

  • Complex real

world scenario

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 6 von 39

SINA Box

  • Minimized & hardened Linux
slide-2
SLIDE 2

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 7 von 39

Linux complexity

  • Linux is complex!
  • SLOC for kernel 2.6.18
  • All:

4.983.723

  • Architecture specific:

817.880

  • x86 specific:

55.463

  • Driver code:

2.365.256

  • Common:

1.800.587

  • Running kernel > 2 millions lines of code
  • Minimized & hardened version > 500.000 LOC

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 8 von 39

Project Mikro-SINA

  • Goals:
  • Reduce Trusted Computing Base of VPN

gateway

  • Enable high level evaluation (e.g.: Common

Criteria)

  • Objectives:
  • Confidentiality and integrity of sensitive

network data inside the VPN

  • Exploit microkernel features

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 9 von 39

IPSec – the heart of VPN security

  • IPSec is a protocol suite for securing the

Internet protocol

  • Authentication header
  • Guarantees integrity

and authentication

  • Encapsulating Security

Payload

  • Also confidentiality
  • Two different modes
  • Tunnel vs. transport

Data Link Layer IPSec IP TCP/UDP Application

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 10 von 39

Easy approach

  • Use paravirtualized L4Linux as a tool
  • Identify the security relevant parts in the

insecure application and separate them

  • 'Viaduct' is used for authentication, key

management and en- and decryption

L4Linux

Fiasco TCP/IP

L4Linux

Fiasco TCP/IP

IPSec „Viaduct“

IPSec

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 11 von 39

Viaduct in details

  • IP packets must be passed to the Viaduct
  • Use TUN/TAP driver in Linux to tunnel IP

L4Linux TCP/IP eth0 l4tun0 Fiasco Viaduct

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 12 von 39

Fragmentation of IP packets

  • Encrypted IP packets get fragmented
  • Problem for decryption
  • IP packets have to be unfragmented before

they are passed to the Viaduct

μ-SINA Gateway L4Linux Viaduct IP router IP router μ-SINA Gateway L4Linux Viaduct

slide-3
SLIDE 3

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 13 von 39

Let Linux do the dirty work ...

  • Register new transport protocol
  • IP stack will unfragment IP packets

L4Linux TCP/IP eth0 l4tun0 Fiasco Viaduct AH/ESP

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 14 von 39

What about confidentiality?

  • L4Linux is untrusted
  • but handles encrypted and unencrypted data
  • Use a second L4Linux instance
  • Each L4Linux instance drives its own ethernet

card exclusively

Fiasco L4Linux Viaduct eth0 L4Linux eth1

Internet LAN

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 15 von 39

Mikro-SINA so far

  • 'Outer' L4Linux instance handles encrypted

data only

  • 'Inner' L4Linux instance handles unencrypted

data and cannot communicate to the other instance or the 'outgoing' network device

Fiasco L4Linux Viaduct eth0 L4Linux eth1

Internet LAN

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 16 von 39

Mikro-SINA: Multi Level Security

  • Different security levels for data from different
  • rganizational levels
  • Use an own L4Linux instance for each level,

that handle the unencrypted data

Fiasco Viaduct L4Linux eth0

L4Linux L4Linux L4Linux

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 17 von 39

Reduce untrusted code size

  • Do we need two L4Linux instances for a VPN

gateway?

 Linux user level, process management,

scheduling, file systems etc. are not necessary

  • Use FLIPS (Flexible IP Stack): standalone

TCP/IP stack

Fiasco FLIPS Viaduct FLIPS eth0 eth1

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 18 von 39

Techniques

  • Fine grained isolation

 Microkernel feature  Enables implementation of principle of least

privilege

  • Minimize complexity of TCB for security

relevant code

 Split applications in security relevant and

nonrelevant parts

 Use trusted wrappers (e.g.: Viaduct)  Minimize common code (microkernel approach)

  • Usage of legacy code
slide-4
SLIDE 4

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 19 von 39

Nizza - security architecture

  • Beyond Mikro-SINA: greater vision Nizza

Common secure platform

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 20 von 39

Terms & Models

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 21 von 39

Secure system

Secure System*:

 A secure system is a system that starts in an

authorized state and cannot enter an unauthorized state.

Security Policy*:

 A security policy is a statement that partitions

the states of the system into a set of authorized, or secure, states and a set of unauthorized, or nonsecure, states.

* Matt Bishop: Computer Security – Art and Science TU Dresden, 2008-01-08 MOS - Secure Systems Slide 22 von 39

Policy and Mechanism

Security Policy:

 A security policy is a statement of what is, and

what is not allowed.

 e.g.: SELinux policy, pagetable, /etc/passwd

Security Mechanism:

 A security mechanism is a method, tool, or

procedure for enforcing a security policy

 e.g.: Capabilities, paging hardware TU Dresden, 2008-01-08 MOS - Secure Systems Slide 23 von 39

Formal security model: Bell-LaPadula

  • Subjects and objects have a security label,

consisting of a security level and category set

  • A security label dominates another one, if its

security level is greater or equal than the

  • ther one and its category set is a superset of

the other one

Unclassified Confidential Secret Top Secret {} {National} {Foreign} {National,Foreign}

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 24 von 39

Formal security model: Bell-LaPadula

  • Example: Label L1 : (Topsecret, {National})

dominates L2 (Secret, {})

  • Simple Security Condition: S can read O if S

dominates O (no reads up)

  • *-Property: S can write to O if and only if O

dominates S (no writes down)

slide-5
SLIDE 5

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 25 von 39

Bell-LaPadula summary

  • Information flow policy, that preserves

confidentiality

  • Very simple model, proof of model's security

properties is also trivial

  • No integrity concerns in the model (use Biba)
  • Problem: information flows only in one

direction

 A lot of underlying system software (e.g.

device drivers) has to be used by all different security levels

 Mostly these parts are excluded from the model TU Dresden, 2008-01-08 MOS - Secure Systems Slide 26 von 39

More flexible security models

  • Type Enforcement

 Subjects and objects have types  Types can be compounded to other types  Explicit rules state what types can access

(read, write) what other types

  • Very general model
  • In general: its more hard to prove specific

security properties in such a policy

  • SELinux is an example for TE in practice

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 27 von 39

SELinux

  • Developed by the NSA
  • Based on Linux Security Modules (LSM)
  • Linux functionality leads to complex security

policy

  • Standard (NSA) policy

 over 300 domains  ~ 50.000 rules  Tools might help to keep the overview

  • Problem: monolithic kernel leads to monolithic

reference monitor with one big policy inside

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 28 von 39

Decompose security policies

  • Szenario: Content Management System +

typical web services

Init Device Manager DNS PCI Host Controller Ethernet 1000 Card Intel 100 Pro Content System TCP/IP Stack User Bob Passwd Auth SSL Auth User Alice ATA Driver Web Getty Document Store Webserver Mailserver TCP/IP Stack DMZ TPM LPC Controller Audit TU Dresden, 2008-01-08 MOS - Secure Systems Slide 29 von 39

Decompose security policies

  • Application specific policy stack
  • Diverse security policy types can be combined

ACM ACM DNS PCI Host Controller Ethernet 1000 Card Intel 100 Pro TE + Roles TCP/IP Stack User Bob Passwd Auth SSL Auth User Alice ATA Driver Web Getty Document Store Webserver Mailserver TCP/IP Stack iptables TPM LPC Controller Audit TU Dresden, 2008-01-08 MOS - Secure Systems Slide 30 von 39

Use Bastei sessions

  • In Bastei every task dominates its children

with respect to sessions outside the child's

  • wn subtree
  • Eases up multilateral security

– Every organization unit can integrate its own policy

Init Child 1 Child 2 Grand- Child

first policy decision second policy decision just do it!

dominates dominates

slide-6
SLIDE 6

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 31 von 39

Overlay Window Management

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 32 von 39

Legacy application: web browser

L4Linux Fiasco L4Env DOpE Secure Storage FLIPS Web- proxy App. Loader Proxy stub Browser L4Linux App. Loader Proxy stub Browser

start

GET https://my-bank.com GET https://my-bank.com firefox https://my-bank.com

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 33 von 39

Fiasco L4Env DOpE Secure Storage FLIPS Web- proxy Domain 3 Domain 4 Domain 1 Domain 2

Legacy application: web browser

  • Browsing under sensitive domains (e.g. online

banking) is done in a automatically newly created L4Linux sandbox

  • L4Linux sandbox uses read-only root

filesystem + ramdisk (we can use freezer)

  • No need to touch the web browser at all
  • You only have to register the web proxy as a

valid certification instance (for https only)

  • Problem: how to integrate the web browser

windows on top of the different L4Linuxes

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 34 von 39

Overlay Window Management

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 35 von 39

Overlay Window Management

  • Technique for integration of different legacy

window managers is called Overlay Window Management (supported by Nitpicker / DOpE)

  • Trusted multiplexer of framebuffer and input

events

  • 'Trusted' – due to low complexity

 Nitpicker < 2.000 LOC

  • Isolation between different guest windows to

prevent spyware (e.g.: a keylogger)

  • Secure labeling of guest windows

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 36 von 39

DEMO

slide-7
SLIDE 7

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 37 von 39

Summary

  • How to construct safe systems with less effort
  • Techniques: application splitting, virtualization
  • Security Policies:

 A little bit about formal models (more in

'Distributed Systems' lecture)

 Stacking of security policies

  • How to integrate legacy window managers
  • ... and a lot of cool examples!

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 38 von 39

References

  • Matt Bishop: Computer Security – Art and Science,

Addison-Wesley 2003

  • Christian Helmuth et. al.: µSINA - Eine

mikrokernbasierte Systemarchitektur für sichere Systemkomponenten, Tagnungsband 8. Deutscher IT-Sicherheitskongress des BSI 2003

  • Hermann Härtig: Security Architectures Revisited,

Proceedings of the 10th ACM SIGOPS European Workshop 2002

  • Norman Feske et. al.: Overlay Window

Management: User interaction with multiple security domains, Technical Report 2004

TU Dresden, 2008-01-08 MOS - Secure Systems Slide 39 von 39

Next Lesson

  • Next week (12.01):

 Continuation of secure systems  More about Nizza  Trusted computing

  • Tomorrow:

 Practical exercise: Bastei
