Microgrids An Emerging Paradigm for Meeting Building Electricity and Heat Requirements Efficiently and with Appropriate Energy Quality with Appropriate Energy Quality by Chris Marnay & Ryan Firestone C_Marnay@lbl.gov - +1.510.486.7028 -

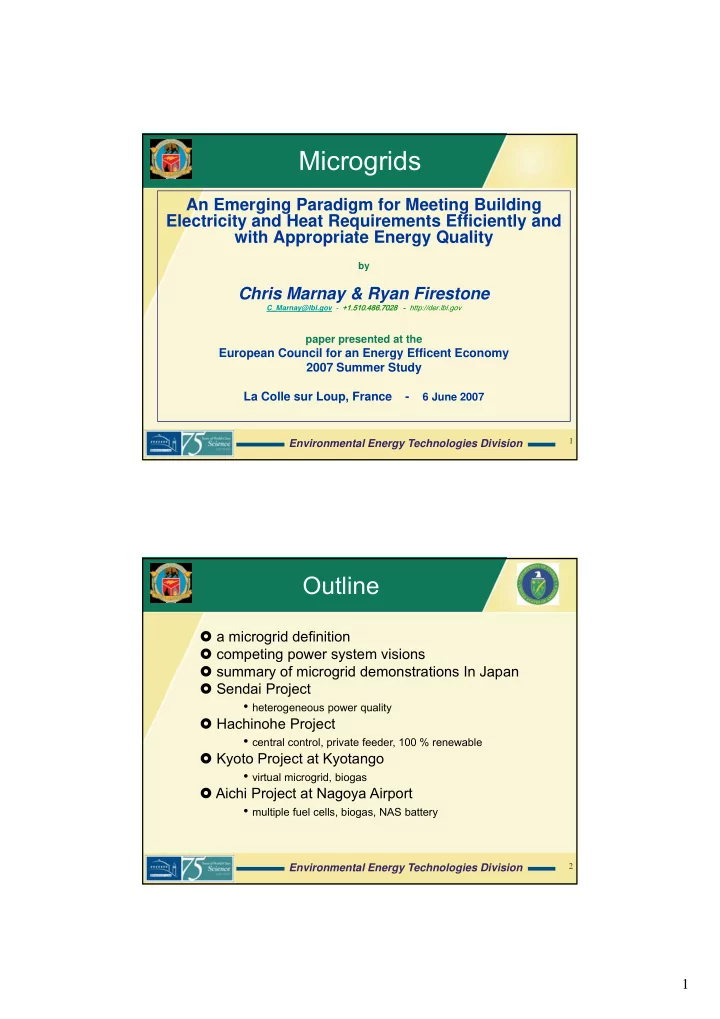

slide-1
SLIDE 1

1

Microgrids

An Emerging Paradigm for Meeting Building Electricity and Heat Requirements Efficiently and with Appropriate Energy Quality with Appropriate Energy Quality

by

Chris Marnay & Ryan Firestone

C_Marnay@lbl.gov - +1.510.486.7028 - http://der.lbl.gov

paper presented at the

European Council for an Energy Efficent Economy

Environmental Energy Technologies Division

1

European Council for an Energy Efficent Economy 2007 Summer Study La Colle sur Loup, France -

6 June 2007

a microgrid definition competing power system visions

  • f

i id d t ti I J

Outline

summary of microgrid demonstrations In Japan Sendai Project

  • heterogeneous power quality

Hachinohe Project

  • central control, private feeder, 100 % renewable

Kyoto Project at Kyotango

  • virtual microgrid biogas

Environmental Energy Technologies Division

2

  • virtual microgrid, biogas

Aichi Project at Nagoya Airport

  • multiple fuel cells, biogas, NAS battery
slide-2
SLIDE 2

2

What is a Microgrid?

A controlled grouping of energy (including electricity) sources and sinks that is connected to the macrogrid but can function to the macrogrid but can function independently of it.

main benefits to developers of microgrids:

  • pushing efficiency limits by heat recovery (CHP)
  • creating a more favorable environment for efficiency and

small-scale renewables

  • providing heterogeneous power quality and reliability (PQR)
  • ther societal benefits include:

Environmental Energy Technologies Division

3

  • ther societal benefits include:
  • avoiding macrogrid investments
  • hardening of supply
  • curbing generator market power, etc.

competing power system visions

Environmental Energy Technologies Division

4

slide-3
SLIDE 3

3

Supergrid Vision

PQR = power quality, & reliability PQR power quality, & reliability

Environmental Energy Technologies Division

5

Supergrid Vision Limits

centralised power system heat loss multiple infrastructure interdependencies f ti i ibl t l t i perfection impossible or at least very expensive restrictions on power system expansion (siting, environmental, rights-of-way, etc.) volatile bulk power markets economics drives operation closer to limits need to accommodate intermittent resources

Environmental Energy Technologies Division

6

insecure system

slide-4
SLIDE 4

4

Dispersed Vision

(distributed control & heterogeneous service ) Environmental Energy Technologies Division

7

summary of projects in Japan

Environmental Energy Technologies Division

8

slide-5
SLIDE 5

5

Microgrid Project Sites

NEDO Microgrids

Nagoya, Aichi Prefecture Hachinohe, Aomori Prefecture Kyotango, Kyoto Prefecture

Sendai Hachinohe

y g , y Sendai, Miyagi Prefecture

Private Sector Microgrids

Tokyo, Shimizu Corporation Yokohama, Tokyo Gas

Other Related Projects

The University of Kitakyushu, Fukuoka Pref. DoCoMo Building, Sendai

Environmental Energy Technologies Division

9

Kyotango Nagoya Tokyo Yokohama Kitakyushu

Sendai Project

Environmental Energy Technologies Division

10

slide-6
SLIDE 6

6

Sakura at Sendai Microgrid

Environmental Energy Technologies Division

11

Sendai Project Power Plant

Environmental Energy Technologies Division

12

slide-7
SLIDE 7

7

Sendai Project Pictures

Environmental Energy Technologies Division

13

Sendai Project Schematic

430 VDC bus

Environmental Energy Technologies Division

14

slide-8
SLIDE 8

8

Sendai Project Pictures

Environmental Energy Technologies Division

15

Hachinohe Project

Environmental Energy Technologies Division

16

slide-9
SLIDE 9

9

boiler wood waste 3x170 kW recip. gensets 50kW PV

Hachinohe Project Schematic

lead acid battery bank (100kW)

Sewage Plant

digestor storage tank PV 10kW wind turbine 8kW 8kW wind turbine junior high school (60kW) junior high school (53kW) elementary school (46kW) elementary school (46kW) private feeder (5.4km) bank (100kW) PV 10kW

Environmental Energy Technologies Division

17

Hachinohe City Hall (360kW) PV 10kW 2x2kW wind turbines New City building PCC Hachinohe water utility (50kw)

Hachinohe Project Pictures

Environmental Energy Technologies Division

18

slide-10
SLIDE 10

10

Kyoto Project at Kyotango

Environmental Energy Technologies Division

19

substation utility network

50kW wind turbine

substation

Kyoto Project Schematic

Internet based demand 7.5kW demand 9.4kW demand 55kW 30kW PV demand 100kW

biogas plant

5x80 kW biogas gens. 250 kW MCFC 100 kW battery 450 kW demand

Environmental Energy Technologies Division

20

Internet based control system demand 592kW demand 178kW 20kW PV demand 100kw

slide-11
SLIDE 11

11

Kyotango Project Pictures

Environmental Energy Technologies Division

21

Aichi Project at Nagoya Airport

Environmental Energy Technologies Division

22

slide-12
SLIDE 12

12

city offices electricity utility electricity

Aichi Project Schematic

methane fermentation transformer SOFC (40 kW) NAS battery electricity PV water treatment Environmental Energy Technologies Division

23

HT gasification MCFC (270kW & 300kW) 4x200kW PAFC NG

Aichi Project Pictures

Environmental Energy Technologies Division

24

slide-13
SLIDE 13

13

The End

Environmental Energy Technologies Division

25

Power Quality Services

Environmental Energy Technologies Division

26
