Micro-Mechanical Characterization of Hydrides in Zr-2.5 wt% Nb Pressure Tube Material Vineet Bhakhri, Wenjing Li, Cameron Howard, Sean Hanlon, Chris Dixon, Clinton Mayhew, Colin Judge, Sterling St Lawrence Canadian Nuclear Laboratories, Chalk

slide-1
SLIDE 1
  • 1-

UNRESTRICTED / ILLIMITÉ

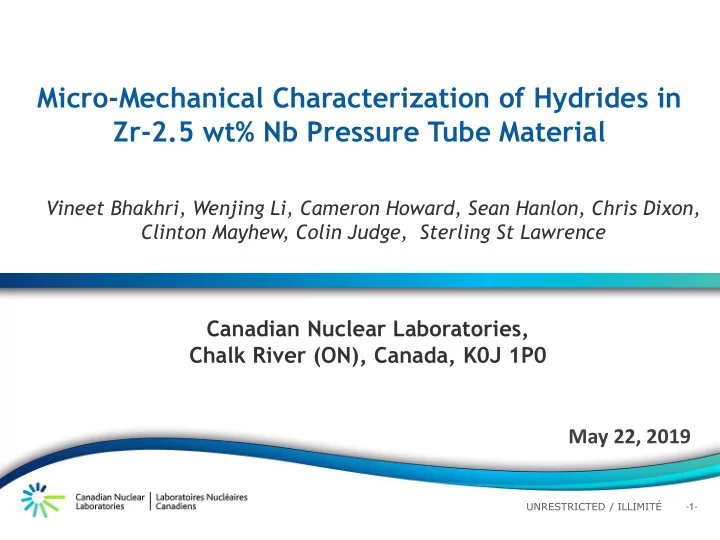

Micro-Mechanical Characterization of Hydrides in Zr-2.5 wt% Nb Pressure Tube Material

Vineet Bhakhri, Wenjing Li, Cameron Howard, Sean Hanlon, Chris Dixon, Clinton Mayhew, Colin Judge, Sterling St Lawrence

May 22, 2019 Canadian Nuclear Laboratories, Chalk River (ON), Canada, K0J 1P0

slide-2
SLIDE 2
  • 2-

UNRESTRICTED / ILLIMITÉ

Outline

➢ Introduction (Mechanical properties of Zirconium Hydrides) ➢ Test Material ➢ Experimental Results (Micro-mechanical Testing) ➢ Post-deformation TEM Analyses Results ➢ Conclusion

slide-3
SLIDE 3
  • 3-

UNRESTRICTED / ILLIMITÉ

Introduction (Mechanical Behaviour of Bulk Hydrides)

  • K. G. Barraclough, C.J. Beevers, “The Deformation and Fracture of Hydrides Based on the d-

Phase, Part I”, Journal of Materials Science 4 (1968) 518

  • Extremely brittle in tension up to 500C
  • In Compression: No measurable plastic

deformation up to 100C

  • Dislocation-based slip plasticity between

100C to 500C

slide-4
SLIDE 4
  • 4-

UNRESTRICTED / ILLIMITÉ

Introduction (Acoustic Emission Coupled Mechanical Testing)

  • Small radial hydrides (length < 25 mm) required ~ 4% plastic

strain to fracture under uniaxial loading at 25C

  • Room-temperature hydride fracture strain decreased with

increasing length.

  • Tri-axial stress state further decreased the hydride fracture

strain to 1% or less at ambient temperature conditions.

  • Longer hydrides (length > 50 mm) failed at a critical stress (644

± 45 MPa)

  • Brittle-to-Ductile transition behaviour between 120C to 140C

under uniaxial loading.

L.A. Simpson, “Criteria for Fracture Initiation at Hydrides in Zirconium-2.5 Pct Niobium Alloy”, Metallurgical Transactions A 12 (1981) 2113 M.P. Puls, “Effects of Crack Tip Stress States and Hydride-Matrix Internal Stresses on Delayed Hydride Cracking”, Metallurgical Transactions A 21(1990) 2905 M.P. Puls, “Fracture Initiation at Hydrides in Zirconium”, Metallurgical Transactions A 22(1991) 2327

slide-5
SLIDE 5
  • 5-

UNRESTRICTED / ILLIMITÉ

Micro-mechanical Testing of Zirconium Hydrides

slide-6
SLIDE 6
  • 6-

UNRESTRICTED / ILLIMITÉ

Test Material: Hydrided Pressure Tube Offcuts

Transverse tensile specimens, Hydrided & Thermo-mechanically cycled

slide-7
SLIDE 7
  • 7-

UNRESTRICTED / ILLIMITÉ

72 ppm 118 ppm

slide-8
SLIDE 8
  • 8-

UNRESTRICTED / ILLIMITÉ

Results: Pure Matrix Configuration

slide-9
SLIDE 9
  • 9-

UNRESTRICTED / ILLIMITÉ

Results: Pure Matrix Configuration

slide-10
SLIDE 10
  • 10-

UNRESTRICTED / ILLIMITÉ

10

Results: “Pure” Hydride Configuration

slide-11
SLIDE 11
  • 11-

UNRESTRICTED / ILLIMITÉ

11

Results: “Pure” Hydride Configuration

slide-12
SLIDE 12
  • 12-

UNRESTRICTED / ILLIMITÉ

12

Results (Pure Hydride Configuration)

slide-13
SLIDE 13
  • 13-

UNRESTRICTED / ILLIMITÉ

13

Results (Matrix-Hydride-Matrix Configuration)

slide-14
SLIDE 14
  • 14-

UNRESTRICTED / ILLIMITÉ

14

Results (Matrix-Hydride-Matrix Configuration)

slide-15
SLIDE 15
  • 15-

UNRESTRICTED / ILLIMITÉ

15

Results (Matrix-Hydride-Matrix Configuration)

slide-16
SLIDE 16
  • 16-

UNRESTRICTED / ILLIMITÉ

16

Circumferential Matrix Radial Matrix Pure Circumferential Hydride Pure Radial Hydride M-H-M (Circumferential) M-H-M (Radial)

Results (Summary)

*Configurations with Error Bars (2-4 Experiments) ** Configurations without Error Bars (1 Experiment)

slide-17
SLIDE 17
  • 17-

UNRESTRICTED / ILLIMITÉ

17

Results (Summary)

*Configurations with Error Bars (2-4 Experiments) ** Configurations without Error Bars (1 Experiment)

slide-18
SLIDE 18
  • 18-

UNRESTRICTED / ILLIMITÉ

UNRESTRICTED / ILLIMITÉ

𝟐𝟐𝟐 𝟐𝟐ഥ 𝟑

Twins

Post-deformation TEM Structural Analyses (Circumferential Hydride)

slide-19
SLIDE 19
  • 19-

UNRESTRICTED / ILLIMITÉ

UNRESTRICTED / ILLIMITÉ

Post-deformation TEM Structural Analyses

Orientation Relationship ഥ 𝟐ഥ 𝟐 𝟐 𝒒// ഥ 𝟐𝟐ഥ 𝟐 𝒖

slide-20
SLIDE 20
  • 20-

UNRESTRICTED / ILLIMITÉ

UNRESTRICTED / ILLIMITÉ

Post-deformation TEM Structural Analyses

𝟐𝟐𝟐 𝟐𝟐𝟏 Activated Slip System

slide-21
SLIDE 21
  • 21-

UNRESTRICTED / ILLIMITÉ

UNRESTRICTED / ILLIMITÉ

Conclusions

➢ Pure Matrix Configuration

  • Strength: Circumferential Matrix > Radial Matrix
  • Plastic Strain to Failure: Radial Matrix > Circumferential Matrix

➢ Pure Hydride Configuration

  • Strength: Circumferential Hydride > Radial Hydride
  • Plastic Strain to Failure: Radial Hydride > Circumferential Hydride
  • TEM analyses of post-deformed pure circumferential hydride revealed extensive

twining and dislocation slip. ➢ Matrix-Hydride-Matrix (M-H-M) Configuration

  • Strength: M-H-M (Circumferential Hydride ) > M-H-M (Radial Hydride)
  • Plastic Strain to Failure: (M-H-M) Radial Hydride > M-H-M) Circumferential Hydride
  • Co-deformation of hydride and matrix phases displayed extensive plastic

deformation of both the phases prior to final fracture.

slide-22
SLIDE 22
  • 22-

UNRESTRICTED / ILLIMITÉ

UNRESTRICTED / ILLIMITÉ

On-going Work

slide-23
SLIDE 23
  • 23-

UNRESTRICTED / ILLIMITÉ

Acknowledgement

CANDU OWNERS GROUP (COG) for providing financial support this work.

slide-24
SLIDE 24
  • 24-

UNRESTRICTED / ILLIMITÉ

Results (Matrix-Hydride-Matrix Configuration)
