SLIDE 1
EMSEV - DEMETER 2008
EMSEV - DEMETER 2008
OUTLINE
- Particular
events
- The
statistical analysis
- Conclusions
Michel Parrot LPCE/CNRS Orlans, France EMSEV - DEMETER 2008 - - PowerPoint PPT Presentation
Michel Parrot LPCE/CNRS Orlans, France EMSEV - DEMETER 2008 - - PowerPoint PPT Presentation

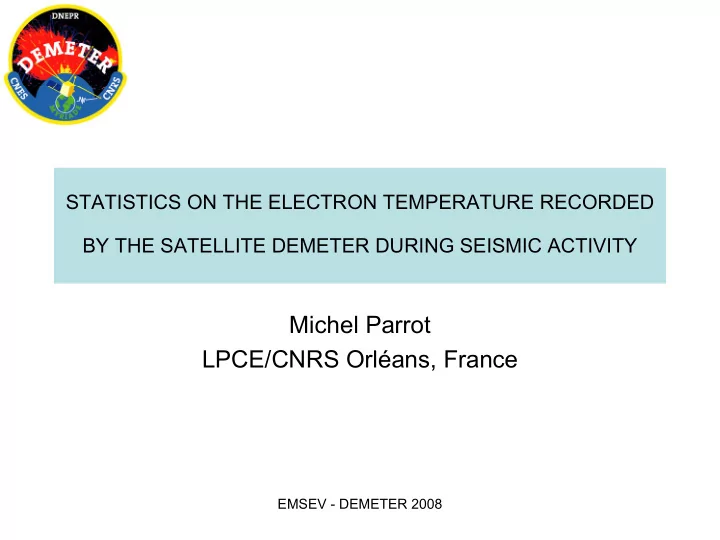

STATISTICS ON THE ELECTRON TEMPERATURE RECORDED BY THE SATELLITE DEMETER DURING SEISMIC ACTIVITY Michel Parrot LPCE/CNRS Orlans, France EMSEV - DEMETER 2008 OUTLINE Particular events The statistical analysis Conclusions
SLIDE 2
SLIDE 3
EMSEV - DEMETER 2008
July 16, 2007 01:13:22 UT 37.57°N, 138.5°E M = 6.6 d = 10 km 12 heures avant
SLIDE 4
EMSEV - DEMETER 2008
13 June 2008 23:43:46 UT Lat 39.103° Long 140.668° d = 10 km M = 6.8 2.5 days before
SLIDE 5
EMSEV - DEMETER 2008
d1 d3 d2 d4
Earthquake epicenter Conjugate point of the epicenter South conjugate point
- f the epicenter at
the satellite altitude North conjugate point
- f the epicenter at
the satellite altitude DEMETER orbit
SLIDE 6
EMSEV - DEMETER 2008
Sichuan 12 mai 2008 06:28:00 UT Lat 30.989° Long 103.329° d = 10 km M = 7.9
SLIDE 7
EMSEV - DEMETER 2008
SLIDE 8
EMSEV - DEMETER 2008
Statistic with the electron temperature
SLIDE 9
EMSEV - DEMETER 2008
3 years of DEMETER data Ionospheric data is organized by
- Magnetic local time
- Geographic positions
- Kp
- Months
Seismic data is
- rganized
by
- M > 4.8
- Land / under
sea
- Aftershocks
have been removed
SLIDE 10
EMSEV - DEMETER 2008
SLIDE 11
EMSEV - DEMETER 2008
SLIDE 12
EMSEV - DEMETER 2008
Application of the central limit theorem Probability density function
- f the
wave intensities in a bin
SLIDE 13
EMSEV - DEMETER 2008
Time
- f
EQ 26 June 2007 00:30:00 UT 10 Hours before 14 Hours 30 after
► ►
x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x
Superposed epoch method
SLIDE 14
EMSEV - DEMETER 2008
All land EQs with M > 4.8
SLIDE 15
EMSEV - DEMETER 2008
All land EQs with M > 4.8 All EQs with M > 4.8
SLIDE 16
EMSEV - DEMETER 2008
All land EQs with M > 4.8 random
SLIDE 17
EMSEV - DEMETER 2008
- 5 days
SLIDE 18
EMSEV - DEMETER 2008
All land EQs with M > 4.8 Ion Temperature
SLIDE 19
EMSEV - DEMETER 2008
All land EQs with M > 4.8 36 months 46 months
SLIDE 20
EMSEV - DEMETER 2008
Conclusions (1/3)
The main points revealed by the statistical studies are:
- The values of the parameters when the satellite is far from the earthquakes are
similar to the values obtained when a random data set of events is used. Therefore this study shows that there is an influence of the seismic activity on the electron temperature at an altitude of 700 km before the earthquakes.
- The perturbations are observed until 2.5 days before the earthquakes.
- The perturbations are real but they are weak and only statistically revealed. Up to
now nothing can be said about the possibility to predict earthquakes with the analysis
- f the electron temperature.
- A weaker
effect is seen for the ion temperature
SLIDE 21
EMSEV - DEMETER 2008
Conclusions (2/3)
Statistical analysis are in progress with
- ther
parameters:
- Electromagnetic
waves
- Whistler dispersion
- Energetic
particles
- VLF Transmitters
SLIDE 22
EMSEV - DEMETER 2008
Conclusions (3/3)
Future work:
- Define
the criteria which caracterize an anomaly
- Search
- f
this anomaly in the whole data set
- Determine
