Miami-Dade County Freight Transportation Advisory Committee (FTAC) - - PowerPoint PPT Presentation

1

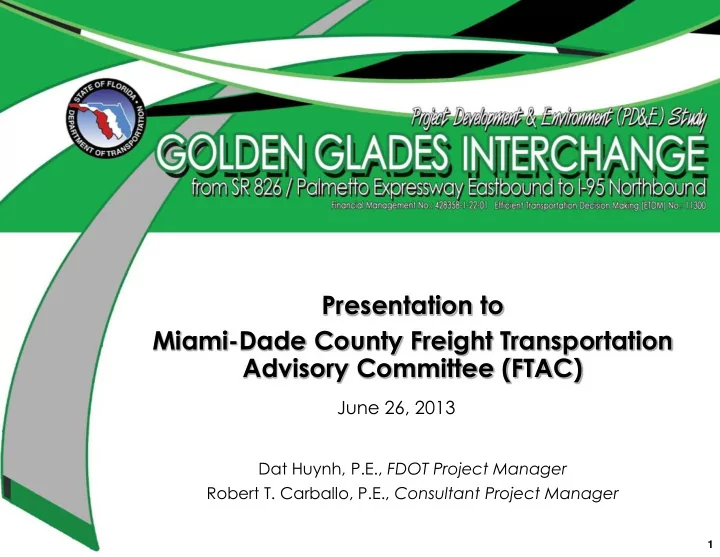

Presentation to Miami-Dade County Freight Transportation Advisory Committee (FTAC)

June 26, 2013

Dat Huynh, P.E., FDOT Project Manager Robert T. Carballo, P.E., Consultant Project Manager

2

PROJECT LOCATION



Located in northern Miami-Dade County



Adjacent to City of Miami Gardens, North Miami Beach, North Miami and the Golden Glades Community

3

BACKGROUND

Golden Glades Interchange is a SIS intermodal hub that connects to other SIS facilities, such as

 I-95  SR 826 (Palmetto Expressway)  Florida’s Turnpike  Park and Ride

STRATEGIC INTERMODAL SYSTEM (SIS)

A statewide network of high-priority transportation facilities such as: airports, seaports, rail corridors and highways

4

WHAT IS A PROJECT DEVELOPMENT AND ENVIRONMENT (PD&E)?



A process followed by FDOT to evaluate:

• Engineering alternatives
• Environmental impacts
• Social, cultural and economic

impacts associated with a planned transportation project



Mandated by the National Environmental Policy Act (NEPA) of 1969



Required when federal funds are involved

PD&E STUDY PROCESS

Analyze Environmental Impacts Define the Purpose & Need Collect Data Develop Alternatives Conduct Public Workshop Refine Alternatives Select Preferred Alternative Conduct Public Hearing Recommend an Alternative Location Design Concept Acceptance (LDCA) 1 3 4 5 6 7 8 9 10 2

P U B L I C I N V O L V E M E N T

EXISTING CONDITIONS

5

Legend SR-826 EB to I-95 NB (Signed Movement) SR-826 EB to I-95 NB (Alternative Route) Turnpike SB to I-95 SB Traffic Signal

6



Golden Glades Interchange currently carries is over 400,000 vehicles per day with direct impacts on regional travel within the tri-county area



Travel demand within the interchange is projected to increase by approximately 50% by the 2040 year



Critical movements experiencing heavy congestion with insufficient capacity include:

1. SR 826 EB to I-95 NB 2. Turnpike SB to I-95 SB

NEED FOR PROJECT

TRAVEL DEMAND & CAPACITY

7



3,238 total crashes between 2006 to 2010



19 fatalities



1,496 injury crashes



Predominant Crashes

• Rear End

– 44%

• Side Swipe

– 18%

• Fixed Object – 12%
• Angle

– 10%



Annual Economic Loss Estimated at approx. $101 million

NEED FOR PROJECT

SAFETY

Fatal Crash Locations

8

STUDY PURPOSE AND OBJECTIVES

INTERIM IMPROVEMENTS (NEAR TERM CONSTRUCTION)



Provide a direct connection for SR 826 (Palmetto Expressway) eastbound to I-95 northbound



Improve the Turnpike southbound to I-95 southbound connection



Develop interim improvements within the Golden Glades Interchange to enhance safety, mobility and circulation ULTIMATE IMPROVEMENTS (CONSTRUCTED WITH SR 826 E-W PROJECT)



Accommodate potential express lanes system and transit enhancements connection to Golden Glades Interchange



Addition of express lanes from SR 826 connecting to I-95 to and from the north



Enhance Turnpike Connector southbound to I-95 with possible express lanes direct connection



Establish an Ultimate Master Plan for the Golden Glades Interchange

PROPOSED IMPROVEMENTS

Recommended Interim Build Alternative

9 2 5 4 3 6 7

NW 17 Avenue

City Furniture Mercedes-Benz

• f Miami

NW 165 Street NW 13 Street

Park & Ride

Biscayne Canal

KEY FEATURES

• 1. Provide Texas U-Turns at NW 12th Avenue and NW 17th Avenue

Interchanges (14-ft minimum vertical clearance)

• 2. Provide NW 12th Avenue On-Ramp and barrier separates traffic

from I-95 NB flyover ramp

• 3. Additional right of way required within Sunshine Industrial Park
• 4. Increase radius of SR 826 EB to I-95 SB ramp from 340-ft to

500-ft

• 5. Provide additional auxiliary lane along Turnpike connector SB

lanes

• 6. Advances improvements for Ultimate design and provide

three-lane off ramp to SR 7/US 441

• 7. R/W impacts to 10 commercial and 9 vacant properties

1 1

PROPOSED IMPROVEMENTS

Recommended Interim Build Alternative

10

Provide direct connection from SR 826 EB to I-95 NB Relocate NW 12th Avenue on-ramp and increase ramp curvature Widen Turnpike Connector SB to provide two lanes to I-95 SB Provide dual left turn lane to from SR 826 EB to Turnpike NB Provide dual NB left turn lanes at NW 2nd Ave R/W impacts to Sunshine Industrial Park Bridge to be Replaced Construct new Bridge

PROPOSED IMPROVEMENTS

Recommended Interim Build Alternative

11

Provide three lane off-ramp to SR 7/US 441 Relocate Turnpike Connector SB to SR 7/US 441 off-ramp R/W impacts to commercial properties Widen Existing Bridge

BISC SCAYNE NE CANA NAL

12

FREIGHT TRAFFIC IMPROVEMENTS



Provide congestion relief with direct connection ramp from SR 826 EB to I-95 NB and 40 mph design speed



Maximum grades of 5% for proposed flyover ramp to improve mobility for truck traffic



42-inches tall traffic railing barriers (TL-5 design) provided along flyover ramp bridge to address truck impacts



Increased radius of SR 826 EB to I-95 SB ramp to from 340-ft to 500-ft to enhance safety



New structures designed to accommodate required vertical and horizontal clearance



Provide free flow right turn lane from Turnpike Connector SB to SR 7/US 441 NB and Tandem Truck Staging area



Full shoulder pavement along SR 7/US 441 NB from Turnpike Connector Ramp Terminal to Tandem Truck Staging area



Texas U-Turns provided at NW 12th Avenue and NW 17th Avenue Interchanges to enhance access to and from industrial park. Accommodates WB-40 trucks (14-ft minimum vertical clearance)

13

Reconfigure parking from 90o to 45o Relocate existing ITS hub building and adjacent bicycle rack Reconfigure bus bays, bus shelter and Kiss-&-Ride Realign bus drive aisle and adjacent parking Park & Ride West Lot Tandem Truck Parking Park & Ride East Lot

MULTIMODAL CONSIDERATIONS

Recommended Interim Build Alternative

14

TRAFFIC ANALYSIS

Recommended Interim Build Alternative

# Location Travel Time (Minutes) AM Peak Period PM Peak Period No-Build Interim Build % Change No-Build Interim Build % Change 1 Turnpike SB to NW 2nd Avenue 20.96 3.10

• 85%

24.17 3.02

• 88%

2 Turnpike SB Connector to I-95 SB 16.44 5.48

• 67%

18.38 4.01

• 78%

3 SR 826 EB to NW 2nd Avenue 6.08 3.00

• 51%

7.07 3.21

• 55%

4 SR 826 EB to I-95 NB1 5.86 2.13

• 64%

3.73 1.86

• 50%



Travel Time Comparison (2030)

Notes: 1. The No-Build route refers to the existing signed route while the Build Alternatives route refers to the new flyover ramp connection

PROPOSED IMPROVEMENTS

Ultimate Build Alternative

15

NW 17 Avenue

City Furniture Mercedes-Benz

• f Miami

NW 165 Street NW 13 Street

Park & Ride East Lot Park & Ride West Lot

Biscayne Canal

KEY FEATURES

• 1. Provides express lanes connection from SR 826 to and from

I-95 North

• 2. Reconstructs SR 826 mainline and provides Texas U-Turns at

NW 17th Avenue Interchange (16.5-ft minimum vertical clearance)

• 3. Additional right of way required within Sunshine Industrial Park
• 4. Provide additional auxiliary lane along Turnpike connector SB

lanes and 3-lane off-ramp to SR 7/US 441

• 5. Provides direct flyover connection from Turnpike SB to I-95 SB

express lanes

• 6. R/W impacts to 18 residential, 7 commercial properties and 11

vacant property west of I-95 SB lanes 1 4 3 2 5 6

16

NW NW 2 AVE

Dual left turn lanes for NB to WB movement

NW NW 2 AVE

NW 167 Street WB ramp to SR 7/US 441

PROPOSED IMPROVEMENTS

Ultimate Build Alternative

NW 167th Street & NW 2nd Avenue Intersection Improvements

Proposed Express Lanes from SR 826 EB to I-95 NB Proposed Express Lanes from I-95 SB to SR 826 WB Dual Left-turn to Turnpike NB

Jackson North Medical Center

Proposed Ramp from SR 9/ SR 7 NB to I-95 NB Proposed SR 826 EB to I-95 NB Flyover Bridge Proposed Turnpike to I-95 Southbound Express lanes Connector Ramp

17

Reconstruct I-95 SB lanes

PROPOSED IMPROVEMENTS

Ultimate Build Alternative

NW NW 151 ST ST NW NW 147 ST ST

R/W impact to residential properties Widen existing flyover ramp to two lanes Provide auxiliary lane along I-95 NB

NW NW 150 ST ST NW NW 7 AVE

PUBLIC INVOLVEMENT

18

Several meetings for the public to provide comments and input:



Agency Kick-Off Meeting August 25, 2011



Public Kick-Off Meeting August 25, 2011



MPO Meetings April 2012



Alternatives Public Workshop #1 May 3, 2012



Alternatives Public Workshop #2 August 21, 2012



MPO Meetings Sept 2012 – Dec 2012



Presentations to Residential Groups Nov 2012 – Jan 2013



Presentations to Business Community Nov 2012 – Jan 2013



City of Miami Gardens Town Hall Mtg. January 29, 2013



Councilman Rodney Harris Town Hall Mtg. February 19, 2013



State Rep. Campbell Town Hall Meeting February 29, 2013



UP-PAC Meeting Presentation March 9, 2013



Public Hearing Summer, 2013

19

PRELIMINARY CONSTRUCTION COSTS

Cost Component Recommended Interim Build Alternative

Construction Cost $102,867,000 Engineering Design Cost $11,151,000 Construction, Engineering, Inspection Service Costs $10,288,000 Right of Way Cost $45,753,000** Total Project Cost $170,059,000



Project funded for design in 2014 and construction in 2017



Funding for ROW is pending (**)

20

PUBLIC SCHEDULE

Recommended Interim Build Alternative

ACTIVITY

2011 2012 2013 2014 2015 2016 2017 2018 2019 2020

Winter Spring Summer Fall Winter Spring Summer Fall Winter Spring Summer Fall All All All All All All All

Notice to Proceed Data Collection Agency and Public Kick-Off Develop and Analyze Alternatives Initial Environmental Studies Alternatives Public Workshop #1 Interchange Modification Report Alternatives Public Workshop #2 Develop Preferred Alternative Public Hearing Develop Final PD&E and Environmental Documents Location and Design Concept Acceptance Public Involvement Design Build Criteria Package ROW Acquisition Contract Advisement & Selection of DB Contractor Construction

CONTACTS

21

Florida Department of Transportation – District Six 1000 NW 111 Avenue, Room 6251 Miami, Florida 33172 Dat Huynh, P.E. – FDOT Project Manager Email: dat.huynh@dot.state.fl.us Telephone: (305) 470-5217 Project Website: www.fdotmiamidade.com/goldengladesstudy

Questions?

FUTURE GGI MULTIMODAL & TRUCK PARKING FACILITIES

22

KEY FEATURES

• 1. West Lot – Multimodal facility
• New Transit Platform
• Intercity Bus Platform
• On-grade Parking
• Parking Garage
• Multimodal Hub
• 2. East Lot – Truck Parking
• Tandem Truck Parking
• Truck Wash & Maintenance
• Truck & Auto Fueling Areas
• Travel Center with Showers

and Restaurant

Truck Parking Multimodal Facility
