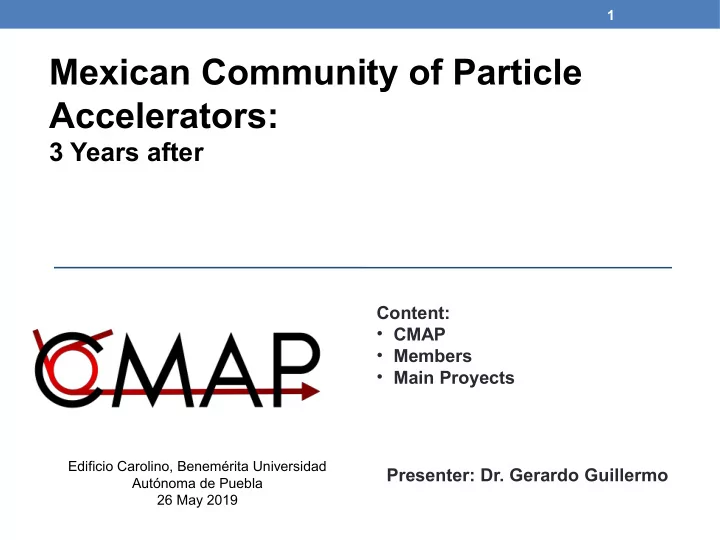

SLIDE 1

Mexican Community of Particle Accelerators:

3 Years after

1

Content:

  • CMAP
  • Members
  • Main Proyects

Edificio Carolino, Benemérita Universidad Autónoma de Puebla 26 May 2019

Presenter: Dr. Gerardo Guillermo

slide-2
SLIDE 2

Goals: Stablish and maintain collaborations with international labs: CERN, JLAB, LNLS, Etc. Developping own projects in Mexico. CMAP members cover different aspects of the accelerators science and technology.

Mexican Particle Accelerator Community (Comunidad Mexicana de Aceleradores de Particulas)

2

In 2015, the Mexican Particle Accelerator community was created. Its main objective is to develop the science and technology of particle accelerators in Mexico and train human resources.

slide-3
SLIDE 3

CMAP MEMBERS

  • Accelerator physics spans over many areas and subjects.

Each member works in a different subject.

3

slide-4
SLIDE 4

Name: Luis Eduardo Medina Medrano Degree: PhD candidate Affiliations: CERN, Beam Department – Switzerland Universidad de Guanajuato – Mexico Institutions where develops his research: CERN, Beam Department – Switzerland

Current Project Topics:

  • Optimal RF injection voltage for the LHC and High-

Luminosity LHC

  • Power consumption with transient beam loading and

compensation schemes

  • Controlled emittance blow-up and stability

Previous Projects Topics:

  • Design and optimization of the interaction region of the

FCC-ee (Master’s Thesis)

  • Assessment of the performance of the High-Luminosity

LHC (PhD Thesis) Areas of Interest:

  • Lattice design
  • Transverse and longitudinal beam dynamics
  • Beam measurements

lmedinam@cern.ch

slide-5
SLIDE 5

5 Name: Marco Alan Valdivia Degree: Master in Physics Affiliations: University of Guanajuato/CERN Institutions where develops his research: CERN alan.valdivia@cern.ch Effect of Beamstrahlung on Bunch Length and Emittance in Future Circular e+e− Colliders: In future circular e+e- colliders, beamstrahlung may limit the beam lifetime at high energies, and increase the energy spread and bunch length at low energies. If the dispersion or slop of the dispersion is not zero at the collision point, beamstrahlung will also affect the transverse emittance. EffectTowards a monochoromatizaition scheme for direct Higgs productions: Direct Higgs production in e+e- collisions at the FCC is of interest if the centre-of-mass energy spread can be reduced by at least an order of magnitude. A mono- chromatization scheme, to accomplish this, can be realized with horizontal dispersion of opposite sign for the two colliding beams at the interaction point (IP). Working topic:

slide-6
SLIDE 6

Study of adsorption sites due to the beam induced Synchrotron Radiation (SR) By using montecarlo tools it is possible to simulate SR photons along an accelerator and it is possible to track these photongs along the vacuum chamber and check for reflections and adsorption sites. The code Synrad3D, developped at Cornell University by D. Sagan in collaboration with G. Dugan is being employed to map the SR distribuation a long the LHC and future colliders. Effect of the sawtooth pattern of the LHC arc chambers and effects of the changes in the optics ATS of the HL- LHC Name: Gerardo Guillermo Canton Degree: Doctor in Theoretical Physics Affiliations: UPY (Universidad Politécnica de Yucatán) Institutions where develops his research: CERN, Cinvestav, INFN- LNF, CLASSE. Working topic: gerardo.guillermo.canton@cern.ch 6

slide-7
SLIDE 7

Name: Humberto Maury Cuna Degree: Doctor

Affiliations: University of Guanajuato/CERN Mapping of the beam-induced synchrotron radiation at the LHC: The EM radiation due to the beam in the LHC is a key ingredient to electron cloud build-up codes. Employing codes as SYNRAD3D can help to map the distribution of the SR photons along the LHC. Particle Accelerator Group at UG: Currently, I am coordinating the particle accelerator group at Universidad de Guanajuato: 2 Full time researchers, 2 PhD studens, 3 master students and 2 undergrads students: israel.maury@ugto.mx Electron cloud effects in the LHC and FCC: An electron cloud is an important issue for the LHC performance and beam quality. I am woking on studies to mitigate this effect. In addition, how EC will affect the future accelerators like FCC is being investigated. Areas of interest: collective effects, synchrotron radiation, cyclotrons, accelerators for industrial applications and organization development

Member of:

  • Mexican

Particle Accelerator Community- CMAP (Current President)

  • Interinstitutional

Collaboration for Reserch and Development of Particle Accelerator Technology in México (CIIDTAP)

  • RELIEF

Project: Reducing Environmental impact of the Leather- tanning Industry with Electron beam Facilities (collaboration Mexico-UK)

slide-8
SLIDE 8

Name:

Bruce Yee Rendón

Degree:

Doctor in Physics

Affiliation:

Japan Atomic Energy Agency- Ibaraki, Japan

Institutions where he develops his research:

Japan Proton Accelerator Research Complex (JAEA)

Design of the Elliptical SRF cavities for the final acceleration of the JAEA-ADS.

Areas of Interest: SRF cavities, beam dynamics and collective effects.

  • Design the Superconducting RF Cavities.
  • Design of the beam optics.
  • Design the front-end

Design of a Superconducting Proton Linac for the JAEA -ADS Project subject:

EM fields of the HWR cavities. Design of the Spokes Cavities.

slide-9
SLIDE 9

AWARDS

Presentation award for the oral work entitled: “PyEcloud simulations of the electron cloud for the J-PARC MR", in the 14th Annual Meeting of the Particle Accelerator Society of Japan, Sapporo, Japan, August 1 - 3, 2017. “Sinaloenses Ejemplares en el Mundo 2017" due to his contribution in science to the community of Sinaloa, Culiacan, Mexico, December 13, 2017.

slide-10
SLIDE 10

Name: Juan Reyes Herrera Degree: PhD. in Physics Affiliations:

Postdoc granted by CONACyT in the ESRF, since November, 2017.

Institutions where develops his research:

Institute of Physics, UNAM – CDMX, México. ALBA Synchrotron Light Source – Barcelona, Spain.

PhD project Subject: Simultaneous PIXE and XRF elemental analysis.

Areas of Interest:

  • X-ray spectroscopy techniques.
  • Synchrotron light sources.
  • X-ray optics and beamline design.
  • Surface plasma processes.
  • Accelerator physics.
  • Radiation detection.
  • Data acquisition and Analysis.
  • Vacuum Systems.

jureyherrera@gmail.com

slide-11
SLIDE 11

RF CAVITY DESIGN 11 Name: Cristhian Alfonso Valerio Lizarraga Degree: Doctor Affiliations: Universidad Autonoma de Sinaloa Institutions where develops his research: FCFM/UAS, CERN, LINAC4,JLAB,ININ Working Topics:

  • Particle Source Simulation and

Design

  • Negative Ion Beam
  • Electron Rf Sources
  • Plasmas Physics
  • High intensity Beam Transport

Simulation of the ININ Ion source Electodes(Blue) H- Beam (Red)

3-D models of Spacecharge compensation Magnet Design

cvalerio@uas.edu. mx

Simulation of Secondary particles created by beam collisions with residual gas

Parameter Values Input Beam Energy 100 keV Design Frequency 2998 MHz Quality Factor 20582 Transit Time Factor 0.485 Shunt Impedance 6.1153 MΩ R/Q 297 Ω 1st Cell β 0.55 Next Cells β 0.70

slide-12
SLIDE 12

Name:

Salvador I. Sosa Güitrón

Degree:

M.S. in Physics

Affiliation:

Old Dominion University - Norfolk, VA

Institutions where he develops his research:

Center for Accelerator Science – ODU Jefferson Lab – Newport News, VA

Resulting JLEIC dynamic aperture assuming different crab cavities. Crabbed e and p bunches at JLEIC interaction point, different energies. Jefferson Lab Electron-Ion Collider

Areas of Interest: Beam dynamics, SRF cavities, collective effects.

  • Simulation of the bunch crabbing system using a full-description of JLEIC electron and ion rings.
  • Study the beam stability of JLEIC with crab cavities and determine tolerances on field multipoles and

radio-frequency noise using particle tracking tools.

  • Calculation of coupled bunch instability to determine appropriate crab cavity HOM damping.

Instability growth rate of coupled bunch

  • scillating modes driven by crab cavity

HOM.

Crab Cavity Requirements for the Jefferson Lab Electron-Ion Collider

slide-13
SLIDE 13

Name: Alejandro Castilla Loeza. Degree: PhD. in Physics. Affiliations:

CERN Beams Group RF-LRF – Geneva, CH. Jefferson Lab – Newport News, VA. Lancaster University – Lancaster, UK.

Institutions where develops his research:

CERN Beams RF-LRF – Geneva, CH.

Project Subject:

Design and Operation of Superconducting and Normal Conducting Radiofrequency Cavities for Particle Accelerators.

  • Radiofrequency Applications Beyond Acceleration.
  • High Luminosity Future Colliders.

Areas of Interest:

  • Superconducting RF.
  • Beam Dynamics at the Interaction Region.
  • Machine Operations.

a.castilla@cern.ch

slide-14
SLIDE 14

14 Name: Karim Gibrán Hernández Chahín Degree: Master in Physics Affiliation: Universidad de Guanajuato, División de Ciencias e Ingenierías Campus León – León Gto. México Institution where develops his research: CERN

Areas of interest: Radio Frequency (RF), Superconductors (SC), Quench analysis, RF Cavities

Working Topics: Superconducting Radiofrequency Cavities: Preparation techniques, performance measurements and quench analysis

  • The main limitation for the SRF cavities are the field emission and quench.

This depends strongly in the surface quality and in the surface preparation

  • Objectives:

Reach

  • peration

requirement reducing:

  • Quench
  • Multipacting
  • Field emission /Radiation

Optimize

  • Mechanical/Chemical/ Thermal

treatments

  • High pressure rinse
  • Handing and assembly in clean

rooms Measurement and data analysis

  • Temperature monitoring
  • Quench localization using OST signals
  • Magnetic field and estimation of the

trapped flux in the superconductor

  • Correlation

between field emission measurement with the surface defect size karim.gibran.hernandez.chahin@cern.ch

slide-15
SLIDE 15

dchavez@fisica.ugto.mx | LinkedIn.com/in/dchavezmagnetlab | +1 (832) 858 8616 1301 Barthelow Dr. Apt. 31B. College Station, Tx. 77840, USA.

M.Sc. Daniel Chavez V. Ph.D. Candidate Universidad de Guanajuato / Texas A&M University Accelerator Physicist

Skills Superconducting /normal conducting magnet design Accelerator technology design and development Applied Superconductivity NbTi, MgB2, Bi2212, Nb3Sn superconductors HP VEE programming Linux CNC programming Engineering design Finite Element Analysis modeling Comsol Multiphysics: Thermal, Mechanical, AC&DC models QC characterization Gamma Ray Spectroscopy for environmental radiation detection E&M analysis for accelerator technology Thermal analysis for accelerator magnets Mechanical and structural analysis 3D printing R&D High temperature heat treatment on exotic materials

slide-16
SLIDE 16

CMAP members areas of expertise:

Particle Sources and Linacs: Cristhian Valerio (UAS) Beam Dynamics: Luis Medina (CERN) RF: Alejandro Castilla (CERN) and Karin Hernández (CERN) Magnets: Daniel Chavez (Texas A&M) Vacuum: Carlos Hernández (JLAB) Machine Proteccion: Bruce Yee (KEK) Synchrotron Radiation: Gerardo Guillermo (CERN), Marco Valdivia (UG) Beam lines for SLS: Juan Reyes (ESRF) Superconductor material for accelerators: Salvador Sosa (ODU) Electron cloud Effects and Radiology Protection: Humberto Maury (UG)

16

slide-17
SLIDE 17

Flagship Project: CMAP RF eLINAC

slide-18
SLIDE 18

Linac Project

  • The first project under development for the CMAP is an

electron Linac.

  • CMAP is designing the accelerator complex.
  • However, it is necessary the collaboration of several

institutes and the SR Users Community to achieve this goal.

  • By building the LINAC in mexico the cost can be

considerably reduced.

  • Not a black box system.

18 MePAS 3

slide-19
SLIDE 19

Max acceleration 60 MeV per cavity

Pulse Length Max 4 us

 Electron source.  S-band.  Repetition Rate 11 KHz  Energy Gain in first cavity 10 MeV.  Magnetron or klystron  Other Cavities energy given up to 60 MeV.  Diagnostic created in Mexico. 19

Linac Basic Design

Publications: STUDY OF THE FIRST MEXICAN RF LINEAR ACCELERATOR 2017 Revista Mexicana de Fisica 64(2):116-121

  • FIELD AND COST OPTIMIZATION OF A 5 T/m

NORMAL CONDUCTING QUADRUPOLE FOR THE 10-MeV BEAM LINE OF THE eLINAC OF THE MEXICAN PARTICLE ACCELERATOR COMMUNITY * Proceedings of IPAC2018, Vancouver, BC, Canada

slide-20
SLIDE 20

MePAS

20

MePAS is an introductory-level course intended for outstanding senior undergraduate students (last year of their program) and for Master's and PhD students in Physics and engineering (mechanics, electronics, or similar disciplines) with a strong interest in the field of particle accelerators and technology.

slide-21
SLIDE 21

MePAS

21

The first edition of MePAS took place in Guanajuato in 2011. It was organized by researchers and proffesors from the UGto, Cinvestav and UNAM.

slide-22
SLIDE 22

MePAS

22

The organization of the second edition was taken care by the CMAP for its first time. It took place in Guanajuato in 2015.

slide-23
SLIDE 23

MePAS

23

CMAP took the responsibility to give continuity to this program, organizing the third edition of this school which was held in Leon in 2018

slide-24
SLIDE 24

Summary

  • There are outgoings collaborations related to accelerator physics

between international institutes and the two Mexican Accelerator Groups

  • U. Sinaloa - CERN – JLAB - ININ - UNAM - LNLS
  • U. Guanajuato – CERN – JLAB – UADY
  • CINVESTAV - CERN
  • With the acquired knowledge, so far, it is possible to start small

projects.

  • To collaborate with the industry is necessary to own the technology

before start the transfer of technology.

  • First projects starting with national funding at UAS and UG.
  • Training of the CMAP accelerator engineers already began.

24

slide-25
SLIDE 25

Thank you very much for your attention

25
