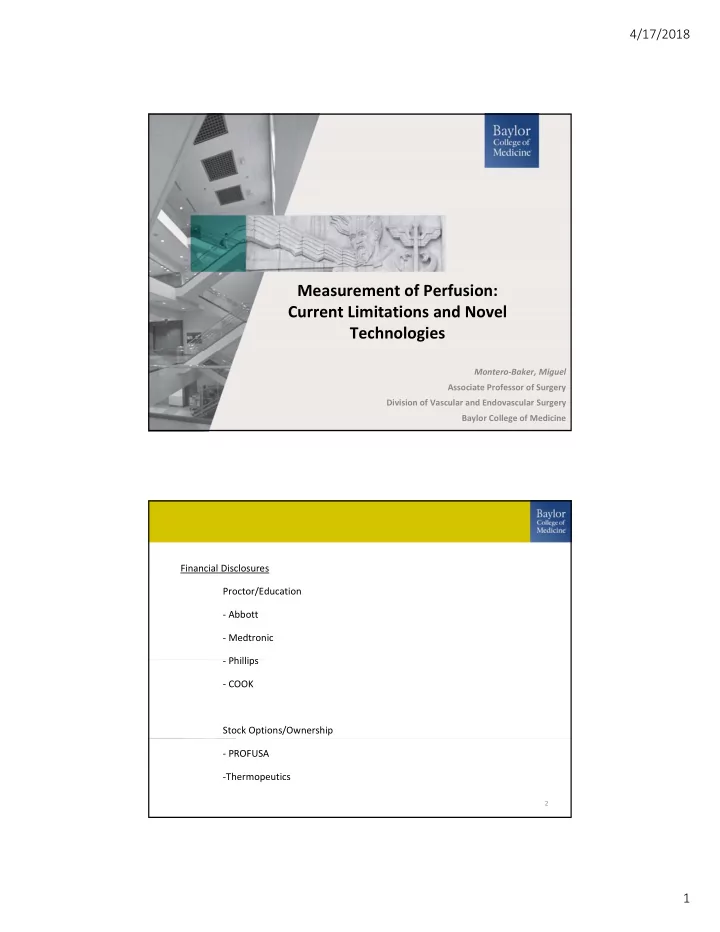

Measurement of Perfusion: Current Limitations and Novel Technologies

Montero‐Baker, Miguel Associate Professor of Surgery Division of Vascular and Endovascular Surgery Baylor College of Medicine

2

Financial Disclosures Proctor/Education ‐ Abbott ‐ Medtronic ‐ Phillips ‐ COOK Stock Options/Ownership ‐ PROFUSA ‐Thermopeutics

4/17/2018 2

The term "perfusion" is derived from the French verb 'perfuse' meaning to 'pour over or through’ Flow (Q) ‐ (volume per unit time, for example, L/min) Perfusion is flow per unit tissue mass (ml/min/g)

4/17/2018 3

Pedal loop classification (Kawarada 2012)

4/17/2018 4

4/17/2018 5

Utsunomiya et al – JEVT 2014

With the development of robust technical skills and more appropriate technology, operators are able to treat more complex and distal disease

• patterns. This perfect storm of technical skills and

advanced tools makes the question “what’s possible” irrelevant; and the question “what’s appropriate” extremely relevant.

4/17/2018 6

<<< ANTERIOR TIBIAL INTERVENTION POSTERIOR TIBIAL INTERVENTION>>>

A patent bypass will fail to heal ca. 16% of ischemic heel wounds when there is an incomplete arch – Bercelli et al. JVS 1999

4/17/2018 7 What’s out to there now? And do they really m perfusion?

Off table: ‐ SPP ‐ TCO2 ‐ ICGA ‐ MRI On table: ‐ Angiography ‐ 2D ‘perfusion’ software ‐ Micro oxygen sensors

4/17/2018 8

Yamada et al – JVS 2008

WOUND‐O‐SOME

4/17/2018 9

Utsunomiya et al – JEVT 2014

4/17/2018 10

Utsunomiya et al – JEVT 2014 Utsunomiya et al – JEVT 2014

4/17/2018 11

Okamoto et al – Angiology 2015 Mean SPP ABI Shinozaki – InMed 2012 12mm Hg 30 mm Hg 46 mm Hg

4/17/2018 12

Kawasaki et al – In J Pl Surg 2013

4/17/2018 13

25

*CAUTION – Investigational Device. Limited by Federal (or United States) law to investigational use.

Implantable Oxygen Sensors (IOS)

26

OMNIA: Oxygen Monitoring Near Ischemic Area Preliminary Results

Global PI`s: Marian Broadmann, MD Miguel Montero, MD Mehdi Shishebor, MD A total of 3 study sites are actively enrolling (CE marked):

• Prof. M. Brodmann, Med University of Graz / Austria
• Drs. T. Bisdas, A. Schwindt, St. Franziskus Hospital Münster / Germany
• Dr. M. Werner, Hanusch Hospital Vienna, Austria

20 subjects have been enrolled

• 20/20 were Rutherford Class 5 upon enrollment
• 18/20 received endovascular treatment
• 2/20 had bypass surgery after endo attempt

4/17/2018 14

confidential

What information do we extract from Lumee Intra‐Surgically? Reperfusion Modulation

Maximum during/after interventions Baseline (Blue Lumee) Therapeutic interventions LOI

Reperfusion Modulation (Unitless)

confidential 28

Sex M Age (yrs) 65 Diabetes To be confirmed Foot Side Left Rutherford Class 5

Wound Left first toe (lateral) Therapy

• 1. Treated popliteal a. artherectomy and 4

sets of balloon inflate/deflate

• 2. Repeat Hawk Balloon
• 3. Treated anterior tibialis a. balloon

inflate/deflate +Provastin Angiography Flow to foot re-established Demogr aphics Pre‐Tx 1 month 3 month 6 month Pre‐Op Discharge 1 Month 3 Month 6 Month Wound 2 2 1 1 1 Ischemia 2 Infection 2 1 1 1 N/A TP [mmHG] N/A N/A N/A N/A N/A ABI 0.53 1.25 1.06 0.867 1.18 TBI N/A N/A N/A N/A N/A Wound Ar ea cm^2 T issue oxygen index (1) (2) (3)

5 10 15

Pre Dis 1mo 3mo 6mo

4/17/2018 15

confidential 29

Improved, N=8

Average increase in LOI [‐]

• For each subject, average intra‐op LOI change

across 3 Lumees was computed

• Subjects were stratified by wound healing

status as improved, no change, or worsen (analysis only includes 13 subjects with 3‐m+ data)

• Distribution of average intra‐op LOI change is

shown in box‐whisker plot

Results show that larger increases in LOI were associated with wound healing

• utcomes compared with non‐

responding/worsening

No change, N=2 Worsen, N=3

Intra‐op Lumee shows predictive value for wound healing

(Stratification by Wound Status)

confidential 30

Intra‐op Lumee shows predictive value for wound healing Preliminary Results

Intra‐op Lumee 3‐month 6‐month LOI Change > 6

*

LOI Change 0‐6 LOI Change <0

*This patient underwent bypass at about 1 month after endo treatment

4/17/2018 16

• We have a desperate need to establish OPG for on‐table decision

making that leads to optimal clinical outcomes

• SPP has been validated as a solid diagnostic and prognostic tool

during the treatment of CLI patients.

• Intraoperative data, although somewhat cumbersome, may help

decide plan of care

• We have a desperate need to establish OPG for on‐table decision

making that leads to optimal clinical outcomes

• IOS are potential tools that show very promising preliminary data
