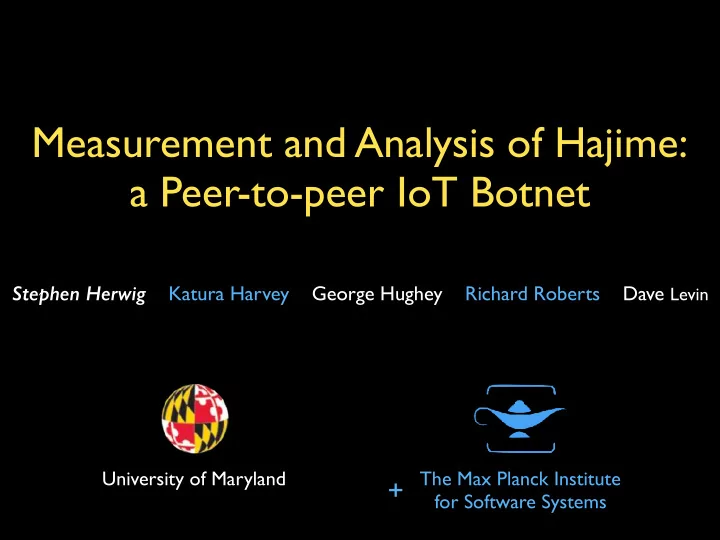

Measurement and Analysis of Hajime:
 a Peer-to-peer IoT Botnet

University of Maryland Stephen Herwig Katura Harvey George Hughey Richard Roberts Dave Levin The Max Planck Institute for Software Systems

+

slide-2
SLIDE 2

Rise of IoT Botnets

Hajime

Resilient C&C Targets many CPU arches Scanning behavior arch-specific Continuously deploys new exploits

slide-3
SLIDE 3

Talk Overview

Describe Hajime P2P network Our measurement infrastructure Analyze Heterogeneous botnet composition Impact of three exploit deployments Discuss Challenges of new, resilient botnets

slide-4
SLIDE 4

BitTorrent’s P2P Network

Uses a DHT to track who is downloading what

slide-5
SLIDE 5

BitTorrent’s P2P Network

Uses a DHT to track who is downloading what

Hosting
 file named F

announce hash(F)

slide-6
SLIDE 6

BitTorrent’s P2P Network

Uses a DHT to track who is downloading what

Hosting hash(F)

Hosting
 file named F

announce hash(F)

slide-7
SLIDE 7

BitTorrent’s P2P Network

Uses a DHT to track who is downloading what

Hosting hash(F)

Wants to
 download F Hosting
 file named F

announce hash(F) lookup hash(F)

Provides random subsets of current uploaders

slide-8
SLIDE 8

BitTorrent’s P2P Network

Uses a DHT to track who is downloading what

Hosting hash(F)

Wants to
 download F Hosting
 file named F

announce hash(F) lookup hash(F)

Provides random subsets of current uploaders

slide-9
SLIDE 9

Hajime’s P2P Network

① Uses BitTorrent’s DHT to find other bots

Downloading Hosting

lookup hash(F)

Hosting hash(F)

Random
 subset

announce hash(F)

slide-10
SLIDE 10

Hajime’s P2P Network

① Uses BitTorrent’s DHT to find other bots

announce hash(F)

Date File type Architecture

MIPS little endian MIPS big endian ARM v5 ARM v6 ARM v7 Once per day .i – “infect” .atk – “attack”

Every day,
 bots are announcing their actions and their devices’
 architectures

Hajime’s design is primed for measurement!

slide-11
SLIDE 11

Hajime’s P2P Network

② Fetch files directly from one another

Downloading Hosting

lookup hash(F)

Hosting hash(F)

announce hash(F)

slide-12
SLIDE 12

Hajime’s P2P Network

② Fetch files directly from one another

Downloading Hosting

Keys provide long-lived identifiers

Request File

Key exchange

slide-13
SLIDE 13

Hajime’s P2P Network

② Fetch files directly from one another Difficult to take down Hajime
 (without also taking down BitTorrent) ① Uses BitTorrent’s DHT to find other bots Difficult to centrally monitor Hajime is a resilient next step in IoT botnets

slide-14
SLIDE 14

Measuring Hajime’s P2P network

① Exhaustively list all peers

lookup hash(F)

Hosting hash(F)

Random
 subset

slide-15
SLIDE 15

Measuring Hajime’s P2P network

① Exhaustively list all peers

lookup hash(F)

Hosting hash(F)

slide-16
SLIDE 16

Measuring Hajime’s P2P network

① Exhaustively list all peers

lookup hash(F)

Hosting hash(F)

slide-17
SLIDE 17

Measuring Hajime’s P2P network

① Exhaustively list all peers Every 16 minutes for 4 months
 5,404,045 total IP addresses found

i/mipseb/today atk/arm7/today i/mipsel/tomorrow atk/arm5/yesterday

slide-18
SLIDE 18

Measuring Hajime’s P2P network

② Obtain each Hajime bot’s public key 10,536,174 total keys found

Key exchange

slide-19
SLIDE 19

Measuring Hajime’s P2P network

② Obtain each Hajime bot’s public key 10,536,174 total keys found

Key exchange

20K 40K 60K 80K 100K 120K 20K 40K 60K 80K 100K Keys IPs Iran Mexico China India South Korea United States Turkey Russia Indonesia

NATs undercount bots based on IPs

slide-20
SLIDE 20

100K 200K 300K 400K 500K 600K 700K 800K 900K 100K 200K 300K 400K 500K 600K 700K 800K 900K Keys IPs Iran Mexico China India South Korea United States Turkey Russia Indonesia Brazil

Measuring Hajime’s P2P network

② Obtain each Hajime bot’s public key 10,536,174 total keys found

Key exchange

IP reassignment overcounts bots based on IPs

slide-21
SLIDE 21

Datasets

5,404,045
 unique IP addresses DHT scans 10,536,174
 unique keys Key scans 47 modules
 34 .atk, 13 .i Reverse eng

Jan 25, 2018 – Jun 1, 2018

All available at iot.cs.umd.edu

slide-22
SLIDE 22

Analysis Questions

How large is the botnet? Where are bots located? What devices makeup the botnet? How do exploits change the botnet? How quickly does Hajime update itself? How does Hajime deploy new exploits? Dynamics Characteristics

slide-23
SLIDE 23

How big is Hajime?

0K 10K 20K 30K 40K 50K 60K 70K 80K 90K 100K 01-26 02-09 02-23 03-09 03-23 04-06 04-20 05-04 05-18 06-01 Number of distinct bots Time (20-minute bins) atk.mipseb update .i.mipseb update

slide-24
SLIDE 24

How big is Hajime?

0K 10K 20K 30K 40K 50K 60K 70K 80K 90K 100K 01-26 02-09 02-23 03-09 03-23 04-06 04-20 05-04 05-18 06-01 Number of distinct bots Time (20-minute bins) atk.mipseb update .i.mipseb update

Steady-state of ~40K bots Peaks of 95K after Chimay-Red and GPON exploits

slide-25
SLIDE 25

0K 10K 20K 30K 40K 50K 60K 70K 80K 90K 100K 01-26 02-09 02-23 03-09 03-23 04-06 04-20 05-04 05-18 06-01 Number of distinct bots Time (20-minute bins) Others Brazil Iran Mexico China India

  • S. Korea

US Turkey Russia Indonesia atk.mipseb update .i.mipseb update

Where are bots located?

slide-26
SLIDE 26

Where are bots located?

0K 10K 20K 30K 40K 50K 60K 70K 80K 90K 100K 01-26 02-09 02-23 03-09 03-23 04-06 04-20 05-04 05-18 06-01 Number of distinct bots Time (20-minute bins) Others Brazil Iran Mexico China India

  • S. Korea

US Turkey Russia Indonesia atk.mipseb update .i.mipseb update

slide-27
SLIDE 27

Where are bots located?

0K 10K 20K 30K 40K 50K 60K 70K 80K 90K 100K 01-26 02-09 02-23 03-09 03-23 04-06 04-20 05-04 05-18 06-01 Number of distinct bots Time (20-minute bins) Others Brazil Iran Mexico China India

  • S. Korea

US Turkey Russia Indonesia atk.mipseb update .i.mipseb update

The geographic makeup of IoT botnets can change rapidly

Chimay-Red

Russia expanded
 500 → 6,000 hourly

slide-28
SLIDE 28

Where are bots located?

0K 10K 20K 30K 40K 50K 60K 70K 80K 90K 100K 01-26 02-09 02-23 03-09 03-23 04-06 04-20 05-04 05-18 06-01 Number of distinct bots Time (20-minute bins) Others Brazil Iran Mexico China India

  • S. Korea

US Turkey Russia Indonesia atk.mipseb update .i.mipseb update

The geographic makeup of IoT botnets can change rapidly

Chimay-Red

Russia expanded
 500 → 6,000 hourly

GPON

Mostly affected
 Mexico

slide-29
SLIDE 29

0K 10K 20K 30K 40K 50K 60K 70K 80K 90K 100K 01-26 02-09 02-23 03-09 03-23 04-06 04-20 05-04 05-18 06-01 Number of distinct bots Time (20-minute bins) atk.mipseb update .i.mipseb update mipseb mipsel arm7 arm6 arm5

What CPU architectures are most infected?

slide-30
SLIDE 30

0K 10K 20K 30K 40K 50K 60K 70K 80K 90K 100K 01-26 02-09 02-23 03-09 03-23 04-06 04-20 05-04 05-18 06-01 Number of distinct bots Time (20-minute bins) atk.mipseb update .i.mipseb update mipseb mipsel arm7 arm6 arm5

What CPU architectures are most infected?

Devices overwhelmingly run MIPS 74.2% of bot devices are MIPS big-endian (mipseb)

slide-31
SLIDE 31

0K 100K 200K 300K 400K 500K 600K Number of distinct bots 4M 5M 4M 5M

Brazil China Iran India Korea US Turkey Russia Mexico

How does CPU architecture vary by country?

arm5 arm6 arm7 mipsel mipseb unknown

slide-32
SLIDE 32

0K 100K 200K 300K 400K 500K 600K Number of distinct bots 4M 5M 4M 5M

Brazil China Iran India Korea US Turkey Russia Mexico

How does CPU architecture vary by country?

arm5 arm6 arm7 mipsel mipseb unknown

IoT botnets are highly heterogeneous across the world

After the introduction of the GPON vulnerability

slide-33
SLIDE 33

0K 100K 200K 300K 400K 500K 600K Number of distinct bots 4M 5M 4M 5M

Brazil China Iran India Korea US Turkey Russia Mexico

arm5 arm6 arm7 mipsel mipseb unknown

How does CPU architecture vary by country?

After the introduction of the GPON vulnerability

New vulnerabilities can lead to drastic changes in geography

slide-34
SLIDE 34

0K 100K 200K 300K 400K 500K 600K Number of distinct bots 4M 5M 4M 5M

Mexico

arm5 arm6 arm7 mipsel mipseb unknown

How does CPU architecture vary by country?

After the introduction of the GPON vulnerability

New vulnerabilities can lead to drastic changes in geography

slide-35
SLIDE 35

0K 100K 200K 300K 400K 500K 600K Number of distinct bots 4M 5M 4M 5M

Mexico

arm5 arm6 arm7 mipsel mipseb unknown

How does CPU architecture vary by country?

Mexico before GPON after GPON

Mexico changed from primarily ARM to primarily MIPS New vulnerabilities can lead to drastic changes in geography

slide-36
SLIDE 36

0K 100K 200K 300K 400K 500K 600K Number of distinct bots 4M 5M 4M 5M

Mexico

arm5 arm6 arm7 mipsel mipseb unknown

How does CPU architecture vary by country?

Mexico before GPON after GPON

Mexico changed from primarily ARM to primarily MIPS New vulnerabilities can lead to drastic changes in geography and composition

slide-37
SLIDE 37

What devices are infected?

DHT scans Censys

slide-38
SLIDE 38

What devices are infected?

DHT scans Censys No device information on over 80%

  • f bot IP addresses

Of those identifiable: 0.8% MikroTik day before Chimay-Red 80.3% day after

slide-39
SLIDE 39

How quickly does Hajime disseminate module updates?

% of mipseb bots hosting or looking up each file version

20 40 60 80 100 03-15 03-29 04-12 04-26 05-10 05-24 % of bots per .i version Time (20-minute bins) 20 40 60 80 100 % of bots per atk version

slide-40
SLIDE 40

How quickly does Hajime disseminate module updates?

% of mipseb bots hosting or looking up each file version

20 40 60 80 100 03-15 03-29 04-12 04-26 05-10 05-24 % of bots per .i version Time (20-minute bins) 20 40 60 80 100 % of bots per atk version

Quick

slide-41
SLIDE 41

How quickly does Hajime disseminate module updates?

20 40 60 80 100 03-15 03-29 04-12 04-26 05-10 05-24 % of bots per .i version Time (20-minute bins) 20 40 60 80 100 % of bots per atk version

% of mipseb bots hosting or looking up each file version

Quick Inconsistent

A new . i clears old atks.

slide-42
SLIDE 42

Hajime’s CWMP exploit

<NewNTPServer1>SHELL_INJECTION</NewNTPServer1>

cd /tmp;wget http://1.2.3.4:5678/3;
 chmod 777 3;./3

slide-43
SLIDE 43

Attacking a non-vulnerable host

<NewNTPServer1>SHELL_INJECTION</NewNTPServer1>

“This is a domain name”

slide-44
SLIDE 44

Attacking a non-vulnerable host

<NewNTPServer1>SHELL_INJECTION</NewNTPServer1>

Local DNS
 Resolver

cd /tmp;wget http://1.2.3.4:5678/3;
 chmod 777 3;./3

“What’s this TLD?”

slide-45
SLIDE 45

Attacking a non-vulnerable host

<NewNTPServer1>SHELL_INJECTION</NewNTPServer1>

Local DNS
 Resolver

cd /tmp;wget http://1.2.3.4:5678/3;
 chmod 777 3;./3


 D-root

NXDOMAIN NXDOMAIN

“What’s this TLD?”

slide-46
SLIDE 46

What we learn from D-root

Local DNS
 Resolver


 D-root

✔ ✔

DNS Backscatter A sample of attack attempts worldwide

But only to non-vulnerable hosts

slide-47
SLIDE 47

DNS Backscatter: Mirai vs. Hajime

10K 20K 30K 40K 50K 60K 11/16 01/17 03/17 05/17 07/17 09/17 11/17 01/18 03/18 05/18 TR-064 injection attempts Time (20-minute bins)

slide-48
SLIDE 48

DNS Backscatter: Mirai vs. Hajime

10K 20K 30K 40K 50K 60K 11/16 01/17 03/17 05/17 07/17 09/17 11/17 01/18 03/18 05/18 TR-064 injection attempts Time (20-minute bins) Mirai

slide-49
SLIDE 49

10K 20K 30K 40K 50K 60K 11/16 01/17 03/17 05/17 07/17 09/17 11/17 01/18 03/18 05/18 TR-064 injection attempts Time (20-minute bins) Hajime Mirai config update .i.mipseb update atk.mipseb update .i.mipsel update atk.mipsel update

DNS Backscatter: Mirai vs. Hajime

slide-50
SLIDE 50

Where is Hajime from?

Initial (test?) CWMP attack
 came from the Netherlands

47 modules
 34 .atk, 13 .i Reverse eng

Hajime blacklists the same IP address as Mirai, plus:
 77.247.0.0/16 85.159.0.0/16 109.201.0.0/16 These have one ISP in common:
 NFOrce Entertainment (located in the Netherlands)

10K 20K 30K 40K 50K 60K 11/16 01/17 03/17 05/17 07/17 09/17 11/17 01/18 03/18 05/18 TR-064 injection attempts Time (20-minute bins) Hajime Mirai config update .i.mipseb update atk.mipseb update .i.mipsel update atk.mipsel update

slide-51
SLIDE 51

Also covered in the paper

  • Details on bot internals and exploits
  • Analysis of bot churn
  • Details on device fingerprinting
  • Country-level analysis of CWMP DNS backscatter
slide-52
SLIDE 52

Measuring and analyzing Hajime

DHT scans D-root

IoT botnets have highly heterogeneous architectures

Code and data coming soon: iot.cs.umd.edu

Key scans

New vulnerabilities can lead to
 drastic changes in size, geography, and composition IoT botnets are
 resilient and large

40K steady 95K peak
