Andrs Palk Department of Radiology, University of Szeged, Hungary MDCT PROTOCOLS FOR POLYTRAUMA PATIENTS BCR 2017, Budapest Agenda Definition and significance Clinical implications Role of imaging Examination protocols

slide-1
SLIDE 1

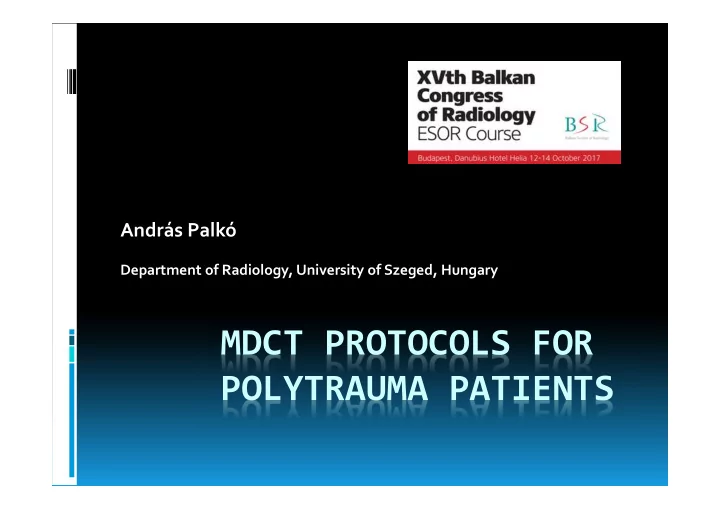

András Palkó

Department of Radiology, University of Szeged, Hungary

MDCT PROTOCOLS FOR POLYTRAUMA PATIENTS

slide-2
SLIDE 2

BCR 2017, Budapest

Agenda

Definition and significance Clinical implications Role of imaging Examination protocols Challenges Conclusion

Department of Radiology, University of Szeged, Hungary 2

slide-3
SLIDE 3

BCR 2017, Budapest

Agenda

Definition and significance Clinical implications Role of imaging Examination protocols Challenges Conclusion

Department of Radiology, University of Szeged, Hungary 3

slide-4
SLIDE 4

BCR 2017, Budapest Department of Radiology, University of Szeged, Hungary 4

Definition

Etymology (Greek): poly (multiple) + trauma (wounds) A significant injury in at least two out of the following six body

regions:

  • Head, neck, and cervical spine
  • Face
  • Chest and thoracic spine
  • Abdomen and lumbar spine
  • Limbs and bony pelvis
  • External (skin)

Syndrome of multiple injuries of different anatomical regions

with consecutive systemic reactions, which may lead to dysfunction of remote organs.

  • F. Gebhard et al, LangenbecksArch Surg (2008) 393:825–831

Lecky FE et al, in: H.-C. Pape et al. (eds.), Damage Control Management in the Polytrauma Patient, Springer, 2010

slide-5
SLIDE 5

BCR 2017, Budapest

Significance

Injury is a global pandemic and the most frequent

cause of death < 45

5 Department of Radiology, University of Szeged, Hungary

http://www.cdc.gov/injury/wisqars. 2007

slide-6
SLIDE 6

BCR 2017, Budapest

External injury standardised death rates / 100 000 male

Department of Radiology, University of Szeged, Hungary 6

http://www.euro.who.int/eprise/main/WHO/InformationSources/Data/2005117

slide-7
SLIDE 7

BCR 2017, Budapest

Mortality

1st peak

  • Within minutes (major vascular and CNS injuries)
  • Medical intervention is rarely successful

2nd peak

  • Within the first (“golden“) hour (intracranial bleeding,

major chest/abdominal injury)

  • Primary focus of Advanced Trauma Life Support (ATLS)

3rd peak

  • After days/weeks

Department of Radiology, University of Szeged, Hungary 7

slide-8
SLIDE 8

BCR 2017, Budapest

Patterns of injury and mortality in polytrauma

Department of Radiology, University of Szeged, Hungary 8

Lecky FE et al, in: H.-C. Pape et al. (eds.), Damage Control Management in the Polytrauma Patient, Springer, 2010

slide-9
SLIDE 9

BCR 2017, Budapest

Patterns of injury and mortality in polytrauma

Department of Radiology, University of Szeged, Hungary 9

Lecky FE et al, in: H.-C. Pape et al. (eds.), Damage Control Management in the Polytrauma Patient, Springer, 2010

slide-10
SLIDE 10

BCR 2017, Budapest

Agenda

Definition and significance Clinical implications Role of imaging Examination protocols Challenges Conclusion

Department of Radiology, University of Szeged, Hungary 10

slide-11
SLIDE 11

BCR 2017, Budapest

What is to be done

Patient requires a timely and effective management in

  • rder to avoid the deathly spiral of severe systemic

complications:

prolonged haemorrhagic shock systemic inflammatory response

syndrome (SIRS)

multiple organ dysfunction

syndrome (MODS)

Department of Radiology, University of Szeged, Hungary 11

  • F. Gebhard et al, Langenbecks Arch Surg (2008) 393:825–831
slide-12
SLIDE 12

BCR 2017, Budapest

Abbreviated Injury Scale (AIS)

Anatomy-based scoring system, considering injuries of all major body regions

Minor 1 Moderate 2 Serious 3 Severe 4 Critical 5 Maximal (currently untreatable) 6

12 Department of Radiology, University of Szeged, Hungary

slide-13
SLIDE 13

BCR 2017, Budapest

Injury Severity Score

ISS = A2 + B2 + C2, (A, B, C = the AIS scores of the

three most severely injured regions)

Severe > 15

13 Department of Radiology, University of Szeged, Hungary

slide-14
SLIDE 14

BCR 2017, Budapest

Injury Severity Score

14 Department of Radiology, University of Szeged, Hungary

slide-15
SLIDE 15

BCR 2017, Budapest

Dilemma

Selective nonsurgical management is safe and cost-

effective, if the diagnosis is fast and accurate BUT

identification of serious pathology is challenging

  • may not manifest during the initial assessment
  • associated injuries may divert attention

clinical examination is notoriously unreliable

Department of Radiology, University of Szeged, Hungary 15

Soto JA, Anderson SW, Radiology: 265, 2012

slide-16
SLIDE 16

BCR 2017, Budapest

Diagnosis

16 Department of Radiology, University of Szeged, Hungary

slide-17
SLIDE 17

BCR 2017, Budapest

Agenda

Definition and significance Clinical implications Role of imaging Examination protocols Challenges Conclusion

Department of Radiology, University of Szeged, Hungary 17

slide-18
SLIDE 18

BCR 2017, Budapest

Role of imaging

To detect:

injuries + immediate and late complications

To provide the fastest possible diagnosis in order to start

therapy ASAP to decrease mortality

Department of Radiology, University of Szeged, Hungary 18

slide-19
SLIDE 19

BCR 2017, Budapest

Keep in mind

Triage (NISS, GCS, etc.) Algorithm and technique of imaging depend on

haemodynamic stability and associated injuries

Timing: lifesaving interventions should not be

impeded

Department of Radiology, University of Szeged, Hungary 19

slide-20
SLIDE 20

BCR 2017, Budapest

Diagnostic algorithm

(clinical examination, triage) Plain X-ray

abdomen and pelvis chest

Ultrasound – FAST + diagnostic Computed tomography

20 Department of Radiology, University of Szeged, Hungary

http://www.acr.org/Quality-Safety/Appropriateness-Criteria, 2012

slide-21
SLIDE 21

BCR 2017, Budapest Department of Radiology, University of Szeged, Hungary 21

Diagnostic algorithm

(clinical examination, triage) Plain X-ray

abdomen and pelvis chest

Ultrasound – FAST + diagnostic Computed tomography

21

http://www.acr.org/Quality-Safety/Appropriateness-Criteria, 2012

slide-22
SLIDE 22

BCR 2017, Budapest

Why MDCT?

  • Fastest „single best” modality: simultaneous evaluation of

–

parenchymal organs

–

hollow viscerae

–

CNS

–

bones

–

vessels + extravasation, leakage

–

etc.

  • Limitation:
  • lack of sensitivity in diagnosing mesenteric, hollow visceral and

diaphragmatic injuries;

  • motion artefacts;
  • access to the patient

22 Department of Radiology, University of Szeged, Hungary

slide-23
SLIDE 23

BCR 2017, Budapest

Indications of MDCT

Haemodynamic instability Obvious severe injury on clinical assessment Abdominal fluid by FAST Suspicion of occult, severe injury by clinical

examination Whole body MDCT is the default procedure of choice

Department of Radiology, University of Szeged, Hungary 23

Standards of practice and guidance of trauma radiology in the severely injured patient (RCR)

slide-24
SLIDE 24

BCR 2017, Budapest

Agenda

Definition and significance Clinical implications Role of imaging Examination protocols Challenges Conclusion

Department of Radiology, University of Szeged, Hungary 24

slide-25
SLIDE 25

NON-CONTRAST PRIMARY SURVEY

slide-26
SLIDE 26

BCR 2017, Budapest

Non-contrast primary survey

Haemodynamically instable patient Scan directly: thigh to head – reconstruct 3-5 mm axials Immediate monitor reading A, B2, C

A – airway B2 – breathing, brain C – circulation / source of bleeding

Transform the scanner room into Trauma Bay Zero

Department of Radiology, University of Szeged, Hungary 26

  • S. Nicolaou et al. / European Journal of Radiology 68 (2008) 398–408
slide-27
SLIDE 27

BCR 2017, Budapest 27 Department of Radiology, University of Szeged, Hungary

slide-28
SLIDE 28

BCR 2017, Budapest 28 Department of Radiology, University of Szeged, Hungary

slide-29
SLIDE 29

COMPREHENSIVE POLYTRAUMA SCANNING

slide-30
SLIDE 30

BCR 2017, Budapest

Scanning protocol @ 64

  • Patient position:

supine, hands up/down

  • Scanning direction:

cephalocaudal

  • Tube voltage:

120 – 140 kVp w. AEC

  • Auto mA range:

100 – 700

  • Collimation :

0.625 – 1.25 mm

  • Pitch:

1.375

  • Primary reconstruction:

Slice thickness:

3/5 mm (+ 0,625 for 3D, MPR)

FOV:

adjusted to body habitus

Department of Radiology, University of Szeged, Hungary 30

slide-31
SLIDE 31

BCR 2017, Budapest

Contrast administration protocol - Iodine

Department of Radiology, University of Szeged, Hungary

Concentration:

350 – 400 mg/mL

Volume (extracellular enhancement):

80 – 150 mL

Flow (bolus geometry – vessels):

Biphasic

6 mL/sec + 4 mL/sec

Monophasic

2.5 – 4 mL/sec

31

slide-32
SLIDE 32

BCR 2017, Budapest

Contrast administration protocol – saline flush

Department of Radiology, University of Szeged, Hungary

Volume:

30 – 50 mL

Flow:

2,5 – 3 mL/sec

32

slide-33
SLIDE 33

BCR 2017, Budapest

Contrast administration protocol – scan delay

Department of Radiology, University of Szeged, Hungary

Single vs. double vs. triple phase Single phase delay:

Fixed (pt < 50) vs. bolus triggering (pt > 50) Angio / arterial bleeding:

18 sec or 90 HU @ aortic arch

General:

35 sec or 100 HU @ AA

Parenchymal organ / veins:

60 – 75 sec or 70 HU @ liver

Delayed scans:

3 – 5 min

33

slide-34
SLIDE 34

BCR 2017, Budapest

Pseudoaneurysm

Department of Radiology, University of Szeged, Hungary 34

Boscak AR et al, Radiology 268:79-88, 2013

slide-35
SLIDE 35

BCR 2017, Budapest Department of Radiology, University of Szeged, Hungary 35

Active bleeding

slide-36
SLIDE 36

BCR 2017, Budapest

Contrast administration protocol – GI tract

Department of Radiology, University of Szeged, Hungary

None Oral only Rectal only Oral and rectal

36

slide-37
SLIDE 37

BCR 2017, Budapest

Contrast administration protocol – GI tract

Department of Radiology, University of Szeged, Hungary

None Oral only Rectal only Oral and rectal

37

slide-38
SLIDE 38

BCR 2017, Budapest

Single pass vs segmental WBCT

WBCT should cover head, C spine, chest,

abdomen and pelvis

Single pass:

Pro: no time lost by arm repositioning Con: arm causes beam hardening and photon

starvation artefacts

Segmental:

Pro: allows for changing arm position Con: repositioning is time consuming

Department of Radiology, University of Szeged, Hungary 38

Nguyen D et al: AJR 2009; 192:3–10

slide-39
SLIDE 39

BCR 2017, Budapest

Photon starvation & beam hardening

Department of Radiology, University of Szeged, Hungary 39

slide-40
SLIDE 40

BCR 2017, Budapest

CT protocol – as we do it…

Plain head, neck – arms down Plain and CE (arterial + venous) chest, abdomen

and pelvis – arms up

Iodine: 100 mL (+ saline flush), 350 mg/mL, 4 mL/sec,

18/60 sec delay or bolus triggering

delayed scan if necessary no GI contrast

Routine scanning protocol The examination is supervised by the radiologist

– allows for real-time adaptation

Department of Radiology, University of Szeged, Hungary 40

slide-41
SLIDE 41

BCR 2017, Budapest Dep artm ent

  • f

Radi

  • log

y, Univ ersit y of Szeg ed, Hun gary 41

slide-42
SLIDE 42

BCR 2017, Budapest Dep artm ent

  • f

Radi

  • log

y, Univ ersit y of Szeg ed, Hun gary 42

slide-43
SLIDE 43

BCR 2017, Budapest Dep artm ent

  • f

Radi

  • log

y, Univ ersit y of Szeg ed, Hun gary 43

slide-44
SLIDE 44

BCR 2017, Budapest Dep artm ent

  • f

Radi

  • log

y, Univ ersit y of Szeg ed, Hun gary 44

slide-45
SLIDE 45

BCR 2017, Budapest Dep artm ent

  • f

Radi

  • log

y, Univ ersit y of Szeg ed, Hun gary 45

slide-46
SLIDE 46

BCR 2017, Budapest 46 Dep artm ent

  • f

Radi

  • log

y, Univ ersit y of Szeg ed, Hun gary

slide-47
SLIDE 47

BCR 2017, Budapest Dep artm ent

  • f

Radi

  • log

y, Univ ersit y of Szeg ed, Hun gary 47

slide-48
SLIDE 48

BCR 2017, Budapest

Agenda

Definition and significance Clinical implications Role of imaging Examination protocols Challenges Conclusion

Department of Radiology, University of Szeged, Hungary 48

slide-49
SLIDE 49

BCR 2017, Budapest

Time restraints – the „golden hour”

Primary diagnostic evaluation is to be completed

within the shortest possible time frame

Time restraints:

stabilization + transfer + positioning scanning data manipulation/interpretation

Department of Radiology, University of Szeged, Hungary 49

  • S. Nicolaou et al. / European Journal of Radiology 68 (2008) 398–408
slide-50
SLIDE 50

BCR 2017, Budapest

Time restraints – ”wet reading”

Closely monitor the examination Report all significant findings immediately Finalize report when time allows

Department of Radiology, University of Szeged, Hungary 50

slide-51
SLIDE 51

BCR 2017, Budapest

Diagnostic errors

Occurs in 2-40 % ”Contribution” of imaging (secondary-tertiary

survey)

Department of Radiology, University of Szeged, Hungary 51

  • S. Nicolaou et al. / European Journal of Radiology

68 (2008) 398–408

slide-52
SLIDE 52

BCR 2017, Budapest

Radiation dose

A lifetime excess cancer mortality risk of 0.08 %

is estimated in patients younger than 45 years

  • ld who undergo panscanning

Indiscriminate use of CT without obvious injuries

  • r a severe injury mechanism may not be

justified.

Department of Radiology, University of Szeged, Hungary 52

slide-53
SLIDE 53

BCR 2017, Budapest

Dose reduction

Automated exposure control and tube potential

selection software

Bearing devices removal Contiguous scanning (decreases DLP by 17 %)

Department of Radiology, University of Szeged, Hungary 53

Frellesen C et al: Eur Radiol (2014) 24:1725–1734

slide-54
SLIDE 54

BCR 2017, Budapest

BUT!!!!

We must not hold back a clearly indicated CT

examination because of excessive and disproportionate fear of radiation-induced cancer

Life-threatening injuries may be missed and

appropriate treatment may be delayed, potentially leading to a worse clinical outcome (“second risk of radiation”)

Department of Radiology, University of Szeged, Hungary 54

HendeeWR et al: Radiology 2012, 264(2):312–321

slide-55
SLIDE 55

BCR 2017, Budapest

Trauma and pregnancy - principles

Any female patient in childbearing age must be

considered pregnant until proved otherwise

There is no foetal survival without maternal

survival –(the possible exception is third- trimester trauma with poor prognosis for the mother – caesarean section may be necessary to save the foetus)

In lifesaving trauma care one should not hesitate

to perform the needed tests

Department of Radiology, University of Szeged, Hungary 55

slide-56
SLIDE 56

BCR 2017, Budapest

Agenda

Definition and significance Clinical implications Role of imaging Examination protocols Challenges Conclusion

Department of Radiology, University of Szeged, Hungary 56

slide-57
SLIDE 57

BCR 2017, Budapest

Acute polytrauma imaging algorithm

Department of Radiology, University of Szeged, Hungary 57

D Barron Orthopedics and Trauma, 2011, 25:2

slide-58
SLIDE 58

BCR 2017, Budapest

Take home…

Polytrauma patients require fast and appropriate

treatment to reduce morbidity/mortality

Diagnostic imaging is the most accurate tool for

reliable diagnosis

CT is the single best diagnostic modality in

polytrauma

Department of Radiology, University of Szeged, Hungary 58

slide-59
SLIDE 59

BCR 2017, Budapest Department of Radiology, University of Szeged, Hungary
