NGS Accreditation with EFI Standards, Plus Omixon Update Presenters: Marcello Scala, Director of Sales EMEA, Omixon Tim Hague, CEO, Omixon Guest Speakers: Dr. Milena Ivanova, Bulgarian Bone Marrow Donor Registry Dr. Brendan Clarke, Leeds St.

slide-1
SLIDE 1

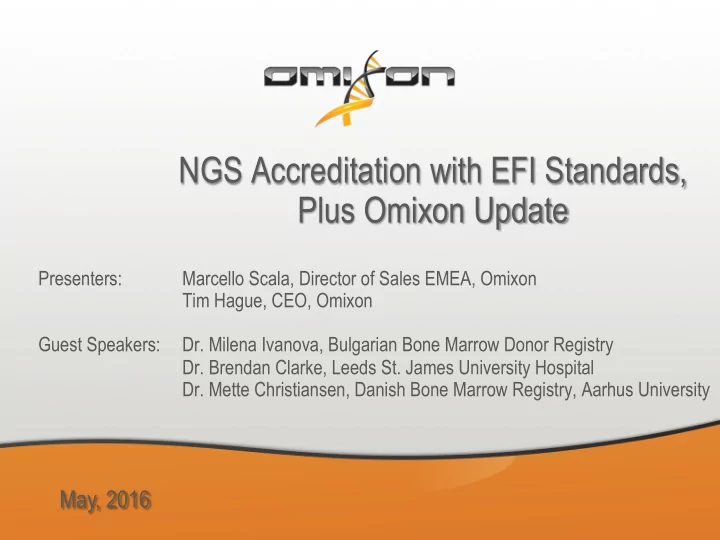

NGS Accreditation with EFI Standards, Plus Omixon Update

May, 2016

Presenters: Marcello Scala, Director of Sales EMEA, Omixon Tim Hague, CEO, Omixon Guest Speakers:

  • Dr. Milena Ivanova, Bulgarian Bone Marrow Donor Registry
  • Dr. Brendan Clarke, Leeds St. James University Hospital
  • Dr. Mette Christiansen, Danish Bone Marrow Registry, Aarhus University
slide-2
SLIDE 2

www.omixon.com support@omixon.com

Agenda

§ Introduction § Overview of NGS Accreditation with EFI Standards § Guest Speakers § Omixon Update

slide-3
SLIDE 3

www.omixon.com support@omixon.com

Corporate Statement

§ Global molecular diagnostics company

– Budapest, Headquarters, Software R&D – Cambridge, MA, Operations and Manufacturing

§ World leader in HLA Typing by NGS

– Best in class Assay – Best in class Software

§ Existing Products

– Holotype HLA (Assay + Software) – HLA Twin (Software) – HLA Explore (Software)

slide-4
SLIDE 4

www.omixon.com support@omixon.com

Next Generation Sequencing

“Recent technological advances, cumulatively called NGS, provide the first opportunity to fully characterize and fully phase the HLA genes” –

  • Prof. Dimitri Monos, CHOP

§ The Technique

– Long Range PCR Amplification – Clonal sequencing of Amplicons – Assembly of whole gene consensus sequences

§ The Goal

– Automated, high-throughput analysis – Unambiguous results – No reflexive testing

slide-5
SLIDE 5

www.omixon.com support@omixon.com

NGS workflow

slide-6
SLIDE 6

www.omixon.com support@omixon.com

EFI Accreditation for NGS

§ EFI has introduced new standards for accreditation using NGS

techniques

§ Omixon’s Holotype HLA workflow and product provides full support

for EFI accreditation

§ New standards include:

– Documentation Guidelines – Nucleotide and Allele Assignment Standards – Bioinformatics Standards

slide-7
SLIDE 7

www.omixon.com support@omixon.com

Documentation Guidelines

§ Purification, sample tagging, normalization, pooling methods

– Holotype HLA protocol, workbook, HLA Twin software

§ Steps must be taken to prevent creation of PCR artefacts, PCR

artefacts must be documented

– Optimized PCR conditions, QC metrics in software

§ Method of fragmentation must be specified, for each run the size of

fragments must be documented and the selection must be specified

– Documented in protocol, QC metrics and fragment distribution visualisation in software

slide-8
SLIDE 8

www.omixon.com support@omixon.com

Documentation Guidelines

§ Methods for enrichment strategies of multi gene panels must be

defined.

– Documented in Holotype HLA protocol

§ The conditions for the sequencing reaction must be documented and

appropriate - including specificity, quantity and quality of templates; sequencing primers and sequencing reagents.

– Documented in protocol, genotyping call in the software

§ Controls and procedures must be established to identify sample mix-

up

– Documented in workbook, any contamination will be detected by software

slide-9
SLIDE 9

www.omixon.com support@omixon.com

Allele Assignment

§ The criteria for acceptance of data must be established

– 18 QC measures per locus in HLA Twin, 2 orthogonal algorithms

§ The signal to noise ratio must be sufficient to ensure reliable

nucleotide assignments

– 3 QC metrics for noise measurement, noise reduction algorithms

§ Interpretation, acceptance and/or rejection of sequences from

regions which are difficult to resolve

– Two orthogonal algorithms, QC measures, Genome Browser

slide-10
SLIDE 10

www.omixon.com support@omixon.com

Allele Assignment

§ Adequate depth of coverage thresholds

– 2 QC metrics and thresholds for coverage

§ Determine the phase of alleles for the methods where phasing is

possible

– QC metric and 'phasing track' in Genome Browser

slide-11
SLIDE 11

www.omixon.com support@omixon.com

Bioinformatics

§ Sequencing metrics and QC parameters for optimal performance

must be documented, specified and in range

– 18 QC metrics per locus, with locus-specific thresholds

§ Each deviation from the standard operation procedure must be

documented

– All analysis parameters are logged and audited in the software

§ Detailed documentation and validation of the bioinformatics

process supporting the analysis, interpretation and reporting results must be established

– Omixon has already supported 75 labs through the evaluation process

slide-12
SLIDE 12

www.omixon.com support@omixon.com

Bioinformatics

§ Revalidation of bioinformatics processes must be performed after

upgrading or changes of any affected components

– Backward compatibility of the software, re-analysis may be required for IMGT/HLA database updates

§ Storage and back-up of data (input, raw data, intermediate and

final data) must be defined in accordance with the national laws

– Simple archive/storage mechanisms for Omixon results

§ The version of the bioinformatics process must be traceable for

each sample analysed

– Audited and logged

slide-13
SLIDE 13

www.omixon.com support@omixon.com

Bioinformatics

§ Periodic barcode rotation is required to detect contamination. If

contamination is detected Standard L8.3 must be followed

– Multiple plates (both 24 sample and 96 sample versions). Also contamination QC metrics in the software.

§ Algorithms for modification of raw sequence reads must be

described in detail and validated (i.e. sequence trimming, quality filtering)

– QC metrics and statistics visualisation for every locus/sample

§ Each sample processed must be traceable through the whole

process including data analysis and reporting

– Every sample, every allele assignment, every allele override, every lab manager approval is audited and reported

slide-14
SLIDE 14

www.omixon.com support@omixon.com

Guest Speakers

§ Dr. Milena Ivanova § Dr. Brendan Clarke § Dr. Mette Christiansen

slide-15
SLIDE 15

HLA Typing Using Holotype HLA™ (Omixon) – Our Experience

  • M. Ivanova
  • Dept. of Clinical Immunology with Stem Cell Bank,

University Hospital Alexandrovska, Medical University, Sofia, Bulgaria

slide-16
SLIDE 16

www.omixon.com support@omixon.com

The Evolving NGS Technology 2004-2015

slide-17
SLIDE 17

www.omixon.com support@omixon.com

NGS Platforms

Roche 454 Illumina IonTorrent SOLiD – 5500xl PacBio RS Amplification emPCR bridge PCR emPCR emPCR Non SMS NGS chemistry PS RTs

Semiconductor

Cleavable probe SBL Real Time Read length 400-650bp 150-600bp 200-400 110 3000 Output/run 0,65 Gb 1,5-500 Gb 0.1-12 Gb 155 Gb 0.5 Reads 10x6 1 1-2000 0,5-70 1410 0.03 Run time 10-20 h 10 h - 6 d 2.3 -7.3 h 8 d 2 h Errors Indel substitution Indel A-T bias Indel Error rate 1 0.1 1 <0.1 <1

slide-18
SLIDE 18

www.omixon.com support@omixon.com

QUESTIONS????

§ Research or clinical application § Goals – high thought or ultra high resolution § Application of HLA typing – solid organ transplantation, HSCT,

Registry…

§ Number of samples § Time § Previous experience with sequencing technologies § Available platform and technology § NGS HLA typing is included in EFI Standards for Histocompatibility &

Immunogenetics Testing v6.3 (Effective from Oct. 1. 2015)

slide-19
SLIDE 19

www.omixon.com support@omixon.com

Genetic test in Dept. of Clinical Immunology, University Hospital Alexandrovska

Chimerism monitoring

HLA Typing

Other genetic markers: KIR, MBL, Cytokines, mtDNA, MPN mutations, PID

Solid organ transplantation Diseases Cord blood bank Bone Marrow Donor Registry HSCT

EFI Accredited since 1997

slide-20
SLIDE 20

www.omixon.com support@omixon.com

Allele Level HLA Typing?

Holotype HLA ™ X4 (Omixon) Initial evaluation on 16 samples, HLA typed by PCR-SBT using AlleleSeqR kits. Ambiguities were resolved by HARPs and PCR-SSP

slide-21
SLIDE 21

www.omixon.com support@omixon.com

Work Flow

DNA preparation: hands on time - 35 min (35 min) HLA amplification: 35 min (7h 20) Amplicon quantification and normalization: 45 min (45min) Library preparation: 1h 10 (3h 15) Fragmentation; end repair; indexed adaptor ligation; library pooling and purification Library size selection (Pipin Prep): 15min (1h) Library quantification and MiSeq sequencing: 25 min (41h) Data analysis – Omixon HLA Twin v1.1.2

Holotype HLA ™

Hands on time 4h; Total time – 53h 30

slide-22
SLIDE 22

www.omixon.com support@omixon.com

LR-PCR Amplification Strategy

5’ ¡UTR ¡ 6 ¡ 5 ¡ 4 3 ¡ 2 ¡ 1 ¡ 3’ ¡UTR ¡

HLA-­‑DQB1 ¡

5’ ¡UTR ¡ 6 5 4 3 ¡ 2 ¡ 1 ¡ 3’ ¡UTR ¡

HLA-­‑DRB1 ¡

5’ ¡UTR ¡ 6 ¡ 5 ¡ 4 ¡ 3 ¡ 2 ¡ 1 ¡ 7 ¡ 3’ ¡UTR ¡

HLA-­‑A, ¡B, ¡and ¡C ¡(Example ¡is ¡HLA-­‑B) ¡

Full ¡gene ¡characteriza/on ¡ Key ¡region ¡characteriza/on ¡

slide-23
SLIDE 23

www.omixon.com support@omixon.com

slide-24
SLIDE 24

www.omixon.com support@omixon.com

Omixon HLA Twin v1.1.2

slide-25
SLIDE 25

www.omixon.com support@omixon.com

Omixon HLA Twin v1.1.2

slide-26
SLIDE 26

www.omixon.com support@omixon.com

Quality Control Implemented in HLA Twin

slide-27
SLIDE 27

www.omixon.com support@omixon.com

Read Quality

slide-28
SLIDE 28

www.omixon.com support@omixon.com

Coverage

slide-29
SLIDE 29

www.omixon.com support@omixon.com

Allele Imbalance

slide-30
SLIDE 30

www.omixon.com support@omixon.com

Fragment Size

slide-31
SLIDE 31

www.omixon.com support@omixon.com

Noise Ratios

slide-32
SLIDE 32

www.omixon.com support@omixon.com

2 4 6 8 10 12 14 16 HLA-A HLA-B HLA-C HLA-DRB1 HLA-DQB1 3-rd field allele assignment ambiguity

DRB1*12:01:01/ *12:10

Ambiguities

slide-33
SLIDE 33

www.omixon.com support@omixon.com

Detection on HLA-C*04 New Allele?

PCR-SBT Patient: C*04, *07 Mother: C*12:03, *07:02

Father: C*04?, *03:04

C*04:01, *07:02 – 1 MM Holotype HLA (Omixon) C*04(new), *07:02:01

slide-34
SLIDE 34

www.omixon.com support@omixon.com

Summary

§ HLA typing by NGS has higher resolution and throughput compared

to Sanger sequencing

§ Commercially available kits provide workflow and software that is

easy to set up.

§ NGS is a good alternative also for laboratories with a lower

throughput. QUALITY IN NGS HLA TYPING

slide-35
SLIDE 35

HLA Typing by NGS – A Change in

Laboratory Praxis

Mette Christiansen, PhD, MSC Department of Clinical Immunology, Aarhus University Hospital, Denmark

slide-36
SLIDE 36

www.omixon.com support@omixon.com

2014 AIM – to Simplify the Workflow

Low resolution

  • 1. Serology (HLA-A & B)
  • 1. PCR-SSO (HLA-A, B, & C)
  • 1. Conventional PCR-SSP
  • 2. PCR-SSP/ SSO

High resolution

  • 1. SBT
  • 1. Reflex-testing to resolve ambiguities
  • 1. PCR-SSP/ Additional SBT primers
  • 2. PCR-SSP/ SSO
slide-37
SLIDE 37

www.omixon.com support@omixon.com

How to Make Radical Changes

Validation Training of staff

  • Change of mindset?

Accreditation Training of staff Routine

  • Change of mindset?
slide-38
SLIDE 38

www.omixon.com support@omixon.com

Results from Validation

slide-39
SLIDE 39

www.omixon.com support@omixon.com

Results from Validation

slide-40
SLIDE 40

www.omixon.com support@omixon.com

Results from Validation

§

10 runs with a total of 240 samples and 1276 loci were analyzed

§

The 2nd field accuracy in passed runs was 99.8%

§

One run did not pass quality control due to over- fragmentation and overload of the MiSeq. – The 2nd field accuracy was 98.8%.

§

All discrepant typings –except

  • ne - were either marked with

red flags in HLA TWIN SW or in the amplification.

slide-41
SLIDE 41

www.omixon.com support@omixon.com

Conclusions

§ Shorter fragments increase the degree of cross-mapping, and reduce

the accuracy.

§ Incomplete amplification result in too many homozygous calls. § Important quality control factors that need to be assessed carefully

are, efficient amplification

– fragment length – cluster density – exon coverage

§ In regard to accreditation these and other parameters are well

described

§ The procedure is robust in regard to reproducibility, accuracy and

contamination.

slide-42
SLIDE 42

www.omixon.com support@omixon.com

Accreditation – Meeting EFI Standards v. 6.3

slide-43
SLIDE 43

www.omixon.com support@omixon.com

2016 GOAL Achieved

Low resolution

  • 1. PCR-SSP HRM
  • 2. NGS/ PCR-SSP

High resolution

  • 1. NGS
  • 2. PCR-SSP
slide-44
SLIDE 44

www.omixon.com support@omixon.com

How to Make Radical Changes

😠Do we need to change anything, it looks

difficult?

😓We don’t have the

time!

😑OK, we will try… 😐We are getting used to it

  • We only have few samples, do we need

to run SBT?

  • We have spare time for new projects.

😑Pooling of samples may delay some typings

slide-45
SLIDE 45

Omixon X2-24/7: The Experience of an Early Adopter Site Brendan Clark Transplant Immunology St James’s University Hospital, Leeds, UK

slide-46
SLIDE 46

www.omixon.com support@omixon.com

2014 HSCT Programme Activity

  • 54 alloHSCT (17 HLA id sib/2 haplo id sib/30 MUD/5 CB)
  • 583 low-res HLA CI types (referral and verification)
  • 460 low-res HLA CII types (referral and verification)
  • 147 hi-res HLA CI types
  • 275 hi-res HLA CII types
  • In-house HLA-A;B;C;DR;DQ PCR-SSP
  • LABtype HLA-A;B;C;DR;DQ PCR-SSO
  • LABtype HD HLA-DRB1
  • Allset Gold HLA-A;B;C;DQB1;DPB1
  • SBT (sendaway)
slide-47
SLIDE 47

www.omixon.com support@omixon.com

HLA Typing HSCT Workflow – The Way We Were

,

Patient HLA- A,B,C,DR,DQ typed by in-house, low-res PCR-SSP, HLA- DR,DQ,DP typed by hi-res PCR-SSP/SSOP Available family members HLA-A,B typed by in-house, low-res PCR-SSP HLA-A,B matched family members HLA-C, DR, DQ typed by in-house, low-res PCR-SSP HLA-matched family members HLA- DR,DQ,DP typed by hi-res PCR-SSP/ SSOP As required patient and HLA matched family members HLA-A,B,C typed by hi-res PCR- SSP to establish intrafamilial HLA identity. Patient and any available HLA matched family member confirmatory typing by LABType low-res PCR-SSOP on fresh samples If no HLA matched family member available perform VUD/cord search. Patient HLA-A,B,C typed by hi-res PCR- SSP. Selected VUDs HLA –A,B,C,DR,DQ,DP typed by hi-res PCR- SSP/SSOP Select family donor Select VUD donor

slide-48
SLIDE 48

www.omixon.com support@omixon.com

Pros Cons

On demand testing Not efficient – iterative testing, up to four rounds of typing required to enable selection of family donor Contains costs Not easily scalable – expansion

  • f clinical programme would

create workload management difficulties Long ‘at-bench’ time for delivery

  • f results

Utilises up to 5 methodological approaches New user specification for typing – HLA-A;B,C,DR,DQ,DP to second field .

Existing Protocol - Evaluation

slide-49
SLIDE 49

www.omixon.com support@omixon.com

Specification for Revised Approach

Omixon Holotype x2 24/7

slide-50
SLIDE 50

www.omixon.com support@omixon.com

‘When was the last time that you actually did any laboratory work?’

slide-51
SLIDE 51

www.omixon.com support@omixon.com

Validation – Phase 1

§ 7 runs involving 168 previously (whole or partially)

second field typed reference DNA’s (EQA, HSCT, 3rd party)

slide-52
SLIDE 52

www.omixon.com support@omixon.com

Validation Phase 1: Investigation of Out-of-Consensus Results

exon incorrect reference type sample id unattributed

n = 53

slide-53
SLIDE 53

www.omixon.com support@omixon.com

Validation – Phase 1 (Revised)

§ 7 runs involving 168 previously (whole or partially)

second field typed reference DNA’s (EQA, HSCT, 3rd party)

slide-54
SLIDE 54

www.omixon.com support@omixon.com

§ 5 parallel runs involving 120 sample DNA’s

Validation - Phase 2

slide-55
SLIDE 55

www.omixon.com support@omixon.com

Validation Phase 2: Investigation of Out-of-Consensus Results

exon sample id unattributed

n=14

slide-56
SLIDE 56

www.omixon.com support@omixon.com

Validation - Phase 2 (Revised)

§ 5 parallel runs involving 120 sample DNS’s

slide-57
SLIDE 57

www.omixon.com support@omixon.com

Ambiguity

A B C DR DQ DP

§ Partial characterisation of DP alleles in IMGT

database § Phasing ambiguity for some combinations

slide-58
SLIDE 58

www.omixon.com support@omixon.com

Holotype - Evaluation

slide-59
SLIDE 59

www.omixon.com support@omixon.com

HSCT Workflow – How We (Almost) Are

Patient and available family members HLA- A,B,C,DR,DQ,DP typed by NGS Patient and any available family member confirmatory HLA- A,B,C,DR,DQ,DP typing by PCR- SSOP/SSP Select family donor If no HLA matched family member available perform VUD/cord search. Selected VUDS HLA- A,B,C,DR,DQ,DP typed by NGS Patient and any available family member confirmatory HLA- A,B,C,DR,DQ,DP typing by NGS

slide-60
SLIDE 60

www.omixon.com support@omixon.com

Next Steps

§ EFI Accreditation § Service Delivery

slide-61
SLIDE 61

www.omixon.com support@omixon.com

Neil Marsden Pamela Hughes Christopher Watson Laura Crinnion Efi Melista Marcello Scala Tim Hague

slide-62
SLIDE 62

www.omixon.com support@omixon.com

CE Mark – Holotype HLA

slide-63
SLIDE 63

www.omixon.com support@omixon.com

CE Marked In Vitro Diagnostic

“The Holotype HLA product is intended for in vitro diagnostic use by professional health care personnel, such as laboratory technicians and physicians, trained in HLA-typing in diagnostic laboratories either EFI or ASHI accredited or able to work according to EFI or ASHI specifications.”

§ Includes full workflow:

– Amplification – Library Prep – Software Interpretation

§ Holotype HLA 24/7 and 96/7 products

– 150bp or 250bp paired end protocol

slide-64
SLIDE 64

www.omixon.com support@omixon.com

Regulatory and Production Practices

CE marked product for In Vitro Diagnostics (IVD)

§

For Europe

Research Use Only (RUO) product

§

For US

§

For registry typing and research All Omixon activities covered by an ISO 13485:2003 Quality Management System (QMS) Manufacturing performed under GMP and ISO 13485

slide-65
SLIDE 65

www.omixon.com support@omixon.com

Holotype HLA -Highlights

§ Flexibility

– 5, 7, 11 locus kits, either 24 or 96 samples per kit

§ Kits can be split up to 3 times, or be combined = 8 to 192 samples per MiSeq run

– Alternating adaptor plates to meet EFI requirements – MiSeq (150 or 250bp data), MiniSeq, NextSeq – Any source of DNA – whole blood, buccal swabs, saliva

§ Scalability

– Two 96 sample adaptor plates = 192 samples per MiSeq run (with 250bp protocol) – Up to 576 samples per run on a NextSeq (coming soon!)

§ Reproducibility

– Early Access Program = 24 labs, 2500 samples – Product Evaluation Study for CE Mark = 200 samples

slide-66
SLIDE 66

www.omixon.com support@omixon.com

Holotype HLA - Highlights

§ Suitability

– Designed by a clinical lab, to be used by clinical labs – CE IVD product – 2500+ samples in clinical routine at CHOP

§ Usability

– Simplest protocol, lowest hands-on time – Automation – Beckman Coulter, Hamilton, Perkin Elmer, TBG, Primadiag

§ Quality

– ISO certified manufacturing, independent manufacturing Quality Control – Most accurate platform (Illumina), superior phasing (paired reads) – 18 Quality Control measures in the software – Highest genotyping accuracy

slide-67
SLIDE 67

www.omixon.com support@omixon.com

Holotype HLA - Early Access Program

§ NGS is new technology - for the HLA clinic § Demonstrating that the technology works reproducibly was a key

component Omixon’s strategy – ‘believe the data’

§ Early Access Program ran from 11/2014 to 6/2015 § 24 labs, 13 countries, 2400 samples, 26000 alleles § >99.7% accuracy and reproducibility

slide-68
SLIDE 68

www.omixon.com support@omixon.com

Holotype HLA - Believe the Data

ASHI validation study at CHOP 253 samples Double blind alpha study 16 samples, 6 labs each Clinical routine 2500+ clinical samples at CHOP Product evaluation study 200 samples 99.9% accuracy 98.5% sensitivity 99.2% reproducibility Worldwide Early Access Program 2400+ samples, 24 labs

slide-69
SLIDE 69

www.omixon.com support@omixon.com

Holotype HLA - Customers

§ More than 75 evaluators § More than 15 labs in clinical production in Europe and the US

– 1 EFI accredited lab – 3 ASHI accredited labs

§ National tender for French Blood Services (EFS), 25k+ samples

per year

§ Alp Sen Foundation in Turkey, 20k+ samples per year § Two NHS labs in the UK

slide-70
SLIDE 70

www.omixon.com support@omixon.com

Coming Soon

§ European holding facility

– Reduced shipping times and costs in Europe

§ Holotype HLA - updates

– 576 samples per run on the NextSeq – CE mark applied to 11 locus kits (Q1 2017)

§ Monotype HLA

– New Product – HLA-B and DQB/A only

§ HLA Explore

– New Product – RUO software, for big data and long read data

slide-71
SLIDE 71

www.omixon.com support@omixon.com

Omixon –You Tube Channel

slide-72
SLIDE 72

www.omixon.com support@omixon.com

Omixon Academy Microsite

slide-73
SLIDE 73

Marcello Scala Director of Sales, EMEA

marcello.scala@omixon.com

Tim Hague Chief Executive Officer

tim.hague@omixon.com
