Operating Systems II Unit OS8: File System 8.5. Co-Loca+ng File Systems Prof. Dr. Andreas Polze, Andreas Grapentin, Bernhard Rabe Master Boot Record (MBR) Created when the disk is


slide-1

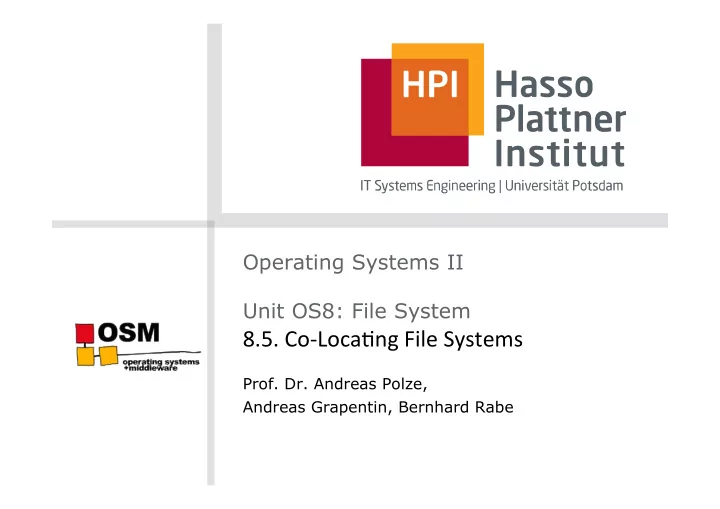

SLIDE 1

Operating Systems II Unit OS8: File System

8.5. ¡Co-­‑Loca+ng ¡File ¡Systems

  • Prof. Dr. Andreas Polze,

Andreas Grapentin, Bernhard Rabe

slide-2
SLIDE 2

Master ¡Boot ¡Record ¡(MBR) ¡

  • Created ¡when ¡the ¡disk ¡is ¡par++oned ¡at ¡<Track ¡0, ¡Side ¡0, ¡Sector ¡0> ¡
  • Contains: ¡executable ¡code, ¡disk ¡signature, ¡par++on ¡table ¡
  • Signature ¡= ¡end ¡of ¡sector ¡marker: ¡0x55AA ¡
  • Single ¡Point ¡of ¡Failure ¡
  • There ¡is ¡no ¡MBR ¡on ¡a ¡floppy ¡disk ¡
  • Max ¡par++ons ¡size: ¡2 ¡TB ¡

¡ ¡ Master ¡Boot ¡Code ¡(Used ¡only ¡on ¡primary ¡ac+ve ¡par++on) ¡ 1. Scans ¡the ¡par++on ¡table ¡for ¡the ¡ac+ve ¡par++on. ¡ 2. Finds ¡the ¡star+ng ¡sector ¡of ¡the ¡ac+ve ¡par++on. ¡ 3. Loads ¡a ¡copy ¡of ¡the ¡boot ¡sector ¡from ¡the ¡ac+ve ¡par++on ¡into ¡

  • memory. ¡

4. Transfers ¡control ¡to ¡the ¡executable ¡code ¡in ¡the ¡boot ¡sector ¡

slide-3
SLIDE 3
slide-4
SLIDE 4
slide-5
SLIDE 5

GUID ¡Part. ¡Table ¡

  • Contains ¡an ¡MBR ¡
  • 128 ¡Primary ¡Par++ons ¡
  • Max ¡Par++on ¡Size: ¡18 ¡

ExaByte ¡

  • Defini+on ¡by ¡EFI ¡
  • Data ¡sectors ¡with ¡

checksums ¡and ¡backup ¡ sectors ¡
