Maplewood Mall Stormwater Retrofit Julie Vigness-Pint Ramsey-Washington Metro Watershed District Location The Purpose Meeting MN Pollution Control Agencys shallow lake standard Both internal and external phosphorus loads in Kohlman

slide-1
SLIDE 1

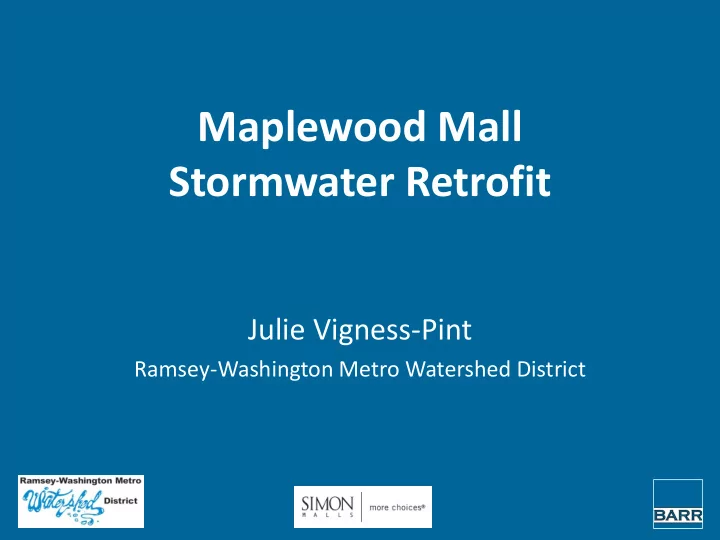

Maplewood Mall Stormwater Retrofit

Julie Vigness-Pint

Ramsey-Washington Metro Watershed District

slide-2
SLIDE 2

Location

slide-3
SLIDE 3

The Purpose

slide-4
SLIDE 4
slide-5
SLIDE 5

Meeting MN Pollution Control Agency’s shallow lake standard

  • Both internal and external phosphorus loads in

Kohlman Lake must be addressed

  • 90% reduction of Kohlman Lake internal

phosphorus load

  • 25% reduction of the total phosphorus (TP) load

from the “Main Drainage District”

  • Target dissolved and fine particulate phosphorus
slide-6
SLIDE 6

The Process

slide-7
SLIDE 7
  • Simon Property Group’s mission

statement: To be the preeminent developer,

  • wner and manager of retail real estate. To

create and continually enhance stockholder value through the ownership of a high quality portfolio of premier properties and a commitment to our employees, our customers, our retailer and business partners and the communities in which we operate.

slide-8
SLIDE 8

Simon Property Group, Inc.

  • Nationally S&P 500 company and the largest

real estate company in the U.S.

  • Currently own or has interest in 393

properties comprising of 263 million square feet of gross leasable area in North America, Europe, and Asia

– Assets include regional malls, Premium Outlets, The Mills, community/lifestyle centers and international properties

  • Headquartered in Indianapolis, Indiana and

employs over 5,000 people worldwide

slide-9
SLIDE 9
  • Opened in July 1974
  • Simon Property Group, Inc.

acquired in 2002

  • Over one million people

visit each year

slide-10
SLIDE 10

Concerns from the Mall’s Perspective

  • Appearance of features
  • Maintenance
  • Disruption of shopping, especially during the

holiday shopping season

  • Coordination of agreements from anchor

stores, other tenants, who have differing lease agreements

  • Loss of Parking Spaces
slide-11
SLIDE 11

Maplewood Mall

slide-12
SLIDE 12

Before and After Renderings Showed the Mall Owners What to Expect

slide-13
SLIDE 13

Designs that Minimized Loss of Parking Were Presented

slide-14
SLIDE 14

However, in some areas, mall owners were willing to lose spaces to gain aesthetic appeal and traffic control

slide-15
SLIDE 15

Concerns from the Watershed District’s perspective

  • Cost-effectiveness and visibility
  • Strong interest in keeping some features

“above ground” where they are visible and less expensive to construct and maintain

  • Access to the corporate office where the

company’s decisions are made

  • Many utilities (some not well marked) to deal

with in design and construction

  • Compacted soils- low infiltration rates
slide-16
SLIDE 16

The Projects

slide-17
SLIDE 17

Phase 1: Entrance Rainwater Gardens Construction in 2009/2010 Designed to capture 1.3 inches off of 7 acres of impervious

slide-18
SLIDE 18

Steel fiber was added to some of the rainwater gardens’ sand trench media (5% by weight)

slide-19
SLIDE 19

Trees, plants, shrubs were chosen to be colorful, easy to maintain and tolerant

slide-20
SLIDE 20
slide-21
SLIDE 21

Southlawn Dr Entrance Garden

slide-22
SLIDE 22

Southlawn Dr Entrance Garden

slide-23
SLIDE 23

Southlawn Dr Entrance Garden

slide-24
SLIDE 24

Southlawn Dr Entrance Garden

slide-25
SLIDE 25

Southlawn Dr Entrance Garden

slide-26
SLIDE 26

Southlawn Dr Entrance Garden

slide-27
SLIDE 27

Real Life vs. Rendering

slide-28
SLIDE 28

County Road D Entrance

slide-29
SLIDE 29

Woodlyn Ave Entrance Garden

slide-30
SLIDE 30

Woodlyn Ave Entrance Garden

slide-31
SLIDE 31

Woodlyn Ave Garden Inlet

slide-32
SLIDE 32

Woodlyn Ave Entrance Garden

slide-33
SLIDE 33

Woodlyn Ave Entrance Garden

slide-34
SLIDE 34

Lydia Ave Entrance Garden

slide-35
SLIDE 35

Lydia Ave Entrance Garden

slide-36
SLIDE 36

White Bear Ave Entrance Garden

slide-37
SLIDE 37

White Bear Ave Entrance Garden

slide-38
SLIDE 38

Beam Ave Entrance Garden

slide-39
SLIDE 39

Phase II: Northeast Parking Lot

BWSR Clean Water Legacy Grant Final Design in 2010 Construction in 2011

slide-40
SLIDE 40

Possible Phase II Project Elements: Educational Signage, and …

Porous Pavement

Source: Silva Cells RWMWD Parking Lot

Tree Boxes

slide-41
SLIDE 41

Planters, Cisterns and other Water Features

slide-42
SLIDE 42

Phase III: West/ Northwest Parking Lot, and potentially more

slide-43
SLIDE 43
