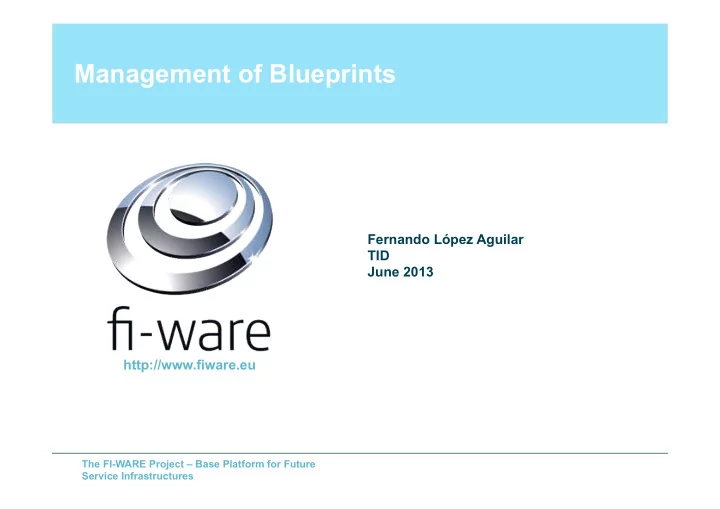

Management of Blueprints Fernando Lpez Aguilar TID June 2013 http://www.fiware.eu The FI-WARE Project Base Platform for Future Service Infrastructures Index 1. Basic Concepts 2. API & Operations 3. Demo The FI-WARE Project

slide-1
SLIDE 1

The FI-WARE Project – Base Platform for Future Service Infrastructures

Management of Blueprints

Fernando López Aguilar TID June 2013 http://www.fiware.eu

slide-2
SLIDE 2

The FI-WARE Project – Base Platform for Future Service Infrastructures

1.

Basic Concepts

2.

API & Operations

3.

Demo

Index

slide-3
SLIDE 3

The FI-WARE Project – Base Platform for Future Service Infrastructures

1.

Basic Concepts

slide-4
SLIDE 4

The FI-WARE Project – Base Platform for Future Service Infrastructures

  • Deploying ¡applica-ons ¡and ¡not ¡only ¡VMs. ¡
  • Ad ¡hoc ¡installa-on ¡(not ¡template ¡usage). ¡
  • Managing ¡applica-ons ¡in ¡the ¡VMs ¡(install, ¡uninstall, ¡configure, ¡

snapshot…). ¡

  • Deploying ¡different ¡environments ¡for ¡that ¡applica-ons. ¡

¡

EC2

Objetive of PaaS Manager

3

slide-5
SLIDE 5

The FI-WARE Project – Base Platform for Future Service Infrastructures

Introduction

PaaS Manager Claudia SDC GEi DCRM Server Cloud Portal

§ The PaaS Manager GE provides a

new layer over the Claudia (IaaS SM GEi).

§ Orchestrate the provisioning of the

required virtual resources at IaaS level.

§ Provide installation and configuration

  • f the whole software stack of an

application through SDC GEi.

§ Provides a flexible mechanism to

perform the deployment, enabling multiple deployment architectures.

4

slide-6
SLIDE 6

The FI-WARE Project – Base Platform for Future Service Infrastructures

§ Product Release & Product Instance.

  • Product Release is an installable software (usually middleware) that is

installed previous to the deployment of an application components.

  • Product Release contains the information about the software to be installed,

Product Instance refers to the Product Release already instantiated.

  • Example: Apache Tomcat, MongoDB, MySQL, etc.

Entities (I)

5

slide-7
SLIDE 7

The FI-WARE Project – Base Platform for Future Service Infrastructures

§ Tier & Tier Instance.

  • An application is structured into Tiers
  • A Tier comprises a set of Servers that share the same virtual image and

where the same set of software products is installed.

  • Each of this server can to be cloned in order to handle elasticity.
  • A Tier Instance is the result of instantiating a given Tier definition (Tier

template).

  • Nodes in a Tier are clonable
  • Example: A farm of web servers serving static web pages in the given portal

associated to a CRM application.

Entities (II)

6

slide-8
SLIDE 8

The FI-WARE Project – Base Platform for Future Service Infrastructures

§ Blueprint Template & Blueprint Instance.

  • Complete software stack required for the deployment of an application.
  • Includes IaaS resource (Servers, Networks), products, configuration

instructions.

  • Example: an on-line shop application structured into three tiers.

Entities (III)

7

Tier All in one Firewall node Firewall Tier mix Tier Firewall One scaled Tier 8080 8080 Tier Tier

slide-9
SLIDE 9

The FI-WARE Project – Base Platform for Future Service Infrastructures

Entities (IV)

§ Virtual Appliance (from IaaS SM)

  • Pre-built software solutions, comprised of one or more Servers that are

packaged, updated, maintained and managed as a unit.

  • Let customers easily acquire, deploy and manage, pre-integrated solution

stacks.

  • This speeds up time to value and simplifies software development,

distribution, and management.

8

slide-10
SLIDE 10

The FI-WARE Project – Base Platform for Future Service Infrastructures

No just one component

9

PaaS Manager

IaaS SM

SDC

  • Deploy Virtual

Appliances

Chef server

  • Install Products
  • Config products for Blueprint.
slide-11
SLIDE 11

The FI-WARE Project – Base Platform for Future Service Infrastructures

  • 2. API & Operations
slide-12
SLIDE 12

The FI-WARE Project – Base Platform for Future Service Infrastructures

11

§ The Blueprint that we want to deploy exists in the Catalogue.

  • Just get the list of available Blueprint Templates from Catalogue.

§ The Blueprint has the definition of the Virtual Appliance and Products

associated to the different Tier.

  • The Virtual Appliance is sent to the IaaS SM.
  • The Products list is sent to the SDC.

Operations (I): Deploy a Blueprint from Catalogue.

Cloud Portal PaaS Manager IaaS SM SDC

1) BlueprintTemplates[] = listBlueprintTemplate() 2) TaskId = deployBlueprint(BlueprintTemplate) TaskStatus = getTaskStatus(TaskId) 3) Status = createvApp(vApp) 4) TaskId = installProduct(Server, Product) TaskStatus = getTaskStatus(TaskId)

slide-13
SLIDE 13

The FI-WARE Project – Base Platform for Future Service Infrastructures

12

§ The Blueprints have to be defined.

  • Specification of the products that will be supported.
  • Related to the capacities of the SDC GE.

§ An Blueprint has to be deployed.

  • On demand, just previous to the deployment of an application, or in

advance, in order to enable faster deployments.

§ Blueprint and Blueprint Instances can be retired, redefined or evolved. Operations (II): Define a new Blueprint Catalogue Template and Deploy.

Cloud Portal PaaS Manager IaaS SM SDC

1) ProductList[] = listCatalogueProducts() 2) Status = addBlueprintTemplate(BlueprintTemplate) 3) BlueprintTemplates[] = listBlueprintTemplate() 4) TaskId = deployBlueprint(BlueprintTemplate) TaskStatus = getTaskStatus(TaskId) 5) Status = createvApp(vApp) 6) TaskId = installProduct(Server, Product) TaskStatus = getTaskStatus(TaskId)

slide-14
SLIDE 14

The FI-WARE Project – Base Platform for Future Service Infrastructures

13

§ Open Specification PaaS Manager

h t t p s : / / f o r g e . f i - w a r e . e u / p l u g i n s / m e d i a w i k i / w i k i / f i w a r e / i n d e x . p h p / FIWARE.OpenSpecification.Cloud.PaaS

§ Open Specification SDC

h t t p s : / / f o r g e . f i - w a r e . e u / p l u g i n s / m e d i a w i k i / w i k i / f i w a r e / i n d e x . p h p / FIWARE.OpenSpecification.Cloud.SDC

§ Open Specification IaaS SM

h t t p s : / / f o r g e . f i - w a r e . e u / p l u g i n s / m e d i a w i k i / w i k i / f i w a r e / i n d e x . p h p / FIWARE.OpenSpecification.Cloud.SM

Documentation

slide-15
SLIDE 15

The FI-WARE Project – Base Platform for Future Service Infrastructures

  • 3. Demo
slide-16
SLIDE 16

The FI-WARE Project – Base Platform for Future Service Infrastructures

Our objective

Working together to make it possible:

ü New services for everybody ü Smart applications ü Innovative business models

Providing the Technology Foundation

– Standard interfaces. – Open to other actors (SMEs) – Scalable and demand oriented (cloud)

create a solid basis for the Internet of the Future

The FI-WARE Project – Base Platform for Future Service Infrastructures
