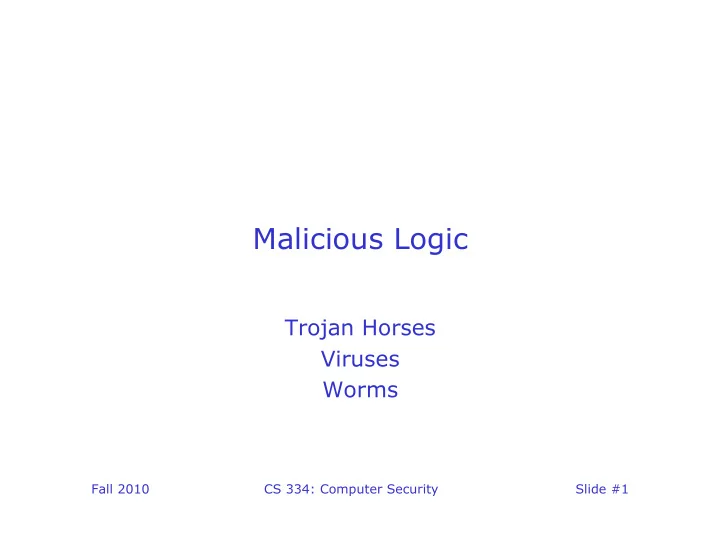

Fall 2010 CS 334: Computer Security Slide #1

Malicious Logic

Trojan Horses Viruses Worms

Fall 2010 CS 334: Computer Security Slide #2

Introduction

• Malicious Logic: a set of instructions that

cause violation of security policy

• Idea taken from Troy: to breach an

impenetrable perimeter, have someone from the inside unknowingly bring you inside

• Example: Name the following script ls and

place in a directory

Set UID of /tmp.xxsh to UID

• f person executing

this script Remove this script and run ls

Fall 2010 CS 334: Computer Security Slide #3

Trojan Horses

• Trojan Horse: A program with an overt

(documented or known) effect and a covert (undocumented or unexpected) effect

– In example, overt action is to list files, covert is to create shell that is setuid to user executing script

• There is a key notion here of ``tricked’’

– In the example script, if user root executed this unintentionally by typing ls in a directory, then we have a security policy violation. – If root types out these lines and runs them intentionally, no violation – Key problem: system does not know whether user really intends to run specific set of instructions

Fall 2010 CS 334: Computer Security Slide #4

Example: NetBus

• Program that allows attacker to control

Windows NT workstation remotely

– Can download and upload files, intercept mouse or key strokes, generally be sysadmin

• Requires small NetBus server on target

machine

– Placed in several small game programs and

• ther ``fun’’ stuff, then distributed to web

sites where unsuspecting users would likely download them

Fall 2010 CS 334: Computer Security Slide #5

Propogating Trojan Horse

• Propogating Trojan Horse: (also replicating

Trojan Horse) is a Trojan Horse that creates a copy of itself.

• Ex. Ken Thompson’s compiler

– Added Trojan horse to login program so it accepted a specific password in addition to user’s password – Placed code that does this into compiler, so it would add it whenever it saw a login call. (So not visible in login code) – Placed the Trojan horse for compiler into compiler binary, so if compiler was recompiled it would always include the trojan horse for login. – Replaced source for compiler with clean source for compiler.

Fall 2010 CS 334: Computer Security Slide #6

Computer Virus

• Computer Virus: A program that inserts itself

into one or more files and then performs some (possibly null) action

– Insertion Phase: virus inserts itself into file – Execution Phase: the action is performed

Fall 2010 CS 334: Computer Security Slide #7

Virus Pseudocode

Fall 2010 CS 334: Computer Security Slide #8

Virus A Trojan Horse?

• Some say YES: Purpose of infected program is
• vert action, injections and execution phase is

the covert action

• Some say NO: Virus has no covert purpose.

Its overt purpose is to infect and execute.

• Who cares. Bottom line is that defenses

against Trojan horses inhibit viruses.

Fall 2010 CS 334: Computer Security Slide #9

Some History

• 1983: Fred Cohen (at time grad student at

USC) designed virus to acquire privileges on VAX-11/750 running Unix.

– Obtained all system rights within half hour on average – Because virus didn’t degrade response time, most users never knew system under attack

• 1984: Experiment on UNIVAC 1108 showed

virus could infect that system

– UNIVAC partially implemented Bell-LaPadula Model, using mandatory protection mechanisms – Showed that if a system does not prohibit writing using mandatory access controls, then system does little, if anything, to prohibit virus propagation

Fall 2010 CS 334: Computer Security Slide #10

More History

• 1986-87: Brain (Pakistani) virus infects

IBM PCs

– Alters boot sectors of floppy disks, possibly corrupting files. – Spreads to any uninfected floppy inserted into system. – Numerous variations have been reported

• 1987: MacMag Peace virus

– Infect Mac, Amiga, among others – Prints ``universal message of peace’’ on March 2, 198, then deletes itself. – Infected copies of Aldus FreeHand program, which were subsequently recalled by manufacturer

Fall 2010 CS 334: Computer Security Slide #11

Still More History

• 1987: Tom Duff experiments on Unix

with small virus that copies itself into executable files.

– Not virulent, but when placed in 48 programs on heavily used machine, spread to 46 different systems and 466 files in 8 days. – Duff did not violate security mechanism by seeding files – Wrote another virus in Bourne shell script. It could attach itself to any Unix program – Demonstrated that viruses are not intrinsically machine-dependent and can spread to systems of varying architectures

Fall 2010 CS 334: Computer Security Slide #12

Ok, Even More History

• 1989: Harold Highland develops Lotus 1-2-3

virus

– Virus stored as set of commands for spreadsheet – Loads automatically when file opened – Was for demo only, so it changed the value in specific row and column then spread to other files. – Demonstrated that macros for office programs on PCs could contain viruses.

Fall 2010 CS 334: Computer Security Slide #13

Virus Types

• Boot Sector Infectors
• Executable Infectors
• Multipartite Viruses
• TSR Viruses
• Stealth Viruses
• Encrypted Viruses
• Polymorphic Viruses
• Macro Viruses

Fall 2010 CS 334: Computer Security Slide #14

Boot Sector Viruses

• Boot sector is the part of a disk used to

bootstrap the system or mount a disk

– Code in boot sector is executed when system sees disk for first time

• Boot sector virus is one that inserts itself into

the boot sector of a disk

– When system or disk boots, virus is executed – Original boot sector code is moved

Fall 2010 CS 334: Computer Security Slide #15

Example: Brain Virus

• When system boots from infected disk, virus is

in boot sector and is loaded.

• Moves disk interrupt vector (location 0x13) to

location 0x6d and sets disk interrupt location to invoke Brain virus.

• Brain virus then loads original boot sector and

continues the boot

• When user reads another floppy, interrupt at

0x13 is invoked, calling Brain virus

– If value 0x1234 in word at location 0x4 of new disk, boot continues normally. If not, disk is infected – Infection sometimes overwrite some sectors, thus the sometimes destructive nature of the Brain virus

Fall 2010 CS 334: Computer Security Slide #16

Executable Infectors

• Executable infector: virus that infects

executable programs

– On PC these are COM or EXE viruses because of the file types they infect

• Viruses prepends or appends itself to

executable

Fall 2010 CS 334: Computer Security Slide #17

Example: Jerusalem Virus

• Triggered when infected program is

executed

• Virus puts value 0x0e0 into ax register

and invokes DOS service interrupt (0x21)

• If on return the high eight bits of ax

contain 0x3, virus is already on system and original program is invoked

• If not, virus sets itself up to respond to

traps to DOS service interrupt vector

Fall 2010 CS 334: Computer Security Slide #18

Example: Jerusalem Virus

• Virus checks date

– if a Friday the 13th and year is not 1987, virus sets flag in memory to delete files instead of infecting them

• In memory, virus checks all calls to

DOS service interrupt, looking for files to be executed (service call 0x4b00)

– Virus checks file name, and deletes file if destruct bit set (except for COMMAND.COM file) – Virus checks last five bytes of file.

• If string MsDos, file is infected
• If not, virus checks whether name of file ends in E
• r M, in which case virus infects it (assuming its a

COM or EXE file)

Fall 2010 CS 334: Computer Security Slide #19

Multipartite Viruses

• Virus that can infect either boot sectors or

applications

• Virus typically has two parts, one for each
• type. Appropriate part is invoked depending
• n circumstances

Fall 2010 CS 334: Computer Security Slide #20

TSR Viruses

• Terminate and Stay Resident (TSR)

virus is one that stays active (resident) in memory after application (or bootstrapping or disk mounting) has terminated.

• Can be boot sector or executable

infectors

– Brain and Jerusalem are both TSR viruses

• Non TSR viruses execute only when

host application is executed (or infected disk mounted, etc)

Fall 2010 CS 334: Computer Security Slide #21

Stealth Viruses

• Stealth viruses are those that conceal the

infection of files

• Intercept calls to the OS that access files

– If call is for file attributes, original (uninfected) file attributes returned – If call is to read file, uninfected version is returned – If call is to execute file, infected file is executed

Fall 2010 CS 334: Computer Security Slide #22

Example: The Stealth Virus

• Also called IDF virus or 4096 virus
• Modifies DOS service interrupt handler

– Not interrupt vector. This way inspection of interrupt vectors does not reveal presence

• f virus
• If call is for length of file, length of

uninfected file returned

• If request to open file, file is

temporarily disinfected, then reinfected when file is closed

• Changes last modification time for file

to indicate the file is not infected

Fall 2010 CS 334: Computer Security Slide #23

Encrypted Viruses

• Virus that enciphers all of the virus code

except for a small decryption routine

• Anti-virus software looks for known sequences
• f code
• To fight this, some viruses encipher most of

code, leaving only small decryption routine and random cryptographic key in clear

Fall 2010 CS 334: Computer Security Slide #24

Example: 1260 Virus

• Uses two keys stored in k1 and k2
• Virus code begins at location sov and ends at

location eov

• Dual keys and shifting of first key prevent

simple xor from uncovering deciphered virus

Fall 2010 CS 334: Computer Security Slide #25

Polymorphic Viruses

• A virus that changes its form each time it

inserts itself into another program

• Considered an encrypted virus
• With straight encrypted virus, decryption

portion can be detected!

• Polymorphic viruses designed to defeat this.

– They change instructions in virus to something equivalent but different. Technique is used to hide decryption code.

All do same thing!

Fall 2010 CS 334: Computer Security Slide #26

Example

Fall 2010 CS 334: Computer Security Slide #27

Polymorphic Viruses

• Production of polymorphic viruses has

been automated

– Mutation Engine (ME) – Trident Polymorphic Engine (TPE)

• Polymorphism can occur at different

levels

– A deciphering algorithm may have two different implementations – Two different algorithms may produce same result (much harder to detect)

Fall 2010 CS 334: Computer Security Slide #28

Macro Viruses

• A virus that it composed of a sequence
• f instructions that is interpreted rather

than executed directly

• Conceptually no different from ordinary

computer viruses

• Can execute on any system that can

interpret the instructions

• Can infect executables or data files

(data virus)

Fall 2010 CS 334: Computer Security Slide #29

Macro Virus

• If infecting executable, must arrange to

be interpreted at some point

– Ex. Duff’s experiments wrapped executables with shell scripts. Resulting executables invoked Bourne shell which interpreted virus code before invoking usual executable

• Macro viruses not bound by machine

architecture – use specific programs

– Any system that runs this program can be affected, though effects may differ – Ex. MS Word virus will work on PC, Mac,

Fall 2010 CS 334: Computer Security Slide #30

Example: Melissa Virus

• Infected Word 97 and 98 documents on

Windows and Mac systems (written in Visual Basic)

• Installs itself as the ``open’’ macro and

copies itself into the Normal template so that any files that are opened are infected

• Then invokes mail program and sends

copies to names in address book

– On PC spread was through mail – On Mac, most user didn’t use mail program that Melissa invokes, so spread was not via email.

Fall 2010 CS 334: Computer Security Slide #31

Computer Worms

• A computer worm is a program that

copies itself from one computer to another (as opposed to hitching a ride)

• Research on worms began in mid-1970s

– Schopp and Hupp developed distributed programs to do various tasks. These probed workstations, to find idle machines

• n which they installed code segments do

do work. When other work on machine started, segments shut down.

Fall 2010 CS 334: Computer Security Slide #32

The Internet Worm

• Nov. 2, 1988: program targeted Berkeley and

Sun Unix based machines.

• Within hours of introduction to Internet it had

rendered thousands of computers unusable

• Worm inserted instructions into a running

process on target machine and arranged for instructions to be executed

Fall 2010 CS 334: Computer Security Slide #33

The Internet Worm

• Recovery required disconnection from network

and reboot

– Several critical programs had to be changed and recompiled to prevent re-infection – Worse, program disassembly required to determine whether other malicious effects present – Fortunately only purpose of worm was self propagation (could have been much worse!)

Fall 2010 CS 334: Computer Security Slide #34

Internet Worm

• Worm took advantage of flaws in some

standard software installed on Unix systems

• fingerd is a utility that allows users to
• btain information about other users
• gets is a routine that takes input into a

buffer without performing a bounds check

• sendmail is a program that routes mail

in heterogeneous networks

Fall 2010 CS 334: Computer Security Slide #35

fingerd

• Program runs as a daemon (background

process)

– Allows connections from remote programs – Reads single line of input, sends back appropriate output

• Code used call to gets routine to get
• input. Worm smashed the stack using

this call

• Unfortunately, several routines remain

with such buffer overflow vulnerabilities

Fall 2010 CS 334: Computer Security Slide #36

sendmail

• Operates in several modes: worm exploited

debug mode operation

• Sendmail listens on TCP port 25 for attempts

to deliver mail using simple mail transfer protocol (SMTP)

– When contacted, sendmail enters into dialog to determine sender, etc.

Fall 2010 CS 334: Computer Security Slide #37

sendmail

• Worm used DEBUG command to specify the

recipient of the message as a set of commands instead of a user address

– This is not allowed in normal mode – In debug mode, allows testers to verify mail is arriving without having to invoke address resolution routines – That is, testers can run programs to show state of mail system without separate login connection or having to send mail

Fall 2010 CS 334: Computer Security Slide #38

Aside: Unix Passwords

• Passwords encrypted with premuted

version of DES and ciphertext stored in world-readable accounting file

• Worm used dictionary attack to break

passwords (sometimes as many as 50%

• f the passwords on a system)
• Unix now stores passwords in shadow

password file that can only be accessed by sysadmin

– And encryption is done using a privileged routine that delays return for a second or so (prevents online testing)

Fall 2010 CS 334: Computer Security Slide #39

Aside: Trusted Logins

• BSD Unix has nice support for login from

remote machines

• One can specify a list of host/login name pairs

that are assumed to be trusted. Login with these pairs does not require a password

– hosts.equiv and .rhosts files

• Worm exploited this by trying to locate

machines that might trust the current machine

– How do you think it did this? – When one found, worm placed itself on the target machine

Fall 2010 CS 334: Computer Security Slide #40

Internet Worm (High level description)

• Main program: collect info on other machines
• n network to which current machine could

connect

– Read config files – Run system utilities to get info about current state of network connections – Used previously mentioned flaws to attempt to establish bootstrap on these machines.

Fall 2010 CS 334: Computer Security Slide #41

Internet Worm (High Level Description)

• Bootstrap program:

– 99 lines of C code that would be compiled and run on remote machine – Once transferred to target machine, it was compiled and invoked with three command line arguments

• Network address of infecting machine
• Number of network port to connect to on machine to

get copies of the main worm files

• Magic number that acted as one-time challenge

password

– If worm on remote host and port didn’t receive magic number back, it would immediately disconnect from bootstrap program » Possibly to prevent someone from capturing a copy of the worm by spoofing a Worm server

Fall 2010 CS 334: Computer Security Slide #42

Internet Worm (High Level Description)

• Bootstrap program:

– Connect back with worm that originated it and transfer a set of precompiled code (binaries) to local machine – These binaries represented versions of the main program for various OS versions and machine architectures. – Once binaries transferred, loaded and linked with standard library routines on host machine, then one by one run.

Fall 2010 CS 334: Computer Security Slide #43

Father Christmas Worm

• Electronic Christmas Card passed around IBM-

base networks

– Card was letter instructing recipient to save letter and run as a program. – Program drew Christmas Tree (with blinking lights!) and printed Merry Christmas

• Program checked recipients list of previously

received mail as well as address book, then sent itself to all these addresses

• Overwhelmed network and forced shutdown
• Macro worm written in high-level job control

language

Fall 2010 CS 334: Computer Security Slide #44

Rabbits and Bacteria

• Program that absorbs all of some class
• f resource

– Program copies multiply so fast that resources exhausted. A class of denial of service attack.

• Ex. (Dennis Ritchie) This will exhaust

disk space or inode tables on a Unix Version 7 system

Fall 2010 CS 334: Computer Security Slide #45

Examples

• Internet worm:

– During infection, opened a port on target machine. – When another worm tried to infect machine, it checked port. If opened it assumed machine infected. – But apparently to thwart sysadmins opening a small program on that port, every sixth attack it ignored the check. – Lead to many copies of the worm on single machine. These consumed the CPU.

• Father Christmas:

– Created so much network traffic that network became unusable and had to be shut down

Fall 2010 CS 334: Computer Security Slide #46

Question: Is there an algorithm that can determine if an arbitrary program contains replicating code?

Fall 2010 CS 334: Computer Security Slide #47

Answer (Cohen): No such algorithm can exist. It is provably undecidable whether an arbitrary program contains a computer virus.

Fall 2010 CS 334: Computer Security Slide #48

Logic Bomb

• Logic bomb is a program that executes

malicious logic when some external event

• ccurs

– E.g. program attacks on specific date

• Disaffected employees who plant Trojan

horses in systems often use logic bombs

– E.g. delete entire payroll roster when employee’s name is deleted

Fall 2010 CS 334: Computer Security Slide #49

Example

• Early 1980s: program posted to

USENET promised to make administering systems easier

• Directions:

– Unpack shar archive containing program – Compile program and install as root

• Midway down the shar archive:

A More Modern Perspective on Malicious Logic

We’ve talked a bit about classification and seen an important theoretical

• result. Now we consider more recent

developments. As always thanks to my Berkeley Colleagues for providing much of the slides on this modern perspective.

Fall 2010 CS 334: Computer Security 50

Outline

• What is a Worm/Virus?
• Why are they created?
• Infection Vectors and Payloads

– How they propagate and what they do

• Worm propagation rates
• Virus/Worm detection/prevention

– File scanners, host scanners, network scanners – Host monitors

• Targeted Worms and Viruses

Fall 2010 CS 334: Computer Security 51

Internet Worms and Viruses

• Self-replicating code and data

– Worms are self-propagating (search network)

• Typically exploit vulnerabilities in an application

running on a machine or the machine’s OS

– Viruses typically require a human interaction before propagating

• Running e-mail attachment, or click link in e-mail
• Inserting/connecting “infected” media to a PC
• Behavioral invariant: they seek to propagate

Fall 2010 CS 334: Computer Security 52

Why Create Worms/Viruses?

• Formerly was a prestige motivation

– Finding bugs, mass infections, … – 50% of viruses contain crackers’/groups’ names

• Cracking for profit, including organized crime

– Create massive botnets 10-100,000+ machines infected

• Overloading/attacking websites, pay-per-click scams,

spaming/phishing e-mail, or phishing websites…

– More on botnets later… – Corporate/personal espionage (SSN, passwords, docs, …)

• Closing security loopholes

– Is this ethical?

Fall 2010 CS 334: Computer Security 53

Revisiting Zotob Virus (August 2005)

• Financially-driven motive

– Infected machines and set IE security to low (enables pop-up website ads) – Revenue from ads that now appear – User may remove virus, but IE settings will likely remain set to low – Continued revenue from ads…

• Targeted (among others) ABC, CNN, the

Associated Press, NY Times, Caterpillar Inc,

– Cost an average of $97,000 and 80 hours of cleanup per company affected.

Fall 2010 CS 334: Computer Security 54

Revisiting Zotob Virus (August 2005)

• August 26th, 2005 (two weeks after Zotob)

– Farid Essebar was arrested in Morocco, Atilla Ekici arrested in Turkey

• September 16, 2006

– Essebar and friend Achraf Bahloul sentenced in Moroccan court.

• Ekici believed to have bought the worm for

financial gain.

• Believed that Essebar is part of larger group,

the Dark-side Hackers, behind spread of Zotob

Fall 2010 CS 334: Computer Security 55

Infection Vectors and Payloads

• Two components to worms and viruses
• Infection vectors

– How they get onto your machine and then propagate

• Payloads

– What they do on your machine

Fall 2010 CS 334: Computer Security 56

Infection Vectors

• Network scanning for potential victims (worms)
• Local/server/P2P files (viruses/worms)
• E-mail message components (viruses)
• Web sites (worms/viruses)

Fall 2010 CS 334: Computer Security 57

Network Scanning for Potential Victims (Worms)

• How to scan the network?

– Pick address, try to exploit protocol vulnerabilities

• How to generate addresses?

– Use a PRG, but how to initialize the PRG?

• Same seed on each host (common flaw!)

– Need to generate local seed…

• Generate 32-bit IP address or 4 8-bit parts?

– Is even or uneven probing better? – Local hosts are likely to be same OS/patch level and have higher bandwidth – Also local addr space is denser

Fall 2010 CS 334: Computer Security 58

Worm Exploits

• Buffer overflow on servers/clients

– Identify de-serializing errors, send exploit code – MSBlaster DCOM/RPC exploit

• Forcing protocol parsing errors

– Identify errors in protocol handling/state machine – Morris worm fingerd remote code exec

• Weak passwords (more on this in a moment)

– Brute force: try name backwards, appended, …

• Out-of-the box configuration errors

– Default ID/password – Debugging mode enabled (Morris worm sendmail exploit)

Fall 2010 CS 334: Computer Security 59

Infecting via Files

• Factory installed
• Removable media (viruses)

– Floppies, CD/DVD-ROMs, USB drives/keys

• Files on shared servers and P2P networks

(worms/viruses)

– Have to convince user to click to open… – Or, an infected existing document

• E-mail file attachments (viruses)

– Have to convince user to click to open…

Fall 2010 CS 334: Computer Security 60

Infecting via E-mail

• E-mail attachments (viruses)

– Files (see last slide) – Scripts: Windows Scripting Host – HTML files: browser exploits (next slide)

• HTML-formatted e-mail messages

– Browser exploits (next slide) – User clicks on links (leads to browser exploits) – Windows Scripting Host

• Executes simply by viewing e-mail msg (LoveLetter)

– Embedded images (JPEG/PNG render exploits)

Fall 2010 CS 334: Computer Security 61

Why E-mail based Infections?

• E-mail has become globally ubiquitous

– By 2006, e-mail traffic is expected to surge to 60 billion messages daily

• Message Labs scanned 14.7 billion emails

scanned, found >6% were viral

• Nearly all of the most virulent worms of 2004

spread by email (Symantec/Sophos)

Fall 2010 CS 334: Computer Security 62

Web Sites (Worms/Viruses)

• Set up malicious server, or infect existing

server

– Porn, Warez/Crackz/Gamez, anti-spyware(!) sites

• Exploit bugs in browser rendering engine

– “Drive-by-download” infection

• ActiveX exploits

– Leverage bugs in ActiveX components – Enable remote script/code execution

• HTML parsing vulnerabilities

– Redirect to malicious sites – Cause buffer overflow, or file download and execute

Fall 2010 CS 334: Computer Security 63

Types of Payloads

• Bootstrap loader
• Message
• Propagation engine

– System settings/DNS changer, file installer

• Destructive actions
• Zombie software installer
• Trojans/Browser Help Objects installer
• But, sometimes payloads don’t work

– Inadvertent system crashes instead

Fall 2010 CS 334: Computer Security 64

Payloads

• Bootstrap loader

– Used when exploit can only send a small amount of code/script – Establishes TFTP connection back to infecting machine to retrieve real payload

• Message (could be null)
• Propagation engine

– Permanently installs virus/worm by changing system settings, or replacing/infecting system files (rootkit) – Infect local/server/P2P documents, music, etc.

• Malicious: disk corruption, or BIOS re-flash

Fall 2010 CS 334: Computer Security 65

Payloads

• Zombie software install

– Password cracker – Spambot or Distributed Denial of Service bot

• Trojans/Browser Help Objects installer

– Adware/spyware install

• Typically, implemented as BHOs

– Collect personal info, logins/passwords for financial sites, files/data and send to attacker – Create popups and search redirects

Fall 2010 CS 334: Computer Security 66

Fast Propagating Worm/Virus Side Effects

• Traffic floods network links

– Slammer prevented admins from accessing servers to shut them down/patch them – Affected the access links

• Border Gateway Protocol heartbeats monitor links
• Timeouts caused links to drop, stopped worm traffic
• Heartbeats get through, links come back up, worm

traffic flows again (repeat!)

• Overwhelms servers (e-mail/other)

– Denial of service (sometimes intentional)

Fall 2010 CS 334: Computer Security 67

Virus/Worm Toolkits

• Dozens of websites and downloadable toolkits

for building worms/viruses

• Make it easy for script kiddies to create new

threats

• But, most are built from common building

blocks with the same polymorphic engines

– Can create signatures for blocks and engines

• Encryption is a looming threat…

Fall 2010 CS 334: Computer Security 68

Our Path

• What is a Worm/Virus?
• Why are they created?
• Infection Vectors and Payloads

– How they propagate and what they do

• Worm propagation rates
• Virus/Worm detection/prevention

– File scanners, host scanners, network scanners – Host monitors

• Targeted Worms and Viruses

Fall 2010 CS 334: Computer Security 69

Propagation Rates

• Classic theory

– Function of # vulnerable hosts (N), initial compromise rate (K), start time (T)

• Logistics equation:

– a is the number of infected hosts

Fall 2010 CS 334: Computer Security 70

a = eK(t−T ) 1+ eK(t−T )

Code Red I Propagation

• Can’t

easily count infected hosts

– Count scans instead

• Theory

matches

• bserved

Fall 2010 CS 334: Computer Security 71

Propagation Rates (New Theory)

• Slammer
• Doesn’t

apply to fast propagating worms

– Links have bandwidth / latency constraints – No universal connectivity

Fall 2010 CS 334: Computer Security 72

Other Factors

• TCP (3-way) versus UDP

– Latency between attacker and victim has major impact for TCP – Timeout delay when scanning

• Also, function of scan algorithm

– PRN quality

• Broken algorithms mean missed hosts

– Seed computation – Scan distribution (even or local bias?)

Fall 2010 CS 334: Computer Security 73

Propagation Behavior

• More efficient scanning finds victims faster (< 1hr)
• Even faster propagation is possible if you cheat

– Wasted effort scanning non-existent or non-vulnerable hosts – Warhol: seed worm with a “hit list” of vulnerable hosts (15 mins)

Fall 2010 CS 334: Computer Security 74

Virus Propagation Rates

• How to determine virus propagation rates?

– Don’t have universal connectivity

• Small worlds effect: 6-degrees of separation

– Have to account for queuing delays – Limited (delayed) by human interaction rate – Very hard to model analytically

• E-mail viruses tend to appear first in Asia,

then Europe, finally North/South America

– Follows business day/timezones

Fall 2010 CS 334: Computer Security 75

Our Path

• What is a Worm/Virus?
• Why are they created?
• Infection Vectors and Payloads

– How they propagate and what they do

• Worm propagation rates
• Virus/Worm detection/prevention

– File scanners, host scanners, network scanners – Host monitors

• Targeted Worms and Viruses

Fall 2010 CS 334: Computer Security 76

Detection/Prevention Techniques

• File and host scanners and monitors

– Signature-based scanners

• Have “zero” false negatives/positives
• Significant human delay (hours to days)

– Heuristic-based scanners

• Non-zero false negative/positive rates
• Network scanners
• Firewalls
• Throttling

Fall 2010 CS 334: Computer Security 77

Signature Generation Requires Human Intervention

• Human element slows reaction times

– Malcode collection can take hours – Signature generation can take hours to days – Signature distribution can take hours to days – Novel malcode propagates faster than signatures

• Signature methods are mired in an arms race

– MyDoom.m and Netsky.b slipped through many mail scanners – Malcode: polymorphic today, encrypted in future – Signature-based approach alone is insufficient

Fall 2010 CS 334: Computer Security 78

File/Host Scanners and Monitors

• File

– One-time/periodic “scan” or continuous real-time monitor – Scan all files on read/write – Heuristic: look for code similarities (e.g., propagation engines), not identical matches

• Host scanner

– One-time/periodic “scan” or continuous real-time monitor – Scan active processes, bios, registry, … for infections – Heuristic: examine process memory, look for anomalous registry entries, …

Fall 2010 CS 334: Computer Security 79

Network Scanners

• Place at network ingress point
• Scan all incoming traffic, especially e-mail

– Uses signatures like file scanners – Also heuristic e-mail scanning (phishing, spam)

• Can also apply exfiltration scanning

– Phishing attempts, viruses/worms that attempt to transmit personal/sensitive/corporate data

• Scaling and reliability issues

Fall 2010 CS 334: Computer Security 80

Firewalls

• Usually deployed at network ingress points

– Default deny all – Stops worm scans

• Except for public services, like web servers!
• And, trusted servers/clients

– Can lead to complacency

• Remember, network is only one propagation method
• Laptops are a problem
• Partial solution: host-based firewalls

– Now mandatory at many places – Still need signatures for detection

Fall 2010 CS 334: Computer Security 81

Network Throttling

• Heuristic approach: limit #connections/min

– Idea: slow down worm scans or outgoing virus e- mails – Algorithm placed in routers

• Limit outbound connections to slow down

worms

• Can’t set a fixed limit, why?

– Users have different sending rates, servers, …

• Inverse throttling

– Tarpits – Delay connections to non-existent/protected hosts – Consumes precious OS resources on worm machine

Fall 2010 CS 334: Computer Security 82

Our Path

• What is a Worm/Virus?
• Why are they created?
• Infection Vectors and Payloads

– How they propagate and what they do

• Worm propagation rates
• Virus/Worm detection/prevention

– File scanners, host scanners, network scanners – Host monitors

• Targeted Worms and Viruses

Fall 2010 CS 334: Computer Security 83

Example Scenario

• You arrive at work and start reading e-mail
• In your inbox is a business proposal from your

biggest competitor

• You’re curious so you open and read the

proposal

• You decide to ignore it and continue on with

your work

• Two weeks later you lose your biggest clients

to the competitor, they lowball you on a bid, announce a better version of your planned killer product, …

• Fact or fiction?

Fall 2010 CS 334: Computer Security 84

Fact!

• You’re the victim of a targeted attack
• Opening the proposal secretly installed a

Trojan horse program

– The Trojan searched your hard drives and network shares for confidential documents and e-mail messages – Then, it sent them out to a server run by your competitor

• Custom attacks are hard to detect

– One-of nature means no signatures

Fall 2010 CS 334: Computer Security 85

Targeted Attacks

• Israel (May 19, 2005)

– 7 businessmen and 11 private detectives arrested for using Trojan horse for cyber industrial espionage

• Satellite TV, cell phone, auto import business
• Trojan designed by husband-wife pair in

Britain

– Named Rona (variant of Hotword Trojan)

• Caught because husband installed it on father-

in-law’s computer and it posted copies of a private manuscript online

Fall 2010 CS 334: Computer Security 86

Designing a Targeted Attack

• How to profile target to identify OS, SW?

– Send an e-mail message and examine reply!

• User-Agent: Mozilla/5.0 (Windows; U; Windows NT 5.0;

en-US; rv:1.5) Gecko/20031007

– More work to determine OS/SW patch levels

• Then craft an attack:

– HTML script vulnerabilities – Embedded/remote images – Web site exploits – Office documents (macros, scripts, …) – Other document types (PDF, PS, …)

Fall 2010 CS 334: Computer Security 87

Worm/Virus Summary

• Arms race between creators and protectors
• Existing signature approaches are limited
• Financial motive poses growing threat
• High risk from Warhol worms
• Viruses are still a critical threat

– FBI survey of 269 companies in 2004 found that viruses caused ~$55 million in damages

Fall 2010 CS 334: Computer Security 88

Fall 2010 CS 334: Computer Security 89

An aside: User Authentication

E.g., How can a system tell you’re you? Unlike “real world” authentication (e.g., you recognize someone’s voice over the phone) computer can’t “recognize” someone (well, not in the same way).

Fall 2010 CS 334: Computer Security 90

The Basics

• Three quantities used to confirm user’s identity

– Something the user knows

• Passwords, PIN numbers, secret handshake, mother’s

maiden name

– Something the user has

• Identity badge, physical key, driver’s license, uniform

– Something the user is

• Biometrics: based on physical characteristics of user (e.g.,

fingerprint, pattern of person’s voice, picture of face).

• These three can be combined
• Password is the most common means of user

authentication to OS

Fall 2010 CS 334: Computer Security 91

Passwords

• Although secure in theory, human practice
• ften degrades quality of this means of

authentication

• Must handle:

– Loss: depending on implementation, it is possible that no one will be able to restore a lost password. – Use: Supplying password for each file access can be inconvenient and time consuming. – Disclosure: If password disclosed to unauthorized individual, file becomes immediately accessible. If password is then changed, all other legitimate users must be notified. – Revocation: To revoke one user’s access rights to a file, someone must change the password, causing same problems as disclosure.

Fall 2010 CS 334: Computer Security 92

Aside: Multifactor Authentication

• This is fancy name for use of additional

authentication information

• E.g., log in allowed only if password check is

valid and

– Log in request received from specific IP address and/

• r port AND

– Log in request received during specific time period (say between 8 a.m. and 5 p.m.

Fall 2010 CS 334: Computer Security 93

Aside: Multifactor Authentication

• Two forms if authentication (two-factor

authentication) better than one if both are strong

– But as number of forms increase, so does inconvenience – AND each authentication factor requires system to manage more security info (which, in addition to increased protection resources) may also increase complexity of implementation

Fall 2010 CS 334: Computer Security 94

Attacks on Passwords

• Passwords limited as protection devices

because of the relatively small number of bits

• f info they contain
• Ways to obtain user’s password (in decreasing
• rder of difficulty)

– Try them all – Try frequently used passwords – Try passwords likely for the particular user – Search for system list of passwords – Ask the user

• Systems don’t help here, as they often provide

attacker with partial information.

Fall 2010 CS 334: Computer Security 95

Loose-Lipped Systems

• Note password authentication is based on

premise that user knows nothing of the

• system. But systems often help an attacker
• Consider system messages look like above

(uppercase is system message, lowercase is user)

– System is identified, and attacker knows adams is not a valid user name. Intruder can use this with common surnames to build a list of authorized users.

Fall 2010 CS 334: Computer Security 96

Loose-Lipped Systems

• Better: User is not told whether it is the

username or the password that is bad

• But message still provides name of the

system.

Fall 2010 CS 334: Computer Security 97

Loose-Lipped Systems

• Best: adversary receives no information until after

successful authentication.

– After all, legitimate user should know the name of the system, so why provide it beforehand?

Fall 2010 CS 334: Computer Security 98

Exhaustive Attack

• A.k.a. brute-force attack, is when attacker

tries all passwords (usually in an automated fashion) until correct one is found

• Difficulty depends on implementation (how

long are passwords, etc)

Fall 2010 CS 334: Computer Security 99

Exhaustive Attack

• Example: Assume passwords consist of 26

characters from A-Z, and can have length from 1 to 8 characters.

– Num. Passwords = 261 + 262 + 263 +…+ 268 = 269

• 1 ≈ 5 x 1012

– At one password/millisecond, takes 150 years – At on password/microsecond, takes two months!

• Reasonable time if reward is large enough (e.g.

password protecting file of credit card numbers)

– And expected search times, if all passwords random, is half these times

Fall 2010 CS 334: Computer Security 100

Probable Passwords

• Reduce search space significantly!
• When humans choose words at random, they

tend to choose words that are short, common, and easy to spell and pronounce.

• Attackers use this info:

– Search passwords from shortest to longest

• All passwords 5 chars or less can be searched in under

4 hours.

• Time given assumes people choose all passwords with

equal probability (e.g. hdlzm, ehlzx are chosen as often as pizza and beer)

– Spell-checkers often have dictionaries of commonly used words

• One of these contains 80,000 words. Trying all of them

takes only 80 seconds.

Fall 2010 CS 334: Computer Security 101

Passwords Likely for a User

• Usually meaningful to the person

– Name of spouse, child, brother, sister, pet, street name, or something memorable or familiar – List of these things is often only a few hundred entries long at most. Can be checked in under a second!

Fall 2010 CS 334: Computer Security 102

Distribution of Actual Passwords

• 1979 study by Morris and Thompson

– Considered 3,289 passwords

• Results:

– 15 were single ASCII characters – 72 were two ASCII characters – 464 were three ASCII characters – 477 were four alphabetic letters – 706 were five alphabetic letters, all same case – 605 were six lowercase alphabetic letters – 492 were words in dictionaries or lists of names

• Total: 2831 (86%) contained in this list!

Fall 2010 CS 334: Computer Security 103

Figures are Not Dated

• 1990: Klein collected appx 15,000 passwords

– 2.7% guessed within 15 minutes, 21% within one week

• 1992: Spafford collected appx 15,000

passwords

– Average length 6.8 characters – 28.9% consisted of only lowercase alphabetic characters

Fall 2010 CS 334: Computer Security 104

Figures are Not Dated

• 2002: British online bank Egg finds 50% of

passwords for online banking service were family members’ names:

– 23% children’s names – 19% spouse or partner – 9% their own name – 8% pet names – 9% each for celebrity and soccer star’s names

Fall 2010 CS 334: Computer Security 105

Still Worse

• 1998: Knight and Hartley report appx 35% of

passwords derived from syllables and initials of account

• wner’s name.
• Several articles claim that God, sex, love, and money

are four most common passwords

• Lists of common passwords posted online

– http://www.geodsoft.com/howto/password/common.htm – http://www.phenoelit.de/dpl/dpl.html – Also sites that post dictionaries of phrases, science fiction characters, places, mythological names, Chinese words, Yiddish words, and several other specialized lists

• Sysadmin utilities such as SATAN, COPS, and Crack

allow administrators to check for weak passwords. They also allow attackers to do the same.

• Changing letters to numbers (e.g., 0 for letter O, 1 for

lowercase L, etc): been done, and the attackers know it.

Fall 2010 CS 334: Computer Security 106

Knight and Hartley 12 Password Guessing Steps

• No password
• The same as the user ID
• Is, or is derived from, the user name
• Common word list (e.g., password, secret) plus common

names and patterns (e.g., asdfg, aaaaaa)

• Short college dictionary
• Complete English word list
• Common non-English language dictionaries
• Short college dictionary with capitalizations (PaSsWorD) and

substitutions (0 for O, etc)

• Complete English with capitalizations and substitutions
• Common non-English dictionaries with capitalizations and

substitutions

• Brute force, lowercase alphabetic characters
• Brute force, full character set

Fall 2010 CS 334: Computer Security 107

Plaintext System Password List

• Not a good idea
• Even if protected via access control (e.g., only

OS level functions can access it) it’s not good

– Many OS functions never need to read the file, and

• pening it to all OS functions means that if even one
• f these functions is compromised, password list is

compromised as well

• System backups often lack protection

mechanisms (physical security and access control to the backup tapes themselves are

• nly security for these).
• Password file is stored on a disk, so anyone

who can overcome file restrictions or have access to disk can obtain password file.

Fall 2010 CS 334: Computer Security 108

Encrypted Password File

• Password table entries are encrypted using a one way function

(e.g. hash) and then stored.

• One log in, hash of user password is checked with entry in the

password file.

• A problem: two users who pick same password will notice that

they have the same password hash

• Salt: A small number formed from other info, and appended

to password – Password + salt is what is hashed – Salt stored in plaintext. On authentication attempt, OS appends salt to the password and hashes the extended password to check against password file. – E.g., Unix salt is a 12-bit number formed from system time and process ID.

• Still a good idea to limit access to password file (even if

encrypted)

Fall 2010 CS 334: Computer Security 109

Indiscreet Users

• Tape password to side of terminal or write it

down on card just inside top desk drawer

• Users sharing files share passwords “my

password is x, just get the file yourself”

• Verisign (2005) in unscientific poll found that

2/3 of people approached on street volunteered to disclose their password in exchange for coupon good for a cup of coffee. 79% admitted they use same password for multiple systems or sites.
