SLIDE 1

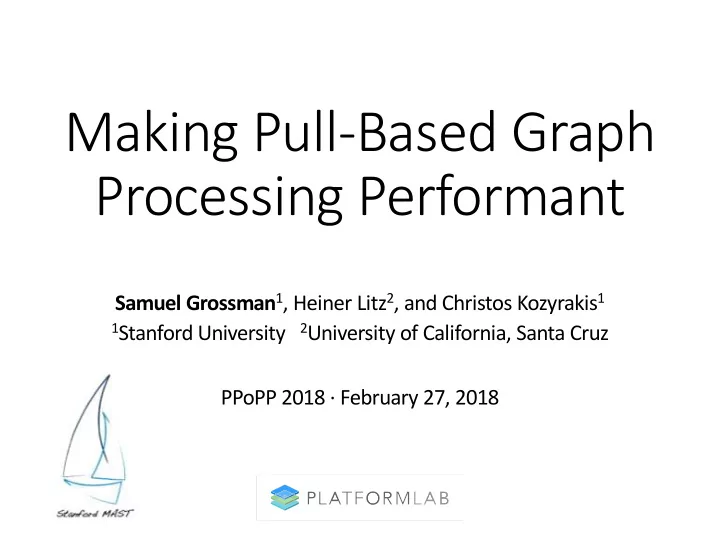

Making Pull-Based Graph Processing Performant

Samuel Grossman1, Heiner Litz2, and Christos Kozyrakis1

1Stanford University 2University of California, Santa Cruz

PPoPP 2018 · February 27, 2018

SLIDE 2

Graph Processing

Problem modelled as objects (vertices) and

connections between them (edges)

Examples:
Internet (pages and hyperlinks)
Social network (people and friendships)
Roads and intersections
Products and ratings

2

SLIDE 3

Graph Processing

G G E E F D G I L H K J B A C A B C D E I I H H H K

3

SLIDE 4

Graph Processing

G’ E’ A’ B’ C’ F’ D’ I’ L’ H’ K’ J’

Repeat until convergence

4

SLIDE 5

Graph Processing

Push Pull

5

Group by source vertex Group by destination vertex

Hybrid: dynamically select push or pull for each iteration

SLIDE 6

Graph Processing

foreach vertex v in graph.vertices foreach edge e in v.(in|out)edges // process the edge ...

6

SLIDE 7

Parallelizing Graph Processing

Outer loop parallelization
Between cores: assign entire vertices to threads
Inner loop parallelization
Between cores: subdivide the edges within each vertex
Within one core: vectorize the loop

7

SLIDE 8

Parallelizing Graph Processing

8

Running Ligra on twitter-2010 graph 2 4 6 8 10 PageRank Br eadth-Fir st Sear ch Speedup Push (O uter Loop) Push (Both Loops) Push (Both) + Pull (Outer ) Push (Both) + Pull (Bot h)

SLIDE 9

Parallelizing Graph Processing

9

2 4 6 8 10 PageRank Br eadth-Fir st Sear ch Speedup Push (O uter Loop) Push (Both Loops) Push (Both) + Pull (Outer ) Push (Both) + Pull (Bot h) Running Ligra on twitter-2010 graph

SLIDE 10

Running Ligra on twitter-2010 graph

Parallelizing Graph Processing

10

2 4 6 8 10 PageRank Br eadth-Fir st Sear ch Speedup Push (O uter Loop) Push (Both Loops) Push (Both) + Pull (Outer ) Push (Both) + Pull (Bot h)

SLIDE 11

Pull’s Performance Challenge

Serial Inner Loop

One thread per vertex
Updates are thread-private

Parallel Inner Loop

Multiple threads per vertex
Updates will conflict

11

Contribution #1: “Scheduler Awareness” A technique that can be applied to the inner loop of a pull engine to parallelize it without introducing conflicts.

SLIDE 12

Pull’s Performance Opportunity

Further gains possible using SIMD vectorization
Improve parallelism of the computation
Improve memory bandwidth utilization
Data structure layout issues impede effective

vectorization in existing work

12

Contribution #2: “Vector-Sparse” A low-level modification to a data structure commonly used to represent graphs, intended to enhance vectorization.

SLIDE 13

Grazelle

A hybrid graph processing framework that

embodies both of our contributions

Outperforms the state-of-the-art by over 10× in

some cases

Available for download at

https://github.com/stanford-mast/Grazelle-PPoPP18

13

SLIDE 14

Scheduler Awareness

Contribution #1

14

SLIDE 15

Serial Inner Loop

15

2 1

1 2 3 4 1 2 3 4 5 6 7 1 2

Chunk A Chunk B Chunk C

Vertex (Outer Loop) Edge (Inner Loop) Vertex Data

SLIDE 16

Serial Inner Loop

16

2 1

1 2 3 4 1 2 3 4 5 6 7 1 2

Chunk A Chunk B Chunk C

Vertex (Outer Loop) Edge (Inner Loop) Vertex Data

SLIDE 17

Scheduler Un-Awareness

17

2 1

1 2 3 4 1 2 3 4 5 6 7 1 2

Chunk A Chunk B Chunk C

Vertex (Outer Loop) Edge (Inner Loop) Vertex Data

SLIDE 18

Scheduler Un-Awareness

18

2 1

1 2 3 4 1 2 3 4 5 6 7 1 2

Chunk A Chunk B Chunk C

Vertex (Outer Loop) Edge (Inner Loop) Vertex Data

SLIDE 19

Scheduler Awareness

19

2 1

1 2 3 4 1 2 3 4 5 6 7 1 2

Chunk A Chunk B Chunk C

Vertex (Outer Loop) Edge (Inner Loop) Vertex Data

SLIDE 20

Scheduler Awareness

20

2 1

1 2 3 4 1 2 3 4 5 6 7 1 2

Chunk A Chunk B Chunk C

Vertex (Outer Loop) Edge (Inner Loop) Vertex Data

1. Writes at the end of a chunk are redirected to a private

per-chunk merge buffer.

SLIDE 21

Scheduler Awareness

21

2 1

1 2 3 4 1 2 3 4 5 6 7 1 2

Chunk A Chunk B Chunk C

Vertex (Outer Loop) Edge (Inner Loop) Vertex Data Merge Buffers

1. Writes at the end of a chunk are redirected to a private

per-chunk merge buffer.

SLIDE 22

Scheduler Awareness

22

2 1

1 2 3 4 1 2 3 4 5 6 7 1 2

Chunk A Chunk B Chunk C

Vertex (Outer Loop) Edge (Inner Loop) Vertex Data Merge Buffers

1. Writes at the end of a chunk are redirected to a private

per-chunk merge buffer.

2. Writes in the middle of a chunk can be committed to

shared state without synchronization.

SLIDE 23

Scheduler Awareness

23

1. Writes at the end of a chunk are redirected to a private

per-chunk merge buffer.

2. Writes in the middle of a chunk can be committed to

shared state without synchronization.

2 1

1 2 3 4 1 2 3 4 5 6 7 1 2

Chunk A Chunk B Chunk C

Vertex (Outer Loop) Edge (Inner Loop) Vertex Data Merge Buffers

SLIDE 24

Analyzing Scheduler Awareness

Performance impact depends primarily on the

scheduling granularity

Scheduler Un-Awareness: trade-off between load

balance and probability of write conflicts

Scheduler Awareness: finer granularity leads to

increased merge operation overhead

24

SLIDE 25

PageRank: Performance vs. Scheduling Granularity

dimacs-usa (low, even degree distribution) uk-2007 (extremely skewed)

25

0.0 0.2 0.4 0.6 0.8 1.0 1.2 100 1,000 10,000

Rel. Execution Time

Chunk Size Scheduler Un-Aware 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1,000 10,000 100,000

Rel. Execution Time

Chunk Size Scheduler-Aware 10× Different 50× 3.3× 1.2×

SLIDE 26

PageRank: Performance vs. Number of Cores

dimacs-usa (low, even degree distribution) uk-2007 (extremely skewed)

26

10 20 30 40 50 14 28 42 56

Rel. Performance

# Physical Cores Scheduler Un-Aware 10 20 30 40 50 60 70 14 28 42 56

Rel. Performance

# Physical Cores Scheduler Awar e Scaling enabled by Scheduler Awareness Scaling improved by Scheduler Awareness Key Insights

Huge improvement for extremely skewed graphs
Still beneficial for evenly-distributed low-degree graphs

SLIDE 27

Vector-Sparse

Contribution #2

27

SLIDE 28

Compressed-Sparse

23 10 50 4 0 53 62 1 78 50 23 4

[0] [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [0] [1] [2] [3]

3 7 10 Vertex Index Edges

28

SLIDE 29

Vectorizing Compressed-Sparse

29

23 10 50 4 0 53 62 1 78 50 23 4

[0] [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11]

Vertex 0 Vertex 1

SLIDE 30

Vectorizing Compressed-Sparse

30

Vertex 1 23 10 50 4 0 53 62 1 78 50 23 4

[0] [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11]

Vertex 0×

SLIDE 31

Vectorizing Compressed-Sparse

31

23 10 50 4 0 53 62 1 78 50 23 4

[0] [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11]

Vertex 0 Vertex 1

SLIDE 32

Vectorizing Compressed-Sparse

32

23 10 50 4 0 53 62 1 78 50 23 4

[0] [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11]

Vertex 0 Vertex 1

SLIDE 33

Vector-Sparse

23 10 50 4 0 53 62 1 78 50 23

[0] [1] [2] [4] [5] [6] [7] [8] [9] [11] [12]

Vertex 0 Vertex 1

[3]

4

[13]

Vertex 2

[10]

33

× ×

Padding

SLIDE 34

Vector-Sparse

23 10 50 4 0 53 62 1 78 50 23 Vertex 0 Vertex 1 4 Vertex 2

1 1 1 1 1 1 1 1 1 1 1 1

[0] [1] [2] [4] [5] [6] [7] [8] [9] [11] [12] [3] [13] [10]

34

Padding + “valid” bits

SLIDE 35

Vector-Sparse

23 10 50 4 0 53 62 1 78 50 23 Vertex 0 Vertex 1 4 Vertex 2

1 1 1 1 1 1 1 1 1 1 1 1 1 2

[0] [1] [2] [4] [5] [6] [7] [8] [9] [11] [12] [3] [13] [10]

35

Padding + “valid” bits + top-level vertex spread-encoding

SLIDE 36

0.0 0.5 1.0 1.5 2.0 2.5 3.0

di m acs-usa livejournal twitter-2010 friendster uk-2007

Speedup PageRank CC BFS 0% 25% 50% 75% 100%

di m acs-usa livejournal twitter-2010 friendster uk-2007

Average Efficiency

Analyzing Vector-Sparse

Packing Efficiency Performance Impact

36

Generally ≥ 75% 1.5× to 2.5×

SLIDE 37

Performance Comparison

Putting it all together

37

SLIDE 38

Evaluation Scope

Grazelle is compared with Ligra, Polymer,

GraphMat, and X-Stream

Three applications: PageRank, Connected

Components, Breadth-First Search

Running on a machine equipped with four

Intel Xeon E7-4850 v3 processors

14 physical cores / 28 logical cores per socket

38

SLIDE 39

1E+0 1E+1 1E+2 1E+3 1E+4 1E+5

di m acs-usa livejournal twitter-2010 friendster uk-2007

Execution Time (ms)

Grazelle-Pull Grazelle-Pus h Ligra-Pull Ligra-Push Polymer GraphMat X-Stream

PageRank: Peak Processing Throughput

39

×

Logarithmic

3.6× 2.3× 2.3× 1.4× 15.2×

SLIDE 40

1E+0 1E+1 1E+2 1E+3 1E+4 1E+5 1E+6

di m acs-usa livejournal twitter-2010 friendster uk-2007

Execution Time (ms)

Grazelle Ligra Ligra-Dense Polymer GraphMat X-Stream

Connected Components: Dynamic Control Flow

40

×

Logarithmic

4.9× 1.5× 1.6× 21.1×

SLIDE 41

1E+0 1E+1 1E+2 1E+3 1E+4 1E+5 1E+6

di m acs-usa livejournal twitter-2010 friendster uk-2007

Execution Time (ms)

Grazelle Ligra Ligra-Dense Polymer GraphMat X-Stream

Breadth-First Search: Compatibility of Optimizations

41

×

Logarithmic

SLIDE 42

Conclusion

Two contributions to improve inner loop

parallelization for pull-based graph processing

Scheduler Awareness: eliminate write conflicts
Vector-Sparse: enable SIMD vectorization
Grazelle significantly out-performs state-of-the-art,

in some cases by over 10×

Grazelle is available for download at

https://github.com/stanford-mast/Grazelle-PPoPP18

42

SLIDE 43

Thank You

Questions?
