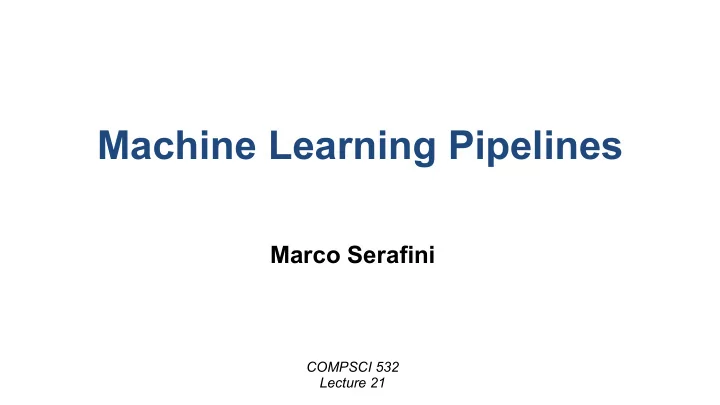

Machine Learning Pipelines

Marco Serafini

COMPSCI 532 Lecture 21

3

3

Training vs. Inference

• Training: data à model
• Computationally expensive
• No hard real-time requirements (typically)
• Inference: data + model à prediction
• Computationally cheaper
• Real-time requirements (sometimes sub-millisecond)
• Today we talk about inference

44

Lifecycle

55

Challenge: Different Frameworks

• Different training frameworks, each has its strengths
• E.g.: Caffe for computer vision, HTK for speech recognition
• Each uses different formats à tailored deployment
• Best tool may change over time
• Solution: model abstraction

66

Challenge: Prediction Latency

• Many ML models have high prediction latency
• Some are too slow to use online, e.g., when choosing an ad
• Combining model outputs makes it worse
• Trade-off between accuracy and latency
• Solutions
• Adaptive batching
• Enable mixing models with different complexity
• Straggler mitigation when using multiple models

77

Challenge: Model Selection

• How to decide which models to deploy?
• Selecting the best model offline is expensive
• Best model changes over time
• Concept drift: relationships in data change over time
• Feature corruption
• Combining multiple models can increase accuracy
• Solution: automatically select among multiple models

88

Overview

• Requests flow

top to bottom and back

• We start

reviewing the Model Abstraction Layer

Project 3

99

Caching

• Stores prediction results
• Avoids rerunning inference on recent predictions
• Enables correlating prediction with feedback
• Useful when selecting one model

10

10

Batching

• Maximize batch size given upper bound on latency
• Advantages of batching
• Fewer RPC requests
• Data-parallel optimizations (e.g. using GPUs)
• Different queue/batch size per model container
• Some systems like TensorFlow require static batch sizes
• Adaptive Batch Sizing: AIMD
• Additively increase batch size until exceed latency threshold
• Scale down by 10%

11

11

Benefits of (Adaptive) Batching

up to 26x throughput increase

12

12

Per-Model Batch size

• Different models have different optimal batch sizes
• Linear latency growth, easy to predict with AIDM

13

13

Delayed Batching

• When a batch is done and the next is not full, wait
• Not always beneficial

14

14

Model Containers

15

15

Model Containers

• Docker containers
• API to be implemented
• State (parameters) passed during initialization
• No other state management
• Clipper replicates containers as needed

16

16

Effect of Replication

• 10 GB network: GPU bottleneck, scales out
• 1 GB network: network bottleneck does not scale out

17

17

Model Selection

18

18

Model Selection

• Enables running multiple models
• Advantages
• Combine outputs from different models (if run in parallel)
• Estimate prediction accuracy (through comparison)
• Switch to better model (when feedback available)
• Disadvantage of running models in parallel: stragglers
• They can often be ignored with minimal accuracy loss
• Context: different model selection state per user or

session

19

19

Model Selection API

S: Selection policy state X: Input Y: Prediction/Feedback incorporate feedback

20

20

Single-Model Selection

• Multi-Armed Bandit
• Select one action, observe outcome
• Decide whether to explore a new action or exploit current one
• Exp3 algorithm
• Choose an action based on a probability distribution
• Adjust probably distribution of current choice based on loss

21

21

Multi-Model Ensembles

22

22

Ensembles and Changing Accuracy

23

23

Ensembles and Stragglers

24

24

Ensembles and Stragglers

24

24

Personalized Model Selection

• Model selection can be done per-user

25

25

TensorFlow Serving

• Inference mechanism of TensorFlow
• Can run TensorFlow models
• Also uses batching (static)
• Missing features
• Latency objectives
• No support for multiple models
• No feedback
