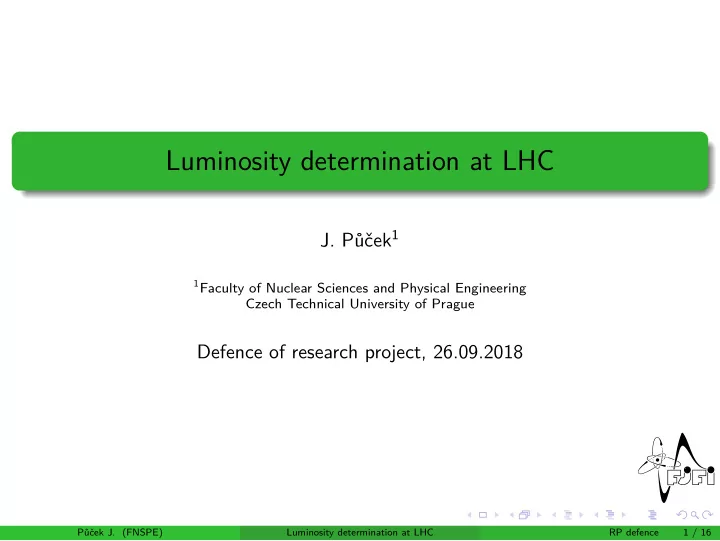

Luminosity determination at LHC

• J. Půček1

1Faculty of Nuclear Sciences and Physical Engineering

Czech Technical University of Prague

Defence of research project, 26.09.2018

Půček J. (FNSPE) Luminosity determination at LHC RP defence 1 / 16

Luminosity

Luminosity is proportional to interaction rate L = Rσ. For bunched beams the luminosity can be expressed as: L = KnbfN1N2 ∞

−∞

S1(x, y, z)S2(x, y, z)dV (1)

Půček J. (FNSPE) Luminosity determination at LHC RP defence 2 / 16

Thesis overview

• Five chapters + introduction and conclusion
• 1. Luminosity
• 2. Van der Meer scan
• 3. Luminosity determination at the LHC
• 4. Simulation of luminosity
• 5. Simulation with a realistic vertex resolution

Půček J. (FNSPE) Luminosity determination at LHC RP defence 3 / 16

Completed tasks

• Literature review on luminosity papers of the LHC experiments, creating

same structure for all the reviewed papers (experiment overview, luminosity detectors, luminosity measurement protocol, other methods of luminosity determination)

• Benchmark of simulation framework for single and double Gaussian

distribution, estimating simulation uncertainties

• Study of change in luminosity for correlated distributions, describing this

phenomenon analytically

• Examination of difference between generated and smeared vertices

Půček J. (FNSPE) Luminosity determination at LHC RP defence 4 / 16

Remark to bachelor thesis

The bias of 2-4% was found in the RMS of generated 2D distributions.

Table 1 : Porovnání hodnot σrov vypočtených z rovnice (..) s hodnotami σfit získanými nafitováním jednorozměrné projekce 2D Gaussovy distribuce. Ukazuje se, že hodnoty jsou podhodnoceny o 2-4%.

ρ 0.27 0.53 0.80 σrov 0.963 0.848 0.6000 σfit 0.942± 0.007 0.816± 0.006 0.586± 0.004 The fault originated from low bin contents, which implied the need to fit with likelihood method. Afterwards the results agreed perfectly.

Půček J. (FNSPE) Luminosity determination at LHC RP defence 5 / 16

Benchmarking

Comparing simulation output with analytical computation for several cases:

• Head-on collisions
• Offset collisions
• Collisions with a crossing angle
• Collisions with a crossing angle and an offset

First tested for single Gaussian bunches, later verified with double Gaussian bunches.

Půček J. (FNSPE) Luminosity determination at LHC RP defence 6 / 16

Benchmarking

Head-on collisions

]

2

[cm

y

σ

x

σ 0.5 1 1.5 2 2.5 3

analytical

/Lumi

simulation

Lumi 0.985 0.99 0.995 1 1.005 1.01 1.015 1.02 1.025

/ ndf

2

χ 11.259 / 18 p0 0.001 ± 1.004 / ndf

2

χ 11.259 / 18 p0 0.001 ± 1.004

The average ratio between simulated and computed luminosity is

Ls La = (1.004 ± 0.001).

Půček J. (FNSPE) Luminosity determination at LHC RP defence 7 / 16

Benchmarking

Offset collisions

Separation [cm] 0.2 − 0.15 − 0.1 − 0.05 − 0.05 0.1 0.15 0.2

HeadOn

/L

• ffset

L 0.2 0.4 0.6 0.8 1

Constant 0.00164 ± 0.99941 Mean 0.00004 ± 0.00012 Sigma 0.00003 ± 0.07066 Constant 0.00164 ± 0.99941 Mean 0.00004 ± 0.00012 Sigma 0.00003 ± 0.07066

Expected σa = 0.07071, obtained σfit = (0.07066 ± 0.00003), difference of 0.07%.

Půček J. (FNSPE) Luminosity determination at LHC RP defence 8 / 16

Benchmarking

Collisions with a crossing angle

[rad] φ 0.01 − 0.005 − 0.005 0.01 Correction factor [-] 0.88 0.9 0.92 0.94 0.96 0.98 1

p0 0.00 ± 2500.00 p1 0.01 ± 1.00 p0 0.00 ± 2500.00 p1 0.01 ± 1.00

Luminosity angle correction factor

The overall uncertainty is 1%, although the errors are overestimated.

Půček J. (FNSPE) Luminosity determination at LHC RP defence 9 / 16

Benchmarking

Collisions with a crossing angle and an offset

Separation [cm] 0.20 − 0.15 − 0.10 − 0.05 − 0.00 − 0.05 0.10 0.15 0.20

HeadOn

/L

• ff+angle

L 0.2 0.4 0.6 0.8 1.0

Constant 0.00164 ± 0.99874 Mean 0.00009 ± 0.00031 Sigma 0.00009 ± 0.10238 Constant 0.00164 ± 0.99874 Mean 0.00009 ± 0.00031 Sigma 0.00009 ± 0.10238

The difference here between the analytical prediction and the simulation is 0.4%, which is comparable to the head-on uncertainty.

Půček J. (FNSPE) Luminosity determination at LHC RP defence 10 / 16

Benchmarking

Head-on collisions - Double Gaussian model

1A-x

σ 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7

1A-y

σ 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.994 0.996 0.998 1 1.002 1.004

From standard formula the predicted uncertainty of two colliding Double Gaussians should be 0.25% and was measured to be 0.27%.

Půček J. (FNSPE) Luminosity determination at LHC RP defence 11 / 16

Non-factorisation

If the bunch has an xy correlation the luminosity value changes.

ρ 0.8 − 0.6 − 0.4 − 0.2 − 0.2 0.4 0.6 0.8 [a.u.]

sim

L 20 21 22 23 24 25 26

9

10 ×

The other bunch had a correlation of 0.5, that is the reason why the minimum is shifted.

Půček J. (FNSPE) Luminosity determination at LHC RP defence 12 / 16

Non-factorisation

Non-factorisation ratio

The value of delivered luminosity divided by the value obtained from vdM method is called non-factorisation ratio, noted R. R = S1(x, y)S2(x, y)dxdy

• S1(x)S2(x)dx
• S1(y)S2(y)dy

(2)

[-] ρ 0.6 − 0.4 − 0.2 − 0.2 0.4 0.6 R [-] 0.92 0.94 0.96 0.98 1 Půček J. (FNSPE) Luminosity determination at LHC RP defence 13 / 16

Simulation with a realistic primary vertex resolution

Can the detector’s effects change the measured vertices? Generated vertices are smeared by real-world data and the fits are compared.

0.01 − 0.008 − 0.006 − 0.004 − 0.002 − 0.002 0.004 0.006 0.008 0.01 0.01 − 0.008 − 0.006 − 0.004 − 0.002 − 0.002 0.004 0.006 0.008 0.01

/ ndf

2

χ 731.8 / 748 Constant 1.177 ± 72.24 Correlation 0.0122 ± 0.01597

x

µ 05 − 2.455e ± 06 − 6.384e

x

σ 05 − 2.035e ± 0.002236

y

µ 05 − 1.613e ± 05 − 2.344e −

y

σ 05 − 1.354e ± 0.001472

10 20 30 40 50 60 70 80 90

/ ndf

2

χ 731.8 / 748 Constant 1.177 ± 72.24 Correlation 0.0122 ± 0.01597

x

µ 05 − 2.455e ± 06 − 6.384e

x

σ 05 − 2.035e ± 0.002236

y

µ 05 − 1.613e ± 05 − 2.344e −

y

σ 05 − 1.354e ± 0.001472

Generated Vertices

Půček J. (FNSPE) Luminosity determination at LHC RP defence 14 / 16

Simulation with a realistic primary vertex resolution

0.02 − 0.015 − 0.01 − 0.005 − 0.005 0.01 0.015 0.02 0.02 − 0.015 − 0.01 − 0.005 − 0.005 0.01 0.015 0.02 / ndf

2

χ 1004 / 838 Constant 1.334 ± 78.02 Correlation 0.0121 ± 0.06397

x

µ 05 − 3.991e ± 06 − 2.192e

x

σ 05 − 3.357e ± 0.003716

y

µ 05 − 3.397e ± 05 − 2.799e −

y

σ 05 − 2.934e ± 0.003181 10 20 30 40 50 60 70 80 90 100 / ndf

2

χ 1004 / 838 Constant 1.334 ± 78.02 Correlation 0.0121 ± 0.06397

x

µ 05 − 3.991e ± 06 − 2.192e

x

σ 05 − 3.357e ± 0.003716

y

µ 05 − 3.397e ± 05 − 2.799e −

y

σ 05 − 2.934e ± 0.003181

Smeared Vertices

A correlation emerged after smearing, generated (0.01 ± 0.01), smeared (0.06 ± 0.01).

Půček J. (FNSPE) Luminosity determination at LHC RP defence 15 / 16

Outlook

• Further examination of smeared vertices by 3D fit
• To be able to take into account uncertainties, which is analytically possible
• nly for single Gaussian, while using more complicated fit models
• Study differences of using single Gaussian fits while generating double

Gaussian bunches

• Develop an "unfolding" method
