Low dimensional Euclidean buildings: III Thibaut Dumont University of Jyv askyl a June 2019 UNCG Thibaut Dumont University of Jyvskyl June 2019 1 / 43 Table of Contents Projective plane Triangle Lattices Score and the score

slide-1
SLIDE 1

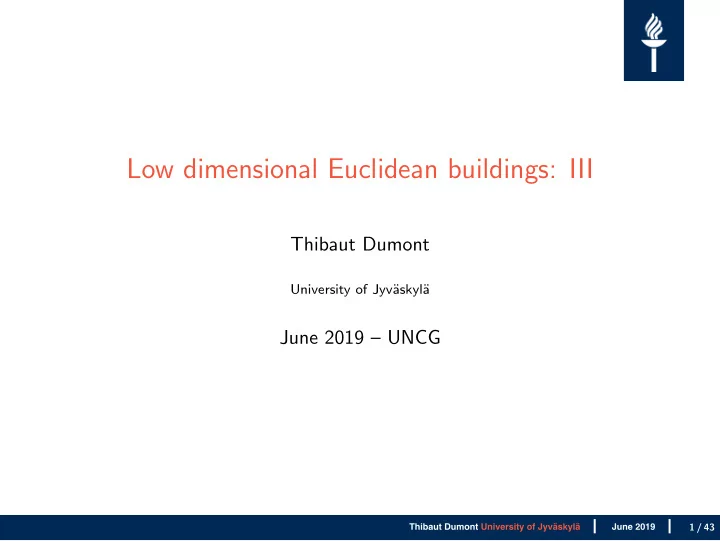

Thibaut Dumont University of Jyväskylä June 2019

Low dimensional Euclidean buildings: III

Thibaut Dumont

University of Jyv¨ askyl¨ a

June 2019 – UNCG

1 / 43

slide-2
SLIDE 2

Thibaut Dumont University of Jyväskylä June 2019

Table of Contents

Projective plane Triangle Lattices Score and the score algorithm Improving the score Radu’s C++ program and results

2 / 43

slide-3
SLIDE 3

Thibaut Dumont University of Jyväskylä June 2019

Long time ago, in a building far away

3 / 43

slide-4
SLIDE 4

Thibaut Dumont University of Jyväskylä June 2019

Finite projective plane

A building of type A2 is called a projective planes. It’s a graph of diameter 3 and girth 6 with two type of vertices called points or lines.

◮ If it is finite, every vertex has the same number of neighbor, q + 1

(with q ≥ 2 if thick).

◮ A projective plane has q2 + q + 1 vertices of each types (points or

lines).

◮ A projective plane has (q + 1)(q2 + q + 1) edges (chambers).

b b b b b b b

4 / 43

slide-5
SLIDE 5

Thibaut Dumont University of Jyväskylä June 2019

The game: Dobble

5 / 43

slide-6
SLIDE 6

Thibaut Dumont University of Jyväskylä June 2019

The game: Dobble

6 / 43

slide-7
SLIDE 7

Thibaut Dumont University of Jyväskylä June 2019

Triangle Lattices

Let ∆ be a thick locally finite building of type ˜ A2, shortly a triangle building.

◮ Let q ≥ 2 denote the regularity parameter of ∆. ◮ Let I = {0, 1, 2} denote the types and Vi the set of residues of type

{j, k} where {i, j, k} = {0, 1, 2}.

◮ In other words, Vi is the set of vertices of type i. ◮ The residues are finite projective plane of order q (equivalently a

finite thick A2-building).

7 / 43

slide-8
SLIDE 8

Thibaut Dumont University of Jyväskylä June 2019

Triangle Lattices

Let Γ be a group acting on ∆. Assume the action is:

◮ type-rotating: either g ∈ G fixes all types or permutes them

cyclically.

◮ simply-transitive on the set of vertices on V = V0 ∪ V1 ∪ V2: for

every v, w ∈ V there is a unique g mapping v to w.

◮ The elements of G are in bijection with the vertices. (Think of Zn

acting on itself by translation).

8 / 43

slide-9
SLIDE 9

Thibaut Dumont University of Jyväskylä June 2019

Triangle Lattices

Let Γ be a group acting on ∆. Assume the action is:

◮ type-rotating: either g ∈ G fixes all types or permutes them

cyclically.

◮ simply-transitive on the set of vertices on V = V0 ∪ V1 ∪ V2: for

every v, w ∈ V there is a unique g mapping v to w.

◮ The elements of G are in bijection with the vertices. (Think of Zn

acting on itself by translation).

Theorem (CMSZ)

Any such action gives a point-line correspondence and a compatible a triangular presentation. Conversely, any point-line correspondence in a projective plane admitting a triangular presentation yields a triangle building and a lattice as above.

8 / 43

slide-10
SLIDE 10

Thibaut Dumont University of Jyväskylä June 2019

Triangle Lattices

9 / 43

slide-11
SLIDE 11

Thibaut Dumont University of Jyväskylä June 2019

Triangle Presentation

10 / 43

slide-12
SLIDE 12

Thibaut Dumont University of Jyväskylä June 2019

Score

11 / 43

slide-13
SLIDE 13

Thibaut Dumont University of Jyväskylä June 2019

Graph Gλ

12 / 43

slide-14
SLIDE 14

Thibaut Dumont University of Jyväskylä June 2019

Score of a Correlation

13 / 43

slide-15
SLIDE 15

Thibaut Dumont University of Jyväskylä June 2019

Score of a Correlation

14 / 43

slide-16
SLIDE 16

Thibaut Dumont University of Jyväskylä June 2019

Score: Algorithm 1

15 / 43

slide-17
SLIDE 17

Thibaut Dumont University of Jyväskylä June 2019

Score: Algorithm 1

16 / 43

slide-18
SLIDE 18

Thibaut Dumont University of Jyväskylä June 2019

Improving the Score: Algorithm 2

17 / 43

slide-19
SLIDE 19

Thibaut Dumont University of Jyväskylä June 2019

Results

18 / 43

slide-20
SLIDE 20

Thibaut Dumont University of Jyväskylä June 2019

Results

19 / 43

slide-21
SLIDE 21

Thibaut Dumont University of Jyväskylä June 2019

Radu’s C++ program

A few things to know about the C++ code:

◮ Radu uses the fact that the lines 0, 1, 10 and 30 generate the

Hughes plane.

◮ It was too slow to check all pairs a, b, so he tests and selects only a

few pairs. Especially the vertices for which few triangles have been

  • used. He calls them bad vertices.

What the code does:

◮ Generates correlations until it finds one with a good score ≥ 750. ◮ Apply the improving algorithm, which permutes some a and b to see

if it gets to the score max of 910. (Keeps track of the permutations to not fall in a local maximum).

◮ If after 150 steps the score is still low, it moves on to the next

correlation.

20 / 43

slide-22
SLIDE 22

Thibaut Dumont University of Jyväskylä June 2019

◮ Finite projective plane A2(F2).

b b b b b b b

21 / 43

slide-23
SLIDE 23

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ Finite projective plane A2(F2).

b b b b b b b

22 / 43

slide-24
SLIDE 24

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ A point-line correspondence λ forming pairs.

b b b b b b b

23 / 43

slide-25
SLIDE 25

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ The incidence relation: point ⊂ line

b b b b b b b

24 / 43

slide-26
SLIDE 26

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ A graph Gλ associated to the point line correspondence λ.

b b b b b b b

25 / 43

slide-27
SLIDE 27

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ The triangle presentation T is a cover of Gλ by disjoint of triangles.

b b b b b b b

26 / 43

slide-28
SLIDE 28

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ Triangle can also mean loop.

b b b b b b b

27 / 43

slide-29
SLIDE 29

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

28 / 43

slide-30
SLIDE 30

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

29 / 43

slide-31
SLIDE 31

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

30 / 43

slide-32
SLIDE 32

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

31 / 43

slide-33
SLIDE 33

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

32 / 43

slide-34
SLIDE 34

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

33 / 43

slide-35
SLIDE 35

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

34 / 43

slide-36
SLIDE 36

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

35 / 43

slide-37
SLIDE 37

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

36 / 43

slide-38
SLIDE 38

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

37 / 43

slide-39
SLIDE 39

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

38 / 43

slide-40
SLIDE 40

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

39 / 43

slide-41
SLIDE 41

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

40 / 43

slide-42
SLIDE 42

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

41 / 43

slide-43
SLIDE 43

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

42 / 43

slide-44
SLIDE 44

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ So we remove triangles (or loop) one by one to obtain T .

b b b b b b b

43 / 43

slide-45
SLIDE 45

Thibaut Dumont University of Jyväskylä June 2019

Goal 1: Radu’s lattice

◮ No triangle left, so we the triangle we removed form a cover of Gλ.

Pretty lucky!

b b b b b b b

44 / 43
