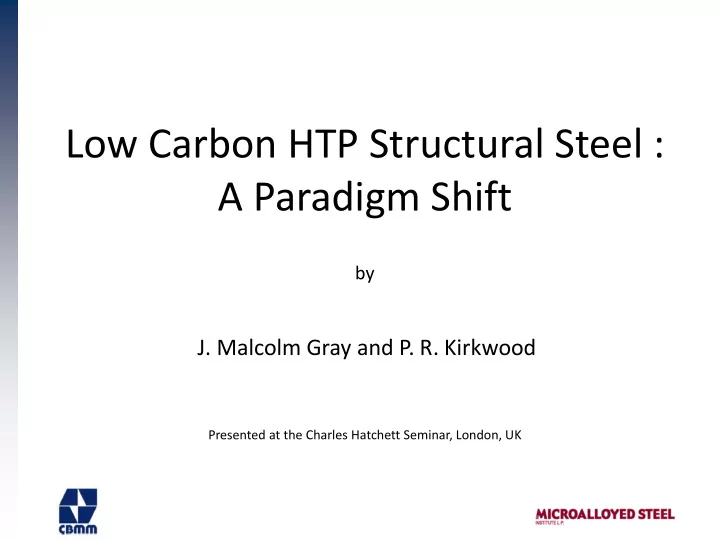

Low Carbon HTP Structural Steel : A Paradigm Shift by J. Malcolm Gray and P. R. Kirkwood Presented at the Charles Hatchett Seminar, London, UK Perspective & Summary The technology and application of microalloyed steels has developed

SLIDE 1

Low Carbon HTP Structural Steel : A Paradigm Shift

J. Malcolm Gray and P. R. Kirkwood

Presented at the Charles Hatchett Seminar, London, UK

SLIDE 2

Perspective & Summary

The technology and application of microalloyed steels has developed rapidly over the past half century. Metallurgical developments have been very rapid in linepipe steels and automotive grades and much slower for structural steels. Yield strengths above 100-120 ksi are available for automotive and linepipe applications, but until recently structural steels rarely exceeded 60 ksi. There are signs, particularly in China, where linepipe technology and related specifications are being utilized in impressive construction projects, (airports, stadiums and very tall buildings).

SLIDE 3

What is HTP* Steel?

(* High Temperature Processed)

Conventional Steel 0.04%Nb FRT 710-830°C
HTP Steel

0.10%Nb FRT 840-910°C

SLIDE 4

RETARDATION OF RECRYSTALLIZATION BY MICROALLOYING ELEMENTS

SLIDE 5

1993--X60 1998--X65 2000--X70 2003—X80 2005—X100 2007—X120

SLIDE 6

Huoerguosi Lunnan Guangzhou Shanghai Beijing Hongkong

1st West-east 1016mm,10MPa, 3856km X70 2nd Shanxi— Beijing 1016mm,10MPa, 851km X70 2nd West-east 1219mm,12MPa, 4913km X80 1st Shanxi— Beijing 660mm,6.4MPa, 918km X60 Ji-ning 1016mm,10MPa, 912km X70 (7.9km X80)

SLIDE 7

PROGRESS OF LINEPIPE DEVELOPMENT SHOWING SIMULTANEOUS INCREASE IN TOUGHNESS WITH STRENGTH AND PASSAGE OF TIME

SLIDE 8

Changes in maximum niobium and carbon contents with time (and strength increase) for linepipe steel.

SLIDE 9

Change in Niobium Level in the Production of C-Si-Mn-Nb-Al Steels

SLIDE 10

Austenite Grain Coarsening Behaviour for steels reheated to 1200°C for 1 hr and water quenched.

SLIDE 11

Carbon & Niobium Restrictions for TMCP Welded X70 PIPE

Specification C% Nb% Nb+V+Ti % API PSL2/ISO 3183/GB/T 9711 0.12

≤ 0.15

API PSL2 Annex G (pipe resistant to ductile fracture) 0.10 0.08 ≤ 0.15 API PSL2 Annex H (Pipe for sour service) 0.10 0.08 ≤ 0.15 API PSL2 Annex J (Pipe for

ffshore service)

0.12 0.08 ≤ 0.15 DNV-OS-F101 (Pipe for

ffshore service)

0.12 0.08 ≤ 0.15 CSA Z 245 0.26 0.11

CNPC

0.09 0.11 ≤ 0.15

SLIDE 12

Carbon & Niobium Restrictions in Structural Steel Specifications

Specification C% Nb% Nb+V+Ti % ISO 10025-3 355/460 N/R 0.20 0.06 ISO 10025-4 355/460 TMCP 0.16 0.06 ISO 10025-6 ≥ 460 Q&T 0.20 0.07 ISO 4950-2 (E) 355/460 0.18 0.06 ASTM/SA 841- Type F G7 0.10 0.11 CSA G40.21-04 350/480 0.20 Nb+V ≤ 0.1 or 0.12 GB/T 5191 -2004 345 to 690 0.20 0.06 ≤ 0.15 GB/T 5191- 2008 345/420 0.18/0.20 0.07 ≤0.22 GB/T 5191-2008 460/690 0.18/0.20 0.11 ≤0.22

SLIDE 13

Carbon & Niobium Restrictions in Offshore Structural Steel Specifications (≈ 40mm plates)

Specification C% Nb% ISO 10025 - S355 G2+ N 0.18 0.06 ISO 10025 - S355 G6+M (TMCP) 0.14 0.06 ISO 10025- S355 G9+M (TMCP) 0.12 0.03 API 2H & 2Y 0.18 0.05 API 2W (50T) TMCP 0.16 0.03 Mobile structures E36/EH36 0.18 0.05

SLIDE 14

CLEARLY INTERNATIONAL SPECIFICATIONS MUST BE RATIONALISED AND BROUGHT INTO THE 21ST CENTURY.

SLIDE 15

SLIDE 16

SLIDE 17

SLIDE 18

SLIDE 19

Conclusions

There are exciting possibilities for rapidly constructing huge structures with novel designs. Linepipe metallurgy, using low carbon, low sulfur, calcium treated steel, transferred to the structural steel arena results in steels with strengths up to 690 MPa, excellent weldability and remarkable Z direction

properties. Opportunities exist to utilize hot rolled steels in

industries and applications which traditionally use normalized

r Q&T grades of steel.
