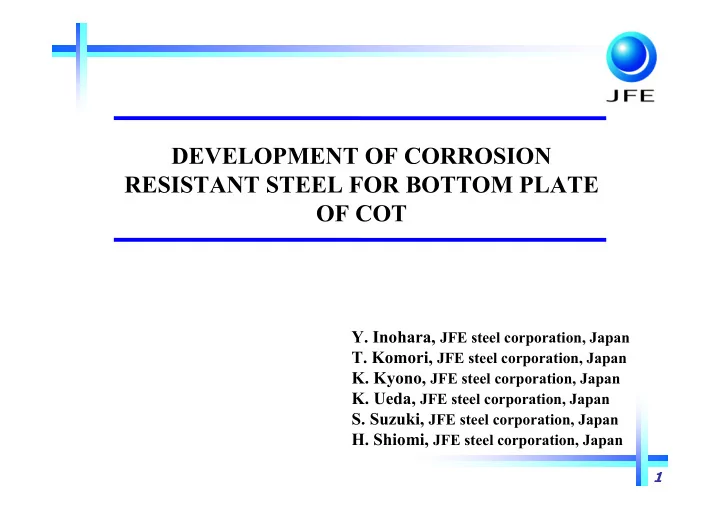

DEVELOPMENT OF CORROSION RESISTANT STEEL FOR BOTTOM PLATE OF COT

  • Y. Inohara, JFE steel corporation, Japan
  • T. Komori, JFE steel corporation, Japan
  • K. Kyono, JFE steel corporation, Japan
  • K. Ueda, JFE steel corporation, Japan
  • S. Suzuki, JFE steel corporation, Japan
  • H. Shiomi, JFE steel corporation, Japan
slide-2
SLIDE 2

2

Contents

  • 1. Simulation Test of Inner Bottom Environment
  • 2. Development of Anti-Corrosion Steel for COT

(1) Pitting Corrosion Resistance of Developed Steel (2) Corrosion Resistance in Acid Solution

  • f Developed Steel

(3) Mechanical Properties of Developed Steel

  • 3. Conclusions
slide-3
SLIDE 3

3

Contents

  • 1. Simulation Test of Inner Bottom Environment
  • 2. Development of Anti-Corrosion Steel for COT

(1) Pitting Corrosion Resistance of Developed Steel (2) Corrosion Resistance in Acid Solution

  • f Developed Steel

(3) Mechanical Properties of Developed Steel

  • 3. Conclusions
slide-4
SLIDE 4

4

Corrosion Problem in COT

・A form of corrosion on inner bottom : Pitting of bowl shape ・On every dry docking (every 2.5 years) ⇒ Pitting corrosion, 4 mm and more depth, are repaired. ⇒ Many pitting corrosion = Much repair cost occur!

  • Max. Pitting Rate：4mm/y (10mm/2.5y)

20mm 10cm

slide-5
SLIDE 5

5 Sludge, Salt water H2S H2S Inert Gas Crude Oil Oil coat

Oil-coat Salt-water about 8%NaCl, Salt-water Sludge Solids in Oil Drops from ceiling (Sulfur, Rust) Cause of Pitting Full Load Condition

Crude Oil Salt-water Oil-coat Steel Sludge, S

Environment on Inner Bottom of COT

Oil-coat High Humidity (Acid Dew) Inert-gas Condition ・SO2, O2 contain Residue of Salt-water Sludge ・Solid in Oil ・Sulfur, Rust Ballast Condition

Ineat-gas (SO2, O2 +H2S) Oil-coat Steel Sludge, S

slide-6
SLIDE 6

6

Pitting Growth

Oil-coat Steel Pitting (Anode) Sludge, Rust, S (Cathode) Defect of Oil-coat Salt-water

Mechanism of Pitting Corrosion

(1) Protective Coating ・Oil-coat (3) Starting Point of Pitting ・Defect of Oil-coat ・Uneven Distribution of Water Factors of Pitting Growth (Cathode, Oxidizer, etc.) ・Sludge ・Rust, and S ・Inert-gas (SO2, O2, etc.) ・H2S (2) Salt-water ・Chloride Ion

Macro-cell corrosion Initiation and growth of pitting corrosion

slide-7
SLIDE 7

7

Simulation Test Method on the Inner Bottom

  • Fig. Pitting Corrosion Test Method.

313K 10%NaCl Specimen (with ‘Oil-coat’) Gas (include H2S)

Factors of Pitting Corrosion (1) Protective Coating (Oil-coat) (2) Salt-water (Chloride Ion) (3) Starting Point of Pitting and Accelerator (Sludge, S) Simulation Test Condition of COT Environment ・Oil-coat (gathered from actual VLCC) applied ・Simulated Gas (include 5%O2, H2S, etc.) ・10%NaCl Solution ・No oil-coat section with Sulfur < Laboratory Test Method > (1) Shot-Blast Finish (2) Applying the Oil-coat (3) Making the Starting Point of Pitting Corrosion (4) Test (5) After 36 days, The maximum pitting corrosion depth is measured.

slide-8
SLIDE 8

8

5 10 15 20 25 30 35 40 1 2 3 4 5 6 7 8 Depth of Pits (mm) Diameter of Pits (mm) Actual Pits

  • Lab. Test

Comparison between Lab. Test with Actual Ship

  • Photo. Pits on the Inner Bottom.
  • Photo. Pits on the laboratory Test.

The pitting corrosion shape of the

  • lab. test is similar to actual pitting

corrosion shape.

  • Fig. The Shape of Pitting Corrosion.

20 mm 10 mm

slide-9
SLIDE 9

9

Contents

  • 1. Simulation Test of Inner Bottom Environment
  • 2. Development of Anti-Corrosion Steel for COT

(1) Pitting Corrosion Resistance of Developed Steel (2) Corrosion Resistance in Acid Solution

  • f Developed Steel

(3) Mechanical Properties of Developed Steel

  • 3. Conclusions
slide-10
SLIDE 10

10

Concept of Anti-Corrosion Steel

“Anti-Corrosion Steel” : Resistance to Pitting Corrosion and Acid “Anti-Corrosion Steel + Zinc-primer” : Resistance to Pitting for Long Time

Improvement of Resistance to Pitting and Acid

(1) Forming of the surface film with resistance to acid

Prolongation of Effect of Zinc-primer

(2) Forming of thick and protective rust layer (3) Forming of un-resolvable corrosion products

One of the Protection Methods of COT

<add some elements>

Target Point

Reduction of Life Cycle Cost of Tanker

(= Reduction of Maintenance Cost of Tanker)

slide-11
SLIDE 11

11

Resistance to Pitting Corrosion

  • Fig. Pitting Corrosion Test Method.

10%NaCl Specimen (with ‘Oil-coat’) Gas (include H2S)

  • Photo. Pitting Corrosion by lab.-Test.

10mm <Simulation Test of Inner Bottom> 1) apply ‘Oil-coat’ 2) pitting starting point : center, 2 mm 3) 313K 4) Evaluation : Max. Pitting Depth

The max. pitting depth of the anti-corrosion steel

decreases to about 65%

compared with conventional steel.

  • Fig. Resistance to Pitting Corrosion.

0.0 0.5 1.0 1.5 conventional steel with zinc-primer anti-corrosion steel with zinc-primer

  • Max. Pitting Depth (mm)

Test period : 36 days decrease to about 65%

slide-12
SLIDE 12

12

Presumption of the Amount of Pitting Corrosion

Anti-Corrosion Steel + Zinc-primer (Estimation) Conventional Steel + Zinc-primer

42

VLCC G

31

Number of pits in need of repair (4 mm depth or more)

Suez/M F Tanker Table Test Calculation of the Number of Pits.

There is a possibility that the number of pits in need of repair becomes “0” by applying the anti-corrosion steel.

  • Fig. Decrease of the Number of Pits in Need
  • f Repair by Decrease of Pitting Depth.

When the anti-corrosion steel is adopted, “Pitting depth decreases to about 65%” compared with conventional steel.

10 20 30 40 50

  • 1.9

2.0- 2.4 2.5- 2.9 3.0- 3.4 3.5- 3.9 4.0- 4.4 4.5- 4.9 5.0- 5.4 5.5- Pitting Depth (mm) Frequency measured

pitting in need

  • f repair : 31

needless

Extremely decrease!

10 20 30 40 50

  • 1.9

2.0- 2.4 2.5- 2.9 3.0- 3.4 3.5- 3.9 4.0- 4.4 4.5- 4.9 5.0- 5.4 5.5- Pitting Depth (mm) Frequency measured calculated

pitting in need

  • f repair : 31

“Pitting depth decreases to about 65%”

needless

4mm

slide-13
SLIDE 13

13

Contents

  • 1. Simulation Test of Inner Bottom Environment
  • 2. Development of Anti-Corrosion Steel for COT

(1) Pitting Corrosion Resistance of Developed Steel (2) Corrosion Resistance in Acid Solution

  • f Developed Steel

(3) Mechanical Properties of Developed Steel

  • 3. Conclusions
slide-14
SLIDE 14

14

0.0 0.2 0.4 0.6 0.8 1.0 1.2 Conventional Steel Anti-Corrosion Steel Corrosion Rate Ratio (conventional Steel = 1.0) pH=0.9

Resistance to Hydrochloric Acid

<Corrosion Factor Test of Inner Bottom> 1) 10%NaCl, + HCl 2) pH=0.9 3) 313K 4) Evaluation : Corrosion Rate

The corrosion rate of the anti-corrosion steel in the hydrochloric acid

decreases to about 14% compared with conventional steel.

  • Fig. Resistance to Hydrochloric Acid.
  • Fig. Test Method.

10%NaCl (pH=0.9) Specimen decrease to about 14%

slide-15
SLIDE 15

15

Contents

  • 1. Simulation Test of Inner Bottom Environment
  • 2. Development of Anti-Corrosion Steel for COT

(1) Pitting Corrosion Resistance of Developed Steel (2) Corrosion Resistance in Acid Solution

  • f Developed Steel

(3) Mechanical Properties of Developed Steel

  • 3. Conclusions
slide-16
SLIDE 16

16

Mechanical Properties

Table 1 Characteristics of Base Metal.

Energy (J) ≧31 326 CVN at 253K YS (N/mm2) IACS, 32D ≧315 Anti-corrosion Steel Thickness : 20 (mm) 399 ≧18 31 EL (%) 440～590 485 TS (N/mm2) Grade CVN： Charpy V notch test

Table 2 Characteristics of Weld Joint.

Notch position 149 FL 247 HAZ 1 (mm) 273 HAZ 3 (mm) 317 HAZ 5 (mm) ≧440 515 TS (N/mm2) Energy (J) ≧34 106 Charpy V notch test at 273K IACS, 32D Anti-corrosion Steel Thickness : 20 (mm) Welding method : FCB Heat input : 108 (kJ/cm)

  • WM

Grade

slide-17
SLIDE 17

17

Contents

  • 1. Simulation Test of Inner Bottom Environment
  • 2. Development of Anti-Corrosion Steel for COT

(1) Pitting Corrosion Resistance of Developed Steel (2) Corrosion Resistance in Acid Solution

  • f Developed Steel

(3) Mechanical Properties of Developed Steel

  • 3. Conclusions
slide-18
SLIDE 18

18

Conclusions

· The pitting corrosion test method that was able to simulate the pitting corrosion that occurred on the inner bottom plate of COT was established. · The corrosion resistant steel that strengthened the effect of the zinc-primer on the decrease of pitting corrosion was developed. The maximum pitting corrosion depth has decreased to about 65% compared with conventional steel. · The developed steel has mechanical properties and construction performance equal with those of conventional steel as steel plate for shipbuilding.
