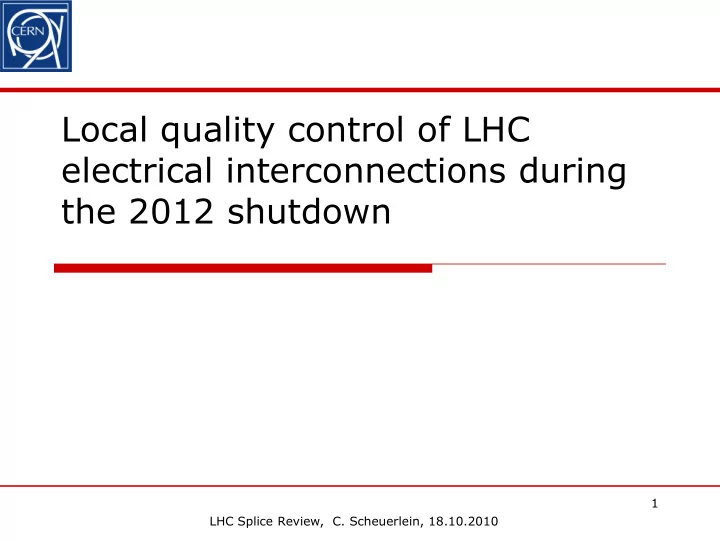

Local quality control of LHC electrical interconnections during the 2012 shutdown

Outline

• LHC splice quality control (QC) sequence during 2012

shutdown

• QC of existing main interconnection splices
• QC of disconnected main busbar cables before splice assembly
• QC of newly connected main interconnection splices (without

shunts)

• QC of shunt solder contacts; feasibility studies and development
• f a new QC test
• QC of entire splices with shunts
• QC of line N connections
• QC of line M connections
• QC of splice insulation
• Other quality assurance (QA) activities
• C. Scheuerlein, 18.10.2010

2

QC of existing (“old”) main interconnection splices

• In the LHC two families of main interconnection splices

can be distinguished:

• About 9500 “old” splices produced during installation:

Most “old” splices have gaps and/or large steps between the Cu profiles, and are not conform with visual acceptance criteria (see IEG-C-BR-001 rev C “Contrôle visuel des brasures”).

• About 500 “new” splices produced during 2009 shutdown,

which are conform with IEG-C-BR-001 acceptance criteria.

• Three possible consolidation strategies:

1) Open and redo almost all “old” splices before adding shunts. 2) Do not open any “old” splices and apply shunts as is. 3) Repair the worst cases before applying shunts.

• In order to avoid opening all “old” splices, it is planned

to repair only the worst cases. Therefore, the geometrical, as well as the electrical resistance acceptance criteria are less strict for “old” splices.

3

• C. Scheuerlein, 18.10.2010

Strongly distorted connection (QBQI.25R5-M1-QRL-lyra) Step between U-piece and busbar (QQBI.32R6-M2) Gap between U-piece and busbar tongue (QBQI.33L2- M3-QRL)

The R-8/R-16 test

• Whenever possible QC is based on nondestructive test results obtained

in-situ in the LHC. QC of main interconnection splices is based on room temperature (RT) resistance measurements (first suggested in 2009 by Howie Pfeffer and Bob Flora from Fermilab).

• The so-called R-8/R-16 test [1] has been introduced during the 2009

shutdown in order to detect splices with a high excess resistance in the normal conducting state. This was a breakthrough in the QC of the main interconnections splices.

• C. Scheuerlein, 18.10.2010

4

R-16 measurement with test splices in SM18

• In case of a complete transverse gap

between Cu splice profiles and bus bar stabiliser, the R-8/R-16 result is nearly proportional to the defect size (insulated cable length inside the busbar stabiliser).

• The estimated R-8/R-16 random error is

±1 µΩ, and the systematic error is about +10 %.

[1] “Production and Quality Assurance of Main Busbar Interconnection Splices during the LHC 2008-2009 Shutdown”, IEEE Trans. Appl. Supercond., accepted.

Distribution of additional R-8 values measured for “old” splices produced before 2009

• C. Scheuerlein, 18.10.2010

5

• The (biased) distribution of R-8 excess resistance values measured in

2009 for “old” splices (produced before 2009) may be helpful for determining an R-8 acceptance threshold value for “old” splices.

• The excess resistance is defined as the measured resistance minus an

average resistance value for good splices (5.6 µΩ and 9.3 µΩ for dipole and quadrupole splices, respectively).

• An R-8 acceptance threshold value for “old” splices could be +5 µΩ

excess resistance (redo “old” splices when R-8>10.6 µΩ and R-8>14.3 µΩ for dipole and quadrupole splices, respectively).

Alternative nondestructive tests: US transmission test

• Before the introduction of the R-8/R-16

test, the US transmission test [2] was the most important QC tool in order to detect splices in which no solder foil had been added and/or for which the solder melting temperature had not been reached.

• Both defect cases will also cause high R-8

excess values. Therefore, during the 2012 shutdown the US test is not needed anymore, and it will not be used as a routine QC test

• C. Scheuerlein, 18.10.2010

6

US transducers mounted to M3 splice

[2] F . Caspers, T. Kroyer, J. Kulka, J.-P . Tock, L.R. Williams, “Ultrasound diagnostics of the superconducting cable connections between the main ring magnets of LHC”, LHC-Project-Report-1032, 2007.

Standard US test result (result “OK”) Additional US test between U-piece and busbar nose (result “not OK”)

Alternative nondestructive tests: Gamma ray imaging

• Comparatively

large volume defects are detectable in the radiographs:

• Lack of SnAg alloy

in the busbar extremities.

• Un-molten SnAg

foil at the splice extremities.

• Gamma ray

imaging is an important tool for trouble shooting.

7

Unmolten SnAg foil (additional R-8=31 µΩ). Radiographs courtesy J.-M. Dalin. Lack of SnAg in busbar ends.

Gamma radiography as a QC tool?

• The spatial resolution of gamma radiography (for the LHC splices in the order of

0.1 mm) is insufficient to exclude the presence of defects. Gamma radiography is NOT a QC tool.

• During the 2012 shutdown gamma radiography will only be used occasionally, for

instance in order to study if through improved splice heating equipment the loss

• f SnAg from the busbar ends can be reduced.

8

QBBI-B16L7-M1-COR-cC QBBI-B16L7-M1-COR-cL QQBI-16L7-M1-COR-cC QQBI-16L7-M1-COR-cL

QC of main busbar cables before splice assembly

• At RT it is impossible to control the

busbar cables and the cable to cable contacts inside a finished splice. Therefore, it is important to perform a a visual control before the splices are assembled.

• Opening splices is a delicate task with

some associated risks. Every un-soldering/soldering cycle invariably causes a cable degradation. If the splice disconnection is performed as planned, the degradation is small and acceptable [3].

• Disconnected cables are much more vulnerable than a busbar or a

complete splice.

• We expect a variety of cable defects to show up when a large number of

splices will be opened.

• In most cases it will not be clear if a defect has been introduced during the

first interconnection, or if it occurred during or after splice disconnection (previous 1.9 K QC result is lost).

• C. Scheuerlein, 18.10.2010

9

[3] “Temperature induced degradation of Nb-Ti/Cu composite superconductors”, 2010 J. Phys.: Conf. Ser. 234 022031

Disconnection of cable SSS-221-up-M1

Examples of damaged cables found in 2009 by the personnel performing the interconnection work

10

NCR 1002739: Entire cable squeezed between U-piece and wedge

NCR 990852, 2 strands cut NCR 992513: Cable overheated (>580 °C) Half of the strands of one M3 cable of MB2446 were found cut in SMI2. NCR 1002739: Entire cable was squeezed between U-piece and wedge

QC of newly produced main interconnection splices (before application of shunts)

• Acceptance criteria for splices that will be

produced during the 2012 shutdown are more strict than for the existing “old” splices.

• Visual inspection according to standard

pocedure: IEG-C-BR-001 rev C “Contrôle visuel des brasures”

• No macroscopic (visible) gaps
• No steps between the Cu profiles >1 mm
• QC is mainly based on in-situ R-8 results

(measurement of R-16 is done as a cross check of R-8 results).

• C. Scheuerlein, 18.10.2010

11

QBBI.A27R3-M3-corridor

Gap between U-piece and busbar stabiliser (QBBI.A27R3-M3- corridor “new” before repair) Gap between U-piece and busbar tongue (QBQI.33L2-M3-QRL) Step between U-piece and busbar (QQBI.32R6-M2)

Distribution of additional R-8 values measured for “new” splices produced in 2009

• C. Scheuerlein, 18.10.2010

12

• The average values for “new” dipole (M3)

and quadrupole (M1 and M2) splices are 5.6 µΩ and 9.3 µΩ, respectively.

• Based on the R-8 distribution of “new”

splices, additional resistance acceptance threshold values of 2 µΩ and 3 µΩ are suggested for dipole and quadrupole splices, respectively.

• Redo “new” splices if:

R-8dipole>7.6 µΩ and R-8quad>12.3 µΩ.

QC of shunt solder contacts

• At least 40 000 shunt solder connections have to be produced and

tested for the consolidation of the LHC main interconnection splices.

• The shunts should work as a fully redundant system. Therefore, it is

necessary to control each solder contact separately (it is not sufficient to control only the complete splice with shunts).

• An efficient nondestructive test is needed for this purpose (test

duration per shunt solder contact <1 minute).

• Three nondestructive testing methods have been studied:
• Ultrasonic testing (at CERN [4], EMPA [5] and BAM [6]).
• Active thermography (at BAM [7]).
• Electrical resistance (at CERN [8]).

13 [4] J.-M. Dalin, CERN EN-MME, in collaboration with Olympus, GE and ECCND. [5] J. Neuenschwander, “Feasibility study NDT of solder joints”, Swiss Federal Laboratories for Materials Testing and Research (EMPA), Dübendorf, Test Report No 455081-10, (2010) [6] G. Brekow, D. Brackrock, “Ultrasonic testing of solder joints using a phased array technique with matrix arrays”, Federal Institute for Materials Research and Testing (BAM), Berlin, report reference number: 4326166 part 1, 99117 LHC-CONS, (2010). [7] C. Maierhofer, M Röllig, “Feasibility study for non-destructive testing of solder joints – Results of active thermography”, BAM, report reference number: 4326166 part 2, 99117 LHC-CONS, (2010). [8] S. Heck et al., “Room temperature resistance measurements for the quality control of shunt solder connections for the consolidation of the LHC main interconnection splices”, CERN TE-Note-2010-34, EDMS Nr: 1097684, (2010)

Ultrasonic testing main conclusions

• Ultrasonic (US) testing can in principle provide a

quantitative result in terms of unsoldered area.

• Best results have been achieved in immersion

technique with a single element probe.

• It is assumed that US testing in immersion technique is

not possible in the LHC tunnel, and that mechanical scanning of a single element probe over the shunts is not possible within a reasonable duration.

• Therefore, phased array technology in contact

technique has been studied.

• Test results achieved so far indicate that coupling of

the matrix array transducer to the shunt is not reliable.

• Even in the favorable case of US in immersion

technique applied to nearly perfectly flat shunt specimen, the interpretation of US results is not straight forward.

• C. Scheuerlein, 18.10.2010

14

Olympus matrix array transducer and set-up used by BAM Single element probe in immersion used at CERN

Uncertainties in the interpretation

• f US results
• Small variations of the US beam incidence angle can cause strong variations in

the amplitude of the reflected US signal. When the angle exceeds 2°, the US result for a completely disconnected shunt appears like a good solder contact.

15

=0° =1° =2° =3°

C-scans obtained with different US beam incidence angles (courtesy J. Neuenschwander)

• The below US C-scan achieved with a

matrix array transducer in contact technique indicates that about 50 %

• f the contact is well soldered, while

the fracture sample shows that nearly 100 % were unsoldered.

Fracture surfaces and C-scan of a nearly unsoldered test sample US C-scan (immersion technique) of two good shunt solder contacts. US result for shunt B indicates a poor solder contact.

Active thermography

• In principle it is possible to conclude on the

thermal conductivity of the solder contact from the temperature gradient in the thermograms. Under favorable conditions 6x6 mm2 solder defects can be detected.

• Thermography is a contact free technique, but

blackening the Cu shunt surfaces is required.

• The measurement strategy depends on the

shunt thickness.

• 2 mm-thick: Impulse thermography →about 1 sec

acquisition time plus 1 min for data treatment.

• 3 mm-thick: Lock-in thermography →more

complicated; about 4 min acquisition time+10 min data treatment.

• Temperature differences of less than 0.5 K must

be detected. Is this possible in a non-air conditioned environment?

• Active thermography needs to be performed by

personnel with expertise in NDT.

• C. Scheuerlein, 18.10.2010

16

Sample photo (2 mm-thick shunt with artificial square defects) US C-scan (courtesy J.-M. Dalin) Thermogram 50 ms after flash excitation (courtesy C. Maierhofer).

Experimental set-up with IR camera and flash lamps used by BAM

R-8/R-16 results for splices with large defect and shunts (SM18 test)

• R-8 results indicate a poor solder connection of the

shunt M3-QRL-connection.

• Assessment of shunt quality from R-8 is only

possible on splices that have high excess resistance.

• C. Scheuerlein, 18.10.2010

17

R-8 no shunt (µΩ) R-8 with shunt (µΩ) M3- QRL con. 64.5 15.6 (repaired 10.1) Lyra 52.6 9.9 M3- cor. con. 54.1 10.7 Lyra 62.9 10.9

R_RT-top-side results for test splices with large defects and shunts (SM18 test)

• R_RT-top-side tests for the QC of individual

solder contacts [6].

• After repair the shunt contact on the wedge of

M3-QRL-connection, R_RT-top-side is reduced from 10.5 µΩ to 2.1 µΩ.

• C. Scheuerlein, 18.10.2010

18

Comsol R_RT-top-side simulation for shunt with defect (courtesy S. Heck) R_RT-top-side measurement configuration

Conclusion NDT of shunt solder contacts

• 100 % of the shunt solder contacts to be produced in the LHC

tunnel will be controlled by a resistance test (in the so-called R_RT-top-side configuration).

• An acceptance threshold value needs to be determined when

the final shunt layout is known. It could be about 2.5 µΩ (for comparison, R_RT-top-side of the defective shunt in SM18 was 10.5 µΩ).

• US studies at CERN, EMPA and BAM have shown that ultrasonic

tests are a good tool to detect solder delaminations.

• Active thermography is another promising technique for testing

shunt to solder contacts, in particular for 2 mm-thick shunts.

• It should be helpful to further develop and use ultrasonics and

thermography methods as complementary analysis tools.

• C. Scheuerlein, 18.10.2010

19

QC of complete splice with shunts

• After the R_RT-top-side test, a final R-8/R-16 test for all

splices with shunts will be performed.

• R-8 acceptance threshold values need to be determined

(could be about 10 µΩ and 6 µΩ for quadrupole and dipole splices, respectively, which is close to the values for perfect splices without shunts).

• The final R-8/R-16 test can be done directly after the

R_RT-top-side tests of the shunt solder contacts.

• C. Scheuerlein, 18.10.2010

20

QC of individual line M wire connections

• Visual inspection of US welds according to: IEG-C-US-001 RevC

“Controle visuel des soudures US sur les bus bars auxiliaires des lignes M1 et M2”.

• Need to define acceptance criteria for solder connections.

1st interconnection →1 US weld 2nd interconnection →at least 2 US welds Soft soldering in case US welding is not possible 3 US welds per interconnection if spools are too short

Indirect assessment of US weld quality

• Nondestructive testing of

individual US welds in-situ in the LHC is NOT foreseen.

• Indirect quality assessment of

“new” US welds:

• Monitoring key process

parameters (on-line analysis of production data like weld duration can indicate a degradation of the US weld quality).

• Measurement of US weld

resistance and mechanical strength using test loops that are produced regularly during the production.

• C. Scheuerlein, 18.10.2010

22

Is a QC of individual (“old”) line M wire connections possible?

• Damage of wires and existing (“old”) wire connections during

main splice repair and consolidation cannot be excluded.

• Damage of wires can be very difficult to detect.
• A local QC of individual “old” line M connections is NOT foreseen!

23

LHC-MSC-QBBI.A20R3 “spool 15 endommagé coté gauche” QBBI.B22R3; US weld of spool 11 before repair.

QC of individual line N wire connections

• Visual inspection of “new” and “old” US welds according to “IEG-C-US-

002 Controle visuel des soudures US de type N”.

• For newly produced US welds: indirect assessment of the splice quality

from process parameters and test loop control results.

• C. Scheuerlein, 18.10.2010

24

Is a QC of individual (“old”) line N connections possible?.

25

• Line N wire breakage occurred during US welding of a production loop

during early installation.

• Breakage is due to a non correct peeling of the wire insulation (with a

wrong tooling), which initiated a fracture during US welding.

• For visual control of

“old” line N wire welds it is necessary to strongly bend the spools.

• It is unlikely that line

N wires that were damaged during removal of the insulation will be found by visual inspection.

Local QC of spool insulation

• C. Scheuerlein, 18.10.2010

26

QBBI.A21R3-repaired insulation QBEI.11R3-old QEBI.11L4-insulation-12.6.09 QEQI.11R3-old insulation QBEI.11R3-old insulation

• Spool insulation can be damaged during the 13 kA splice repair/consolidation.
• Sometimes spool and 13 kA insulation are glued together, and spool insulation

can be damaged when removing the 13 kA splice insulation.

• Repair of spool insulation without cutting the spools is very time consuming.
• If in 2012 the QC of spool insulation would be done like during the 2009

shutdown, it could become a bottle neck.

• Local QC of existing spool insulation is NOT foreseen.

• Mechanical properties of US welds depend

critically on key process parameters, e.g. on splice compression.

• Verification of US welding machines is based on

the production and testing of test loops.

• During LHC installation and during the 2009

shutdown it has been demonstrated that a degradation of the US weld process can be detected by an increased resistance and reduced elongation at fracture of the US welded control samples.

• C. Scheuerlein, 18.10.2010

27

0.65 mm splice compression, fracture inside the weld

Other QA tasks I: Verification of US welding machines

0.68 mm splice compression, fracture outside the weld

Other QA tasks II: Verification of main interconnection inductive soldering machines

• So far qualification of inductive soldering

machines was mainly based on production and testing of test splices. If resistance and tensile strength of the test splices are OK, the equipment and process is assumed to be OK.

• However, production conditions of loops are not

representative for the splice fabrication in the LHC, (e.g. temperature gradient and mechanical constraints), and it is nearly impossible to produce a non-conform test loop.

• Therefore, for the 2012 shutdown the production of

test loops will be complemented by direct measurements of the soldering machine performance. Focus will be on the temperature and pressure control.

• C. Scheuerlein, 18.10.2010

28

Conclusion: Local QC confidence levels for individual LHC splices and splice components

• C. Scheuerlein, 18.10.2010

29 NDT in-situ Indirect QC Visual control

• r no QC at all

Cu stabiliser electrical continuity at main interconnection splices  Disconnected main busbar cables  Electrical continuity of the Cu Shunt solder contacts  Main interconnection splices with shunts  Cable to cable resistance in assembled 13 kA splices  “New” line N US welds  “Old” line N US welds  “New” line M spool connections  “Old” line M spool connections  Spool insulation 

• The electrical continuity of the main busbar stabiliser through the interconnection

splices, as well as through the shunt solder connections can be guaranteed by in-situ tests (R-8/R-16 and R_RT-top-side) .

• Cable damage during splice disconnection cannot be excluded. QC of cables relies

strongly on the skill and commitment of the personnel producing the splices.

• Main splice repair and consolidation work may risk to damage existing spools, spool

connections and spool insulation. A local QC of existing (“old”) line M spool connections and spool insulation is NOT foreseen.
