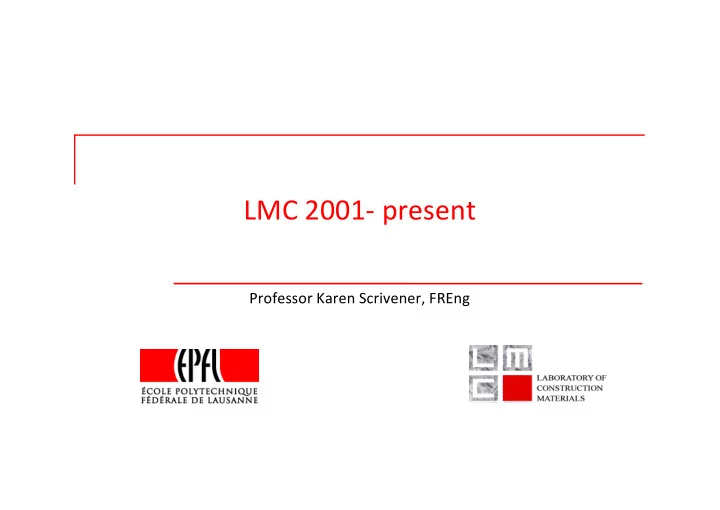

SLIDE 1

LMC 2001- present

Professor Karen Scrivener, FREng

SLIDE 2

5 hr 10 hr 24 hr

Development of Microstructure during the Hydration of Portland Cement

1980-1984 PhD Imperial College

SLIDE 3

Backscattered Electron Imaging

SLIDE 4

What is relevance?

SLIDE 5

1995-2001 LCR, Lafarge: Head of Calcium Aluminate Research

Academia to Industry UK to France

SLIDE 6

March 2001: Laboratory of Construction Materials EPFL

SLIDE 7

How to be relevant in Academia?

SLIDE 8

Creation of NANOCEM

May 2002: first meeting, 6 partners, Paris
Unsuccessful bid for EU network of excellence
March 2003: Decision to form independent consortium
May 2004: signature of consortium agreement

n Continuing activity - indefinite duration

SLIDE 9

An Industrial Academic Partnership for Fundamental Research

n Cementitious Materials

SLIDE 10

Partner research projects

€s

For Core research programme

SLIDE 11

ACADEMIA INDUSTRY

Long term advance

f knowledge

Integration of knowledge into new products and processes

Areas where lack of understanding or quantitative measurement blocks progress Interpretation of knowledge and clarification of possible progress areas

Industrial - academic dialog

SLIDE 12

Industrial partners

SLIDE 13

Academic partners

SLIDE 14

What does this mean for LMC?

SLIDE 15

Personnel of LMC: ~10 PhD students; 4 postdocs 1 senior researcher; 4 technical staff, visitors

15

SLIDE 16

Microstructural Modelling Quantitative Microstructural Characterisation

Our approach

SLIDE 17

Research areas

Hydration Durability

Transport properties ASR Sulfate attack

Specialist binders “Green” cement and concrete

carbonation

SLIDE 18

Composition, Mixing, Time, Temperature, RH, etc

Microstructure lies at the heart link between composition and performance

SLIDE 19

Microstructural analysis methods

XRD Electron Microscopy - SEM/TEM Proton NMR MIP, TGA, etc

19

10 20 30 40 50 60 100 200 300 Intensity 2q(°)

SLIDE 20

Microstructural analysis methods

n Sample preparation n Calorimetry n Chemical shrinkage n XRD n Electron Microscopy

SEM/TEM

n Proton NMR n MIP, TGA, etc

Written mostly by the students doing the experiments

20

SLIDE 21

Schweizerische Eidgenossenschaft Confédération suisse Confederazione Svizzera Confederaziun svizra Swiss Agency for Development and Cooperation SDC

5th

th Do

Doctoral school LC3

Characterisation methods of blended cements 23rd – 26th April 2019 EPFL, Lausanne Switzerland

www.LC3.ch

21

SLIDE 22

MOOC launched September 2017

n

Includes lectures and practical demonstrations:

n

All available on U tube

22

SLIDE 23

Nowadays global warming is biggest challenge facing us

23

SLIDE 24

n 830 Billion Tons carbon dioxide!

This is the CO2-budget remaining to be emitted if we want to keep

global warming at a maximum of 2 Degrees Celsius temperature increase.

n Emissions in 2017: 36.79 billion tonnes n At this rate we will exceed this amount in 23 years – 2041! n Even if we cut emissions by 50% tomorrow

it will be exceeded in 46 years

n We do not have 100 years to wait for Nanotechnology to deliver! n WE NEED TO ACT NOW

SLIDE 25

Cement Based Materials: cannot be replaced by alternatives

2000 4000 6000 8000 10000 12000 14000 16000 18000 Cementitious Wood Ceramic Iron Lime Asphalt Glass Aluminium Copper Materials production (Mt/year)

Cementitious materials make up ~50%

f everything we produce.

In the light of this, CO2 emissions of 5-10% very good

SLIDE 26

What is available on earth?

Na2O K2O Fe2O3 MgO CaO SiO2 Al2O3 Too soluble Too low mobility in alkaline solutions The most useful

Mg K rest Na Ca Fe Al Si O

Slag cement blend

SLIDE 27

Al2O3 CaO Portland Cement Calcium aluminate / calcium sulfo aluminate BUT, what sources of minerals are there which contain Al2O3 >> SiO2 ? Bauxite – localised, under increasing demand for Aluminium production, EXPENSIVE Even if all current bauxite production diverted would still only replace 10-15% of current demand. SiO2

Hydraulic minerals in system CaO-SiO2-Al2O3

Less CaO > less CO2

SLIDE 28

Portland based cements will continue to dominate

Blended cements are the most realistic option to reduce CO2 and extend resources

SLIDE 29

2000 4000 6000

Calcined Clay Filler Portland cement Fly ash Slag Natural Pozzolan Vegetable ashes waste glass silica fume

Mt/yr Used Available

limestone

Availability of SCMs

Classic SCMs – fly ash and slag are

nly around 15% of current cement

production, will drop to < 10% in near future

SLIDE 30

LC3

LC3 is a family of cements, the figure refers to the clinker content

50% less clinker
30% less CO2
Similar strength
Better chloride resistance
ASR resistant

20 40 60 80 100 PC PPC30 LC3-50 LC3-65 Mass proportion (%)

Gypsum Limestone Calcined clay Clinker 10 20 30 40 50 60 70

PC LC3-50

Compressive strength (MPa) 1 day 7 days 28 days 90 days

SLIDE 31

Huge amounts of suitable clays presently stockpiled as waste

SLIDE 32

Trial productions in Cuba and India

Housing materials produced in factories by unskilled workers with no special training at 1:1 replacement

7 t

n

n e s C O 2 s a v e d

SLIDE 33

Global cement production Billion tons/year Clinker factor, global average % Global SCM volume Billion tones/year Global CO2 reduction Million tones/year 2006 2.6 79 0.5 2050 (CSI study) 4.4 73 1.2 200 2050 (with LCC) 4.4 60 1.8 600

Global potential of LC3 ∆ = 400 million tonnes per yr > whole of CO2 emissions

f France

Potential impact of LC3 technology

IEA: International Energy Agency study for CSI: Cement Sustainability Initiative

f WBCSD: World Business

Council for Sustainable Development

SLIDE 34

But LMC is much more than LC3

SLIDE 35

40 PhD Theses

n

Lucie Baillon

n

Severine Lamberet

n

Mohsen Ben Haha

n

Xinyu Zhang

n

Prakash Mathur

n

Julien Kigelman

n

Thomas Schmidt*

n

Shashank Bishnoi

n

Mercedes Costoya

n

Ines Jaoudi

n

Rodrigo Fernandez

n

Christophe Gosslin

n

Cyrille Dunant

n

Vanessa Kocaba

35 n

Patrick Juilland

n

Ruzena Chamrova

n

Aude Chabrelie

n

Carolina Prieto

n

Alexandra Quennoz

n

Belay Dinesa*

n

Wolfgang Kunther*

n

Aditya Kumar

n

Olga Chowaniec

n

Theodore Chappex

n

Hui Chen

n

Quang Huy Do

n

Alain Giorla

n

Mathieu Antoni

n

Amelie Bazzoni

n

Mo Zalzale

n

John Rossen*

n

Arnaud Muller

n

Julien Bizzozeo

n

Emelie l’Hopital*

n

Elise Berodier

n

Luis Baquerizo

n

Berta Mota Gasso

n

Pawel Durdzinski

n

Zhangli Hu

n

Francois Avet

n

Frank Bullerjahn * with Barbara Lothenbach

SLIDE 36

MXG 2nd floor Take stairs up one floor

SLIDE 37

Coming soon…… “the book”

More than 100 journal publications More than 20 nationalities

37

SLIDE 38

Many Thanks

Especially to Lab staff: Philippe Simonin; Lionel Sofia Secretarial staff: Maude Schneider; Anne Sandra Hofer and their predecessors Nanocem organizer: Marie Alix Dalang

38

SLIDE 39

Funders

n EPFL n Swiss National Science Foundation n Nanocem n European Union n Federal Office for Dam Surveillance n Kerneos Aluminate Technologies n Holcim n Heidelberg n SCG n GCC n Grace n Cemsuisse
