LLNL Legacy Chemical Reduction Efforts 2014 EFCOG Chemical Safety & Lifecycle Management Spring Meeting March 18-20, 2014 Greg Lee LLNL-PRES-651438 This work was performed under the auspices of the U.S. Department of Energy by Lawrence

slide-1

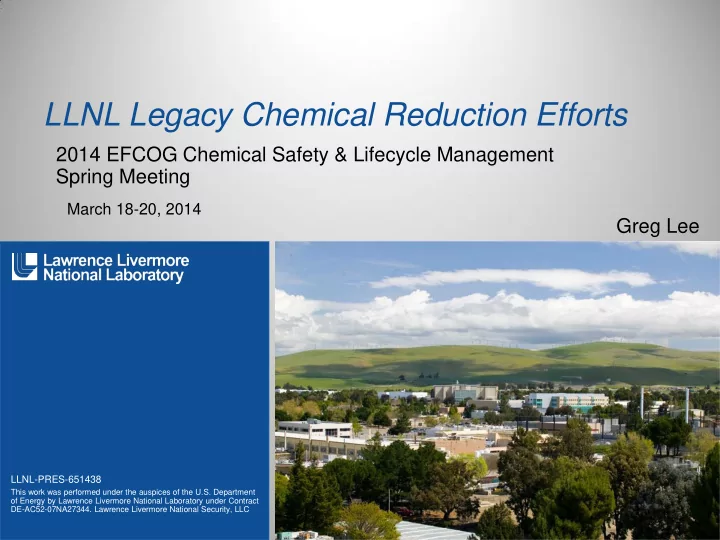

SLIDE 1

LLNL-PRES-651438

This work was performed under the auspices of the U.S. Department

  • f Energy by Lawrence Livermore National Laboratory under Contract

DE-AC52-07NA27344. Lawrence Livermore National Security, LLC

LLNL Legacy Chemical Reduction Efforts

2014 EFCOG Chemical Safety & Lifecycle Management Spring Meeting Greg Lee

March 18-20, 2014

slide-2
SLIDE 2

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

2

  • 2010 Baseline
  • ~ 92,000 bar coded containers
  • ~ 36,600 containers considered legacy (39.7%)
  • ~ 17,300 containers 17+ years old (18.8%)
  • Challenges:
  • Motivate chemical custodians and organizations to

reduce their chemical inventory

  • Make it easy; reduce time and effort to identify and

remove targeted chemicals

Legacy Chemicals at LLNL

slide-3
SLIDE 3

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

3

  • FY2011
  • Targeted High Hazard Legacy Chemicals

— Peroxidizable — Alkali metals — Corrosive & flammable gases

  • Methodology

— The LLNL chemical management system, ChemTrack, was used to

generate the list of high hazard legacy chemicals

— Each Directorate looked at the chemicals on the list, determined if there

was a programmatic need to keep the chemicals, and approached container owners to dispose of them

  • Results

— Disposed of 44 legacy peroxidizables — Disposed of 21 legacy alkali metals — Disposed of 8 legacy corrosive gases — Disposed of 77 legacy flammable gases

Past Chemical Legacy Reduction Efforts Were Narrowly Scoped (i.e., hazard and/or location)

slide-4
SLIDE 4

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

4

  • FY2012
  • Each LLNL organization (i.e., principal directorate) committed to

reach one of the following goals:

— 10% reduction in total inventory — 10% reduction in total gas cylinder inventory — 5% reduction in legacy inventory — 5% reduction in legacy gas cylinder inventory

  • Methodology

— Used inventory baseline of 10/1/10 to reflect beginning of previous

inventory cycle

  • Results

— Attrition lead to only a modest reduction of approximately 2,500 legacy

chemicals

— How could we streamline the process to engage chemical custodians and

line management in reducing unneeded chemicals?

Achieving ISO 14001 Registration Resulted in Broader Objectives and Targets for Chemical Reduction

slide-5
SLIDE 5

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

5

  • FY2013
  • Same goals as FY2012

— 10% reduction in total inventory — 10% reduction in total gas cylinder inventory — 5% reduction in legacy inventory — 5% reduction in legacy gas cylinder inventory

  • New Inventory Tablets
  • Pilot Study

— Methodology — Results

  • Pilot Study Expansion

FY13 Efforts Expanded with Improved Tools to Achieve Our Goals

slide-6
SLIDE 6

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

6

  • Aged Inventory Equipment Hardware/Software
  • Windows CE4
  • C# code
  • Discontinued Symbol PDA hardware
  • Hardware/software/OS past life-cycle

Why a new ChemTrack Mobile?

slide-7
SLIDE 7

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

7

  • Scan barcodes
  • Data processing using local database
  • Substantial database size (~ 1M rows in multiple

tables)

  • Used at all buildings (including Limited Areas)

and LLNL’s Site 300 where WIFI/OpenLabNet may not be available

  • Data upload/download using RESTful web

service

Requirements for ChemTrack Inventory Tablets

slide-8
SLIDE 8

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

8

  • Development
  • 2 developers - 4

months designing and coding software

  • 2 developers and 2

inventory technicians - 1 month testing tablets, software and Bluetooth scanner

IT Development for Chemical Inventory Tablets

slide-9
SLIDE 9

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

9

  • Hardware
  • Windows 7 touch screen tablet

— WIFI and microphone disabled — Uses wired network to upload/download data

  • Bluetooth bar code scanner
  • Software
  • Tablet code written entirely in HTML5/Javascript
  • Local data storage holds over 1 million rows
  • Communicates with back-end server via web service

calls (Back end server code is written in Java language)

Final Tablet Specs

slide-10
SLIDE 10

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

10

  • A subset of the ChemTrack inventory is downloaded to

the tablet, so it works as a portable ChemTrack lookup database

  • As inventory personnel scan bar codes, inventory

information such as location, timestamp, custodian, etc. is captured and stored on the tablet in real time

  • The tablet alerts the inventory tech when a pre-identified

legacy item is scanned so it can be pulled

  • The tablet is also capable of identifying “orphaned”

containers, missing containers (unaccounted for in last inventory cycle), and unregistered containers

  • The captured data is uploaded to the ChemTrack

database located at the institutional Data Center

What is Stored on the Tablets?

slide-11
SLIDE 11

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

11

Inventory Tablet – Main Menu

slide-12
SLIDE 12

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

12

Inventory Tablet – Certification of Scan Head

Certified Count:

slide-13
SLIDE 13

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

13

Inventory Tablet – Scanning Bar Codes

slide-14
SLIDE 14

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

14

Inventory Tablet – Scanning Bar Codes (continued)

DOE, JOHN

slide-15
SLIDE 15

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

15

Inventory Tablet – Data Correction

slide-16
SLIDE 16

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

16

Inventory Tablet – Data Correction, Search Application

slide-17
SLIDE 17

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

17

Inventory Tablet – Data Correction, Search Application Results

slide-18
SLIDE 18

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

18

Inventory Tablet – Data Correction

(continued)

slide-19
SLIDE 19

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

19

Inventory Tablet – Data Correction

(continued)

slide-20
SLIDE 20

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

20

Inventory Tablet – Data Correction

(continued)

slide-21
SLIDE 21

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

21

Inventory Tablet – Data Correction

(continued)

slide-22
SLIDE 22

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

22

Inventory Tablet – Data Correction

(continued)

DOE DOE, JOHN

slide-23
SLIDE 23

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

23

Inventory Tablet – Data Correction

(continued)

JOHN DOE

123456

slide-24
SLIDE 24

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

24

Inventory Tablet – Orphaned Containers

DOE, JOHN

slide-25
SLIDE 25

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

25

Inventory Tablet – Targeted Containers

DOE, JOHN

slide-26
SLIDE 26

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

26

  • Chemicals are bar coded and tracked

electronically using ChemTrack

  • An annual wall-to-wall chemical inventory scan

is conducted every year

  • Was it possible to use the functionality of the

new inventory tablets for targeted legacy chemical reduction?

  • A pilot reduction effort was developed for Building 151,

a former nuclear chemistry facility with lots of legacy items

Using the Annual Chemical Inventory Process for Legacy Reduction

slide-27
SLIDE 27

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

27

Legacy Chemicals in B151

B151 has ~ 75 laboratories Total number of chemicals: ~ 10,000 Number of legacy chemicals (>10 years old): 4,173

slide-28
SLIDE 28

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

28

  • ChemTrack generated a list of legacy chemicals (>10 years
  • ld) for B151
  • Chemical Science Division Deputy Department Leader

(DDL) sorted the list according to locations and owners

  • Total number of legacy chemicals: 4,173
  • Total number of owners: ~ 70 (top 5 owned ~ 57%)
  • DDL decided to focus on the top 5 owners, identifying 2,398 potential

chemicals for disposal

  • DDL worked with owners to identify chemicals for disposal
  • Reinforce that the process would just involve highlighting chemicals to

be disposed on a spreadsheet

  • Initially, 696 legacy chemicals identified for disposal

Methodology for Identifying Targeted Chemicals

slide-29
SLIDE 29

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

29

  • ChemTrack and waste management personnel reviewed the

list of targeted chemicals, ensuring a coordinated effort to safely handle and dispose of the identified materials

  • The list of targeted chemicals was also reviewed to evaluate
  • pportunities for repurposing
  • The list of targeted chemicals was loaded onto the tablets
  • A kickoff meeting was held with key players to ensure that

everyone was on the same page before starting field work

  • Safety considerations
  • Controlling access
  • Upfront coordination with waste management techs for timely

disposition

Methodology for Identifying Targeted Chemicals (continued)

slide-30
SLIDE 30

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

30

  • Coordinated Effort
  • Chemical Science Division provided access/escort to the

laboratories

  • Waste techs provided secondary containers and guidance
  • n segregation
  • ChemTrack inventory techs scanned and sorted chemicals
  • The area ES&H Technician performed swipes to verify

containers were free of radiological contamination

  • Waste techs picked up and processed chemicals before

removal from the ChemTrack Inventory database

  • The field work minimally impacted the chemical custodians

Field Work

slide-31
SLIDE 31

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

31

slide-32
SLIDE 32

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

32

slide-33
SLIDE 33

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

33

slide-34
SLIDE 34

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

34

slide-35
SLIDE 35

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

35

  • A total of 811 chemicals disposed
  • Repurposing was minimal due to the nature of

the effort and the age of the selected chemicals

  • Fifty percent of the disposed chemicals were

19+ years old

Legacy Pilot Program Results

slide-36
SLIDE 36

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

36

  • Need to label the temporary staging areas to

maintain control of the chemicals being stored (and prevent inadvertent additions)

  • In the future, personnel will do a more thorough

review of the targeted chemicals list (one secondary explosive was found during the pilot and the chemical custodian was unaware of its explosive properties)

Lessons Learned

slide-37
SLIDE 37

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

37

  • FY2013
  • Pilot Program subsequently expanded to 6 additional

buildings

— 3,466 legacy chemicals disposed — 94 legacy chemicals repurposed

  • Total Legacy Reduction for FY2013 (including

attrition)

  • 6,577 bar coded containers

Expansion of Pilot Program

slide-38
SLIDE 38

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

38

  • FY2014
  • Continue to expand Pilot Program to additional

facilities

  • LLNL Experimental Test Site (Site 300) Methodology

FY2014 Chemical Legacy Reduction Efforts

# of Bar Coded Containers Targeted for Reduction Percent Reduction Bar Coded Containers (as

  • f 12/30/13)

5745 Bar Coded Containers 5-10 years old 939 213 22.7 % Bar Coded Containers > 10 years old 1840 1324 72.0 %

slide-39
SLIDE 39

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

39

  • What has your site undertaken recently to reduce

(legacy) hazardous material inventories?

  • What has worked well? or not?
  • How do you prioritize and resource legacy reduction

efforts at your site?

  • Progress in reducing legacy inventories in the past

has not always been sustained…what strategies (e.g., policies, processes, and/or tools) can we employ to continuously improve?

  • What chemical safety issues and lessons learned

have you encountered in your legacy reduction efforts that you can share with the rest of the group?

Discussion Topics

slide-40
SLIDE 40

Lawrence Livermore National Laboratory

LLNL-PRES-xxxxxx

40

Shoot for slow but steady progress as the inventory continues to age

35.5 36 36.5 37 37.5 38 38.5 39 39.5 40 40.5 1/1/2010 1/1/2011 1/1/2012 1/1/2013 1/1/2014

Percentage Legacy

slide-41
SLIDE 41
