Liquid Fueled Engine Test Stand Testing, data acquisition, integration platform for liquid propellent based rocket components Project Overview and motivation PSAS Goal Send a rocket above the 100 km Krmn line The future of Portland

slide-1
SLIDE 1

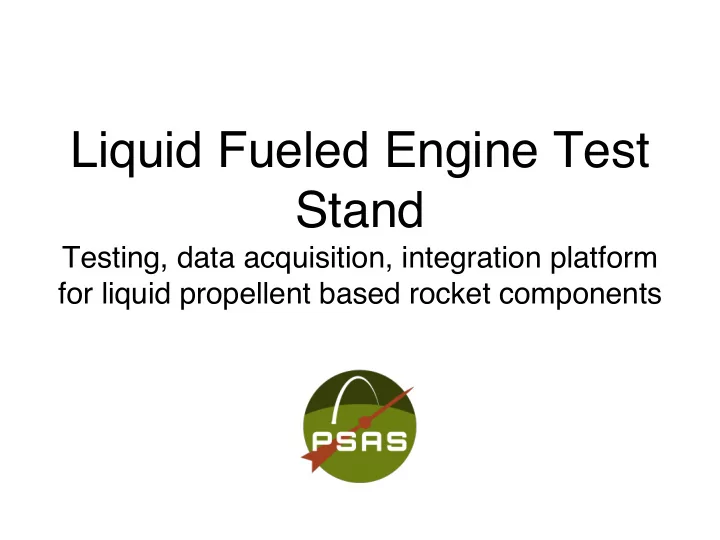

Liquid Fueled Engine Test Stand

Testing, data acquisition, integration platform for liquid propellent based rocket components

slide-2
SLIDE 2

Project Overview and motivation

PSAS Goal Send a rocket above the 100 km Kármán line

slide-3
SLIDE 3
  • LV-3 (Launch Vehicle 3, current design)
  • Spring Launch
  • 6” diameter
  • Carbon Fiber construction
  • Solid Rocket motor
  • Testing platform for airframe

technologies § Electronic Nosecone Separation Ring (ENSR) § Reaction Control System (RCS)

The future of Portland State Aerospace Society Rockets

slide-4
SLIDE 4
  • LV-4 (Launch Vehicle 4) - larger version of

LV-3 with:

  • 100km launch capability
  • Switch to Liquid Fuel to maintain single

stage construction

  • Technologies Enabling LV-4:

§ Reaction Control System § Cryogenic Carbon Fiber Tanks § Electric Propellent Feed § Thrust Vanes or Gimballing § Engine Throttling

The future of Portland State Aerospace Society Rockets

slide-5
SLIDE 5
  • 2.2 kN thrust ground-test engine
  • Liquid Oxygen(LOX) + Isopropyl alcohol

(IPA)

  • Liquid Oxygen centered pintle injection
  • Gaseous Oxygen spark-torch ignition
  • Regeneratively cooled

combustion chamber

  • Direct Metal Laser Sintering 3D-printed

AlSi10Mg § Thank you i3DMFG!

Liquid Fuel Engine Test Stand

slide-6
SLIDE 6

Engine Design

Fuel port LOX Port Cooling Channels Pintle Fuel Metering Annular Orifice

Liquid Fuel Engine Test Stand

slide-7
SLIDE 7

Pintle Injector

Active sub-project

  • Prototype has been

produced

  • Manufacturing

process for design has been documented

Liquid Fuel Engine Test Stand

slide-8
SLIDE 8

Pintle Injector

Cold Flow Test Jig

  • Test Jig has been built
  • Test procedure is

under development

Project is being overseen by an industry advisor Liquid Fuel Engine Test Stand

slide-9
SLIDE 9

Purpose: To allow for the safe

testing and flight integration of liquid propellant engines and related technologies. Liquid Fuel Engine Test Stand

slide-10
SLIDE 10

General requirements: Data and Analysis

  • Controlled Remotely By a Computer
  • Measure engine performance characteristics

Liquid Fuel Engine Test Stand

slide-11
SLIDE 11

General requirements: Functionality

  • Deliver propellants to test engine
  • Provide a reliable source of ignition
  • Modular, used for multiple engines

Liquid Fuel Engine Test Stand

slide-12
SLIDE 12

Lox Handling with the Air National Guard General requirements: Safety

slide-13
SLIDE 13

General requirements: Safety

  • Physical design to mitigate hazards
  • Default to failsafe mode
  • Computerized safety procedure
  • Physically isolatable from computer

Liquid Fuel Engine Test Stand

slide-14
SLIDE 14

Documentation and Safety

  • Identify potential hazards
  • Storage and transportation best practices

Liquid Fuel Engine Test Stand

slide-15
SLIDE 15

Documentation and Safety

  • University Risk Management Meetings

○ Insurance ○ SOP’s and documentation ○ Transportation

Liquid Fuel Engine Test Stand

slide-16
SLIDE 16

Test Stand Design: FEA Liquid Fuel Engine Test Stand

slide-17
SLIDE 17

Frame Construction Liquid Fuel Engine Test Stand

slide-18
SLIDE 18

Piping and Instrumentation Diagram (P&ID)

slide-19
SLIDE 19

P&ID:

Pressure Panel

slide-20
SLIDE 20

P&ID:

Pressure Panel

slide-21
SLIDE 21

Piping and Instrumentation Diagram (P&ID)

slide-22
SLIDE 22

P&ID:

Pressure Feed System

slide-23
SLIDE 23

P&ID:

Pressure Feed System

slide-24
SLIDE 24

Piping and Instrumentation Diagram (P&ID)

slide-25
SLIDE 25

P&ID:

Fuel Line

slide-26
SLIDE 26

Piping and Instrumentation Diagram (P&ID)

slide-27
SLIDE 27

P&ID:

LOX Line

slide-28
SLIDE 28

Piping and Instrumentation Diagram (P&ID)

slide-29
SLIDE 29

P&ID:

Igniter

slide-30
SLIDE 30

P&ID:

Igniter Testing

slide-31
SLIDE 31

Piping and Instrumentation Diagram (P&ID)

slide-32
SLIDE 32

P&ID:

Purge Line

slide-33
SLIDE 33

New Member Orientation

slide-34
SLIDE 34

TSAR - Test Stand Automation and Regulation

  • Control of the firing sequence from desktop

application via Wifi

  • Separate sensing from engine control
  • Engine control microprocessor written in C for

fast failure detection

slide-35
SLIDE 35

Real Time Calculations

  • Thrust
  • Mass Flow Rate
  • Temperature
  • Critical Pressures
  • And More!
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38

Bill of Materials

slide-39
SLIDE 39

Bill of Materials (Continued)

slide-40
SLIDE 40

Bill of Materials (Continued...)

slide-41
SLIDE 41

What's Next for LFETS?

  • Test the Pintle
  • Test and refine Augmented Spark Igniter
  • Main Fuel Valve (hydraulic load testing)
  • Main LOX Valve (Code and refine, test with LN2)
  • Capacitive LOX Fill Level Sensor
  • LOX safe Cavitating Venturi (flow rate sensor)
  • Final build, testing and analysis of stand
  • Live Engine Test

Test Stand Projects

slide-42
SLIDE 42

Future Test Stand flight hardware integration

Electronic Feed System (EFS) Cryogenic Carbon Fiber Fuel Tank (CFT)

slide-43
SLIDE 43

Our thanks to Oregon Space Grant Consortium and NASA for their support.
