LinuxCon 2010 Efficient Trace Format for System-Wide Tracing Presentation at: http://www.efficios.com/linuxcon2010 E-mail: mathieu.desnoyers@efficios.com Mathieu Desnoyers August 11th, 2010 1 > Presenter Mathieu Desnoyers

slide-1
SLIDE 1

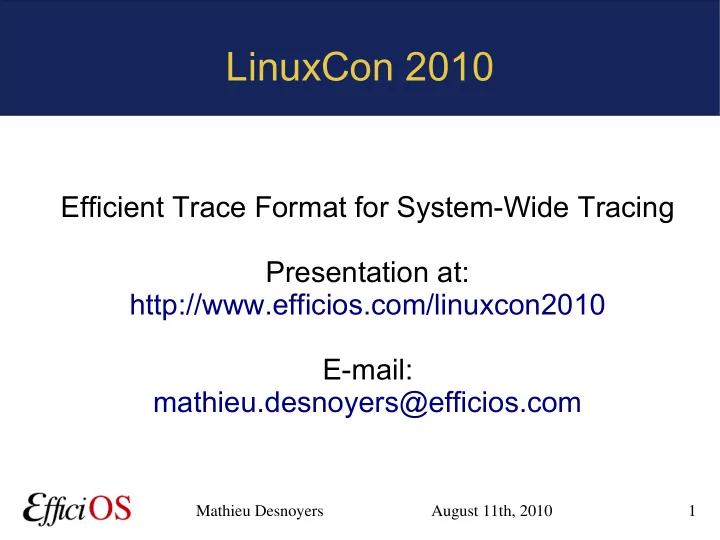

August 11th, 2010 Mathieu Desnoyers 1

LinuxCon 2010

Efficient Trace Format for System-Wide Tracing Presentation at: http://www.efficios.com/linuxcon2010 E-mail: mathieu.desnoyers@efficios.com

slide-2
SLIDE 2

August 11th, 2010 Mathieu Desnoyers 2

> Presenter

  • Mathieu Desnoyers
  • EfficiOS Inc.
  • http://www.efficios.com
  • Author/Maintainer of
  • LTTng, LTTV, Userspace RCU
  • Ph.D. in computer engineering
  • Low-Impact Operating System Tracing
slide-3
SLIDE 3

August 11th, 2010 Mathieu Desnoyers 3

> Plan

  • Why we need a common trace format
  • Linux kernel tracing today
  • End user use-cases
  • User requirements
  • Trace format proposal outline
  • Reference implementation
slide-4
SLIDE 4

August 11th, 2010 Mathieu Desnoyers 4

> Why we need a common trace format

  • Interoperability between tracers and analysis

tools

– LTTng, Ftrace, Perf, LTTV, Eclipse Linux Tools

LTTng viewer, Kernelshark, ...

  • Analysis of heterogeneous systems
slide-5
SLIDE 5

August 11th, 2010 Mathieu Desnoyers 5

> Linux kernel tracing today

  • Shared instrumentation

– Static tracepoints (TRACE_EVENT()) – Dynamic probes – Function tracer – Performance counters

  • Perf
  • Ftrace
  • LTTng (external patch)
slide-6
SLIDE 6

August 11th, 2010 Mathieu Desnoyers 6

> State of Linux tracers

  • Ftrace, Perf

– Opening the Linux kernel developer community

to tracing

– Centered on kernel developers requirements – Still missing the point for companies developing

  • n top of Linux (end users)
  • Telecommunication companies
  • Embedded systems
  • Enterprise servers
  • And many more !
slide-7
SLIDE 7

August 11th, 2010 Mathieu Desnoyers 7

> End user use-cases: telecom

  • Monitoring of telecommunication systems

– Enhance error reports with trace data – Configured and used by engineers and

  • perators

– Always-on trace data collection – Reboot time is critical – Limited trace extraction bandwidth, storage and

memory

– Traces gathered over a large collection of

nodes, viewed on different hosts

slide-8
SLIDE 8

August 11th, 2010 Mathieu Desnoyers 8

> End user use-cases: RTOS

  • Small footprint RTOS

– Limited memory – Bounded tracer execution time – In some cases, heterogeneous system with both

Linux and RTOS interacting

slide-9
SLIDE 9

August 11th, 2010 Mathieu Desnoyers 9

> End user use-cases: servers

  • Performance analysis and debugging of

enterprise servers

– System-wide problem scope – Rare occurrence of problems – Very large traces generated – Delay between end of tracing and trace analysis

availability directly affects users

– Traces gathered over a large collection of

nodes, viewed on different hosts

slide-10
SLIDE 10

August 11th, 2010 Mathieu Desnoyers 10

> User requirements: user classes

  • Telecommunication
  • Embedded
  • Enterprise servers
  • High-performance computing
slide-11
SLIDE 11

August 11th, 2010 Mathieu Desnoyers 11

> User requirements: users

Reflects the needs of the following users:

– Wind River – Monta Vista – Autodesk – Cisco – Mentor Graphics – Texas Instruments – Fujitsu – Google – IBM – Ericsson – Samsung – Nokia – Siemens – Freescale – MCA TIWG members

slide-12
SLIDE 12

August 11th, 2010 Mathieu Desnoyers 12

> User requirements (1)

  • Compactness of traces
  • Scalability to multi-core and multi-processor
  • Low-overhead is key
  • Production-grade tracer reliability
  • Flight recorder mode
  • Availability of trace buffers for crash diagnosis
  • Support multiple trace sessions in parallel
slide-13
SLIDE 13

August 11th, 2010 Mathieu Desnoyers 13

> User requirements (2)

  • Heterogeneous environment support

– Portability – Distinct host/target environment support – Management of multiple target kernel versions – No dependency on kernel image to analyze

traces (traces contain complete information)

slide-14
SLIDE 14

August 11th, 2010 Mathieu Desnoyers 14

> User requirements (3)

  • Network streaming support
  • Live view/analysis of trace streams
  • System-wide (kernel and user-space) traces
  • Scalability of analysis tools to very large data

sets

slide-15
SLIDE 15

August 11th, 2010 Mathieu Desnoyers 15

> Trace Format Proposal Outline

  • Architecture
  • Linux-specific model
slide-16
SLIDE 16

August 11th, 2010 Mathieu Desnoyers 16

> Architecture

  • High-level model aiming at industry-wide

approval

  • 3 constituents:

– Event – Section – Metadata

slide-17
SLIDE 17

August 11th, 2010 Mathieu Desnoyers 17

> Event

  • Physically ordered within a section
  • Basic structure

– Event type: numeric identifier – Event context – Event payload

slide-18
SLIDE 18

August 11th, 2010 Mathieu Desnoyers 18

> Event context (all optional)

  • Ordering identifier

– Sequence number or time-based

  • Current time
  • Execution context

– IRQ, bottom half, thread context...

  • Hardware performance counter information
  • Thread, Virtual CPU, CPU, board, node ID
  • Event payload size
slide-19
SLIDE 19

August 11th, 2010 Mathieu Desnoyers 19

> Event payload

  • Variable event size
  • Maximum event size configurable
  • Payload size information available through

metadata (and optionally in event context)

  • Supports various data alignment, e.g.

– Natural alignment – Packed alignment

slide-20
SLIDE 20

August 11th, 2010 Mathieu Desnoyers 20

> Section

  • Similar to ELF sections
  • Has a multi-level section identifier
  • Contains a subset of event types
  • Section context (all optional)

– Apply to all events contained in that section – Thread, Virtual CPU, CPU, board, node ID – Execution context

  • IRQ, bottom half, thread context...
slide-21
SLIDE 21

August 11th, 2010 Mathieu Desnoyers 21

> Metadata

  • Describes

– Application environment setting – Basic types available, byte ordering – Event type to ( section, event ID ) mapping – Section context fields – Event context fields (per section and per event) – Per-event payload fields

  • Scope: whole trace
slide-22
SLIDE 22

August 11th, 2010 Mathieu Desnoyers 22

> Metadata (basic types)

  • Types available

– Integer – Strings – Arrays – Sequence – Floats – Structures – Maps (a.k.a. Enumerations) – Bitfields – ...

slide-23
SLIDE 23

August 11th, 2010 Mathieu Desnoyers 23

> Metadata (3)

  • Describes invariant properties of the

environment generating the trace

  • Architecture-agnostic (text-based)
  • Trace version
  • Trace capabilities

– Event ordering, time flow, ...

slide-24
SLIDE 24

August 11th, 2010 Mathieu Desnoyers 24

> Linux-specific Model

  • Event payload

– Support ISO C naturally aligned and packed

type layouts

  • Require events to be ordered by time-stamps

– Both ordering and time capabilities

  • Payload size encoded within metadata
  • Each section is represented as a trace stream

– For the kernel, map each event group / CPU ID

to a stream

slide-25
SLIDE 25

August 11th, 2010 Mathieu Desnoyers 25

> Linux-specific Model

  • Store metadata in a section, along with the

trace

– Extract metadata from TRACE_EVENT() data

  • Use target endianness
  • Should allow 1 to 1 mapping between memory

buffers and generated trace files

– Zero-copy with splice()

slide-26
SLIDE 26

August 11th, 2010 Mathieu Desnoyers 26

> Reference implementation

  • Conversion library

– To standard format – From standard format – LGPL

  • Providing format conversion as first integration

step

  • Will be usable as reference implementation to

generate the format natively from the tracer

  • Ongoing work
slide-27
SLIDE 27

August 11th, 2010 Mathieu Desnoyers 27

> Funding

  • Thanks to Ericsson and the Embedded Linux

Forum for funding parts of this work.

  • Thanks to the Multi-Core Association Tool

Infrastructure Work Group for their collaboration

  • n the creation of this trace format.
slide-28
SLIDE 28

August 11th, 2010 Mathieu Desnoyers 28

> Questions ?

?

– http://www.efficios.com

  • LTTng Information

– http://lttng.org – ltt-dev@lists.casi.polymtl.ca
