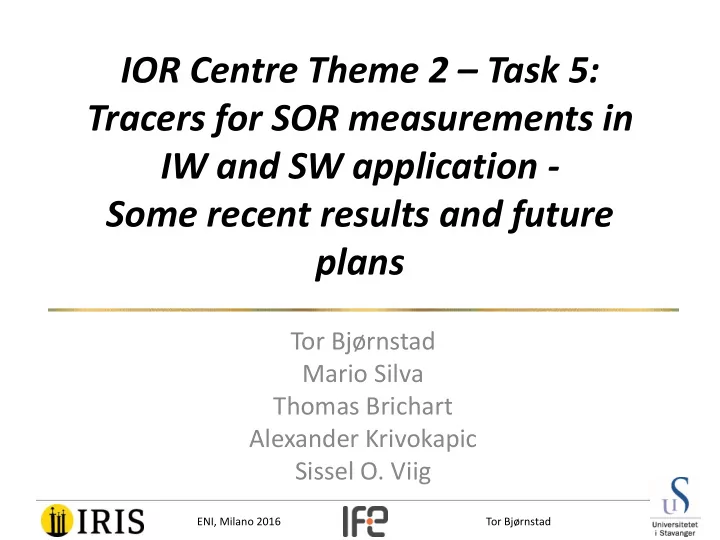

IOR Centre Theme 2 – Task 5: Tracers for SOR measurements in IW and SW application - Some recent results and future plans

Tor Bjørnstad Mario Silva Thomas Brichart Alexander Krivokapic Sissel O. Viig

ENI, Milano 2016 Tor Bjørnstad

PITT and SWCTT

• Interwell tracer injection probes the water-

contactable volume between wells. PITT measures SOR in this volume (SPE 164059)

• Single well push-and-pull (SWTT) tracer application

measures SOR in a volume around a well 5-10 m from wellbore.

SWTT PITT

ENI, Milano 2016 Tor Bjørnstad

Injection well Production well Statified reservoir

• Preferential flow directions
• Horizontal and vertical

communication between wells

• Permeability strata
• Sweep volumes
• Large-scale heterogeneities

ENI, Milano 2016 Tor Bjørnstad 3

• A passive water tracer moves
• nly with the water water
• Phase-partitioning tracer

distributes betweeen water and

• il
• At residual oil saturation water

moves, oil is (close to) stagnant

Passive and partitioning tracers…

K = (CTr)o/(CTr)w

ENI, Milano 2016 Tor Bjørnstad 4

Passive and partitioning tracer –

relative speed

Time Conc. Inj. ∝ SOR

ENI, Milano 2016 Tor Bjørnstad 5

Volume (or time) Relative concentration

So = (Tp – Tnp)/[Tp + Tnp(K – 1)]

ENI, Milano 2016 Tor Bjørnstad 6

Thermal degradation and sorption to substrates

Sealed glass ampoule Rock substrate (sandstones, carbonates, clays etc.) Heating bath,- thermally controlled

ENI, Milano 2016 Tor Bjørnstad 7

2,3-Dimethylpyrazine (12 weeks)

ENI, Milano 2016 Tor Bjørnstad

4-Methoxybenzyl alcohol (12 weeks)

ENI, Milano 2016 Tor Bjørnstad

Co-operation with Cornell Univ. - C-dots

ENI, Milano 2016 Tor Bjørnstad 10

C-dots and fluorescense

Due to oxygen and nitrogen functional groups on their surfaces, these carbon nanoparticles shine brightly from blue to deep red when they absorb certain wavelengths of light

ENI, Milano 2016 Tor Bjørnstad

SWCTT principle

Chemical reaction

Hydrolysis reaction + + Ester Water Alcohol Acid

ENI, Milano 2016 Tor Bjørnstad 12

Can a passive and a partitioning tracer be used in a SWCTT test?

See next picture frame:

ENI, Milano 2016 Tor Bjørnstad 13

On backproduction……

The answer is NO!

ENI, Milano 2016 Tor Bjørnstad 14

Therefore, injection of a reacting tracer is necessary

The well is shut-in for conversion of ca. 50 % of the reacting tracer into a passive water tracer

ENI, Milano 2016 Tor Bjørnstad 15

Therefore, injection of a reacting tracer is necessary

On back-production, the produced water tracer starts

• n the same starting line as the remaining partitioning

tracer and they separate on their way back.

ENI, Milano 2016 Tor Bjørnstad 16

Fluorescence of Rare Earth Compounds

Fluorescence spectra of selected rare earths Fluorescence colors of selected rare earths

ENI, Milano 2016 Tor Bjørnstad 17

Ester-based SWCTT = Single-Well Chemical Tracer Techn.

Goal:

* 3 – 5 new reacting tracers for H&P measurement of SOR

DTPA

* We synthesize new esters, for example starting with the poly- carboxylic acid DTPA etc.

ENI, Milano 2016 Tor Bjørnstad 18

Promising reaction

+ Tb3+

O O O O O OH OH OH OH OH N N N N O O O O O OH OH OH OH N N N N OH O O O O O O OH OH OH OH N N N N R

+ R-OH H2O +

Temporarily cencored Temporarily cencored Temporarily cencored

ENI, Milano 2016 Tor Bjørnstad

Post.docs and PhD-stud.

Thomas Brichart, post.doc. Mahmoud Ould Metidji, post.doc. Mario Silva, PhD-stud.

ENI, Milano 2016 Tor Bjørnstad 20

New SWTT – reduction in volume and time

Present timeline – after a long production period New timeline – after a long production period Future timeline – before production start
