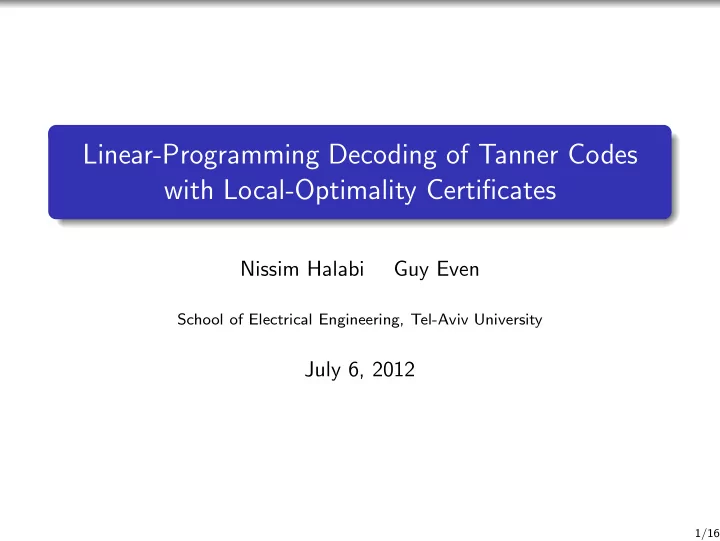

Linear-Programming Decoding of Tanner Codes with Local-Optimality Certificates Nissim Halabi Guy Even School of Electrical Engineering, Tel-Aviv University July 6, 2012 1/16
Communication Over a Noisy Channel u ∈ { 0 , 1 } k c ∈ C ⊂ { 0 , 1 } N λ ( y ) ∈ R N ˆ c ∈ { 0 , 1 } N Channel Channel Noisy Channel noisy codeword Encoder Decoder codeword u ∈ { 0 , 1 } k ˆ MBIOS channel: memoryless, binary-input, output-symmetric Log-Likelihood-Ratio (LLR): � Pr( y i | c i = 0) � λ i ( y i ) � ln Pr( y i | c i = 1) Linear Code: C ⊆ { 0 , 1 } N is subspace of F N 2 of dimension k . Optimal decoding: Maximum Likelihood decoding. Input: y . Output: ml ( y ) . ml ( y ) � arg max Pr { y | c = x } x ∈C = arg min � λ ( y ) , x � x ∈C 2/16
Tanner Graphs and Tanner Codes G = ( V ∪ J , E ) Tanner code C ( G, C J ) represented x 1 v 1 by bipartite graph x 2 v 2 x ∈ C ( G, C J ) iff x ∈ C j for every C 1 C 1 x 3 v 3 j ∈ { 1 , . . . , J } C 2 C 2 x 4 v 4 degrees: can be regular, irregular, bounded, or arbitrary x 5 v 5 C 3 C 3 can allow arbitrary linear local x 6 v 6 codes C 4 C 4 x 7 v 7 minimum local distance d ∗ � min j d j x 8 v 8 C 5 C 5 x 9 v 9 Examples: LDPC codes x 10 v 10 [Gallager’63], Expander codes [Sipser-Spielman’96] V J Variable Nodes Local-Code Nodes 3/16
Linear Programming (LP) Decoding conv( X ) ⊆ R N - the convex hull a set of points X ⊆ R N . ML-decoding can be rephrased: ml ( y ) � arg min � λ ( y ) , x � x ∈ conv( C ) Generalized fundamental polytope of a Tanner code C ( G, C J ) - relaxation of conv( C ) [following Feldman-Wainwright-Karger’05] P ( G, C J ) � � conv( C j ) C j ∈C J LP-decoding: lp ( y ) � arg min � λ ( y ) , x � x ∈P ( G, C J ) 4/16
LP Decoding with ML Certificate LP-decode ( λ ) x lp ← arg min x ∈P ( G, C J ) � λ, x � . solve LP: ˆ x lp ∈ { 0 , 1 } N then if ˆ x lp is an ML codeword return ˆ else return fail end if Polynomial time algorithm Applies to any MBIOS channel! Integral solution ⇒ ML-certificate 5/16
Goal: Analysis of Finite Length Codes Problem (Finite Length Analysis) Design: Constant rate code C ( G, C J ) and an efficient decoding algorithm dec . Analyze: If SNR > t , then Pr ( dec ( λ ) � = x | c = x ) � exp ( − N α ) for some 0 < α . Goal: Minimize t (lower bound on SNR). Remarks: Not an asymptotic problem Code is not chosen randomly from an ensemble Successful decoding � = ML decoding 6/16
Certificate for ML-Optimality / LP-Optimality Problem (Optimality Certificate) Input: Channel observation λ and a codeword x ∈ C Question 1: Is x ML-optimal with respect to λ ? is it unique? (NP-Hard) Question 2: Is x LP-optimal with respect to λ ? is it unique? Relax: one-sided error test A positive answer = certificate for the optimality of x w.r.t. λ A negative answer = don’t know if optimal or not (allow one sided error) Prefer: efficient test via local computations ⇒ “Local-Optimality” criterion 7/16
Definition of Local-Optimality [Feldman’03] For x ∈ { 0 , 1 } N and f ∈ [0 , 1] N ⊆ R N , define the relative point x ⊕ f by ( x ⊕ f ) i � | x i − f i | Consider a finite set of “deviations” � B ⊂ [0 , 1] N Definition (following [Arora-Daskalakis-Steurer’09]) A codeword x ∈ C is locally-optimal w.r.t. λ ∈ R N if for all vectors β ∈ B , � λ, x ⊕ β � > � λ, x � Goal λ Find a set B such that: ML ( λ ) 1 x ∈ lo ( λ ) ⇒ x = ml ( λ ) & unique LP ( λ ) 2 x ∈ lo ( λ ) ⇒ x = lp ( λ ) & unique LO ( λ ) 3 Pr λ { x ∈ lo ( λ ) | c = x } = 1 − o (1) 8/16
Set B : Projections of Normalized Weighted Subtrees in Computation Trees of the Tanner Graph 1. Tanner graph G 2. Computation tree of G , 3. d -tree: subtree T height = 2 h , root= var node r deg (local-code node)= d T 4 r r ( r ) 3-tree ( d = 3) 4. Weight function 5. Projection of weighted d -tree to Tanner graph. w T : ˆ Deviation β ∈ R N = projection assignment to var. nodes V ( T ) → R β v + w T ( p ) w 1 w 2 9/16
Local-Optimality based on Deviations Set B ( w ) d Set of deviations B ( w ) = projections of w -weighted d -trees d � � β ∈ R N | ∃ w − weighted d − tree T B ( w ) � : β = π ( T ) d Definition A codeword x ∈ C is ( h, w, d ) -locally optimal w.r.t. λ ∈ R N if for all vectors β ∈ B ( w ) , d � λ, x ⊕ β � > � λ, x � 2 h - tree height ( h levels) w ∈ R h + - tree level weights d � 2 - local-code nodes degree 10/16
d -Trees Get “Fatter” As d Increases 2−tree 3−tree 4−tree (skinny tree [ADS’09]) Over an MBIOS channel, the probability of a local-optimality certificate increases as deviations become denser 11/16
Local Optimality ⇒ unique ML-codeword Theorem Let d � 2 . If x is ( h, w, d ) -locally optimal w.r.t. λ , then x is the unique ML-codeword w.r.t. λ . hard: is x the unique ML-codeword? easy: is x is locally optimal? (dynamic programming) Proof method: Lemma (Decomposition Lemma) Every codeword is a conic combination of projections of weighted d -trees in computation trees of G x = α · E β ∈ ρ B ( w ) d [ β ] Following [ADS’09]: decomposition lemma ⇒ unique ML 12/16
Local Optimality ⇒ unique LP optimality Theorem If x is a ( h, w, d ) -locally optimal codeword w.r.t. λ , then x is also the unique optimal LP solution given λ . Proof method: Use graph cover decoding [Koetter-Vontobel’05]: In graph 1 covers, realization of LP-opt and ML codeword are the same Lemma: local-optimality is invariant w.r.t. lifting to covering 2 graphs Lift of locally optimal codeword is the unique ML-codeword in 3 the graph cover. 13/16
Local-Optimality for LP-decoding - Comparison [KV’06][ADS’09][HE’11] Current h is unbounded. Charac- h < 1 Deviation 4 girth( G ) . Local terization using computa- height isomorphism tion trees Irregular Tanner graph. Add normalization factors Regularity Regular Tanner graph according to node degrees [Von’10] Linear codes. Tighter re- Constraints Single parity-check laxation for the generalized codes fundamental polytope (also in [Von’10]) “skinny”. Locally satis- “fat”. Not necessarily sat- Deviations fies parity checks. isfies local codes. LP solu- Use reduction to ML via Dual/Primal LP. Poly- tion anal- characterization of graph hedral analysis. ysis cover decoding 14/16
Probabilistic Analysis for Regular Tanner Codes - Examples Form of finite length bounds: ∃ c > 1 . ∃ t. ∀ noise < t . Pr { LP decoder fails } � exp ( − c girth ) If girth = θ (log N ) , then Pr { LP decoder fails } � exp ( − N α ) , for 0 < α < 1 N → ∞ : t is a lower bound on the threshold of LP-decoding with LO-certificate [Skachek-Roth’03] [Feldman-Stein’05] Current work Decoder Iterative LP LP Channels Bit-flipping (worst- Bit-flipping (worst- MBIOS (average- case) case) case) Technique Expansion Expansion Density evolution of sum-min-sum random process Example: d R >> 2 d R >> 2 d R = 16 BSC( p ) threshold d ∗ = 4 d ∗ >> 2 d ∗ >> 2 (2 , d R ) -reg Tan- ner code, Rate= 0 . 375 p lp > 0 . 0008 p lp > 0 . 044 p iterat. > 0 . 0016 15/16
Summary Conclusions Follows line of works based on combinatorial characterizations of local-optimality [KV’06] [ADS’09] [Von’10] [HE’11]: A new combinatorial characterization of local-optimality for 1 irregular Tanner codes Local-opt. ⇒ ML-opt. 2 Local-opt. ⇒ LP-opt. 3 Efficiently computed certificate (dynamic-programming) 4 Upper bounds on the word error probability of LP-decoding 5 Open questions Prove bounds on noise thresholds for LP-decoding that are better than p lp � 0 . 05 for rate- 1 2 codes [ADS’09] Probabilistic analysis for irregular Tanner codes Probabilistic analysis beyond the girth 16/16
