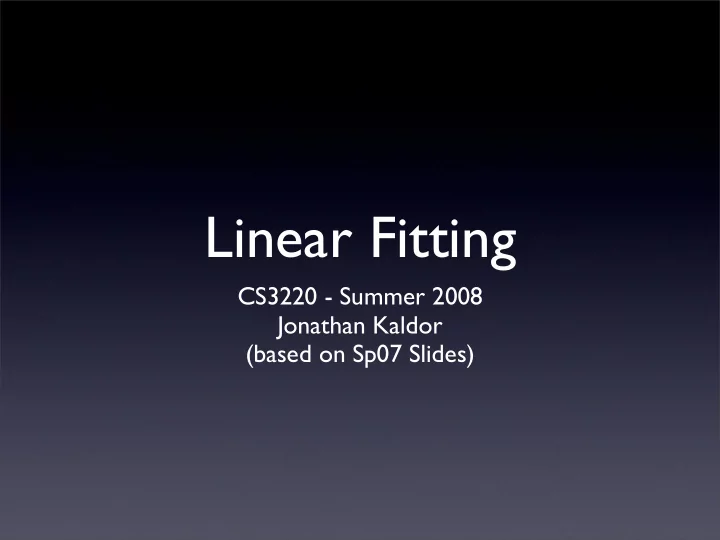

Linear Fitting

CS3220 - Summer 2008 Jonathan Kaldor (based on Sp07 Slides)

From N to M

• We have been talking about solving linear

systems of n equations in n variables

• In other words, Ax = b where A is n x n
• Usually: a single solution

A x = b

Square system

From N to M

• What happens if the number of equations is

not equal to the number of unknowns?

• General case: m linear equations in n

unknowns

• Still expressible as a matrix times a vector...
• ...but no longer a square matrix

Rectangular Systems

A x = b A x = b

Overdetermined

(m > n)

Underdetermined

(m < n)

Rectangular Systems

• Still well-defined set of matrix equations
• May be full rank but have many solutions

(or no exact solutions)

• Our focus: m > n (overdetermined

systems)

Example

4 2 2 10 2 4 x y = 1 3

Overdetermined Systems

• When full rank, extra equations either not

necessary or unsatisfiable

• Can we even talk about what a solution to

this problem is?

• Want “best” answer for some definition
• f “best”

Examples

• Model Fitting

Examples

• Model Fitting

Examples

• Model Fitting
• We’ve fit our data points exactly
• But do we need to?
• Error in experimental results
• Fewer dimensions in model
• High degree polynomial overfitting data

Examples

• Model Fitting

Examples

• Model Fitting

1 x1 1 x2 1 x3 1 x4 ⋮ b a = d1 d2 d3 d4 ⋮ Find best equation ax+b to match data

Examples

• Model Fitting

1 x1 x12 1 x2 x22 1 x3 x32 1 x4 x42 ⋮ c b a = d1 d2 d3 d4 ⋮ Find best equation ax2 + bx + c to match data

Examples

• Hugely applicable in sciences
• Fitting model to experimental results
• Economics
• Predicting economic performance from

economic indicators

• NBA - predicting future performance of

draft picks

Back to the Problem

• So this is an important problem
• ... but we still don’t know what the

answer will look like!

• In the square system, solved Ax = b,

i.e. Ax - b = 0

• In the rectangular system, Ax - b is not

necessarily 0, but instead we can minimize the distance between Ax and b

Vector Distances

• How long is this vector?

(3,4)

Vector Distances

• How long is this vector?

(3,4) 5?

Vector Distances

• How long is this vector?

(3,4) 5? 7?

Vector Distances

• How long is this vector?

(3,4) 5? 7? Something else?

Vector Distances

• Distances (called ‘norms’, denoted with ‖‖)
• We require four properties:

‖0‖ = 0 ‖x‖ > 0 if x≠0 ‖c x‖ = |c| ‖x‖ ‖x + y‖ ≤ ‖x‖ + ‖y‖

• Last property: triangle inequality

Vector Distances

• Common vector norms: p-norms
• (∑ |xi|p)^(1/p)
• Common cases:
• p = 1 (Manhattan distance)
• p = 2 (Euclidean distance)
• p = infinity (Chebyshev norm)

Vector Distances

• Denote particular p-norm with subscript
• ‖x‖1, ‖x‖2, etc...
• Note alternate form of 2-norm
• sqrt(xTx)

Back to the Problem (Again)

• Rectangular systems solved with respect to

the 2-norm

• x* = min ‖Ax-b‖2

= min sqrt(∑ (A(i,:)*x - b(i))2) = min ∑ (A(i,:)*x - b(i))2

• We say x* is the least-squares solution to

the rectangular system Ax=b, with residual r = Ax* - b

x x x

Least Squares

• Why the 2-norm?
• Intuitive
• Sometimes is the ‘proper’ measure
• Easy to solve
• Of the 3 reasons, third is most important

2x1 Least Squares

• Take a 2x1 example

2 1 x = 3 3

2x1 Least Squares

(2,1) (3,3)

2x1 Least Squares

(2,1) (3,3)

2x1 Least Squares

• Given line and point p, find closest point on

line to p

• Perpendicular from p to the line
• a.k.a. orthogonal projection

Review of Orthogonality

• We say two vectors are orthogonal if their

dot product is equal to 0

• xTy = ‖x‖2‖y‖2 cosΘ
• If x≠0 and y≠0, above is zero iff cosΘ =

0, i.e. Θ=±π/2, i.e. they are perpendicular

Review of Orthogonality

• We say two vectors are orthonormal if

they are orthogonal and ‖v1‖2 = ‖v2‖2 = 1

• Can extend to say sets of n vectors are
• rthonormal with respect to each other
• We say a matrix Q is orthogonal if its

columns are all orthonormal with respect to each other

• QTQ = I

Perpendicular Residual

• In our 2x1 case, the residual ax - b is
• rthogonal to the vector a
• Leads to aTr = 0

aT(ax - b) = 0 aTax - aTb = 0 aTax = aTb

3x2 Case

• Trust your geometric intuition
• 3x2 case: closest point on plane
• Holds in higher dimensions (but best not to

try and picture it!)

3x2 Case

• Find closest point on 2D plane defined by

vectors a1 and a2 (3D vectors)

• Residual must be orthogonal to both a1 and

a2

• Two equations: a1Tr = 0

a2Tr = 0

• Rewrite as

a1T a2T x = a1 a2 b

General Case

• Extend this to m equations in n variables
• Our residual must be orthogonal to each

column in A

• Results in n equations, each of the form

A(:,i)Tr = 0

• Can rewrite as ATAx = ATb

Normal Equations

• This is known as the system of normal

equations

• The solution to ATAx = ATb, x*, is the

solution to the least squares problem Ax = b

• Convert rectangular system into square

system, solve using standard techniques (note: can use Cholesky)

Outliers

Outliers

Outliers

• Where do they come from?
• Error in measurements
• User error
• Why do they have such an effect?
• Least squares

Outliers

• How can we handle them?
• Toss out worst-fitting points (but need to

make sure they really are outliers first!)

• Measure error differently

Solving Least Squares in MATLAB

• Remember \ ?
• Solves rectangular as well as square

systems

• A \ b will solve the rectangular system

Ax = b in the least squares sense

• Can also specify multiple right hand sides:

A \ B solves AX=B for each column of B
