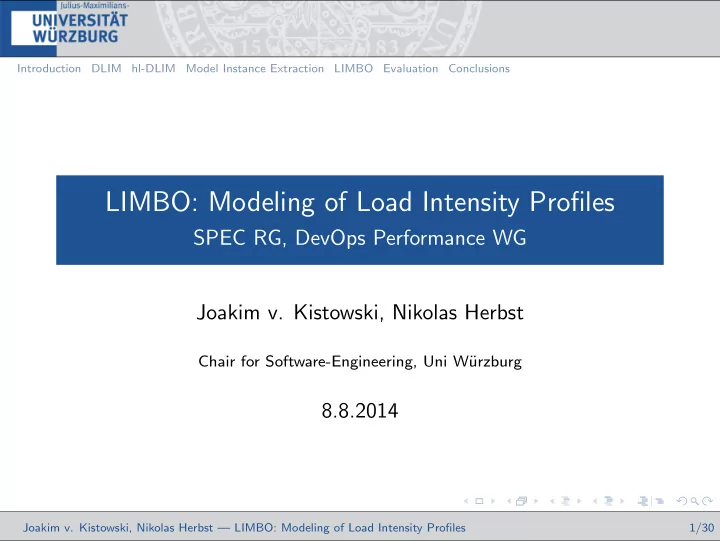

LIMBO: Modeling of Load Intensity Profiles

SPEC RG, DevOps Performance WG Joakim v. Kistowski, Nikolas Herbst

Chair for Software-Engineering, Uni W¨ urzburg

8.8.2014

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 1/30

slide-2
SLIDE 2

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Motivation

Page Requests for the German Wikipedia

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 2/30

slide-3
SLIDE 3

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Motivation

Page Requests for the German Wikipedia

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 3/30

slide-4
SLIDE 4

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Motivation

Page Requests for the German Wikipedia

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 4/30

slide-5
SLIDE 5

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Motivation

  • riginal

seasonal trend remainder

Additive decomposition into seasonal part, trend, and remainder. Created using BFAST [1]. Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 5/30

slide-6
SLIDE 6

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Outline

Problem: No means to effectively capture, reproduce, and modify varying load intensity of real-world cloud systems Idea: Support load intensity profile description by creating a meta-model and tooling Benefits: Enable more precise communication and creation of realistic load scenarios for benchmarking Actions: Creation of meta-models, processes, and tools for load intensity extraction and description

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 6/30

slide-7
SLIDE 7

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Related Work

User Behavior Models (e.g. using Markov Chains) van Hoorn et al. (2008): probabilistic, intensity-varying workloads Roy et al. (2013): workload volatility of a streaming system Workload Models Barford et al. (1998): file popularity and distribution (web) Casale et al. (2012): bursts Beich et al. (2010): data popularity and user classes (cloud) Statistical Models Feitelson (2002): workload representativity through statistical characteristics

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 7/30

slide-8
SLIDE 8

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Descartes Load Intensity Model (DLIM)

Describes arrival rate variations over time Provides structure for piece-wise mathematical functions Independent of work/request type

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 8/30

slide-9
SLIDE 9

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Descartes Load Intensity Model (DLIM)

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 9/30

slide-10
SLIDE 10

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

DLIM Example Instance

Created using LIMBO eclipse plugin 1 Contains Seasonal part, Trends, and Burst

1LIMBO: http://go.uni-wuerzburg.de/limbo Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 10/30

slide-11
SLIDE 11

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

high-level DLIM

Benefits of DLIM:

Powerful and expressive Easy derivation of arrival rates or request time-stamps

Drawbacks of DLIM:

Instances can become complex Large trees may be unintuitive

Solution: high-level DLIM

Fewer parameters for load intensity profile description Strictly structured into single Seasonal, Trend, recurring Burst, and Noise parts

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 11/30

slide-12
SLIDE 12

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

hl-DLIM Seasonal and Trend parts

hl-DLIM Seasonal part: hl-DLIM Trend part:

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 12/30

slide-13
SLIDE 13

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

hl-DLIM Burst and Noise parts

hl-DLIM Burst part: hl-DLIM Noise part: Uniform Distribution

Minimum Noise Rate Maximum Noise Rate

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 13/30

slide-14
SLIDE 14

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

hl-DLIM Example Instance

Seasonal part: Period: 24 Peaks per Seasonal: 1 Base Arrival Rate: 4 First Peak Arrival Rate: 12 Burst part: First Burst Offset: 46 Burst Peak Arrival Rate: 8 Burst Width: 4 Trend part:

Number of Seasonal Periods within one Trend: 1 Trend List: 16, 20, 14

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 14/30

slide-15
SLIDE 15

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Automated Model Instance Extraction I

Automated process for extracting DLIM or hl-DLIM instances from existing arrival rate traces Structured into Seasonal, Trend, Burst, and Noise part extraction Noise reduction and extraction is optional and separate

calculate Noise Part extract Burst Part extract Trend Part extract Seasonal Part [no Noise Extraction] [Noise Extraction] (filtered) Arrival Rates apply filter

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 15/30

slide-16
SLIDE 16

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Automated Model Instance Extraction II

Seasonal Part:

Extracts median local min/max within Seasonal iterations Interpolates using DLIM Functions

Trend Part:

Adds at each maximum Seasonal Peak to trend-list

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 16/30

slide-17
SLIDE 17

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Automated Model Instance Extraction III

Burst Part:

Bursts are detected at strong positive deviations from predicted Seasonal and Trend behavior Peak is set to match arrival rate in trace

Noise Part:

Before Extraction: High frequencies are reduced using a gaussian filter After Extraction: Reduced noise (normal) destribution is added to model instance

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 17/30

slide-18
SLIDE 18

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Automated Model Instance Extraction IV

Simple Model Instance Extraction Process (S-MIEP):

Uses a single Trend-List to describe one overlying Trend Part Extracts a DLIM instance

Periodic Model Instance Extraction Process (P-MIEP):

Uses a multiple recurring Trend-Lists to describe repeating trends Extracts a DLIM instance

high-level Model Instance Extraction Process (hl-MIEP):

Modified version of the Simple Model Instance Extraction Process Extracts an hl-DLIM instance

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 18/30

slide-19
SLIDE 19

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

LIMBO

EMF-based modeling platform Uses DLIM for load intensity description New Model Creation Wizard based on hl-DLIM Allows arrival rate and request time-stamp generation Visualizes and compares arrival rate profiles Provides automated model instance extraction

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 19/30

slide-20
SLIDE 20

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

LIMBO - Model Creation

Use hl-DLIM based wizard Alternatively: Extract model instance

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 20/30

slide-21
SLIDE 21

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

LIMBO - Model Refinement

EMF-Editor for customization of DLIM instances

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 21/30

slide-22
SLIDE 22

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

LIMBO - Time-Stamp Generation

Generate request time-stamps / arrival rates for benchmarking

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 22/30

slide-23
SLIDE 23

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Evaluation

Usability Evaluation

Usability evaluated using a questionnaire Users are computer scientists from five different organizations Mean Usability (1 = easy, 4 = difficult): 1.44 Mean Feature Usefulness (1 = useful, 4 = not useful): 1.2

Model Extraction Accuracy Evaluation

9 real world web server traces Metric: median arrival rate deviation S-MIEP and hl-MIEP applied to all traces P-MIEP to traces longer than one month

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 23/30

slide-24
SLIDE 24

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

S-MIEP I

Most accurate of the extraction processes Does not require noise reduction Median deviation across all traces: 12.4%

fr.wikipedia.org_S-MIEP fr.wikipedia.org_trace

25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500 525 550 575 600 625 650 675 700 725 750

time

250,000 500,000 750,000 1,000,000 1,250,000 1,500,000 1,750,000 2,000,000 2,250,000 2,500,000 2,750,000

arrival rate

French Wikipedia S-MIEP result, median deviation: 7.6%

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 24/30

slide-25
SLIDE 25

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

S-MIEP II

S-MIEP BFAST relative median relative median Trace error (%) error (%) ClarkNet-HTTP 12.409 12.243 NASA-HTTP 18.812

  • Saskatchewan-HTTP

26.492

  • WorldCup98

12.979

  • IBM Transactions

74.368

  • de.wikipedia.org

8.538 11.223 fr.wikipedia.org 7.6 8.511 ru.wikipedia.org 9.912 5.809 wikipedia.org 4.855 2.302 S-MIEP performs on average 8354 times faster than BFAST

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 25/30

slide-26
SLIDE 26

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

P-MIEP and hl-MIEP

Both processes are less accurate than S-MIEP hl-MIEP: “recurring bursts” - limitation may lead to phantom bursts P-MIEP: ignores small deviations from recurring periodic patterns

NASA_hl-MIEP NASA_P-MIEP NASA_S-MIEP NASA_trace

3,550 3,575 3,600 3,625 3,650 3,675 3,700 3,725 3,750 3,775 3,800 3,825 3,850 3,875 3,900 3,925 3,950 3,975 4,000 4,025

time

100 200 300 400 500 600 700 800 900 1,000 1,100 1,200 1,300 1,400 1,500

arrival rate

S-MIEP P-MIEP hl-MIEP median deviation (%) 18.812 23.633 24.539

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 26/30

slide-27
SLIDE 27

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Observations

S-MIEP is the most accurate of the extraction processes P-MIEP works well for regular load intensity profiles hl-MIEP heavily relies on noise reduction Challenge: Seasonal pattern drift in long traces

Extraction uses one seasonal pattern for approximation

IBM_S-MIEP IBM_trace

1,650 1,675 1,700 1,725 1,750 1,775 1,800 1,825 1,850 1,875 1,900 1,925 1,950 1,975 2,000 2,025 2,050

time

5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000 45,000 50,000

arrival rate

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 27/30

slide-28
SLIDE 28

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Summary I

Two Meta-Models for load intensity variation description

DLIM: Powerful and expressive hl-DLIM: Abstract and concise

  • J. G. von Kistowski, N. R. Herbst, and S. Kounev, “Modeling Variations

in Load Intensity over Time”, in Proceedings of the 3rd International Workshop on Large-Scale Testing (LT 2014). ACM, March 2014.

Modeling Platform: LIMBO

Enables creation of custom load intensity variations for

  • pen workload based benchmarking

Provides automated load intensity profile extraction

  • J. G. von Kistowski, N. R. Herbst, and S. Kounev, “LIMBO: A Tool For

Modeling Variable Load Intensities (Demonstration Paper)”, in Proceedings of the 5th ACM/SPEC International Conference on Performance Engineering (ICPE 2014). ACM, March 2014.

Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 28/30

slide-29
SLIDE 29

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Summary II

LIMBO Usability (1 = easy, 4 = difficult): 1.44 Automated model instance extraction:

S-MIEP: most accurate, median deviation: 12.4% P-MIEP: good for regular profiles, median deviation: 37.6% hl-MIEP: relies on noise reduction, median deviation: 15.6%

LIMBO is open-source2 and already being used in different contexts.

2LIMBO: http://go.uni-wuerzburg.de/limbo Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 29/30

slide-30
SLIDE 30

Introduction DLIM hl-DLIM Model Instance Extraction LIMBO Evaluation Conclusions

Next Steps

Our work on LIMBO:

Extraction of multiple and overlaying seasonal patterns Change detection Advanced calibration and noise reduction

Ideas for integration/extension

Extend JMeter to use LIMBO timestamps → TimestampTimer by Andreas Weber (KIT)3 → Combination with Markov4JMeter (AvH ?) Extend PCM to use DLIM instances / LIMBO timestamps → Sebastian Lehrig (Uni Paderborn) Using DLIM models for improving anomaly detection accuracy

3LIMBO: https://github.com/andreaswe/JMeterTimestampTimer Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 30/30

slide-31
SLIDE 31

References

  • J. Verbesselt, R. Hyndman, G. Newnham, and D. Culvenor, “Detecting trend and seasonal changes in

satellite image time series,” Remote Sensing of Environment, vol. 114, no. 1, pp. 106 – 115, 2010. [Online]. Available: http://www.sciencedirect.com/science/article/pii/S003442570900265X

  • A. van Hoorn, M. Rohr, and W. Hasselbring, “Generating probabilistic and intensity-varying workload for

web-based software systems,” in Proceedings of the SPEC international workshop on Performance Evaluation: Metrics, Models and Benchmarks, ser. SIPEW ’08. Berlin, Heidelberg: Springer-Verlag, 2008,

  • pp. 124–143. [Online]. Available: http://dx.doi.org/10.1007/978-3-540-69814-2 9
  • S. Roy, T. Begin, and P. Goncalves, “A complete framework for modelling and generating workload

volatility of a vod system,” in Wireless Communications and Mobile Computing Conference (IWCMC), 2013 9th International, 2013, pp. 1168–1174.

  • P. Barford and M. Crovella, “Generating representative web workloads for network and server performance

evaluation,” in Proceedings of the 1998 ACM SIGMETRICS joint international conference on Measurement and modeling of computer systems, ser. SIGMETRICS ’98/PERFORMANCE ’98. New York, NY, USA: ACM, 1998, pp. 151–160. [Online]. Available: http://doi.acm.org/10.1145/277851.277897

  • G. Casale, A. Kalbasi, D. Krishnamurthy, and J. Rolia, “Burn: Enabling workload burstiness in customized

service benchmarks,” IEEE Transactions on Software Engineering, vol. 38, no. 4, pp. 778–793, 2012.

  • A. Beitch, B. Liu, T. Yung, R. Griffith, A. Fox, and D. A. Patterson, “Rain: A workload generation toolkit

for cloud computing applications,” EECS Department, University of California, Berkeley, Tech. Rep. UCB/EECS-2010-14, Feb 2010. [Online]. Available: http://www.eecs.berkeley.edu/Pubs/TechRpts/2010/EECS-2010-14.html

  • D. Feitelson, “Workload modeling for performance evaluation,” in Performance Evaluation of Complex

Systems: Techniques and Tools, ser. Lecture Notes in Computer Science, M. Calzarossa and S. Tucci, Eds. Springer Berlin Heidelberg, 2002, vol. 2459, pp. 114–141. [Online]. Available: http://dx.doi.org/10.1007/3-540-45798-4 6 Joakim v. Kistowski, Nikolas Herbst — LIMBO: Modeling of Load Intensity Profiles 31/30
