Lightweight Cryptography Mission Accomplished? Peter Rombouts ECRYPT II Closing Event Cryptography for 2020 Tenerife January 23 rd , 2013 Organization Lightweight Cryptography: Mission Accomplished? Introduction Technical perspective

slide-1

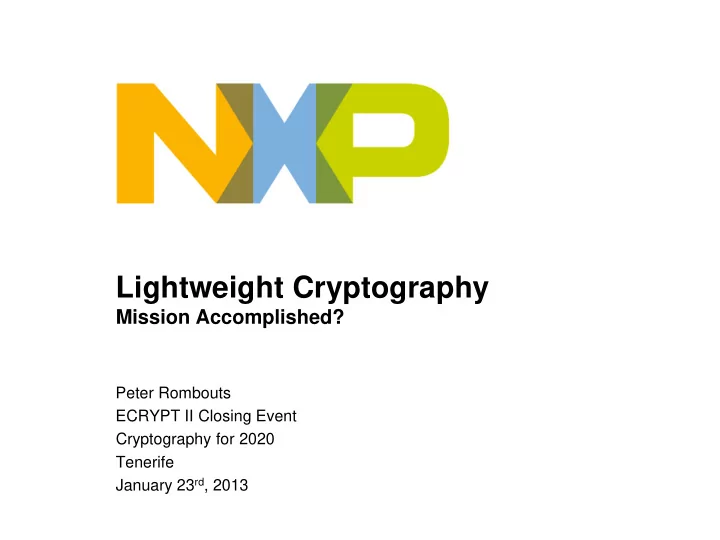

SLIDE 1

Lightweight Cryptography

Mission Accomplished?

Peter Rombouts ECRYPT II Closing Event Cryptography for 2020 Tenerife January 23rd, 2013

slide-2
SLIDE 2

PUBLIC

Organization

Lightweight Cryptography: Mission Accomplished? Introduction Technical perspective Business perspective Examples Evaluation Next?

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • 2
slide-3
SLIDE 3

PUBLIC

Introduction

Why Lightweight Cryptography? RFID tags

– Small transponders, command-reply interrogation by a reader – Passively powered by reader field (not always)

What if…

… cryptography was possible on these devices ? – Applications ? – Technical constraints ?

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • 3
slide-4
SLIDE 4

PUBLIC

Introduction

Applications

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • Luxury Goods

Anti-counterfeiting Storage Warranty Certificates Privacy Untraceability Perishable Goods Quality monitoring

4

slide-5
SLIDE 5

PUBLIC

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • Introduction

Technical constraints Cost of RFID tag

– RFID market is cost driven – Cost determined by

  • Area of tag (GE)
  • Silicon process technology
  • Assembly

Read range

– Application specific requirement – Read range determined by

  • Power consumption
  • Operating Frequency

Transaction time

– Application specific requirement – Transaction time determined by

  • Clock speed & Memory access

Robustness against attacks

5

slide-6
SLIDE 6

PUBLIC

Progress

Algorithms & Implementations

1000 2000 3000 4000 5000 6000 7000 8000 9000 2000 2004 2008 2012 Gate Count AES (128/128) PRESENT (80/64) mCrypton (64/64) KATAN (80/32-64) HIGHT (64/64) PUFFIN (128/64) TWINE (80/64) LED (64/64) KLEIN (80/64) PICCOLO (80/64)

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • 6
slide-7
SLIDE 7

PUBLIC

Progress

Algorithms & Implementations

200 400 600 800 1000 1200 1400 2000 2004 2008 2012 Latency (cycles/block) AES (128/128) PRESENT (80/64) mCrypton (64/64) KATAN (80/32-64) HIGHT (64/64) PUFFIN (128/64) TWINE (80/64) LED (64/64) KLEIN (80/64) PICCOLO (80/64)

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • 7
slide-8
SLIDE 8

PUBLIC

Progress

Algorithms & Implementations

1000 2000 3000 4000 5000 6000 7000 8000 9000 250 500 750 1000 1250 Gate Count AES (128/128) PRESENT (80/64) mCrypton (64/64) KATAN (80/32-64) HIGHT (64/64) PUFFIN (128/64) TWINE (80/64) LED (64/64) KLEIN (80/64) PICCOLO (80/64)

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • Latency (cycles/block)

8

slide-9
SLIDE 9

PUBLIC

Progress

Standardization: ISO/IEC 29192 ISO/IEC 29192: Information technology – Security techniques – Lightweight cryptography

– Part 1: General

  • Security requirements,
  • Classification requirements
  • Implementation requirements

– Part 2: Block ciphers

  • PRESENT:

block size of 64 bits and a key size of 80 or 128 bits;

  • CLEFIA:

block size of 128 bits and a key size of 128, 192 or 256 bits.

– Part 3: Stream ciphers

  • Enocoro:

key size of 80 or 128 bits;

  • Trivium:

key size of 80 bits.

– Part 4: Mechanisms using asymmetric techniques

  • Under Development

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • PUBLISHED

PUBLISHED PUBLISHED

9

slide-10
SLIDE 10

PUBLIC

EPC Gen-2 UHF RFID Protocol

– For Communications at 860 MHz – 960 MHz – Version 2.0.0

New Commands – Security Commands – File Management Mirrored in ISO/IEC 18000-63

Progress

Standardization: EPC Global

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • – Challenge

– Authenticate – AuthComm – SecureComm – KeyUpdate – TagPrivilege – ReadBuffer – Untraceable – FileOpen – FileList – FilePrivilege – FileSetup REVIEW

10

slide-11
SLIDE 11

PUBLIC

Progress

Standardization: EPC Global

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • Interrogator

(Standard) Tag (Standard) Tag (Cryptographic Suite) Interrogator (Cryptographic Suite)

Tag processing:

  • Message processing
  • Response construction

Interrogator processing: Response processing 2 step interro- gator authen- tication Message Response Message Response IPReply (Done) Response Authenticate Message

EPC Air Interface Authentication Protocol / SecureComm

IPReply (Busy) Interrogator processing: Message construction Tag processing:

  • Message processing
  • Response construction

Interrogator processing:

  • Response processing
  • Message construction

Message Response Message Response IPReply (Done) Response Authenticate Message

Air interface & Commands

– Defined by EPC

Global Cryptographic functionality

– Defined by

ISO/IEC 29167 State machine

– Each standard

11

slide-12
SLIDE 12

PUBLIC

Progress

Standardization: ISO/IEC 29167 ISO/IEC 29167 : Information technology – Automatic identification and data capture techniques

– Part 1: General – Part 10: AES-128 (CD) – Part 11: Present 80 (CD) – Part 12: ECC-DH (CD) – Part 13: Grain-128A (WD) – Part 14: AES-OFB (WD) – Part 15: XOR (WD) – Part 16: ECDSA ECDH (CD) – Part 17: Crypto GPS (CD) – Part 1x: HB2 (NWIP) – Part 1x: RAMON (NWIP)

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • PUBLISHED

12

slide-13
SLIDE 13

PUBLIC

Lightweight Cryptography

Did it deliver on its promise?

NXP UCODE Crypto

PRESENT-80 crypto core

– ISO 29192-2 compliant – Only Tag Authentication

Silicon available Chip size 0.7 mm2 I2C interface 4kb memory Also an ECC version

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • YES

13

slide-14
SLIDE 14

PUBLIC

Lightweight Cryptography

Did it deliver on its promise?

PASTEUR Sensor Platform

NXP UCODE I2C Sensor: MIST 1431 (RH, T, light)  SEN 300 LPC 1114 Batteries (only for sensor) Single chip solution

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • YES

14

slide-15
SLIDE 15

PUBLIC

Lightweight Cryptography

Unsolved issues Protocol: Randomness Device: Secure Storage Robustness: Countermeasures

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • MAYBE

Applications require more than just the crypto core !

15

slide-16
SLIDE 16

PUBLIC

Lightweight Cryptography

New directions

Countermeasures

– Currently: add-on – Future: Algorithms designed to be protected

Other primitives

– Hash, Public Key

Low-latency

– Lightweight primitives useful for other applications? – Ultra-high speed applications – Some algorithms better than others

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • 16
slide-17
SLIDE 17

PUBLIC

Low-Latency Cryptography

Applications When response time is critical

– Solid state disk – Network – Real time

When clock frequency is limited

– FPGA

Energy efficiency

– Wireless sensors – Batteries

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • 17
slide-18
SLIDE 18

PUBLIC

Low-Latency Cryptography

Evaluation results

50 100 150 200 250 300 350 400 10 20 30 40 50 Gate Count (kGE)

AES (128/128) PRESENT (80-128/64) mCrypton (64-96-128/64) MINI-AES (64/64) NOEKEON (128/128) LED (64-128/64) KLEIN (80-96-128/64) PRINCE (128/64)

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • Latency (ns)

18

slide-19
SLIDE 19

PUBLIC

Conclusions

Lightweight Cryptography A lot of progress has been made

– Algorithms & Implementations – Eco-system: Standards

It has been integrated into products

– Focus on Tag Authentication – Inclusion of sensors

Some unsolved issues New applications emerging

– Low-latency Cryptography

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • There is still a lot to be explored !

19

slide-20
SLIDE 20

PUBLIC

January 10, 2013 Lightweight Cryptography / ECRYPT II Closing Event / Peter Rombouts

  • 20
