LHO box from top LHO Box from back and top 500 Gallon Liquid Oxygen tank Compressed oxygen backup Individual air-flow meters from O2 line White PVC air cleaning line Copper- Oxygen line LHO boxes on dam boards Quiescent zone in front

SLIDE 1

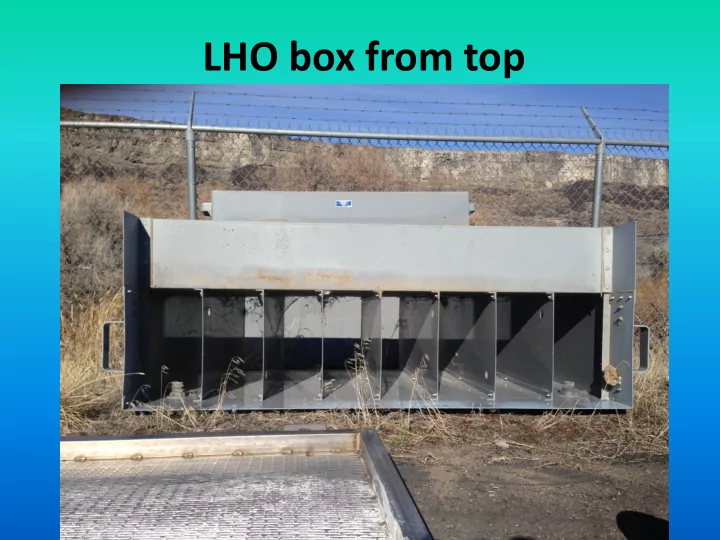

LHO box from top

SLIDE 2

LHO Box from back and top

SLIDE 3

SLIDE 4

SLIDE 5

SLIDE 6

500 Gallon Liquid Oxygen tank

Compressed oxygen backup

SLIDE 7

Individual air-flow meters from O2 line

White PVC – air cleaning line Copper- Oxygen line

SLIDE 8

LHO boxes on dam boards

Quiescent zone in front

SLIDE 9

Water came out of ground around 7 ppm. After 2nd section it was 5 ppm. LHO boxes bumped it up to 8 ppm. Went through two more sections and left 4th section at 5 ppm to LHO’s. Bumped back up to 7 ppm and left bottom of raceways at 5 ppm. Great efficiencies transferring oxygen into 5 ppm water—up to 90%

SLIDE 10

Quiescent zones, cleanout stand-pipes, demand feeders, LHO’s, and air-cleaning allowed us to double catchable production without increasing labor on 13 strains of fish
