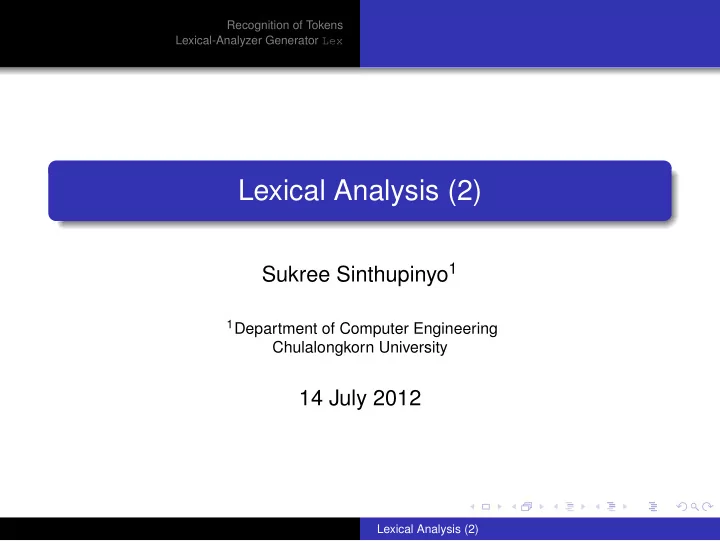

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex

Outline

1

Recognition of Tokens Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

2

Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Example

We will use this grammar as our first example

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Example

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Tokens, Patterns, and Attribute Values

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Outline

1

Recognition of Tokens Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

2

Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Transition Diagrams

We’ll convert the regular-expression to transition diagrams Nodes represent states. Edges represent methods of how to change the state. If we find an edge labeled a connecting from current state to another state and the next symbol is a, we will move to such state.

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Transition Diagrams (cont.)

Conventions about transition diagrams

Accepting or final state indicates that a lexeme has been

• found. It’s represented by a double circle.

If it is necessary to retract the forward pointer one position, then we shall place a * near that accepting state. There is one start state, or initial state.

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Transition Diagram for relop

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Recognition of Reserved Words and Identifiers

How to recognize keywords, such as if, then and, else.

Install the reserved words in the symbol table initially. Any new identifier will be an id. Create separate transition diagrams for each keyword.

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Outline

1

Recognition of Tokens Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

2

Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Completion of the Running Example

A transition diagram for unsigned numbers. A transition diagram for whitespace.

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Outline

1

Recognition of Tokens Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

2

Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Architecture of a Transition-Diagram-Based Lexical Analyzer

Example Code for relop

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Architecture of a Transition-Diagram-Based Lexical Analyzer (cont.)

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Architecture of a Transition-Diagram-Based Lexical Analyzer (cont.)

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Architecture of a Transition-Diagram-Based Lexical Analyzer (cont.)

Try sequentially. The function fail() will reset the pointer forward and starts the next transition diagram. Run in parallel. Feed the next input to all of them and allowing each one to make whatever transition it required. Combine all the transition diagrams into one.

We combine states 0, 9, 12, and 22 into one start state.

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Outline

1

Recognition of Tokens Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

2

Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

KMP Algorithm

Knuth, Morris, and Pratt algorithm

Recognize a single keyword b1b2 . . . bn in a text string. For example, the diagram for the keyword ababaa is We must find the failure function, f(s) computed as follow.

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Failure Function

ababaa

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

Failure Functioncont.

To find whether a keyword b1b2 . . . bn is a substring of a string a1a2 . . . am, we use the following algorithm.

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Outline

1

Recognition of Tokens Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

2

Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Use of Lex

Process of Lex

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Outline

1

Recognition of Tokens Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

2

Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Form of Lex

declarations %% translation rules %% auxiliary functions

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Declarations

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Translations Rules

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Auxiliary Functions

Lexical Analysis (2)

Recognition of Tokens Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration

Outline

1

Recognition of Tokens Transition Diagrams Completion of the Running Example Architecture of a Transition-Diagram-Based Lexical Analyzer Recognizing a keyword

2

Lexical-Analyzer Generator Lex Use of Lex Structure of Lex Lex Demonstration
