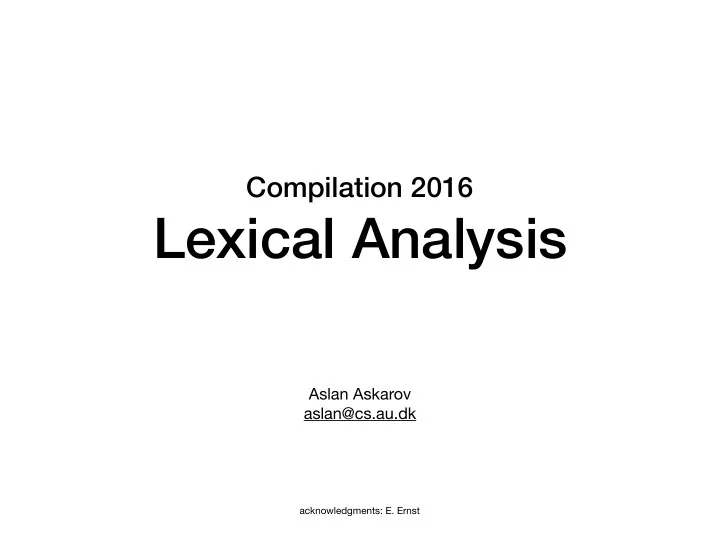

Compilation 2016

Lexical Analysis

Aslan Askarov aslan@cs.au.dk

acknowledgments: E. Ernst

Lexical analysis

High-level source code Lexing Elaboration Parsing … Low-level target code

Lexical analysis

i f x > 0 t h \n e n 1 \t e l s e ( ) \n \t

IF LPAREN ID (“x”) GE INT (0) THEN INT (1) ELSE INT (0) RPAREN Input: stream of characters Output: stream of tokens in our language Discards comments, whitespace, newline, tab characters, preprocessor directives First phase in the compilation

Tokens

Type Examples ID foo n14 a’ my-fun INT 73 0 070 REAL 0.0 .5 10. IF if COMMA , LPAREN ( ASGMT :=

Non-tokens

Type Examples comments /* dead code */ // comment (* nest (*ed*) *) preprocessor directives #define N 10 #include <stdio.h> whitespace

Token data structure

• Many tokens need no associated data, e.g.:


IF , COMMA, LPAREN, RPAREN, ASGMT

• Some tokens carry an associated string:


ID (“my-fun”)

• Some tokens carry associated data of other types:


INT (73), INT (1), FLOAT (IEEE754, 1001111100…)

• Tokens may include useful additional information:


start/end pos in input file (line number + column, or charpos)

Q/A

• Consider source program



 var δ := 0.0

• Language: case sensitive, ASCII
• How to report error of using δ?

FileName:Line.Col: Illegal character δ

Regular expressions

• We can use regular expressions to specify

programming language tokens

• Regular expressions R
• Expected to be well-known (dRegAut)
• Syntax
• character a
• choice R1 | R2
• concat R1 · R2 also sometimes R1 R2
• empty string ε
• repeat R*

Regular expressions used for scanning

Examples


if (IF); [a-z][a-z0-9]* (ID); [0-9]* (NUM); ([0-9]+”.”[0-9]*) | ([0-9]* ”.” [0-9]+) (REAL); (”--” [a-z]*”\n”) | (” ”|”\t”) (continue()); . (error (); continue());

Resolving ambiguities

• Rule: when a string can match multiple tokens, the

longest matching token wins

• We also need to specify priorities if we match

several tokens of the same length.

• Usual rule: earliest declaration wins

i f x > 0

ID (“ifx”)

i f

IF

• if (IF);
• [a-z][a-z0-9]* (ID);

ID (“if”)

Lexical analysis

Specification: Tokens as regular exps Formalism: NFA DFA Implementation: Output: Simulate NFA Simulate DFA Program that translates raw text into stream of tokens

+longest-matching rule +priorities linear complexity

“classical” approach – from RegEx to NFA to DFA

Total NFA for ID,IF,NUM,REAL

1 2 3 5

12 13

9 6 8 7

11 10

4

ID ID IF error REAL NUM REAL error error

i f 0-9,a-z

• ther

blank etc. blank etc.

• 0-9

0-9 0-9 a-z

• \n

whitespace

.

a-h,j-z

.

0-9,a-z a-e,g-z,0-9 0-9 0-9

ML-Lex

• Lexer generator, “built-in” part of SML/NJ
• Accepts lexical specification, produces a scanner
• Example specification

(* SML declarations *) type lexresult = Tokens.token fun eof() = Tokens.EOF(0,0) %% (* Lex definitions *) digits=[0-9]+ %% (* Regular Expressions and Actions *) if => (Tokens.IF(yypos,yypos+2)); [a-z][a-z0-9]* => (Tokens.ID(yytext,yypos,yypos + size yytext)); {digits} => (Tokens.NUM( Int.fromString yytext, yypos, yypos + size yytext); ({digits}”.”[0-9]*)|([0-9]*”.”{digits}) => (Tokens.REAL( Real.fromString yytext, yypos, yypos + size yytext)); (“--”[a-z]*”\n”)|(“ “|”\n”|”\t”)+ => (continue());

• => ( ErrorMsg.error yypos “Illegal character”; continue());

Lexer states

• Helpful when handling different “kinds” of tokens
• For ex.: use state
• INITIAL in general lexing (automatic)
• STRING when scanning the contents of a string
• COMMENT when scanning a comment
• Point: keep different concerns apart – simpler!
• Syntax:

... (* Regular Expressions and Actions *) <INITIAL>if => (Tokens.IF(yypos,yypos+2)); <INITIAL>[a-z][a-z0-9]* => (Tokens.ID(yytext,yypos,yypos + size yytext)); ... <INITIAL>”\”” => (YYBEGIN STRING; continue()); ... <STRING>. => (continue()); ...

Lexical analysis

Specification: Tokens as regular exps Formalism: NFA DFA Implementation: Output: Simulate NFA Simulate DFA Program that translates raw text into stream of tokens

+longest-matching rule +priorities linear complexity

alternative, purely algebraic approach – from RegEx to DFA using regexp derivatives

More on SML

[online demo]

Warmup project

Straight-line Programming Language

• Toy programming language: no branching, no loops
• Skip lexing and parsing issues
• Focus on the “meaning” – interpretation
• Syntax

Stm → Stm; Stm Stm → id := Exp Stm → print ( ExpList ) Exp → id Exp → num Exp → Exp BinOp Exp Exp → ( Stm , Exp )

(CompoundStm) (AssignStm) (PrintStm) (IdExp) (NumExp) (OpExp) (EseqExp)

ExpList → Exp , ExpList ExpList → Exp Binop → + Binop → – Binop → × Binop → /

(PairExpList) (LastExpList) (Plus) (Minus) (Times) (Div)

Straight-line program

• Source:
• Corresponding syntax tree:

CompoundStm AssignStm a OpExp NumExp 5 BinOp Plus NumExp 3 CompoundStm AssignStm b EseqExp PrintStm PairExpList IdExp a LastExpList OpExp IdExp a BinOp Minus NumExp 1 OpExp NumExp 10 BinOp Times IdExp a PrintStm LastExpList IdExp b

a : = 5 + 3 ; b : = ( p r i n t ( a , a - 1),10 * a); p r i n t ( b )

SLP syntax representation datatype

• SML declaration

Stm → Stm; Stm Stm → id := Exp Stm → print ( ExpList ) Exp → id Exp → num Exp → Exp BinOp Exp Exp → ( Stm , Exp )

(CompoundStm) (AssignStm) (PrintStm) (IdExp) (NumExp) (OpExp) (EseqExp)

ExpList → Exp , ExpList ExpList → Exp Binop → + Binop → – Binop → × Binop → /

(PairExpList) (LastExpList) (Plus) (Minus) (Times) (Div)

type id = string datatype binop = Plus | Minus | Times | Div datatype stm = CompoundStm of stm * stm | AssignStm of id * exp | PrintStm of exp list and exp = IdExp of id | NumExp of int | OpExp of exp * binop * exp | EseqExp of stm * exp

SLP syntax representation

• Source program
• SML value:

val prog = CompoundStm ( AssignStm (“a", OpExp ( NumExp 5, Plus, NumExp 3)), CompoundStm ( AssignStm ("b", EseqExp ( PrintStm [IdExp "a", OpExp (…)], OpExp (NumExp 10, …))), PrintStm [IdExp "b"])) a := 5 + 3; b := (print (a, a - 1),10 * a); print (b)

CompoundStm AssignStm a OpExp NumExp 5 BinOp Plus NumExp 3 CompoundStm AssignStm b EseqExp PrintStm PairExpList IdExp a LastExpList OpExp IdExp a BinOp Minus NumExp 1 OpExp NumExp 10 BinOp Times IdExp a PrintStm LastExpList IdExp b

Project assignment

• Follow descriptions p10-12 in MCIML
• “Modularity principles” p9-10: discussed on Friday,

may be ignored at first

• Clarification:
• Let bindings are OK
• References, arrays, and ref update (:=) are not OK

Summary

• Warm-up project: Program in SML!
• Straight-line programming language, no lexing/parsing

involved

• Express programs: use abstract syntax tree datatype
• Project specified on website, essentially as in the book
• Lexical analysis
• Avoid complexity in grammar. Use lexer
• Based on regular expressions.
• Implementation via RE → NFA → DFA (theory assumed

known)

• Alternatives: via RE derivatives → DFA
• Tools: ML-Lex
• Scanner generator, outputs SML code from spec
• Note lexer states
