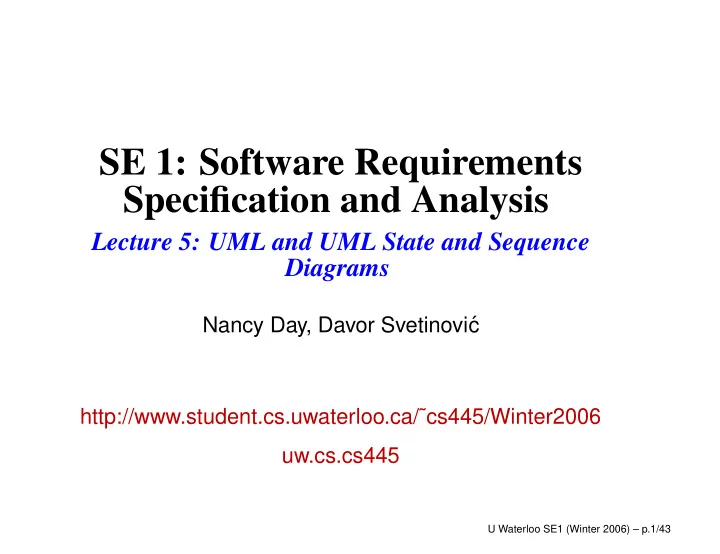

SE 1: Software Requirements Specification and Analysis Lecture 5: UML and UML State and Sequence Diagrams Nancy Day, Davor Svetinovi c http://www.student.cs.uwaterloo.ca/cs445/Winter2006 uw.cs.cs445 U Waterloo SE1 (Winter 2006)

slide-1
SLIDE 1

SE 1: Software Requirements Specification and Analysis

Lecture 5: UML and UML State and Sequence Diagrams

Nancy Day, Davor Svetinovi´ c http://www.student.cs.uwaterloo.ca/˜cs445/Winter2006 uw.cs.cs445

U Waterloo SE1 (Winter 2006) – p.1/43

slide-2
SLIDE 2

Today’s Agenda

Basic Notations and Process (from last lecture) Introduction to UML and the Unified Process (UP) UML Sequence Diagrams UML State Diagrams These diagrams capture the dynamic behaviour of the system (the reaction of the system to external events). Reading: Arlow and Neustadt, Ch.1, 2, 12, 13.2, 21, 22

U Waterloo SE1 (Winter 2006) – p.2/43

slide-3
SLIDE 3

History of UML

UML = Unified Modeling Language = collection of visual modeling diagrams Object-oriented analysis (OOA) grew out of desire to make requirements techniques more connected to

  • bject-oriented design techniques

Result of effort in the early 1990’s to unify many OOA techniques Currently, 13 diagram types UML by itself is not a methodology. A UML specification views the system as collection of interacting objects.

U Waterloo SE1 (Winter 2006) – p.3/43

slide-4
SLIDE 4

History of UML

1994 Rumbaugh (Object Modeling Techniques) joined Booch at Rational 1995 Rational bought Objectory (Jacobson, OOSE – use cases) Rumbaugh, Booch and Jacobson are known as the “Three Amigos” UML = OMT + Booch + OOSE + . . . But UML is not really a “unification” of these approaches. It’s more like the collection of these approaches 1997, Object Management Group (OMG) choose UML as an industry-standard OO visual modeling language 2004 UML 2.0

U Waterloo SE1 (Winter 2006) – p.4/43

slide-5
SLIDE 5

UML

Object-oriented decomposition UML principles: Classifer vs instance Interface vs implementation Conceptual (static structure): Class and Object Diagrams – form of ERDs Dynamic behaviour: Interaction Diagrams (Sequence and Communication Diagrams) – forms of event traces State Diagrams – form of FSMs Diagrams provide views of the model. These diagrams are usually all developed simultaneously and must be kept consistent. UML also contains use case diagrams, although these aren’t

  • bject-oriented.

U Waterloo SE1 (Winter 2006) – p.5/43

slide-6
SLIDE 6

Model Driven Architecture

MDA = Model Driven Architecture “Models drive production” Platform-independent models (PIMs) are turned into platform-specific models (PSMs) via model transformations Models must be complete to generate executable code “MDA shifts UML models from their current role as precursors to manually created source code into the primary mechanism of code production.”

U Waterloo SE1 (Winter 2006) – p.6/43

slide-7
SLIDE 7

Unified Process

The Unified Process is an evolutionary/iterative model of software development. UP = process that uses UML diagrams The Rational Unified Process is a particular instance of UP developed by Rational (IBM) and supported by their case tools Main developer: Ivar Jacobson Originated at Ericsson, 1967

U Waterloo SE1 (Winter 2006) – p.7/43

slide-8
SLIDE 8

UP

Main ideas of UP: requirements and risk-driven architecture-driven iterative and incremental Phases:

INCEPTION CONSTRUCTION TRANSITION ELABORATION

Each of these phases may contain several iterations. UP recommends having iterations that last only 2-6 weeks (and no more than 2-3 months). Each iteration reaches a baseline.

U Waterloo SE1 (Winter 2006) – p.8/43

slide-9
SLIDE 9

UP

Each iteration contains some amount of requirements, analysis, design, implementation, and test activities.

TEST IMPL. DESIGN ANALYSIS REQ. INCEPTION ELABORATION CONSTRUCTION TRANSITION

U Waterloo SE1 (Winter 2006) – p.9/43

slide-10
SLIDE 10

UP

  • 1. Inception:

vision (business goals) scope consider project feasibility identify risks commonly-used technique: use cases

  • 2. Elaboration:

elaboration of requirements capture remaining use cases domain models state diagrams communication (collaboration) diagrams create architectural baseline define quality attributes.

  • 3. Construction: implementation
  • 4. Transition: testing, deployment, product release

U Waterloo SE1 (Winter 2006) – p.10/43

slide-11
SLIDE 11

The Way Forward

Today: Basics of UML Sequence and State Diagrams Thurs: Advanced features of UML State Diagrams Tues: Advanced features of UML State Diagrams and System

State Diagrams

Thu: Reference Model for RE Tue: Concept/Class Diagrams Thu: Concept-level state diagrams

Note: We are not really following UP .

U Waterloo SE1 (Winter 2006) – p.11/43

slide-12
SLIDE 12

The Way Forward

UML is a syntax for diagrams. Unfortunately, UML does not include a fixed semantics for some diagram types (e.g., state diagrams). We will present one semantics, but be aware that there are

  • thers.

In cases of ambiguity, confer with your customer to make sure you both agree on the semantics.

U Waterloo SE1 (Winter 2006) – p.12/43

slide-13
SLIDE 13

Sequence Diagrams

Form of event trace (time-ordered sequence of messages) Dynamic view of system behaviour Usually, depicts a scenario (one path through a use case) Describe end-to-end behaviour (environmental input to

  • utput to environment)

Easy for users to understand

U Waterloo SE1 (Winter 2006) – p.13/43

slide-14
SLIDE 14

Sequence Diagrams

Can be used for different levels of description: System level: Show system as one lifeline Show only environmental inputs and outputs Concept/object level: Show each object involved in the scenario as one lifeline Show interaction among objects and therefore show responsibilities of each class

U Waterloo SE1 (Winter 2006) – p.14/43

slide-15
SLIDE 15

:telephone s: caller t:callee dial(digits) 3: route call 4: establish conn 5: ring phone 6: answer 8: hangup 11: lift receiver 1: dial tone 2: ring tone 7: stop ring tone 10: disconnect 12: stop ringing 9:

U Waterloo SE1 (Winter 2006) – p.15/43

slide-16
SLIDE 16

Sequence Diagrams: Notation

Column = represents lifeline of object or the whole system (or subsystem) column label is “name:class” (name is optional) Rectangle on lifeline is the focus of control or activation - the period during which the object is involved in the activity initiated at the top of the focus. Call to self can be shown with a nested focus of control Horizontal arrow expresses message conveyed by source to target: sending a message calling an operation (must have correct parameters) creating or destroying an instance Messages may be sent to a class (still in UML 2.0??)

U Waterloo SE1 (Winter 2006) – p.16/43

slide-17
SLIDE 17

Elaboration

As you elaborate the problem domain and specify in more detail the entities that the system senses and controls, the self calls become messages to these other entities. create transient objects in response to a < <create> >. destroy transient objects either because it receives a < <destroy> > message or because it destroys itself.

U Waterloo SE1 (Winter 2006) – p.17/43

slide-18
SLIDE 18

s :caller

Ex: Telephone Switch

lift receiver dial tone dial(digits) route call ring tone stop ring tone ring phone answer stop ringing <<create>> hangup disconnect callee_disconnect :exchange :Connection t :callee

U Waterloo SE1 (Winter 2006) – p.18/43

slide-19
SLIDE 19

Advanced Features

These are not necessarily recommended: keep it simple and clear! Can show states on the lifeline This is useful for connecting sequence diagram with a state diagram, but I wouldn’t put this in your SRS. Can distinguish between synchronous (wait for a reply) and asynchronous messages – ignore this Timing constraints: These can be useful for illustrating real-time constraints.

B A (B − A <= 1 day)

U Waterloo SE1 (Winter 2006) – p.19/43

slide-20
SLIDE 20

Branching

:A :B

  • pt [condition]
  • p1()

means if (condition1) then contents of box

U Waterloo SE1 (Winter 2006) – p.20/43

slide-21
SLIDE 21

Branching

alt

  • p1()

[else] [condition2] [condition1]

  • p2()
  • p3()

:A :B

means if (condition1) then contents of box1 else if (condition2) then contents of box2 else contents of box3

U Waterloo SE1 (Winter 2006) – p.21/43

slide-22
SLIDE 22

Loops

:A :B loop [condition]

  • p1()

means while (condition) then contents of box

U Waterloo SE1 (Winter 2006) – p.22/43

slide-23
SLIDE 23

Interaction Occurrences

ref Seq1 :A :B :C Seq1 :A :B

  • p1
  • p2

U Waterloo SE1 (Winter 2006) – p.23/43

slide-24
SLIDE 24

SE 1 Process

  • 1. For each use case, create a system sequence diagram

for the main scenario. One lifeline for the system; one for each actor. Show inputs and outputs.

  • 2. Next, we need to create a state diagram that describes all

the scenarios of the system.

U Waterloo SE1 (Winter 2006) – p.24/43

slide-25
SLIDE 25

Example

mode but3: light lap reset start/stop but2: 12/24hr 10:00 Off On

U Waterloo SE1 (Winter 2006) – p.25/43

slide-26
SLIDE 26

UML State Diagrams

Form of hierarchical finite state machine Represent dynamic behaviour of the system Represents many behaviours succinctly From Harel’s statecharts

U Waterloo SE1 (Winter 2006) – p.26/43

slide-27
SLIDE 27

Mealy Machines

For requirements specification, input characters are possible events that can occur that the system should react to. Output characters are actions that the system can take (and possibly the state). States represent a history of what’s happened so far in system behaviour.

U Waterloo SE1 (Winter 2006) – p.27/43

slide-28
SLIDE 28

Extended Finite State Machines

An extended finite state machine is one that includes variables. Transitions can depend on the value of conditions (expressions on variables). Outputs can be actions can be assignments of values to variables. These are also called state diagrams or state transition diagrams.

U Waterloo SE1 (Winter 2006) – p.28/43

slide-29
SLIDE 29

UML State Diagrams

State diagrams can be used to describe behaviour at different levels of detail: System state diagrams Show how the entire system changes over time and produces output depending on the input it has received from its environment Show the behaviour of the system across several use cases or sequence diagrams Class-level state diagrams Show how an object’s behaviour changes over time receiving and sending messages (operation calls) to

  • ther objects

Describe how one object contributes to system behaviour

U Waterloo SE1 (Winter 2006) – p.29/43

slide-30
SLIDE 30

Basic Components of a State Diagram

State Name State Name event[condition]/action

Basic states (later we will see hierarchical states) Transitions between states labelled with: Events Conditions Actions All parts of labels on transitions are optional.

U Waterloo SE1 (Winter 2006) – p.30/43

slide-31
SLIDE 31

States

States partition the behaviour of the system: At different states, the system reacts differently (or not at all) to different events. Affects what input the object will react to, e.g., ignoring most input in the state OFF. A state represents the history of inputs so far. For now, a state represents a moment in time when the system does not change and is waiting for another input before the system changes. In response to events and conditions, the system follows transitions to change states.

U Waterloo SE1 (Winter 2006) – p.31/43

slide-32
SLIDE 32

States

For RE, the names of states should be meaningful: a state represent a “mode” of the system. These names should make sense to the customer. The partitioning of behaviour provided by the states helps us to understand the system. A state can also represent an output, e.g., a state of “Show Time”.

U Waterloo SE1 (Winter 2006) – p.32/43

slide-33
SLIDE 33

States

There always needs to be a designated starting/initial state. The designator of an initial state is called a pseudostate. A pseudostate is NOT a real state (no time is spent there) Often there is a designated final state. This is a real state.

X X is the initial State Y Y is a final state

U Waterloo SE1 (Winter 2006) – p.33/43

slide-34
SLIDE 34

Events

An event is “a significant or noteworthy occurrence”. (Larman) An event is an input (message) from the environment. (Later, we will see it could be a message/operation call from another object or the passage of time.) An event represents a change in the environment, e.g., doorOpened, doorClosed, buttonPressed, etc. An event is considered to occur instantaneously – it does not persist. Multiple events on a transition label are ORed together!

U Waterloo SE1 (Winter 2006) – p.34/43

slide-35
SLIDE 35

Conditions

A condition a Boolean expression, which is true or false depending on the value of variables. The value of a condition persists until the variables involved in the condition change their values. Examples: x > 10 doorIsClosed Conditions on multiple transitions leaving a state should be mutually exclusive.

U Waterloo SE1 (Winter 2006) – p.35/43

slide-36
SLIDE 36

Actions

Actions are what the system does in response to events (in addition to changing state.) Most common actions: Send a message/event to the environment Example: setTone(. . . ) Change the value of a variable Example: x := 5 An action is non-interruptible. It completes before the destination state of the transition is entered. Multiple actions on a transition are separated by “;” and executed sequentially. Note: UML2 uses something more complicated than actions. We will use actions to make the formalism simpler.

U Waterloo SE1 (Winter 2006) – p.36/43

slide-37
SLIDE 37

Transitions

e[c]/a X Y

Semantics: When in state X, if event e occurs and condition c is true, carry out and complete action a and move to state Y. If in a state and there is not an outgoing transition triggered by an event, the event is ignored.

U Waterloo SE1 (Winter 2006) – p.37/43

slide-38
SLIDE 38

States

States make the requirements easier to understand by partitioning the behaviour of the system into modes: The reaction of the system to the same event may be different in different states. In some states, there may be no response to certain events.

U Waterloo SE1 (Winter 2006) – p.38/43

slide-39
SLIDE 39

Validation

Given the list of possible events, for each state, consider whether each event e is possible in each state X. It could be the case:

  • 1. There is a transition on e from state X.
  • 2. Event e cannot physically occur in state X (e.g.,

doorOpened cannot occur when the door is open) – no transition on e is needed.

  • 3. Event e is possible but the system should ignore it (i.e.,

the system does not change if event e occurs in state X) – no transition on e is needed.

  • 4. If event e occurs, it is an error, but this error should result

in the system producing an error message – a transition is needed.

U Waterloo SE1 (Winter 2006) – p.39/43

slide-40
SLIDE 40

Common Problems

Overspecification: responding to an event that cannot

  • ccur at a state, thereby not taking advantage of the

partitioning of behaviour provided by states. (This is more

  • f a problem when there are hierarchical states.)

Because a state represents the history of inputs, it represents a precondition. Overspecification means not specifying these preconditions. Underspecification: not responding to an event that is relevant at a state, thereby leaving out requirements of the system.

U Waterloo SE1 (Winter 2006) – p.40/43

slide-41
SLIDE 41

Types of State Diagrams

New to UML 2 is a distinction between: behavioural state machines what’s just been described protocol state machines no actions or activities

  • nly shows proper order of operation calls

transition syntax: [precondition] event1, event2/[postcondition] We will concentrate on behavioural state machines.

U Waterloo SE1 (Winter 2006) – p.41/43

slide-42
SLIDE 42

State vs. Sequence Diagrams

State Diagrams Sequence Diagrams specifies behaviour illustrates behaviour

  • bject states, reactions to

events communication among several objects complete object behaviour individual scenarios in end- to-end behaviour (better feel for overall system be- haviour) developer oriented customer oriented can help developer validate state diagrams

U Waterloo SE1 (Winter 2006) – p.42/43

slide-43
SLIDE 43

Summary

UML state diagram = finite state machine UML sequence diagram = event trace UML state diagram is the specification. Sequence diagrams illustrate the specification for particular scenarios (one path through the state diagrams for each

  • bject).

Next Lecture: UML State Diagrams Part II Reading: No additional readings

U Waterloo SE1 (Winter 2006) – p.43/43
