Left Breast + LNs Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com What is in my pocket? -Eclipse version 13.6 -AcurosXB - Truebeam with Millenium 120 Vanessa Magliari : vanessa@magliari.com Anthony


slide-1
SLIDE 1

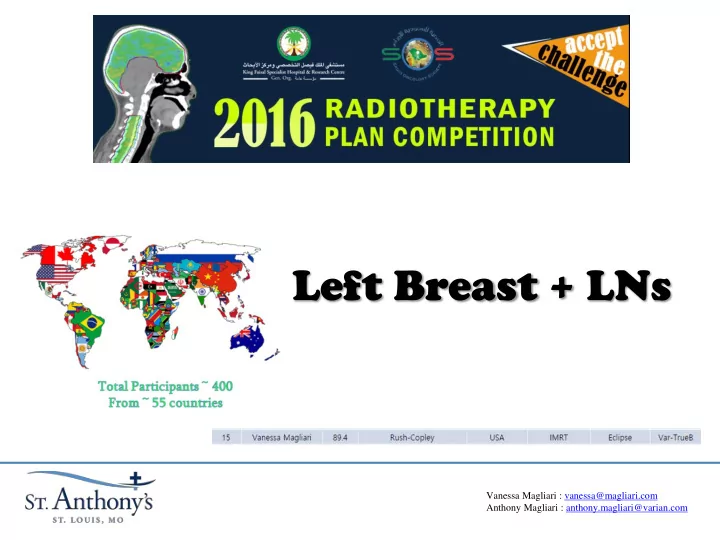

Left Breast + LNs

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-2
SLIDE 2

What is in my pocket?

  • Eclipse version 13.6
  • AcurosXB
  • Truebeam with Millenium 120

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-3
SLIDE 3

Which Technique?

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-4
SLIDE 4

The most important for an IMRT : How to setup your beams?

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-5
SLIDE 5

The most important for an IMRT : How to setup your beams?

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

Gantry colli couch

slide-6
SLIDE 6

The most important for an IMRT : How to setup your beams?

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

Gantry colli couch

slide-7
SLIDE 7

The most important for an IMRT : How to setup your beams?

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

Gantry colli couch

slide-8
SLIDE 8

The most important for an IMRT : How to setup your beams?

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

Gantry colli couch

slide-9
SLIDE 9

The most important for an IMRT : How to setup your beams?

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-10
SLIDE 10

The most important for an IMRT : How to setup your beams?

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-11
SLIDE 11

The most important for an IMRT : How to setup your beams?

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-12
SLIDE 12

Optimization contours

95 per Ring : 2.5cm –(Heart+Lung) at 1.5cm from

the target

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

2.5cm 1.5cm

slide-13
SLIDE 13

Optimization contours

NS-Ring : 0.8cm

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-14
SLIDE 14

Optimization contours

HotSpotHere

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-15
SLIDE 15

Optimization contours

PTV TOT EVAL OPT : (PTV TOT EVAL – HotSpotHere)

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-16
SLIDE 16

Optimization constraints

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-17
SLIDE 17

Optimization constraints

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-18
SLIDE 18

Optimization constraints NTO

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-19
SLIDE 19

Calculation Options

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-20
SLIDE 20

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

slide-21
SLIDE 21

Dose calculation algorithm differences

Vanessa Magliari : vanessa@magliari.com Anthony Magliari : anthony.magliari@varian.com

  • AAA

▪ AcurosXB

▲Collapsed Cone

In this comparison the original plan was calculated using Collapsed Cone algorithm on a Varian IX machine with Millenium 120 MLC. The plan and dose where imported into Eclipse. The plan was copied and recalculated with fixed MU and then normalised to 95% coverage at prescription dose with both AAA and AcurosXB

slide-22
SLIDE 22

Thank you !

To Ahmad d for his amazing ng work, , time and nd effort t so so we we can learn and nd ev evolve to toge gether er!
