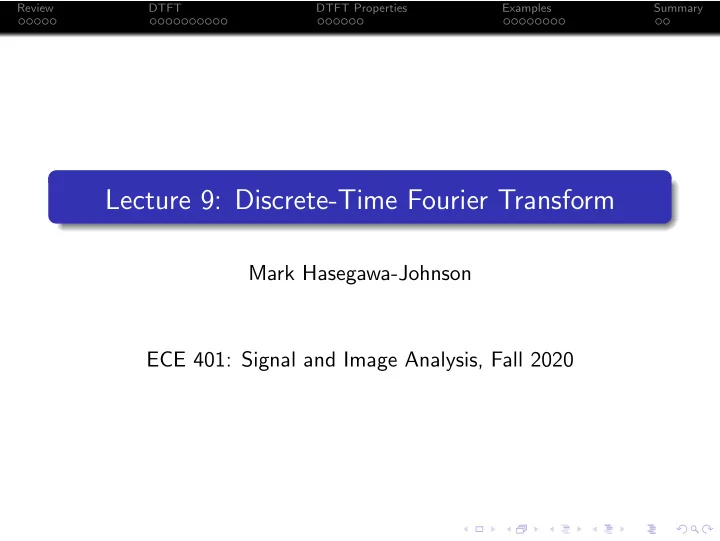

Lecture 9: Discrete-Time Fourier Transform

Mark Hasegawa-Johnson ECE 401: Signal and Image Analysis, Fall 2020

Review DTFT DTFT Properties Examples Summary

1

Review: Frequency Response

2

Discrete Time Fourier Transform

3

Properties of the DTFT

4

Examples

5

Summary
